Descrizione del prodotto

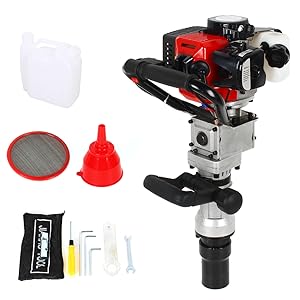

Il pacchetto include
1x Gasoline Pile Driver
2x Sleeves

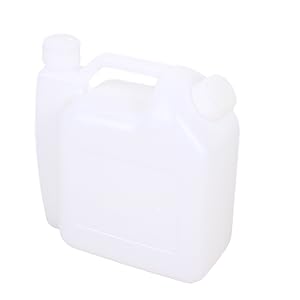

1x Proportioning Pot
11 imbuto
1x Tool Bag
1x Strainer
All Needed Accessories
How to Operation
1.Add oil mixture to the tank.
2.Check that the flame-out switch is set to “-“.
3.Close the damper when starting the machine cold; open it when the machine is hot and normal.
4.Remove air from the oil pipe by pressing the oil bubble.
5.Start the machine by pulling the starter continuously.
6.Adjust the hand grip to the proper position.
7.Begin working and stop at the desired depth.
8.Stop working by turning off the flameout switch to the “0” posizione.

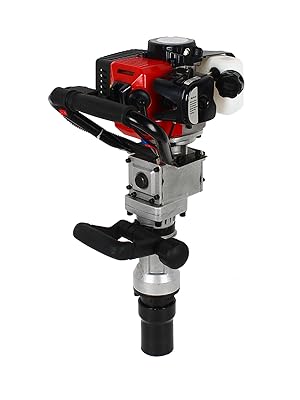

Design intuitivo
The lightweight design(28.66libbre ) is easy to carry and control. Allo stesso tempo, the cordless gasoline power is cordless better for outdoor use.

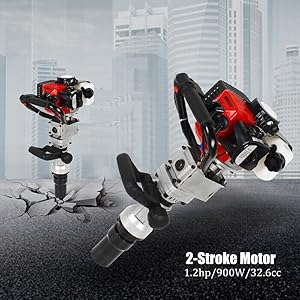

32.6Cc 2 Stroke Engine
Provides impact energy of up to 20-45J and impact frequency of up to 1200-2200r/min, realizing efficient handling of various piling work.

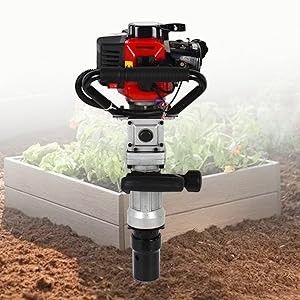

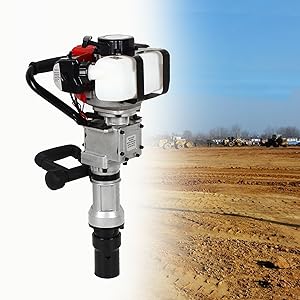

Applicazione
It is suitable for a range of piling projects in gardening, road fencing, agricultural fencing, orchard support, Esplorazione geofisica, costruzione, piantagione di verdure, protezione da recinzione, eccetera.

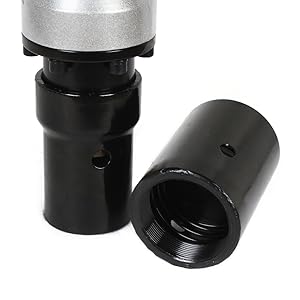

Two Sleeves
Two different sleeve sizes allow for a wider range of applications. The threaded connection makes it easier to change.
Serbatoio del carburante
The large 0.23gal translucent fuel tank avoids frequent refuelling and makes it easy to keep an eye on fuel usage.

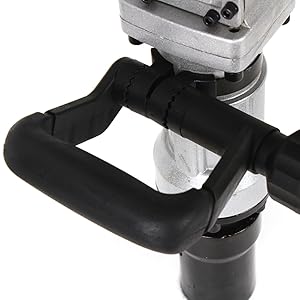

Double Handle Design
The double handle allows for a more stable operation. It is wrapped with soft sponge for a more comfortable grip as well as to prevent slippage when your hand is sweating.
Appunti
1.The carburettor must be cleaned after every 100 hours of operation before use. The air filter sponge must be cleaned after 36 hours of operation.
2.Se non utilizzato per lungo tempo, the fuel and oil must be cleaned out of the tank and packed in a plastic bag to avoid dust and moisture entering the machine and affecting its use.
3.Pay attention to whether the oil inlet pipe is full of oil before use.
4.Dopo l'avvio, you need to empty the throttle and let the machine start for a while before starting work.
Si prega di consentire la leggera differenza di colore causata dalla luce di tiro e l'errore di 1-3 cm a causa della misurazione manuale, e assicurati che non ti dispiaccia prima di ordinare.
Specifiche
Material ABS, Ferro, Aluminum and Alloy Steel Color Red/Blck Power Source Gasoline Powered Starter System Hand Pull Start Engine Type 36x32mm/1.41×1.25In, Singolo cilindro, Raffreddamento d'aria, 2-Stroke Impact Frequency 1200-2200r/Min Impact Energy 20-45J Piling Head Size φ55mm/2.16in, φ70mm/2.75in Fuel Oil Mixture (Benzina:2-Stoke Engine Oil=25:1) Fuel Capacity 0.9L/0.23gal Fuel Consumotion Rate ≤0.5L/h(0.13gallone/ora) Displacement 32.6cc Max. Torque and Speed 1 .45N.m/5300r/Min Product Size 55x27x31cm/21.65×10.62×12.2in Secondary Handle Size 12x15cm/4.72×5.9in Net Weight 13kg/28.66lbs
Aluminum and Alloy Steel
【Robust and Durable】The high-quality ABS, ferro, aluminum and alloy steel materials are robust and wear-resistant, resistente ai graffi, impact-resistant and rustproof, ensuring a long service life and good adaptability to the working environment.
【High Efficiency】The powerful 32.7cc two-stroke engine provides impact energy of up to 25-50J and impact frequency of up to 1700-2230BPM, realizing efficient handling of various piling work.
【Complete Accessories】The proportioning pot, funnel, strainer and installation tool kit are included in the package for your convenience, so you don’t need to buy extra.
【Fuel Tank】The large 0.23gal translucent fuel tank avoids frequent refuelling and makes it easy to keep an eye on fuel usage.
【Good Heat Dissipation】Multiple cooling holes on the body provide good heat dissipation, maintaining stable performance over long periods of time.
1. How do I properly maintain and care for my gas powered T post driver?
Risposta: It is important to regularly clean and lubricate the moving parts of the T post driver to ensure smooth operation. Inoltre, make sure to check and tighten any loose screws or bolts before each use.
2. What type of fuel should I use for my 2 stroke gas powered pile driver?
Risposta: It is recommended to use a high-quality 2-stroke oil mixed with unleaded gasoline in a 50:1 rapporto. This will provide optimal performance and extend the lifespan of your T post driver.
3. Can I use my gas powered pile driver in all weather conditions?
Risposta: While the T post driver is designed to be used in various weather conditions, it is important to avoid using it in extremely wet or icy conditions to prevent damage. Make sure to store it in a dry and secure location when not in use.
4. How loud is the gas powered pile driver during operation?
Risposta: The T post driver can produce noise levels up to 110 db, which is similar to the noise level of a chainsaw. It is recommended to wear ear protection when using the device for extended periods to protect your hearing.
5. Can I use the gas powered pile driver for other tasks besides driving T posts?
Risposta: While the T post driver is primarily designed for driving posts, it can also be used for various other pile driving tasks such as fence building, sign installation, e altro ancora. Tuttavia, it is important to ensure that the device is compatible with the specific task at hand to prevent damage.
