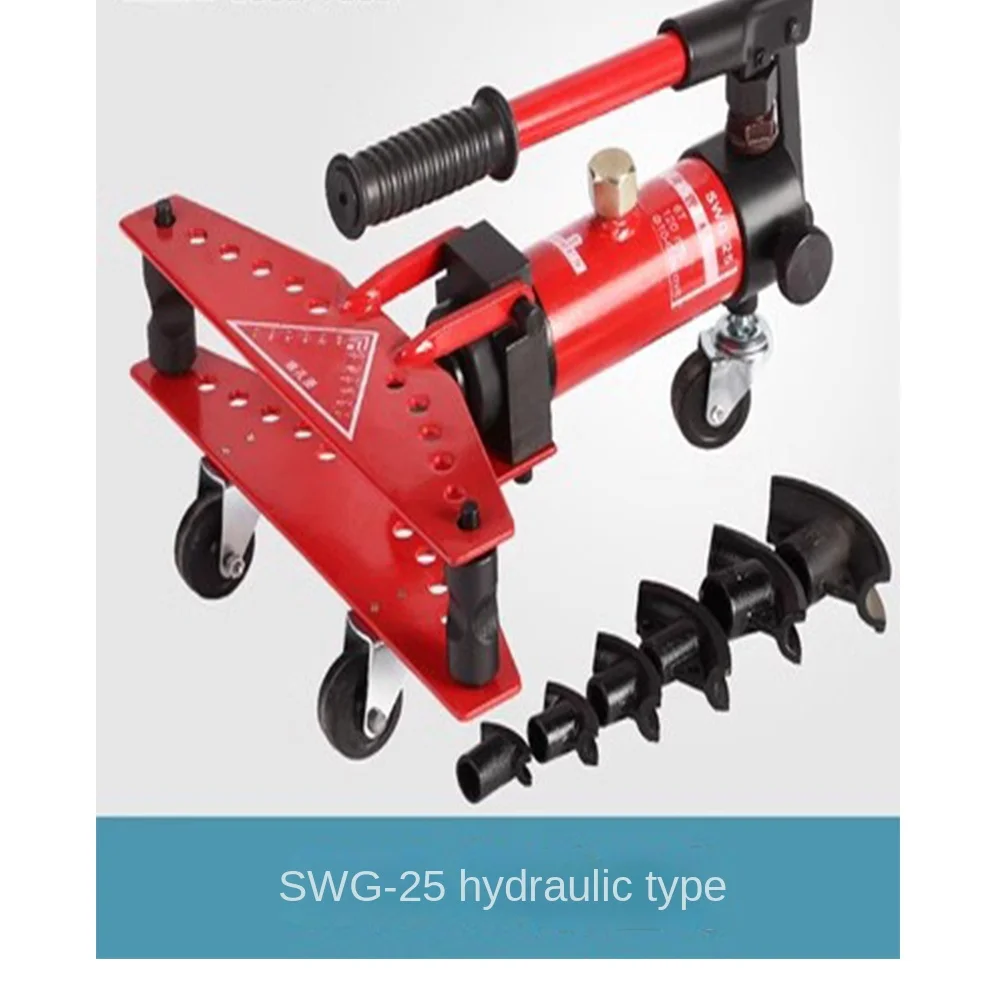

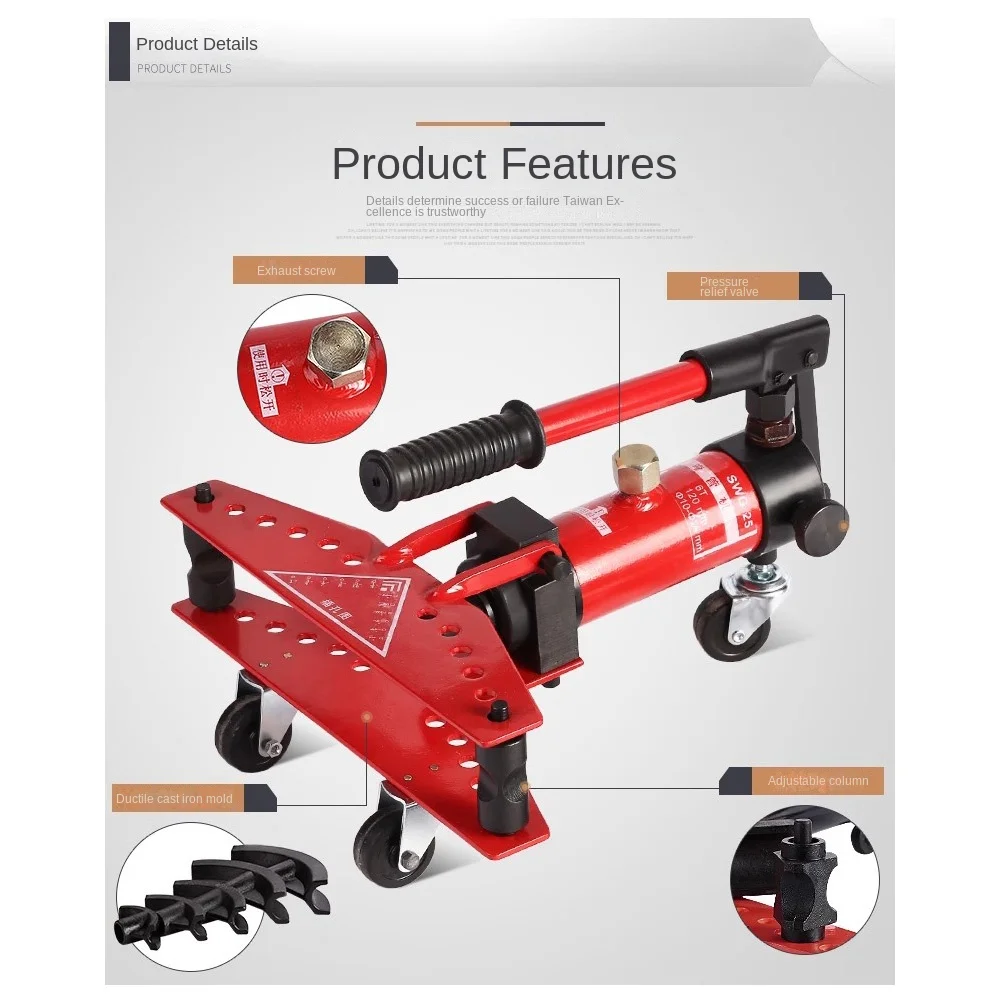

Cintreuse hydraulique de barres d'armature SWG-25, Machine à cintrer manuelle de tubes en cuivre, pour taches…

We have recently developed a new hydraulic pipe bender that is easy to use and efficient! It is suitable for pipe diameters ranging from 10-25mm with a wall thickness of 1.5-5mm.

The tube maintains its shape up to 90 degrés.

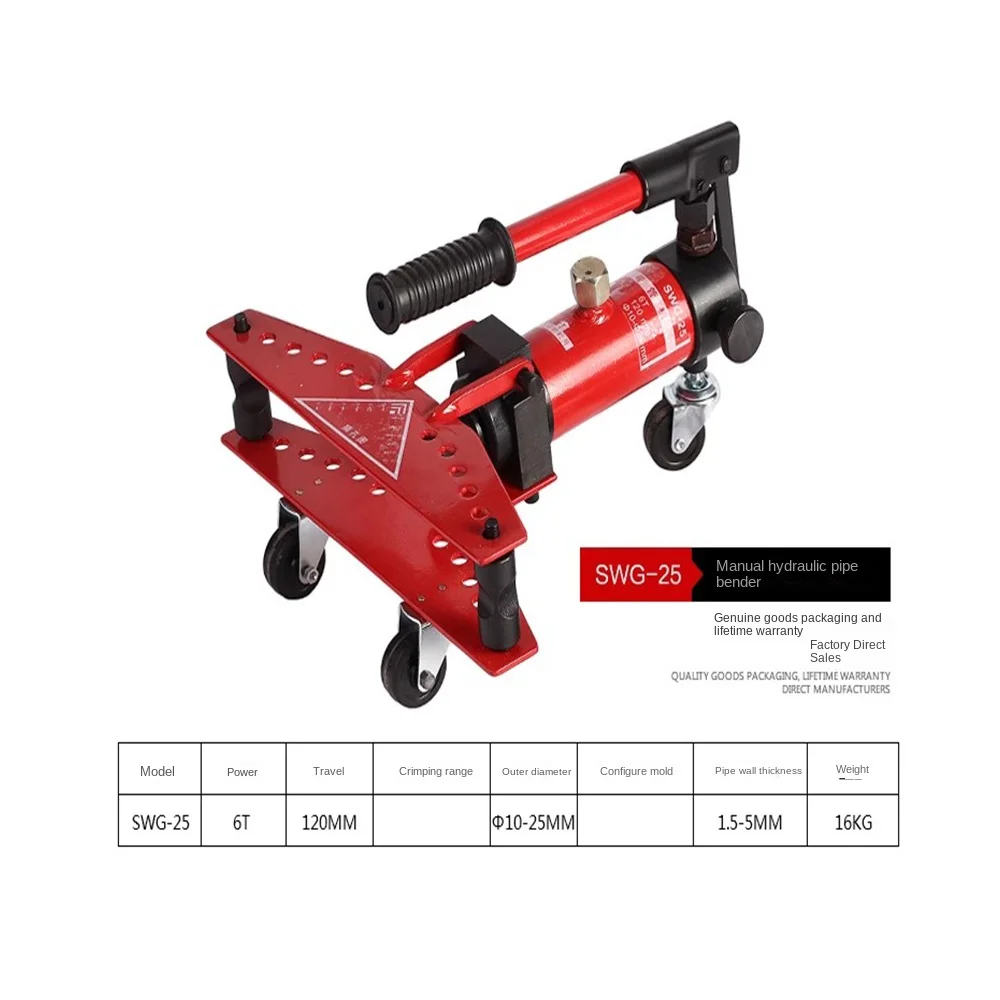

Modèle: SWG-25

Name: Integral hydraulic pipe bender

Output: 6T

Stroke: 120mm

Diamètre extérieur: Φ10mm-Φ25mm

Pipe wall thickness: 1.5-3.5mm

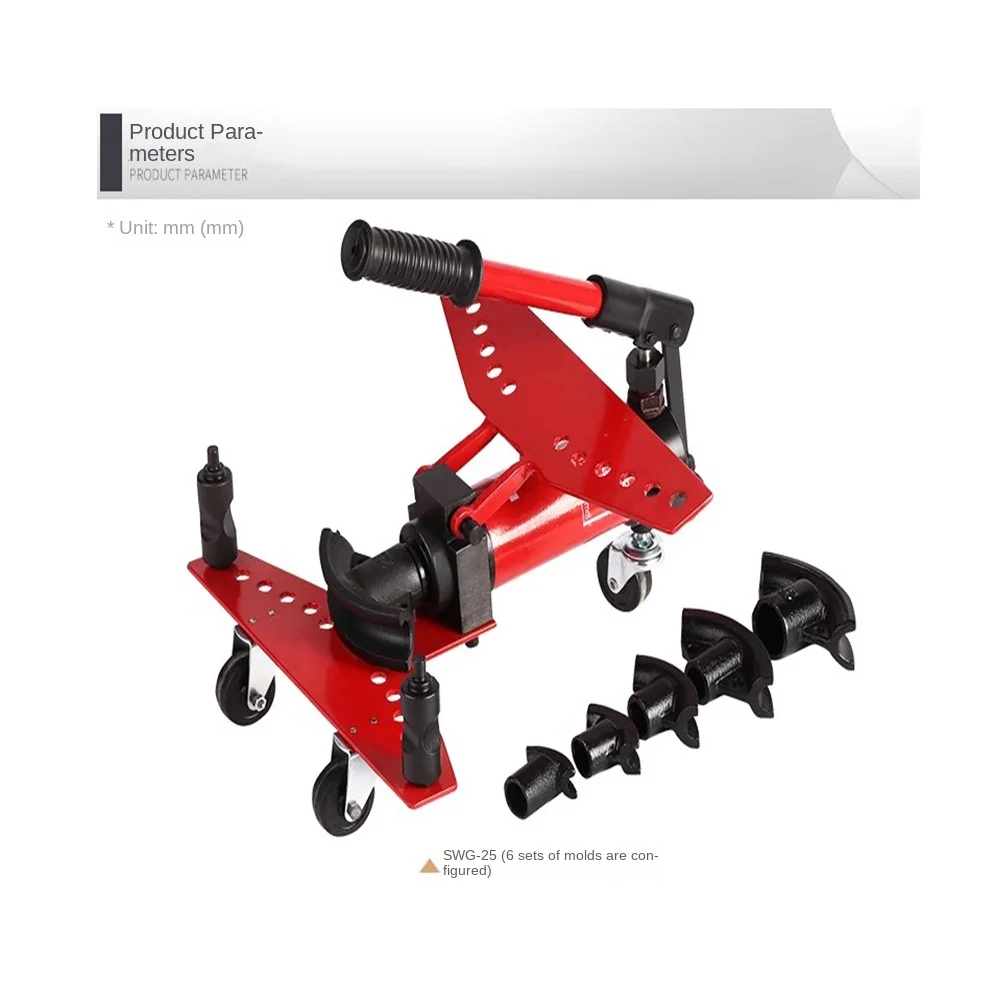

Configuration mold: Φ10, Φ13, Φ16, Φ19, Φ22, Φ25

Poids: 16kg

Champ d'application: Suitable for general water pipes, conduits, gas pipes, thick steel pipes, etc., with a maximum bending angle of 90 degrés.

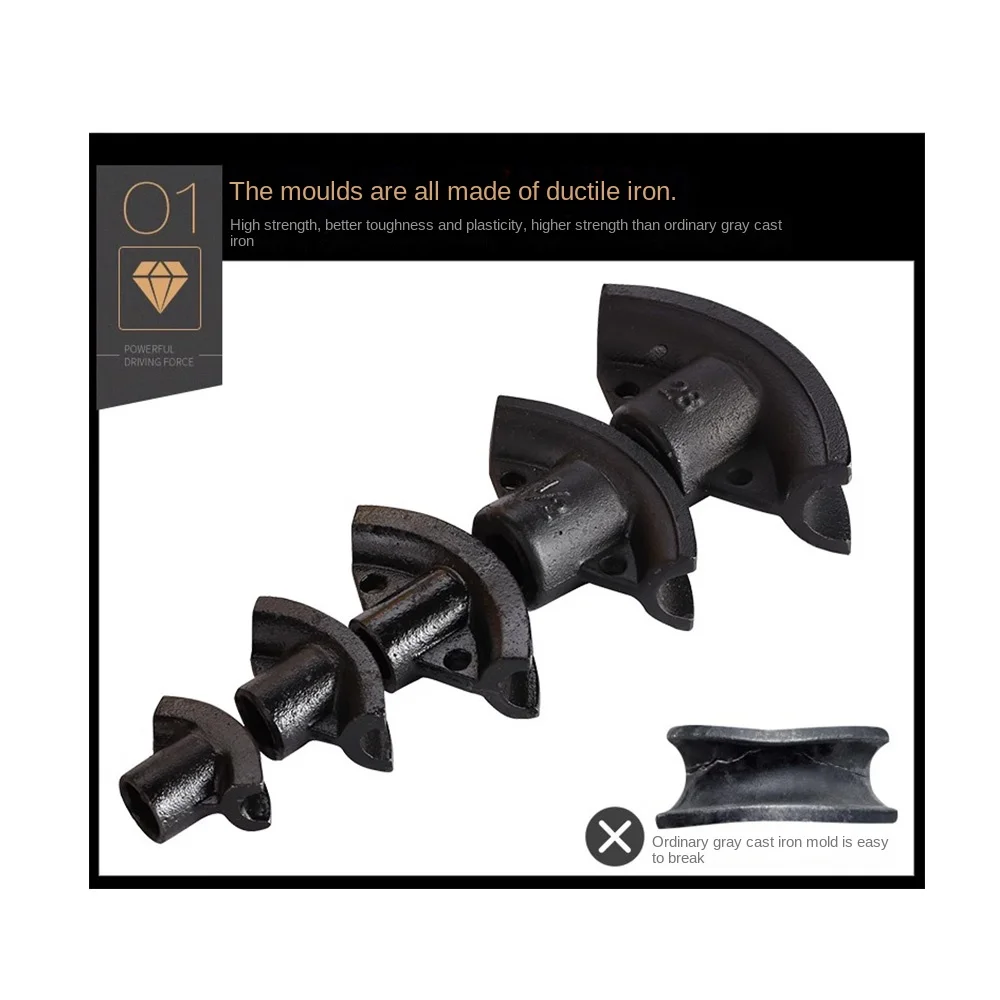

The molds are made of nodular cast iron, providing higher strength, better toughness, and plasticity compared to ordinary gray cast iron. They are more durable and less likely to break.
