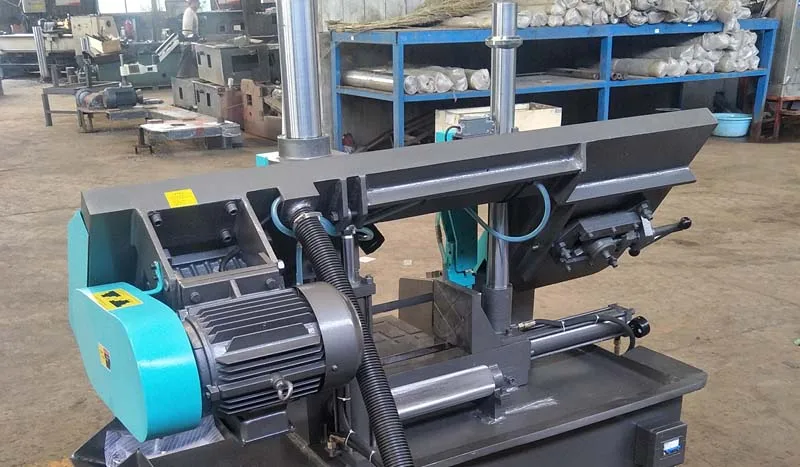

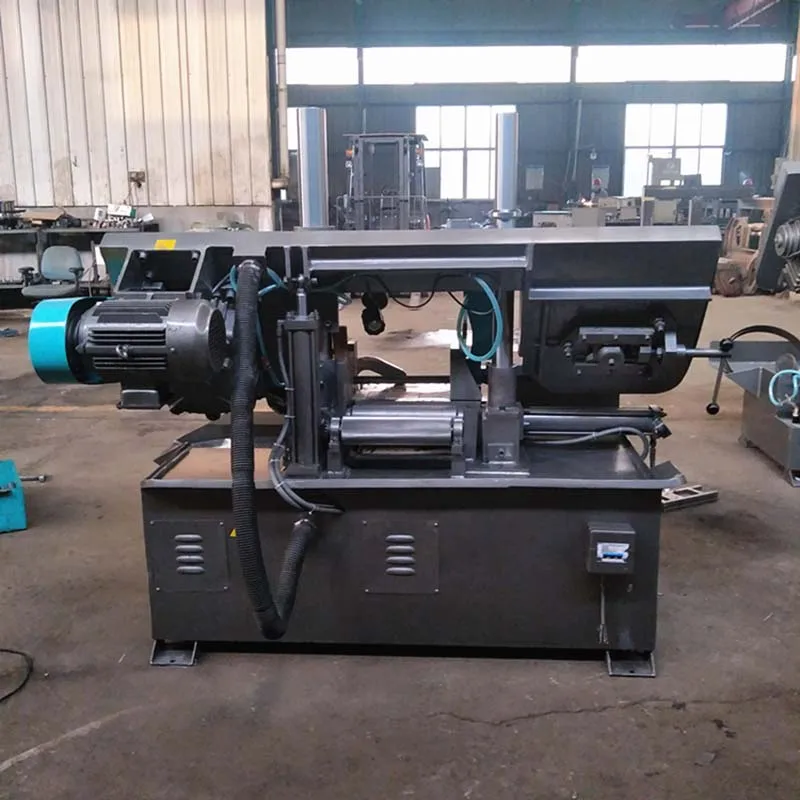

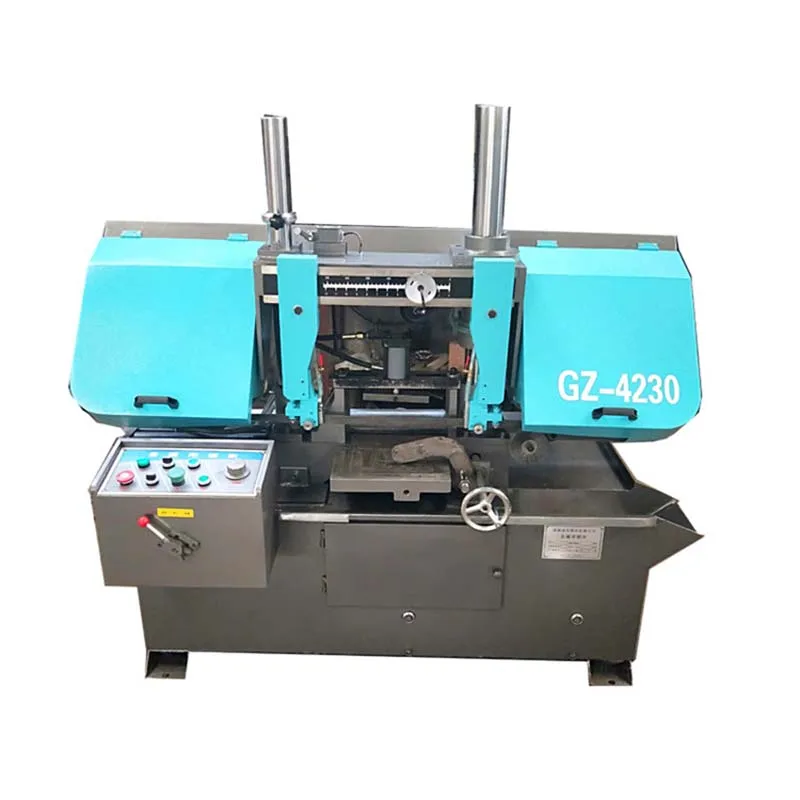

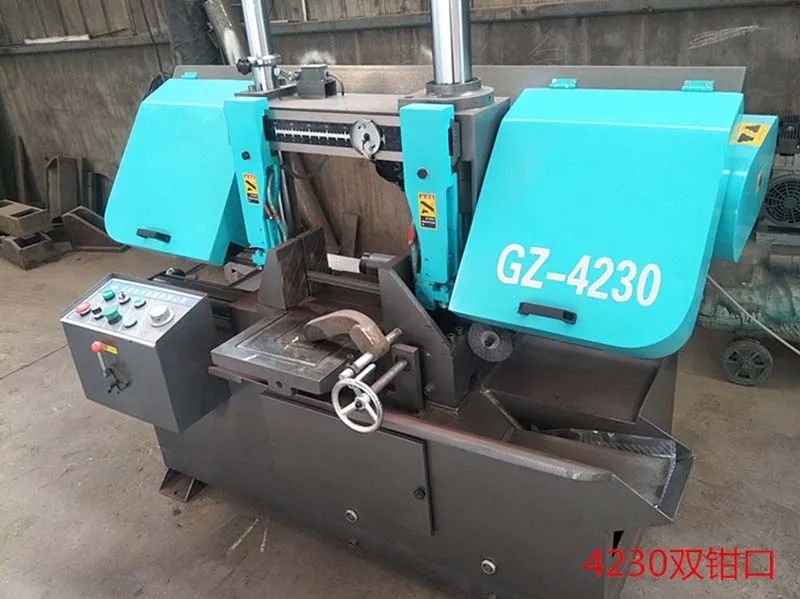

A high-quality semi-automatic horizontal metal cutting band sawing machine is designed for professional use. This machine offers precise cutting and efficiency in cutting metal materials. The semi-automatic function allows for easier operation and improved productivity. It is a reliable tool for industrial metalworking projects, delivering smooth and accurate cuts. With its sturdy construction and advanced features, this band sawing machine is ideal for heavy-duty cutting tasks, ensuring safety and reliability in operation.
1、 Product performance:
1. This machine tool is made of Taiwan technology and can cut various ferrous and non-ferrous metals.
2. Double column structure, ensuring the guiding accuracy and stable and reliable sawing
3. The jaw is hydraulically clamped, which is convenient for clamping materials and suitable for cutting die materials
4. The transmission mechanism of the band sawing machine is precisely balanced and calibrated to reduce vibration and ensure that the saw belt is not easy to break teeth and pull teeth
2、 Technical parameters:
Maximum sawing specification (mm) φ 300 □300 × three hundred
Saw band specification (mm) 3505 × twenty-seven × zero point nine
Working mode: hydraulic clamping
Main motor power (KW) 3KW
Oil pump motor power (KW) 0.55KW
Pump motor power (KW) 0.04KW
Sawing machine size (mm) 1800L * 1000w * 1500H (maximum size)
Sawing machine weight (KG) 700KG
Saw belt linear speed (m/min) 40/60/80
