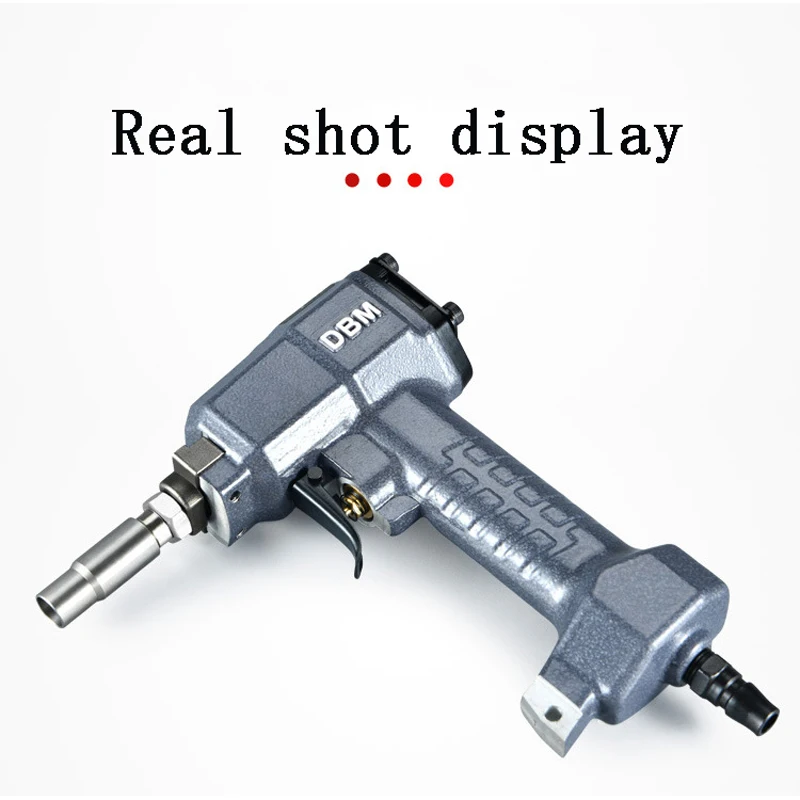

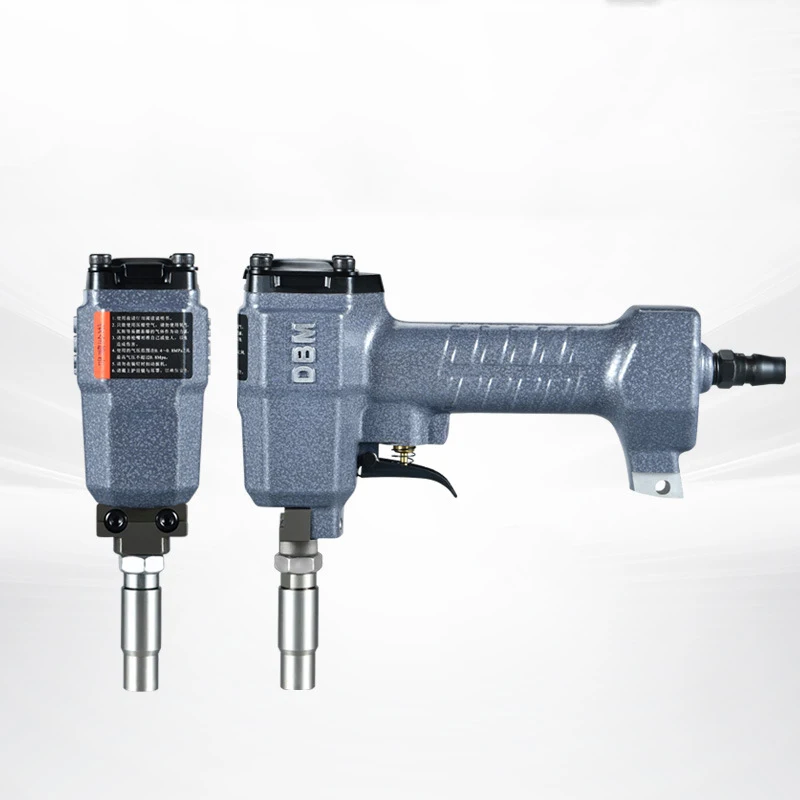

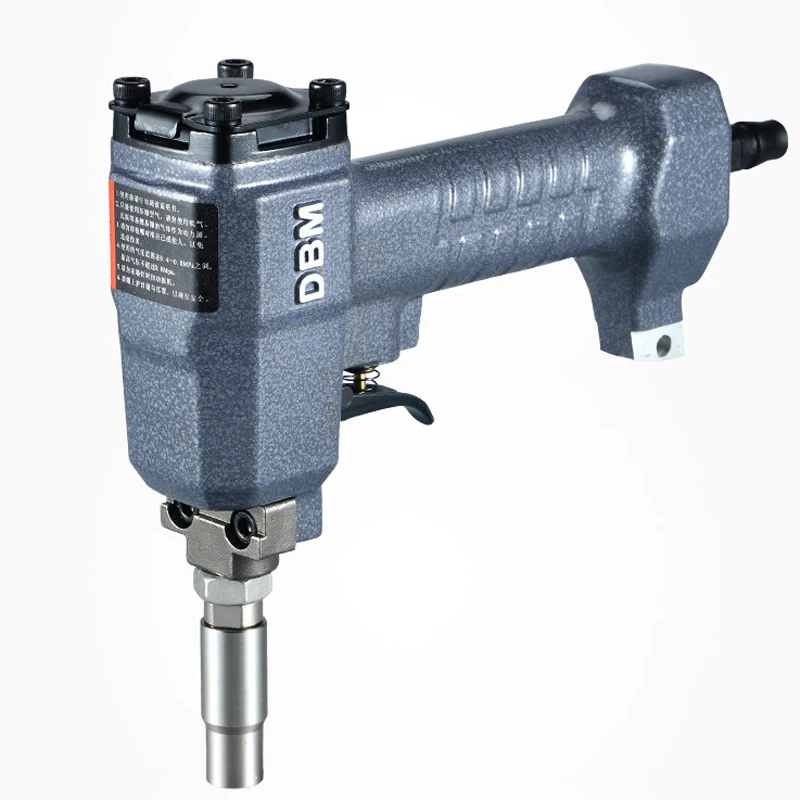

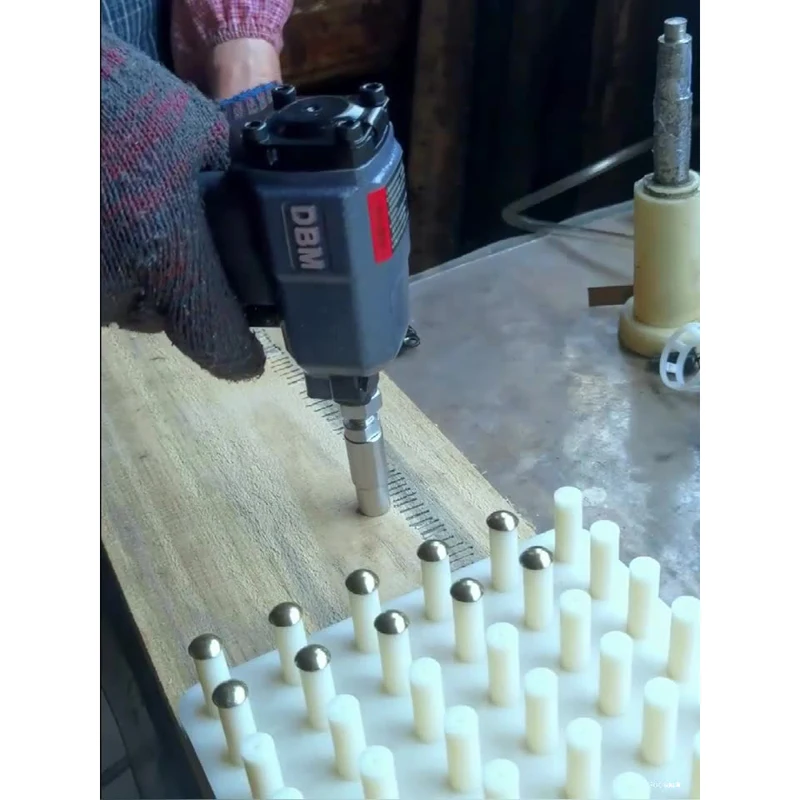

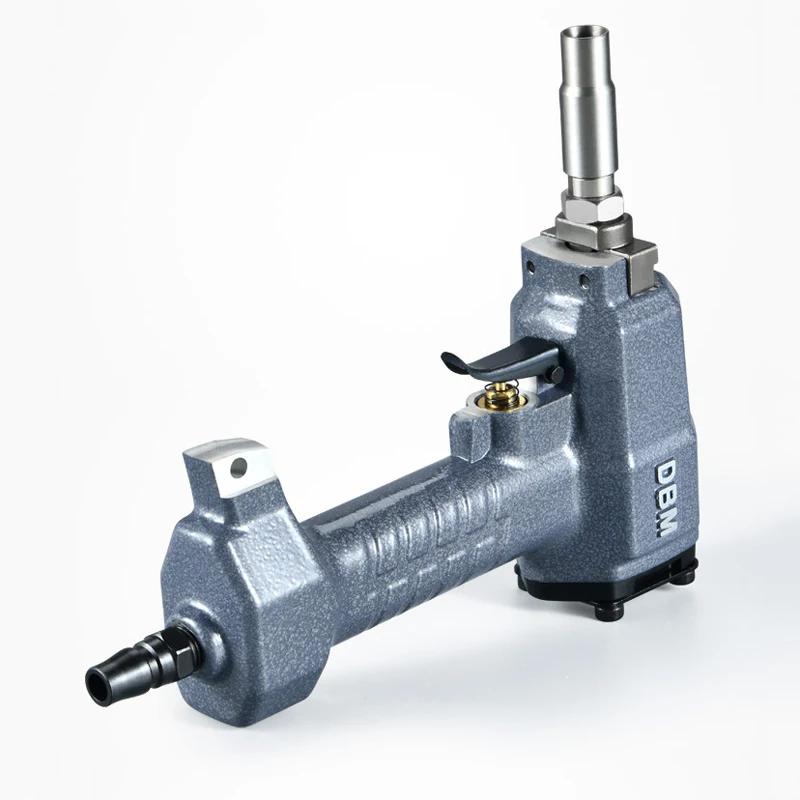

The pneumatic trim finish pin gun nailer is a tool used for upholstery and decorative nail work in woodworking. It is suitable for leather sofas, furniture, and other woodworking projects. The gun can drive nails ranging from 6.3mm to 20.3mm in length. This pneumatic nail gun is designed to provide precise and efficient results when working on projects that require precision and detail. It is a versatile tool that can be used for various finishing tasks in woodworking and upholstery projects.
Parameter:
Nom du produit: Pneumatic Nail Gun
Brand: DBM

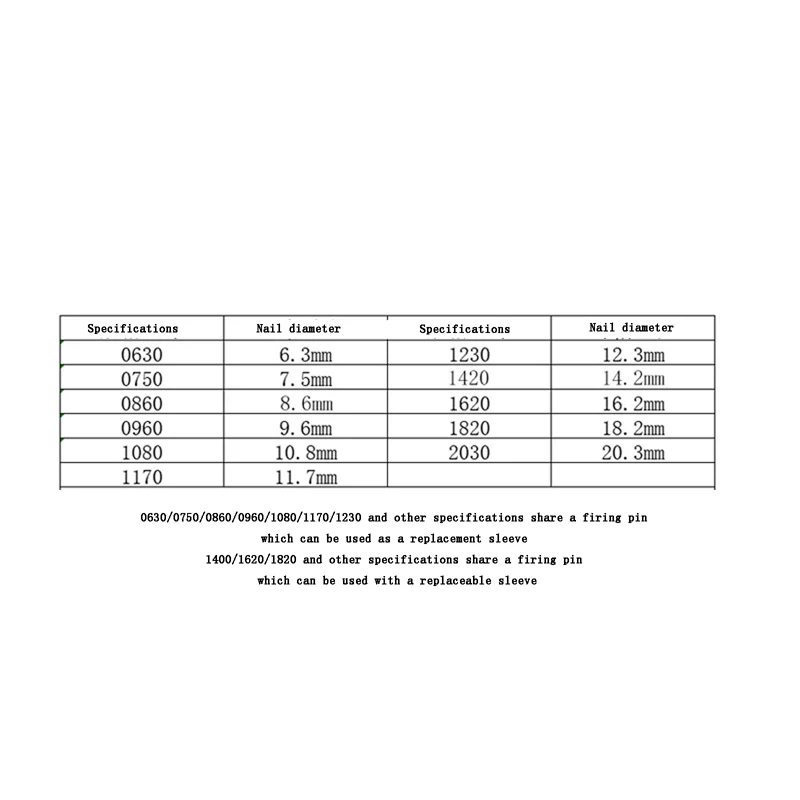

Modèle: 630/750/860/960/1080/1170/1230/1400/1620/1820/2030
Sleeve diameter: 6.3/7.5/7.6/9.6/10.8/11.7/12.3/14/16.2/18.2/20.3MM Optional
Nail slot capacity: 1Pièces
Working pressure: 0.4-0.7mpa
Air inlet size: 1/4 Pouce
Poids: 1KG
Packing size: 260x185x67MM
Fonctionnalité:

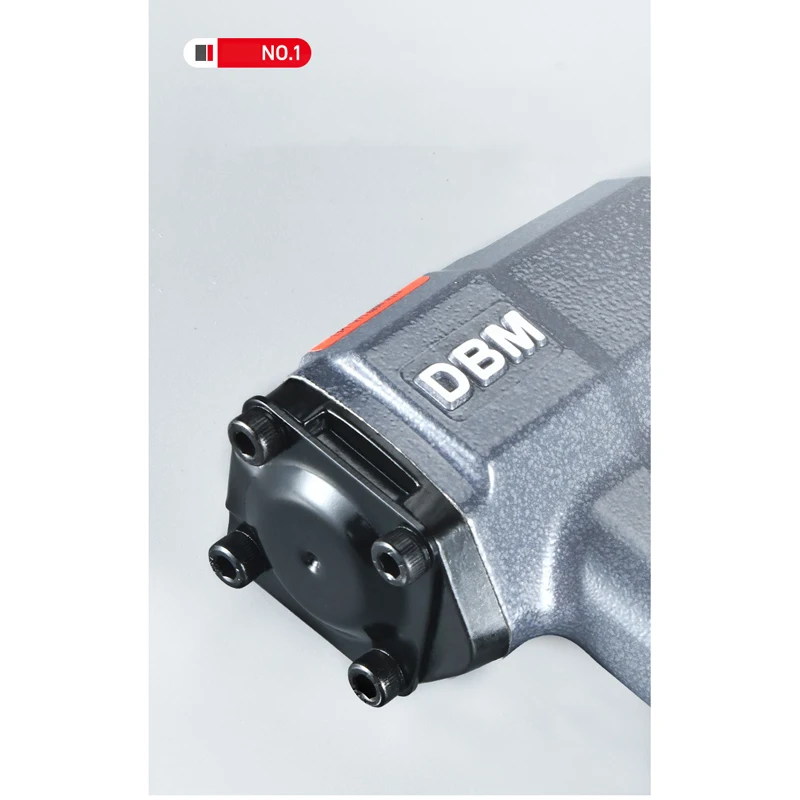

1. The gun body is made of aluminum alloy casting, which is durable.
2. The main parts are made of high-quality spring steel and processed by the machining center. The products are of high precision and reliable quality.
3. Low air consumption, low noise, fast nailing and strong power.

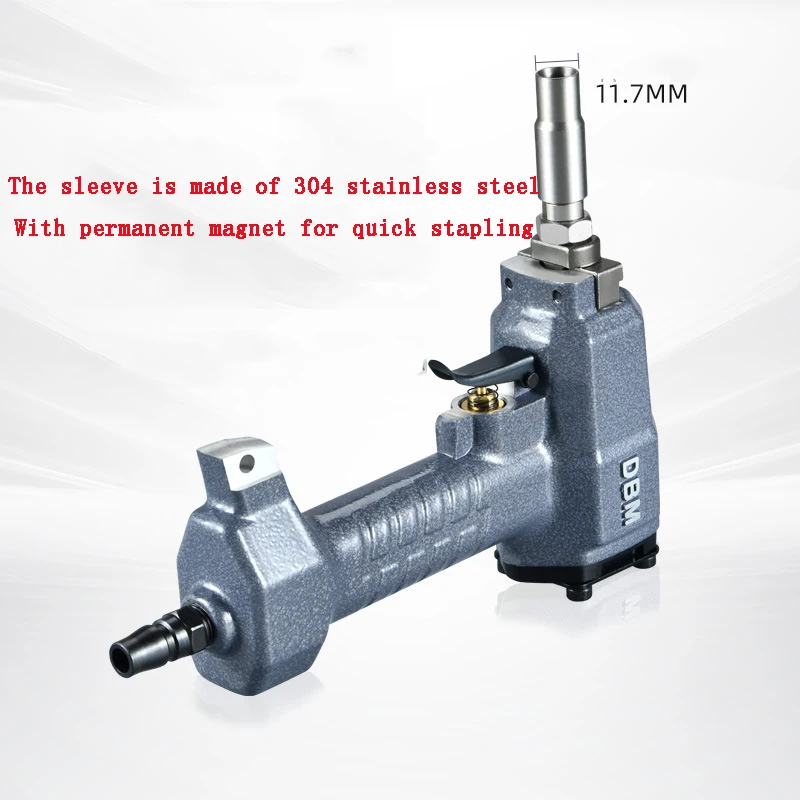

4. The gun nozzle is made of 304 acier inoxydable, with permanent magnets, which can be nailed quickly.
Working Principle:

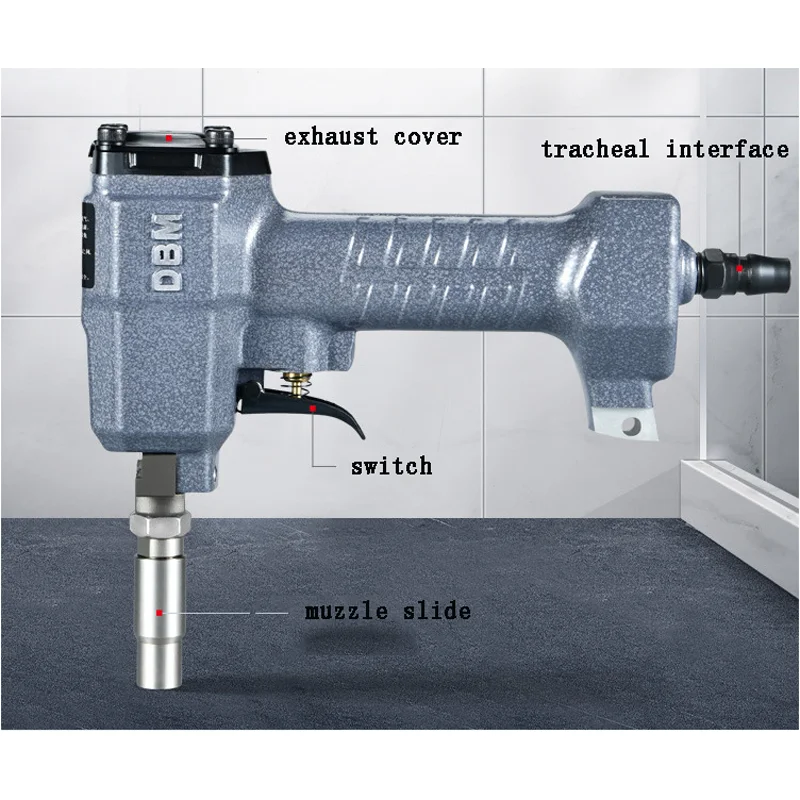

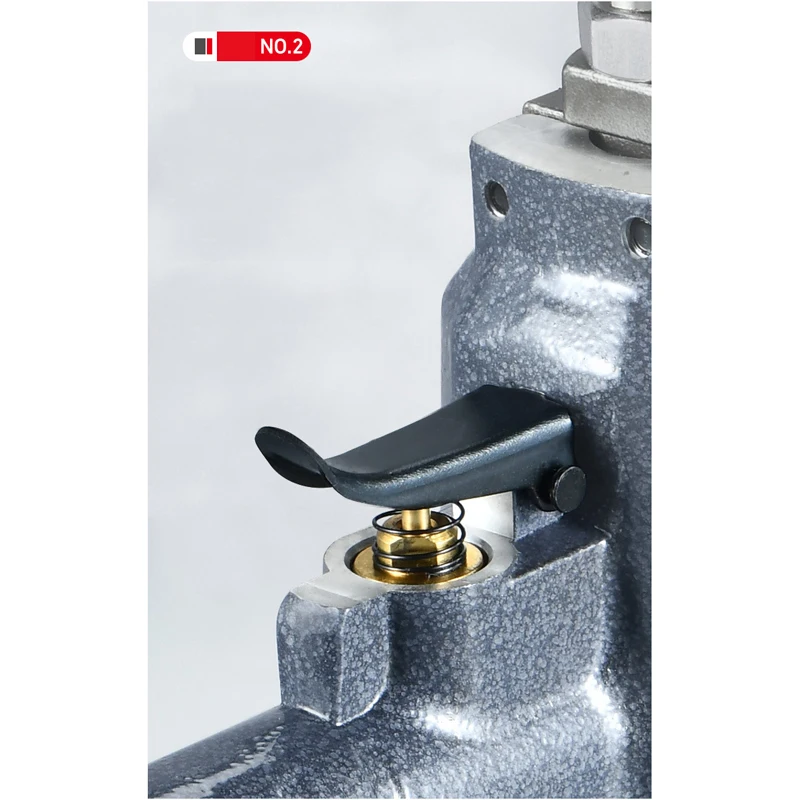

The gun body is composed of gun body, cylinder, balance valve, switch assembly, firing pin assembly, cushion, gun nozzle, gun groove, etc., using the difference between compressed air and atmospheric pressure, and triggering the trigger switch to make the firing pin reciprocate in the cylinder; The clip part is composed of gun head, gun cover, fixed clip, movable clip and other accessories. The nail is sent into the groove of the gun cover through a compression spring or a tension spring, and the nail is driven out when the firing pin comes out of the gun mouth.
Liste de colisage:
1 x Pneumatic nail gun
2 x Hex wrench
