The Fit N156HGE-LA1 LB1 LG1 LCD Driver Control Board Kit is designed for 15.6-inch LCD screens with a resolution of 1920×1080. This kit allows for easy installation and control of the LCD driver, ensuring optimal performance and display quality. It includes all necessary components for seamless integration with the display, making it ideal for DIY repairs or upgrades. The kit is compatible with multiple models and provides a convenient solution for enhancing the functionality of your LCD screen. Dans l'ensemble, this kit offers a cost-effective and efficient way to maintain or improve your display experience.
Instructions for purchasing this kit:
1, Avant d'acheter, Please ensure that your screen model is exactly the same as the model in our list, and that the screen itself can be turned on and displayed normally. If your screen is damaged, please do not place an order as this kit cannot repair and drive damaged screen.
2, If your screen model is not in our product list. Please provide us with the complete screen model to confirm the suitable kit (C'est très important, Wrong purchase may lead to unusable). The model label can be found on the back of the screen panel. As shown in the following photo:
3, Power adapter input: DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+ outside-)
Veuillez noter: Do not use a power adapter with voltage exceeding 12V, as this will damage the circuit board.
4, This controller board kit is suitable for LED screen of LVDS 40-Pin signal ports. Only supports TV analog signals, not digital signals. AV Compatible With PAL And NTSC. USB port supports software upgrade, multimedia play. When powered on, the indicator light is red. It will turn blue in about 5 secondes. When the correct signal input is not detected, the indicator light will turn red again. As shown in the following photo:

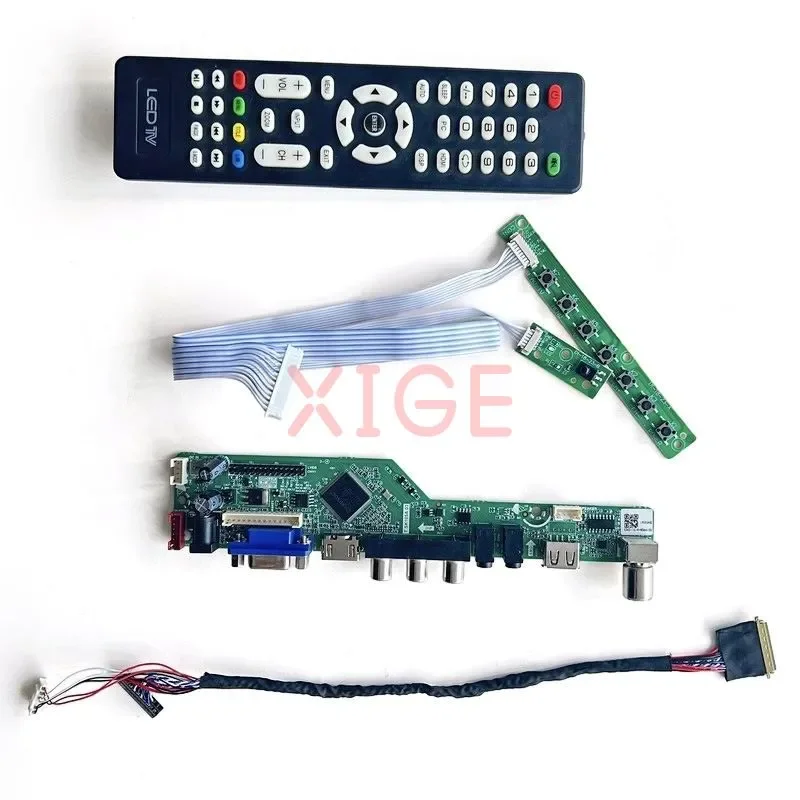

5, Le kit comprend:
1Pcs x Controller motherboard
1Pcs x LVDS signal cable
1Pcs x IR and Keyboard with cable
1Pcs x Remote control (Battery Not included)
In addition to the products included in the kit, you may also need the following accessories:
DC 12V 3A Power adapter → Please click here
PH2.0 4-Pin Small speaker → Please click here
Motherboard Protection Box → Please click here
6, Please refer to the photos below for screen cable connections and language settings. (OSD menu has multiple interfaces. If different, Veuillez nous contacter)
7, If you have any problems during the operation. N'hésitez pas à nous contacter. Il’s best to provide some photos or videos to help us check the problem. Blind negative evaluation does not solve any problem. Hope we can communicate to solve. Thanks in advance.
Below are photos from buyer feedback. For reference only.
