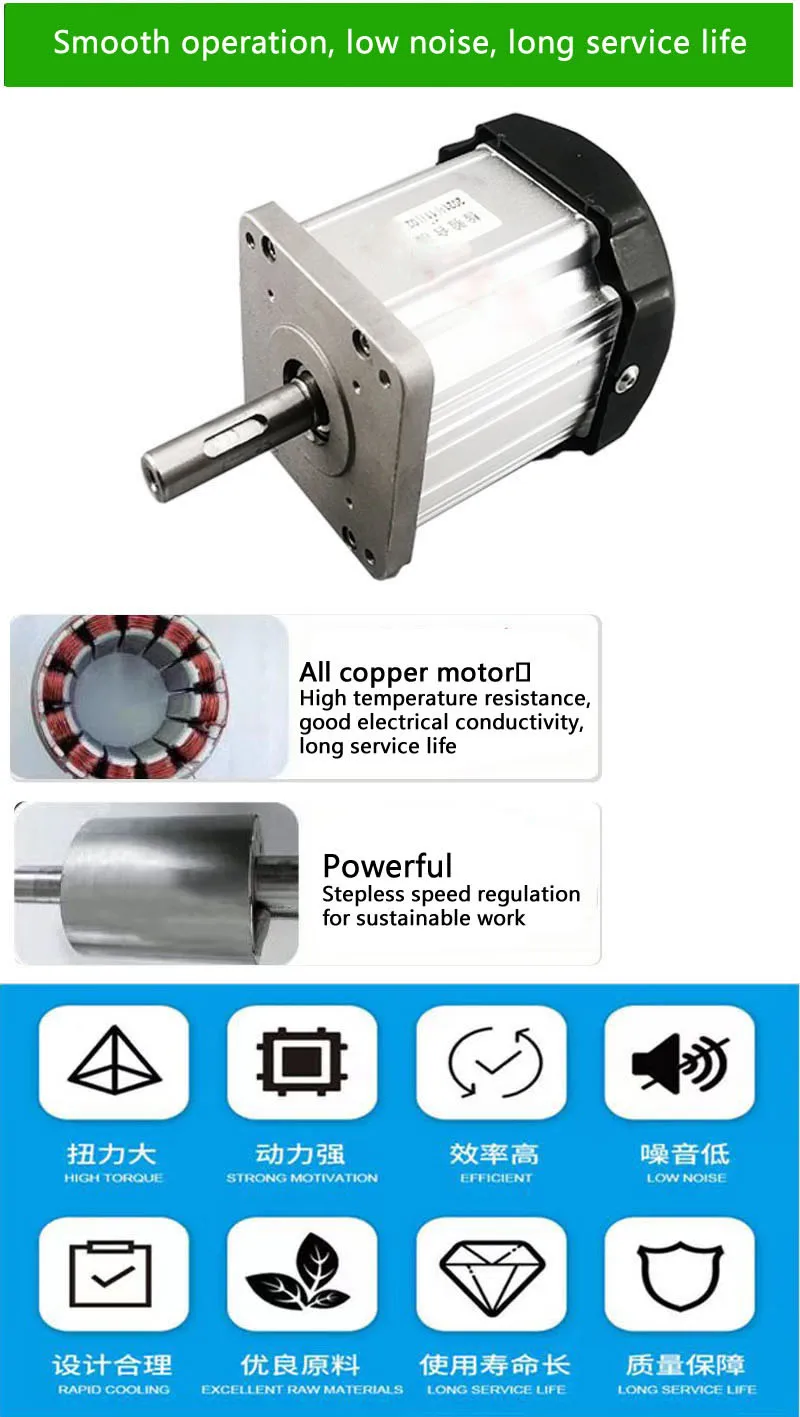

600W 800W 220V 80mm Brushless DC Servo Motor Kit BLDC + Regulator Speed Adjustable for Woodworking Lathe Belt Bead Machinery

NOTE: The input voltage of the motor is 220V AC and the output voltage is 220V DC.

600w/800W optional

High power DC brushless Servo

Smooth running

Reversible/Adjustable speed

Faible bruit

faible élévation de température

Pure copper wire

1. Brushless DC Servo Motor 800W：

Motor Size: 80mm X 80mm

Motor length: 115mm

Motor shaft diameter: length 50mm, diameter 14mm, keyway depth 2mm

Pouvoir: 800w

Vitesse: 200-5000 RPM (can be forward and reverse, CW / CCW)

Couple: less than or equal to 4.5NM

2. Brushless DC Servo Motor 600W

Motor Size: 80mm X 80mm

Motor length: 105mm

Motor shaft diameter: length 50mm, diameter 14mm, keyway depth 2mm

Pouvoir: 600w

Vitesse: 200-5000 RPM (can be forward and reverse, CW / CCW)

Couple: less than or equal to 3.0NM

Contrôleur:

1.800W Kit*1

2.800W Kit*1 and bracket*1

3.600W Kit*1

4.600W Kit*1 and bracket*1
