First, utiliser
A new generation of enameled wire electric scraper. The machine adopts the internationally advanced electric scraping paint technology, which can easily and quickly scrape the insulating paint film on the surface of various enameled wires without damaging the substrate. Its performance is superior to the similar electric squeegee and traditional ones at home and abroad. Manual knife scraping, grinding wheel sandpaper grinding, syrup corrosion and other stripping methods not only greatly improve the wire welding efficiency, but also significantly improve the welding quality, is the coil manufacturing and maintenance industry of motors, electrical appliances, instruments, transformers, electronics, household appliances and power tools. The ideal scraping tool.

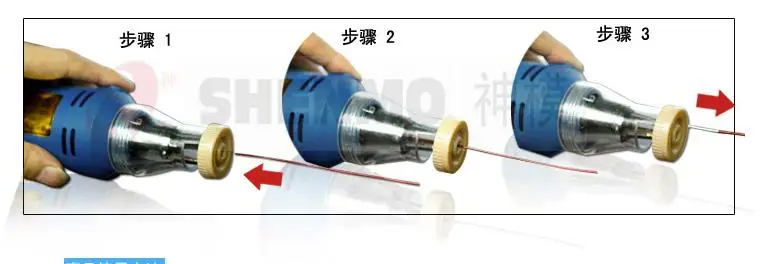

Operation method
1. Extend the enameled wire head that needs to be painted into the center of the tool holder, press the power start switch, and the motor will rotate.
2. Move the enameled wire in the opposite direction of the axial direction until the end of the enameled wire, then the film can be scraped off.
3. Release the power button switch.
4. Replace the work and repeat the above steps.
Wire diameter adjustment and related matters
1. When the enameled wire is of different specifications, the adjustable speed potentiometer can be adjusted. The wire diameter is adjusted in the slow direction, and the wire diameter is adjusted in the fast direction. When the paint film is not peeled off, the speed is increased until it is scraped. If the enameled wire is cut by a scraper during speed regulation, the speed should be reduced until it meets the requirements. According to the above method, the most suitable rotation speed is selected as the working speed of the corresponding wire diameter, which can be considered to have been adjusted.
2. When scraping the paint to the end of the enameled wire, do not immediately disengage the three blades from the end. The intersection of the cutting edge should wait for the tool to stop rotating and then disengage, so as not to rotate, the enameled wire suddenly breaks off the cutting edge and damages the cutting edge.
3. The outer casing is made of voltage-resistant plastic material, which is safe and reliable.
4, before the enameled wire scraping paint, you must manually straighten the hand, to avoid the enameled wire is not allowed to the center of the cutting edge.
5. After using for a long time, under the condition that the power supply is not available, the safety cover can be unscrewed to remove the peeled paint film powder.

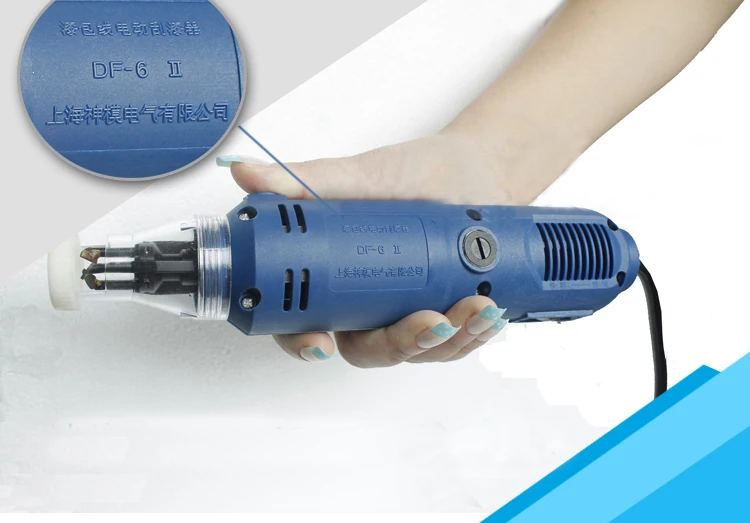

Can master with one hand
Selling Point
Describe the details of the selling point above, attracting and providing trust to your potential users.
The structural composition
1. The hand-held electric scraper is composed of an electronic stepless regulator and a single-phase series motor and a scraping blade. It adopts a light and durable micro-drag switch and a spinning carbon brush. It has the characteristics of fast painting speed, haute efficacité, simple operation, simple installation and stable quality, low failure rate, high production efficiency and novel design.
2. The fixed electric squeegee consists of two parts: electric power components (single-phase and series-excited motor) and scraping knives and governors.
