Produktbeschreibung

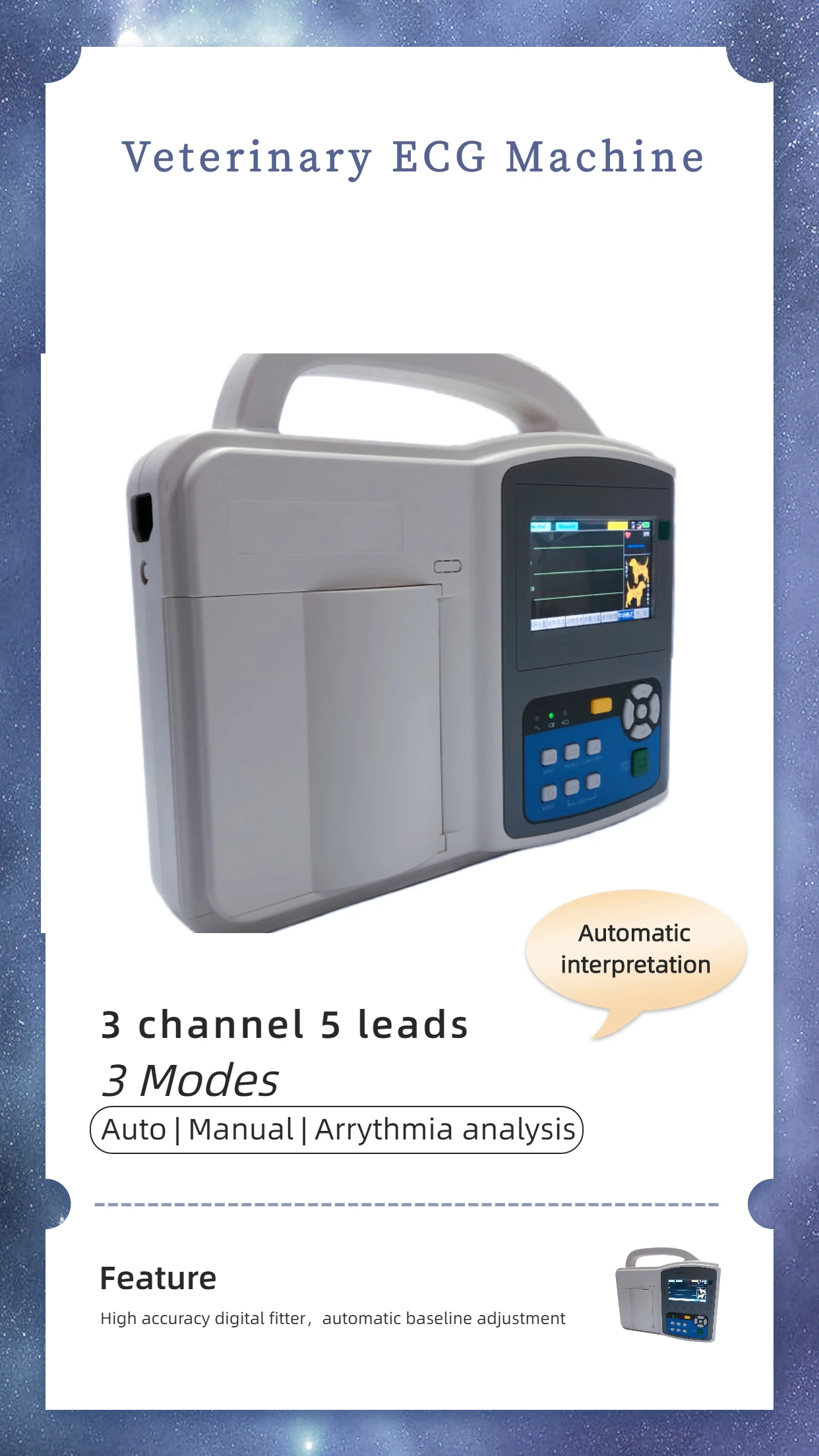

Veterinary ECG Monitor
Merkmale

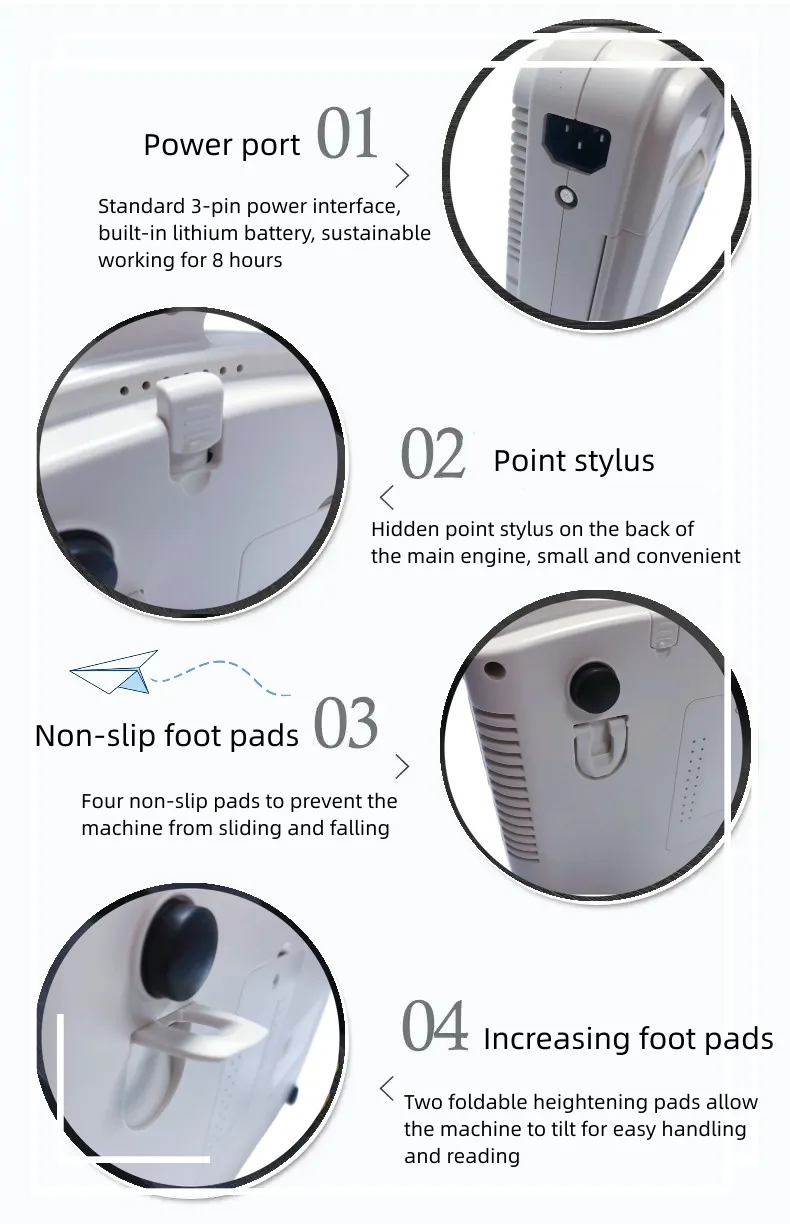

. Compact in size and ergonomic design, very easy to operate, tragbar. . 80mm, three channel format recording with interpretation; Recording format: . 1ch+V, 3ch, 3ch+V. Drei Arbeitsmodi: Auto, Manual and Arrythmia Analysis . High accuracy digital filter: Automatic baseline adiustment. . 7 leads simultaneously collection and display. . 480×272 graphic 3.5 inch color LCD displays detailed ECG information . 100 cases of ECG can be stored and displayed. . Adapt to110-230V50/60Hz power supply. . Rechargeable Ni-MH battery supports continuous work over 3 Std.. . With Rs232 and USB communication interface. optional for connection to laser . PC ECG Management software is optional.
Spezifikation
|
Führen
|
Standard 7 führt
|
|
Lead acquisition
|
24bit/1000Hz(synchronously 7leads)
|
|
Work mode
|
Auto,Auto 2,Man,Analyse
|
|
Filter
|
.ACFilter:50Hz/60Hz
|
|
.EMG Filter:35Hz/45Hz
|
|
|
.Anti-Drift Filter:0.15Hz(Adaptive)
|
|
|
CMMR
|
>/=100dB(with AC Filter)
|
|
Input circuit
|
Schwebend;Protection circuit against Defibrillator effect
|
|
Eingangsimpedanz
|
>/= 50M Ω
|
|
Input circuit current
|
</= 0.05μA
|
|
Patient currentleakage
|
<10μA
|
|
Calibrating voltage
|
1mV±2%
|
|
Voltage tolerance
|
</= ± 500mV
|
|
Time constant
|
</=3.2s
|
|
Frequenzgang
|
0.05~150Hz(-3db)
|
|
Geräuschpegel
|
<15μVp-p
|
|
Inter-channel interference
|
</=0.5mm
|
|
Empfindlichkeit
|
Auto,2.5,5.10.20 mm/mV
|
|
Recording mode
|
1ch+V,3ch,3ch+V
|
|
Paper speed
|
5,10.12.5.25，50mm/s(±3%)
|
|
Papier
|
80mmx20m roll paper
|
|
Kommunikation
|
Rs232/USB port
|
|
Stromversorgung
|
.AC-110-230V50/60Hz
|
|
.DC: Rechargeable Ni-MH battery
|
|
|
Dimension and Weight
|
310mmx260mmx85mm，1.4kgs
|
