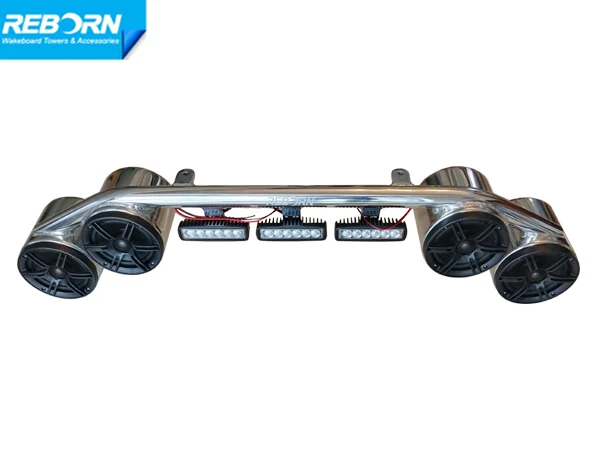

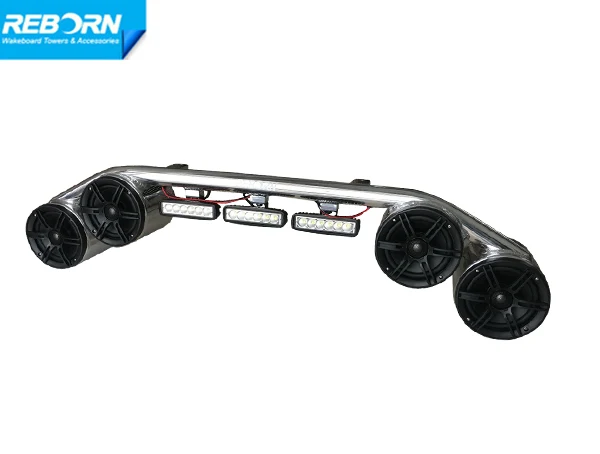

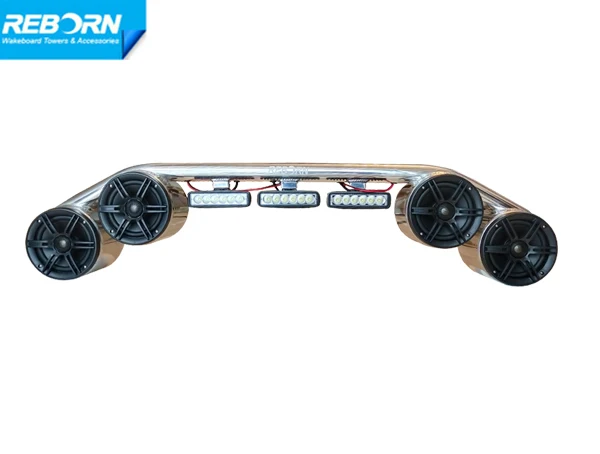

Reborn 4 Sprecher und 3 LED Lights Combo
Reborn wakeboard tower speaker and light bar combo is manufactured with polished 6061 aluminum and is pre wired fro easy installation. We have installed 4 high quality water proof speakers, Und 3 X 18 watt LED lights.
Spezifikationen
Polished 6061 Aircraft Aluminium speaker pods and clamps.
Correct thickness aluminum pod thickness for high performance.
Stainless steel hardware.
Clamp sizes; 2 1/2 inch Clamp.
Included rubber inserts; 2 3/8″ inch rubber insert, 2 1/4 inch rubber insert, 2 inch rubber insert, 1 3/4 inch rubber insert, 1 7/8 inch rubber insert.
Lautsprecherspezifikationen:
Weather/water resistant speakers
Internal wiring through pod and clamp into your tower.
Overall dimension 6.5inch.
Mounting dia 155mm
Nominal Impedance: 4ohm +/-15%
Widerstand: 3.6ohm
Resonant Frequency:
68Hz+/-20% 1v
RMS: Continuous Nominal Power Handling:
60W (EIA RS-426B 8hours)
Max Power Handling:
120W (IEC268-5, 10Protokoll)
Magnet size & Gewicht:
dia90x45x17mm 397.26g (14Oz)
Frequenzgang: F0-20Khz+/20% -10dB from SPL
NOTES ON INSTALLING AND USING YOUR SPEAKER LIGHT COMBO
-
Every boat is different and you may need to improvise to accommodate your needs.
-

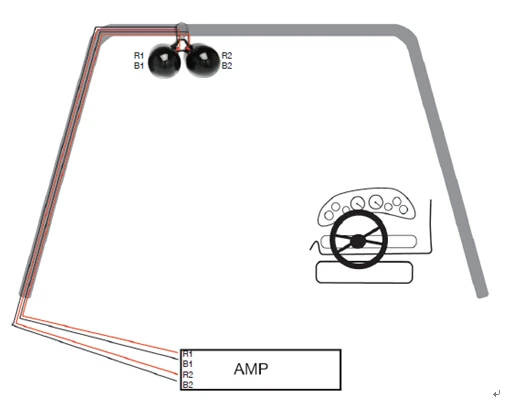

This diagram is merely a guideline and a professional marine
specialist should be consulted if at anytime you need assistance. -
For best performance, provide 100W-RMS at 4 Ohm to each speaker
-
Although the speakers are weather resistant and designed for outdoor
Verwendung, do not spray directly into the grill with high-pressure water. -
Regularly check all hardware to make sure it is tight.
Reborn Speaker and Light Combo is prewired, so you just need to run
your wires inside through your tower to finalize the installation.
Wiring Instructions and Amplifier Considerations:
We recommend you use 16-18 gage wiring between the speakers and
amplifier. We recommend covering the wiring with 3/8” or 1/2” wiring
loom and electrical tape as shown for a professional, wasserdicht
appearance.
Running Wires Through The Tower
Consult your tower installation manual or provider for instructions on running wire inside your tower.
When you install the speaker light combo to Reborn tower, you can hide
the wires inside the legs of tower as well as in the straight cross bar
of top section. If there is solid fittings, please drill a hole by
yourself to skip the fitting, the hole size we recommend is 1”, Aber
normally smaller is all that is needed.
REBORN PRODUCT CARE
Wash with a mild soap and water.
Polished Product – use Mothers Mag & Aluminum Polish which can be
found at any auto parts store
Powder Coated Products- no wax, or cleaners can be used
Check set screws before each use
Check Allen Bolts before each use
