Produktbeschreibung

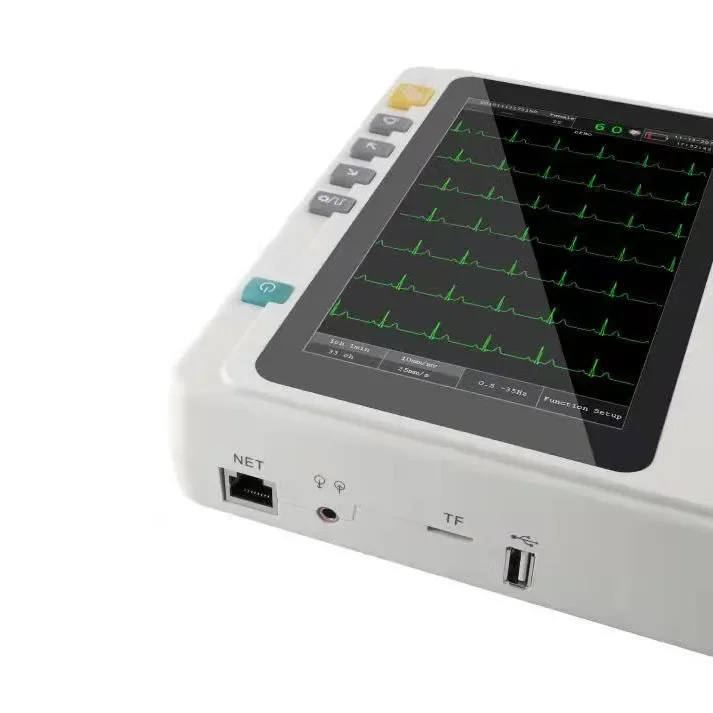

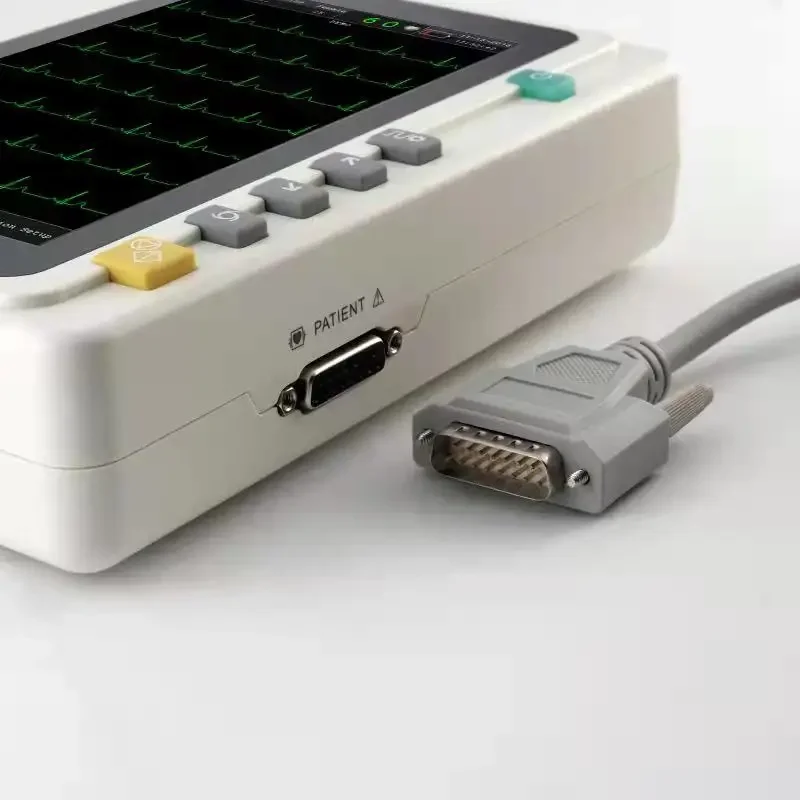

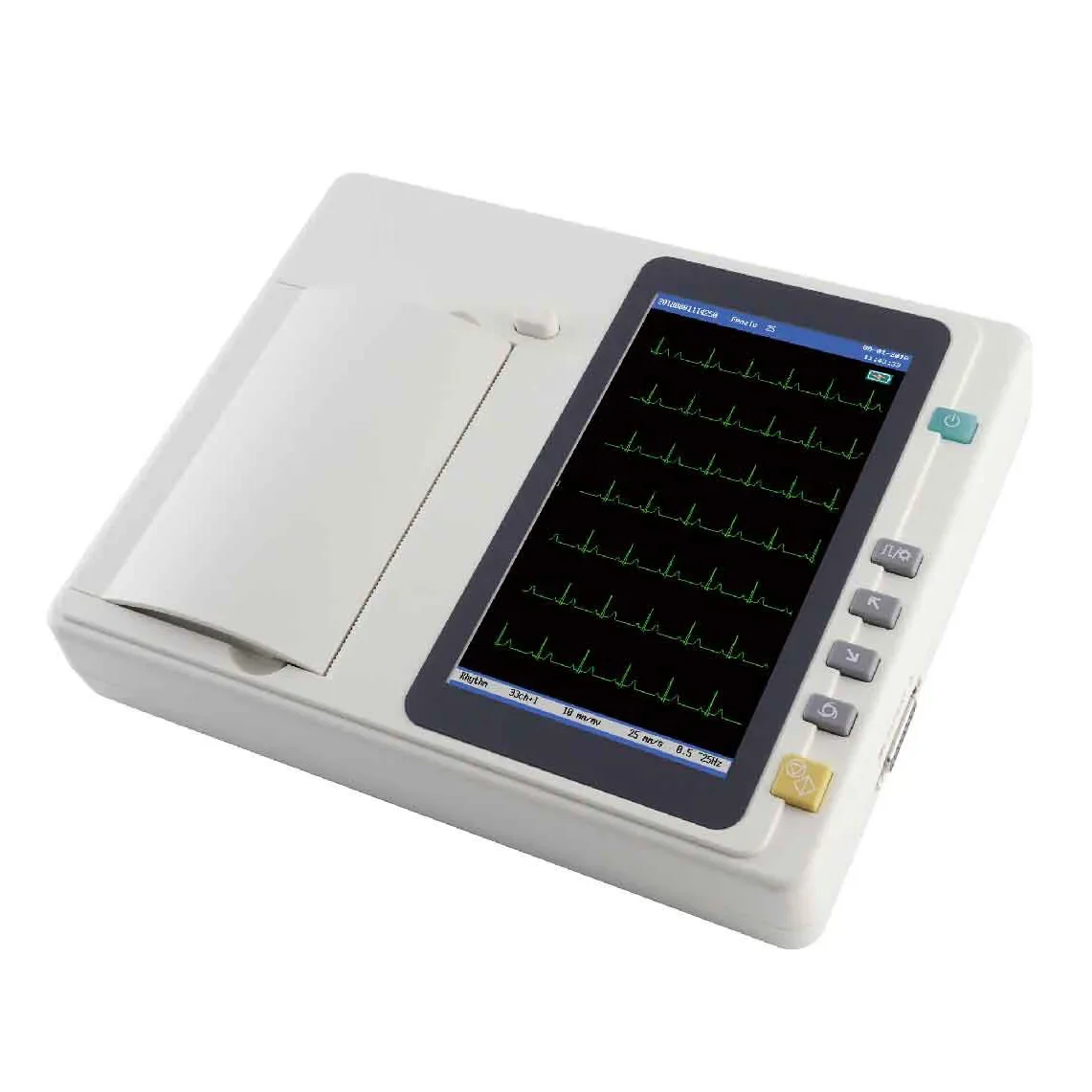

Portable Touch Screen 3/6 Channels Ecg Machine
Merkmale: *7 Zoll hochauflösender Farb -Touchscreen *12-lead simultaneous acquisition and display *ECG Automatic measurement and interpretation function *Complete digital filters, resisting baseline drift, AC and EMG interference *Compact and lightweight design *Support USB flash disk and micro SD card to extend memory *Software upgrade via USB/SD card *Built-in rechargeable Li-ion battery
|
Technische Spezifikationen
|
||||
|
Modell
|
HE-301
|
HE-601
|
||
|
Kanal
|
3 Kanäle
|
6 Kanäle
|
||
|
Führen
|
Standard 12 führt
|
Standard 12 führt
|
||
|
Acquisition Mode
|
Gleichzeitig 12 leads acquisition
|
Gleichzeitig 12 leads acquisition
|
||
|
Messbereich
|
±5mVpp
|
±5mVpp
|
||
|
Input Impedance
|
≥50MΩ
|
≥50MΩ
|
||
|
Input circuit current
|
＜0.05µA
|
＜0.05µA
|
||
|
CMRR
|
>100dB
|
>100dB
|
||
|
Patient leak current
|
＜10µA (220V-240V)
|
＜10µA (220V-240V)
|
||
|
Frequenzgang
|
0.05Hz~150Hz (-3dB)
|
0.05Hz~150Hz (-3dB)
|
||
|
Paper specification
|
Roll 80mmx20M
|
Roll 110mmx20M
|
||
|
Safety Standard
|
IEC I/CF
|
IEC I/CF
|
||
|
Sample Rate
|
Normal: 1000sps/channel
|
Normal: 1000sps/channel
|
||
|
Stromversorgung
|
AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery
|
AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery
|
||
Standard Configuration: Hauptmaschine: 1 PC Patient cable: 1 PC Limb electrode: 1Satz(4Stck) Chest electrode: 1Satz( 6Stck) Stromkabel: 1 PC 80mm*20M recording paper: 1 PC Paper axis: 1 PC Power cord: 1 PC Verpackung: Single package size: 32*25*17cm Single gross weight: 2.8 Kg 8 unit per carton, Packungsgröße: 54*33*75cm, total gross weight 22 Kg

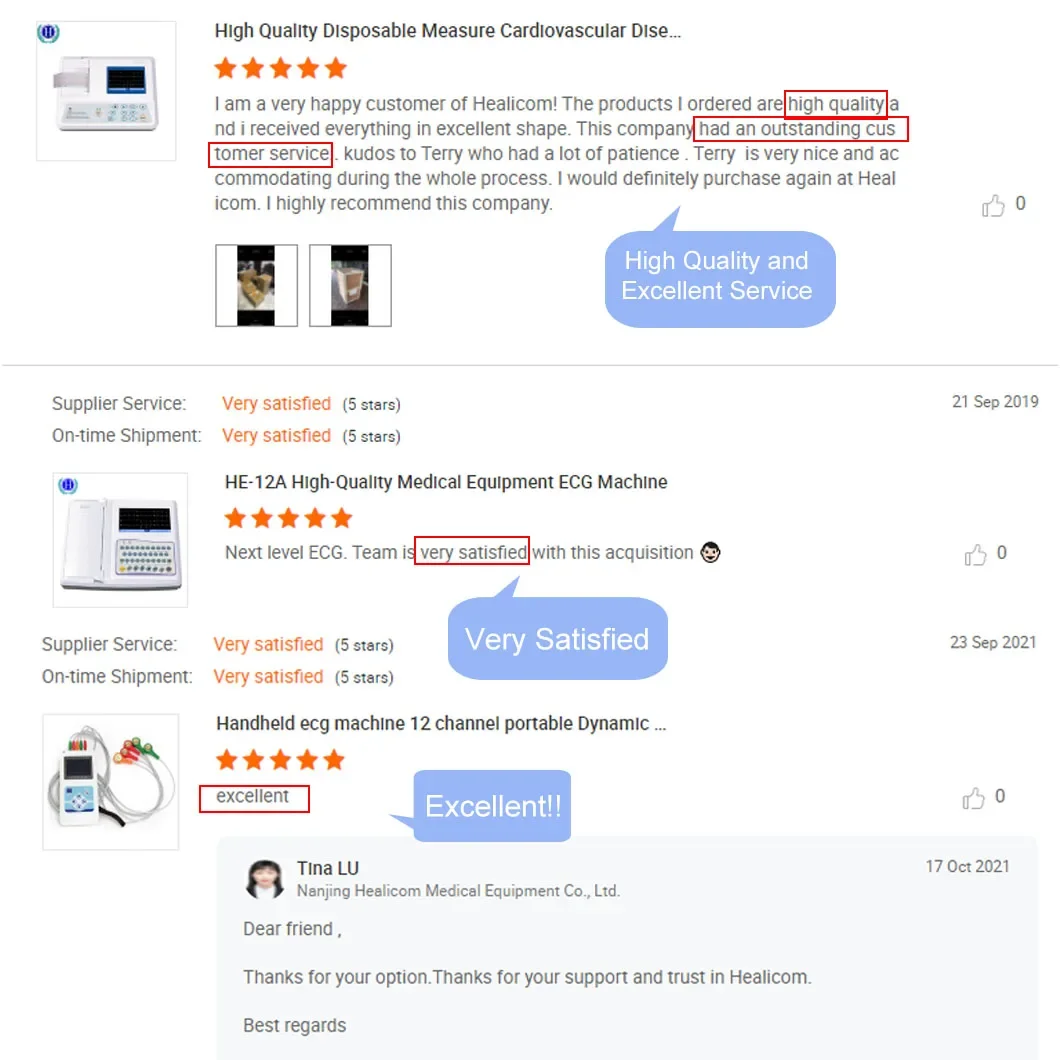

Kundenfeedbacks
