Elm327 Bluetooth OBD2 V1.5 Elm 327 V 1.5 V2.1 OBD 2 Auto-Diagnose-Too…

Please confirm your model before buying, Danke.
1.For the cars of 2010 later, you can choose the V2.1 and V1.5.
2.For the cars before 2010,you can choose the V1.5.
3.If you can not confirm the year of your car,please choose the V1.5 Version,it is compatible for most cars.
Steps for usage:
Insert the product directly into the car OBD interface and connect to the mobile app: TORQUE
(CD will not included because the damage easily ). Customers can download the software by yourself. (the software supports computers and Android phones, and does not support Apple phones).
Software address www.cos8000.com
Highlights:
The newly developed wireless scan tool.
It supports almost OBD-II protocols.
It is the latest version 2.1 & Version 1.5
Bluetooth connection, no Batteries, Cables, or Switches.
Kabellos (Bluetooth) 5~ 10 Meter
Retrieve Fault Codes (DTCs) and clear Check Engine lights.
Can also be used with a PC with a Bluetooth Card.
Funktionen:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, einschließlich:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle SpeedV2.1
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure
Merkmale:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (''Check Engine'' light)
Set the maximum number of responses to obtain
Remove spaces from ECU responses (to speed data transmission)
Store a unique identifier in EEPROM
Set the CAN mask and filter with one command
Easily switch between variable and fixed CAN message lengths
Send CAN remote frames (RTRs)
Multi-Protocol Support:
1. ISO9141-2(5 baud init, 10.4Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250*Kbaud)
B.USER1 CAN (11*bit ID, 125*Kbaud)
C.USER2 CAN (11*bit ID, 50*kbaud)
*default settings (user adjustable)
Vehicle Coverage:
For Alfa Romeo/ For Audi/ For Bentley/ For BMW/ For Cadillac/ For C-hevrolet/ For Chrysl/For C-itroen/ For Daewoo/ For F-iat/ For Ford/ For GM/ For Hod/ For Hyundai/For Isuzu/For Jaguar/ For Jeep/ For Kia/ For Lad over/ For Lexus/ For Mazda/ For Mercury/ For Mini/ For Nisan/ For Mitsubishi/ For Opel/ For Peugeot/ For Posch/ For Re .nault/ For Rover/ For Saab/ For Seat/ For Skoda/ For Toyota/ For Vauxhall/ For Volvo/ For VW
CAR MODEL
For your information:
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant
Software Included:
Scantool_net113win (Full Version)
EasyOBDII V2.2 (Free Version)
OBD2Spy (Demo Version)
Scan Master-ELM (Demo Version)
OBDCRAZY (Demo Version)
This hardware can match much other software still! But most of them are not free!
Works for Windows98/ME/2000/XP/Vista & 7!
This tool does not match abs and airbag system!

How to connect with the Phone and Software?
1.Android phone system requirement: Android 4.0-4.4 or higher

ANDROID
2.Software Installation: After insertion of ELM327 Install APP:Install—Continuous click ''Next'' continue the next installation—Click ''Done'' Install software

INSTALL
3.Connect Bluetooth:
1)Turn on the Bluetooth switch
2)Find ''OBDII'' and connect it,the password is: 1234 oder 0000
3)Enter the Torque,and set the connection way:Bluetooth,then Choose Bluetooth Device: OBDII elm327

Connection Failure selfcheck on phone:
It is based on bluetooth 2.0,can't support IOS (bluetooth 4.0).Viecar 4.0 supports Android and IOS.
Please use Android System V4.0 to latest version, and so on.

1.Car Module is not supported.
2.Engine is not ignited.
3.You need confirm the connection way as below.
Click Menu button setting bluetooth Connection:
Exit Torque,and re-run the software.Successful connection.

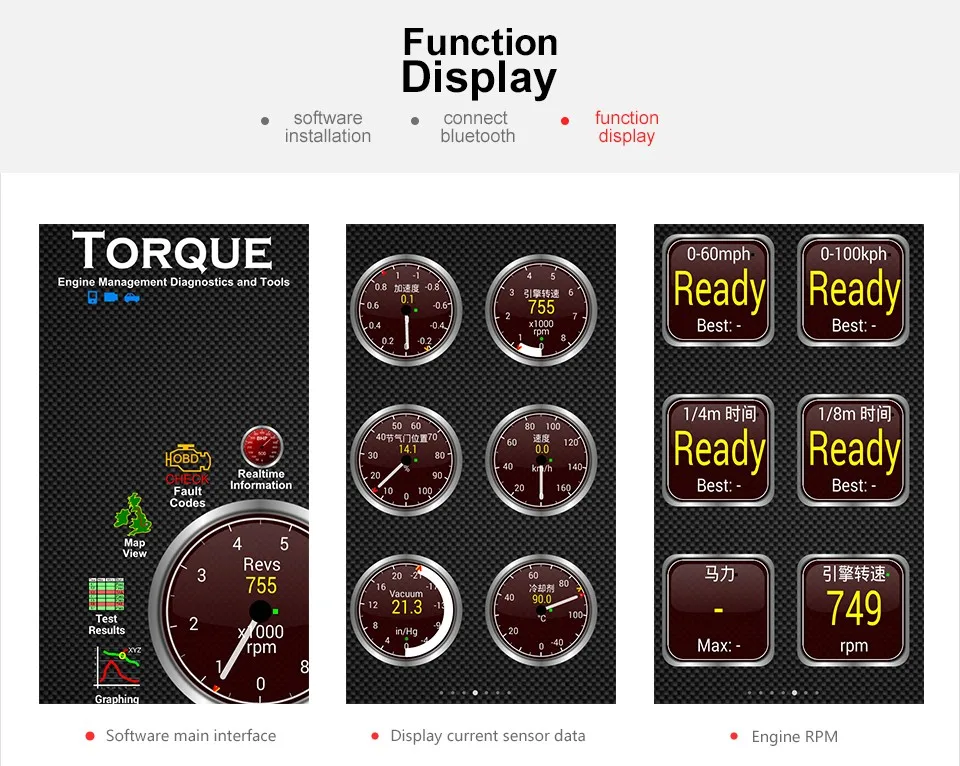

Works on Android Phone Test Reference

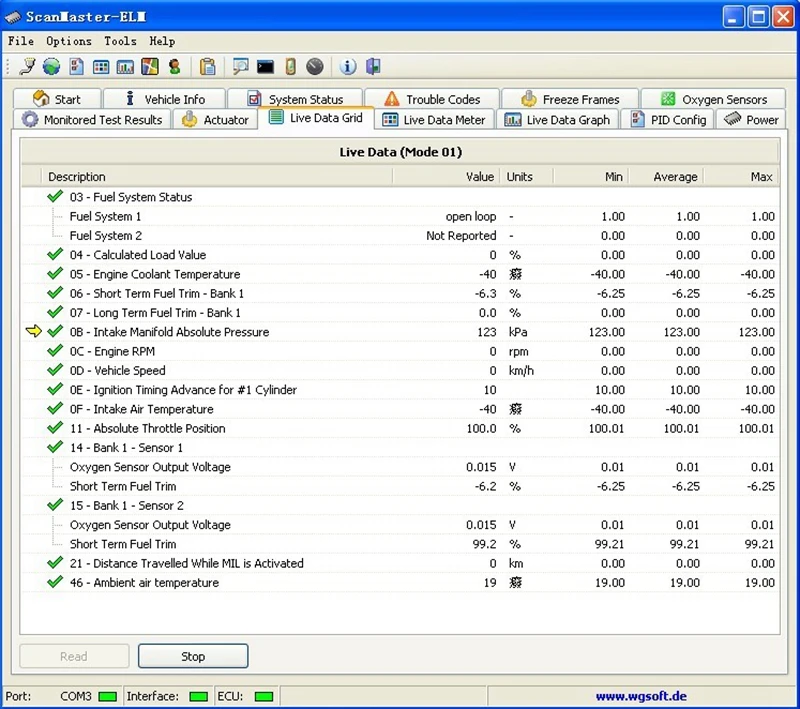

Software test on Computer Reference:
