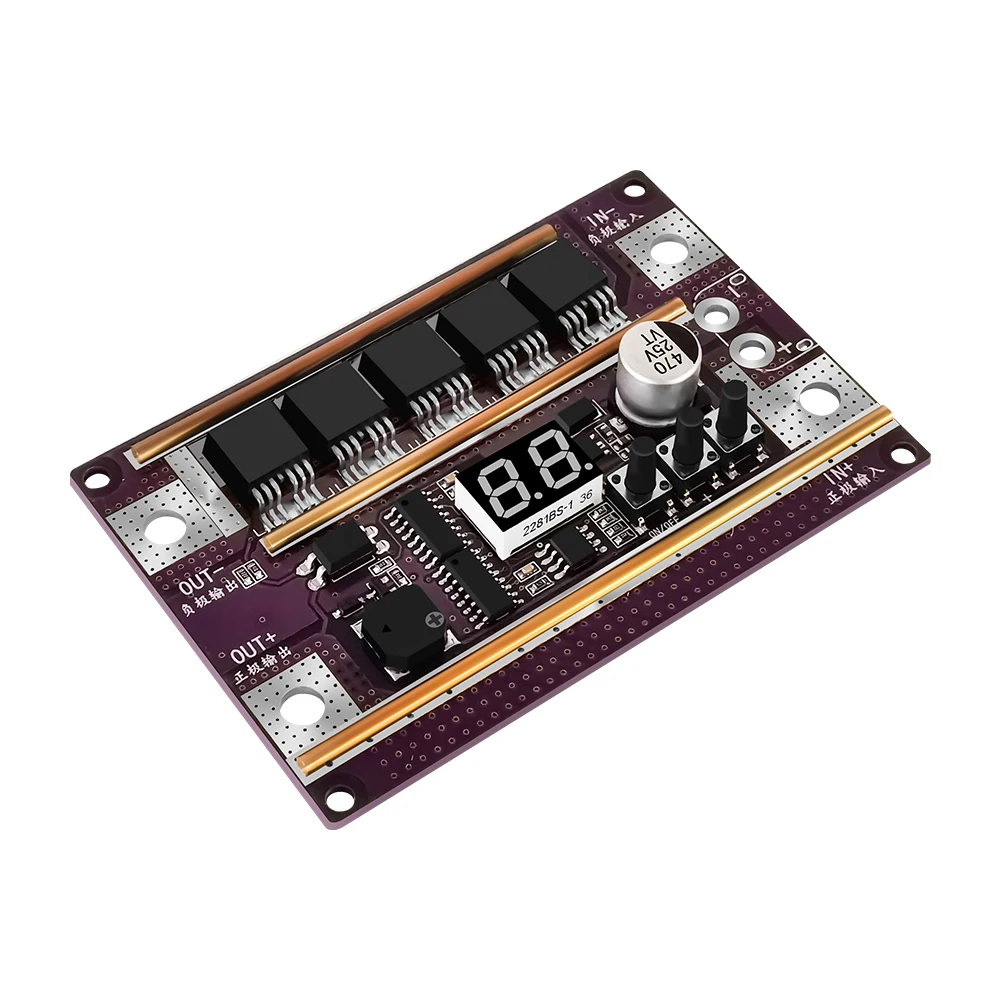

This control board of spots welding machine is high power output design, 99 gears of output power adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet. It supports welding 0.1-0.3mm nickel sheets with solid and beautiful welding spots. This product can be widely used on spots welding cylindrical lithium batteries and nickel metal hydride batteries such as 14650/17490/18650/21700/26650/32650 usw.
Merkmale:
1. The welding process is based on the principle of high current and high temperature, rapidly melting part of the nickel sheet, and cooling.

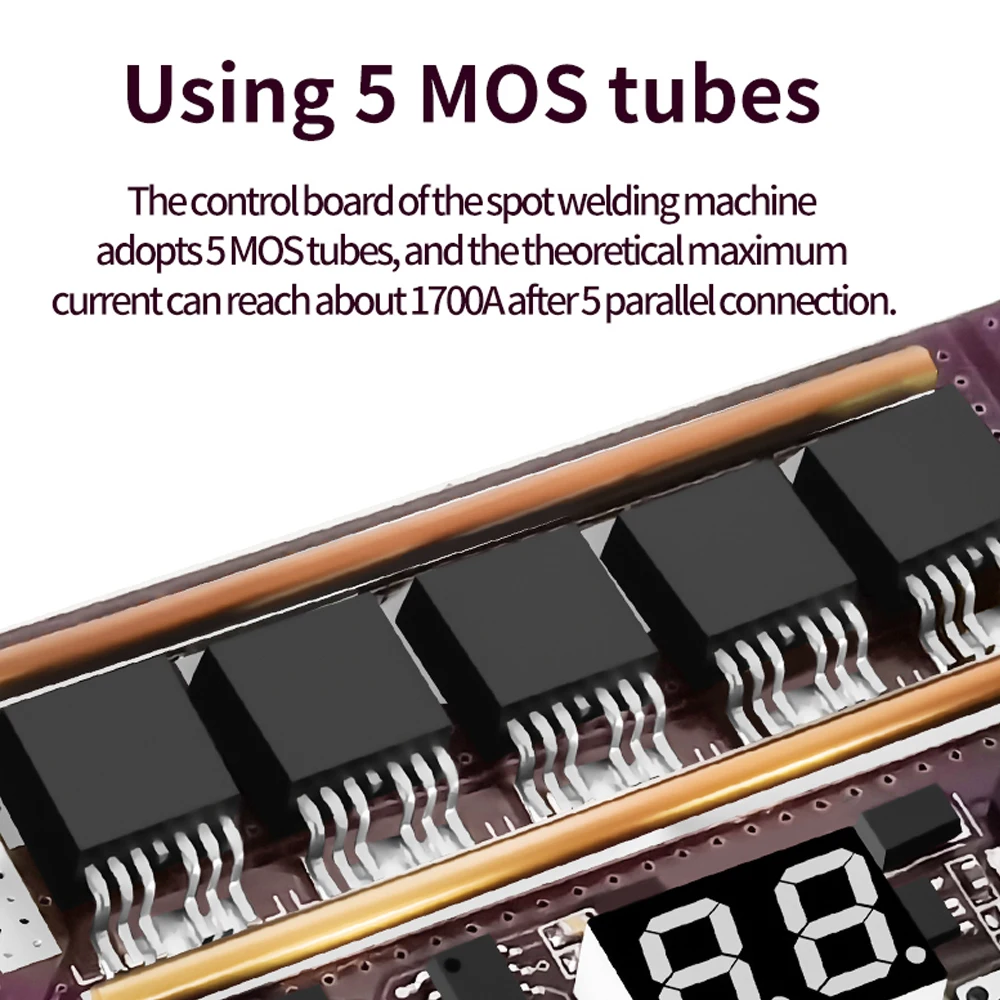

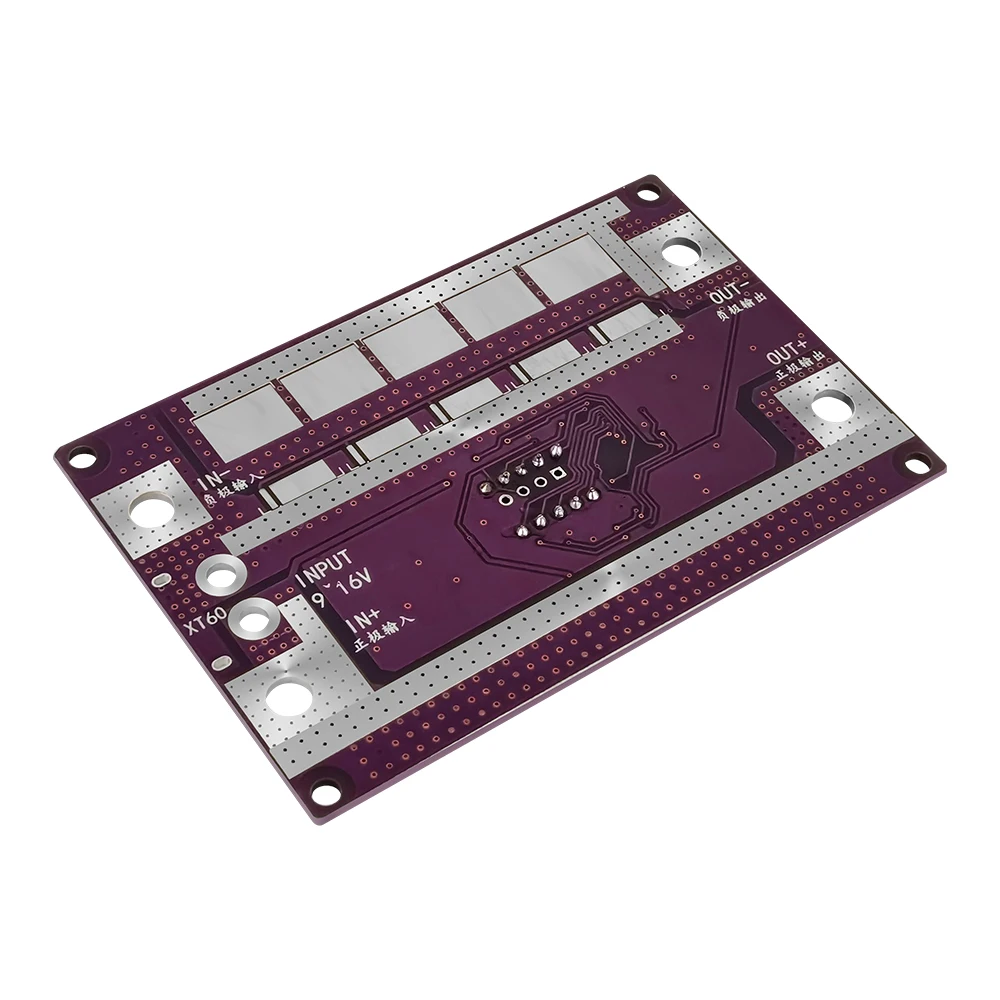

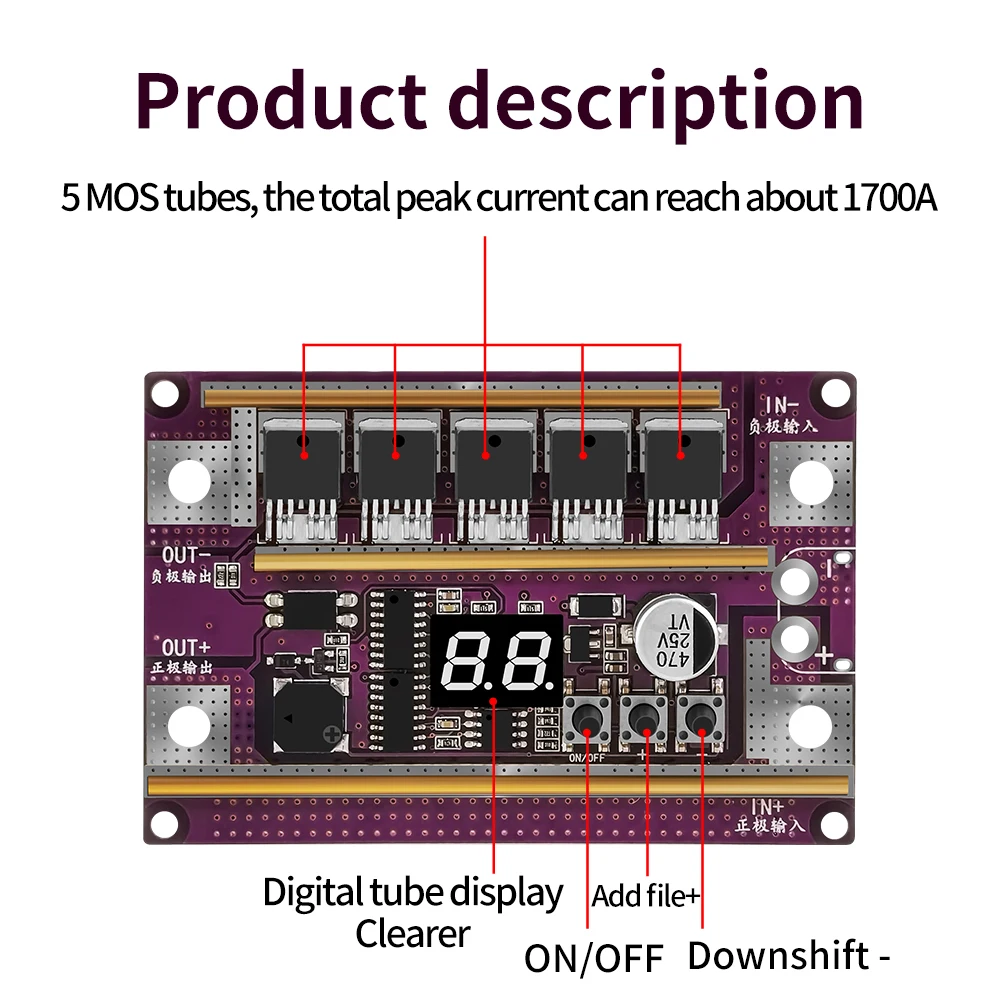

2. Adopt 5pcs MOS tubes, and the maximum current is up to 1700A; es gibt 5 MOS tube locations reserved on the back of the printed circuit board for DIY players to increase their own MOS tubes.
3. High power output design, 99 gears of output power adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet.

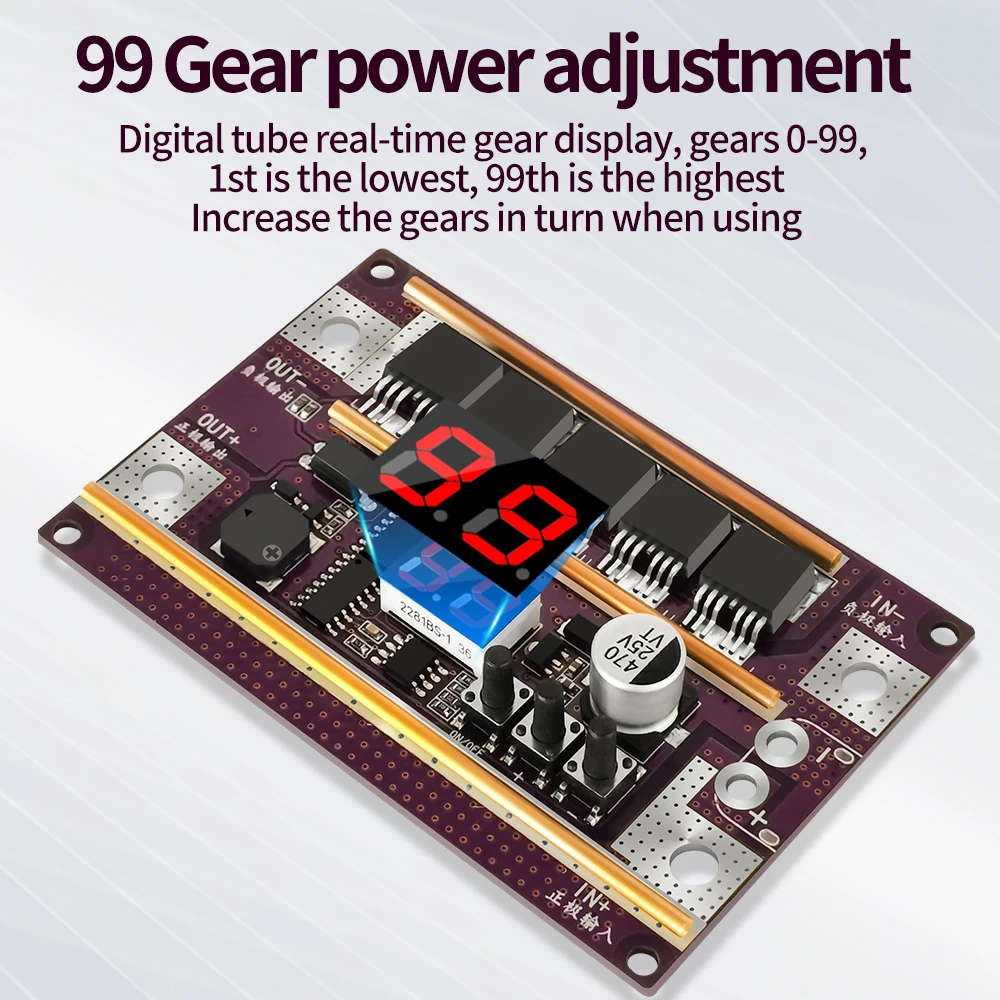

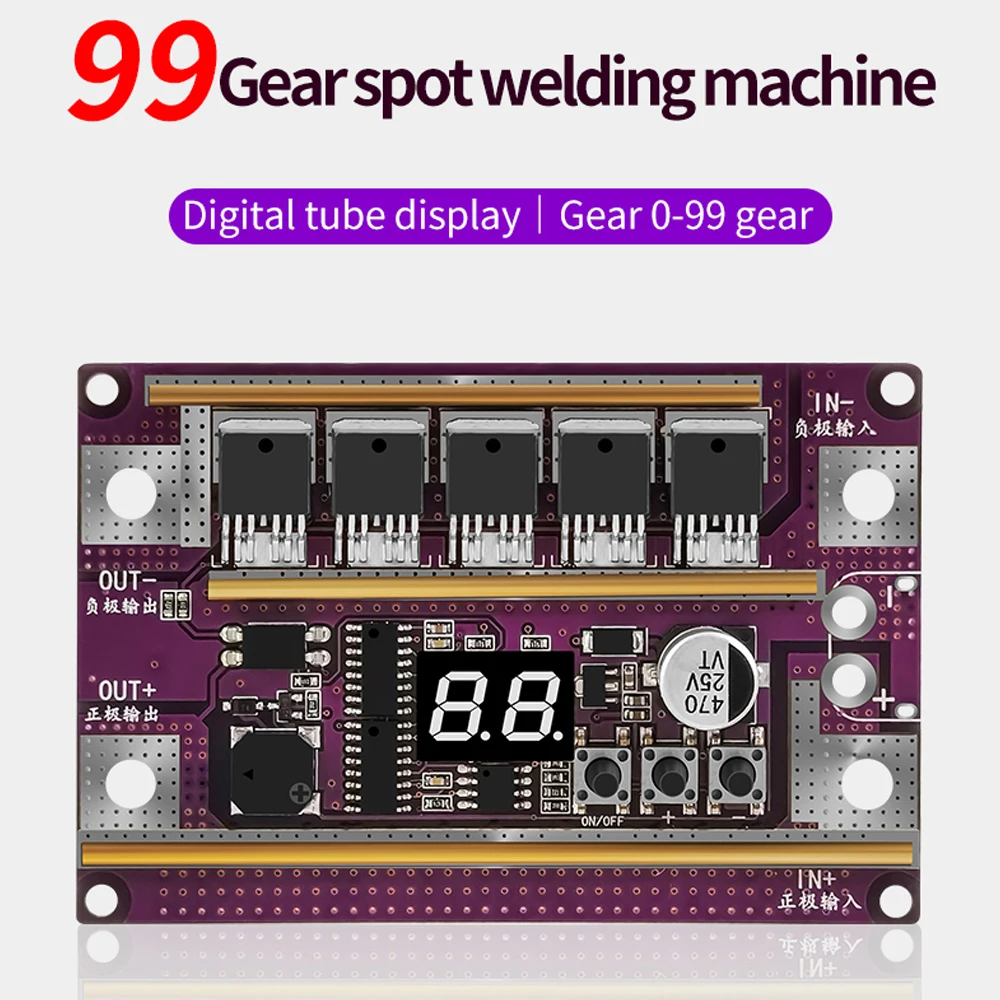

4. With the digital tube real-time gear display function, 0-99 Getriebe, 1-gear is the lowest, 99-gear is the highest, and the gears are gradually increasing.

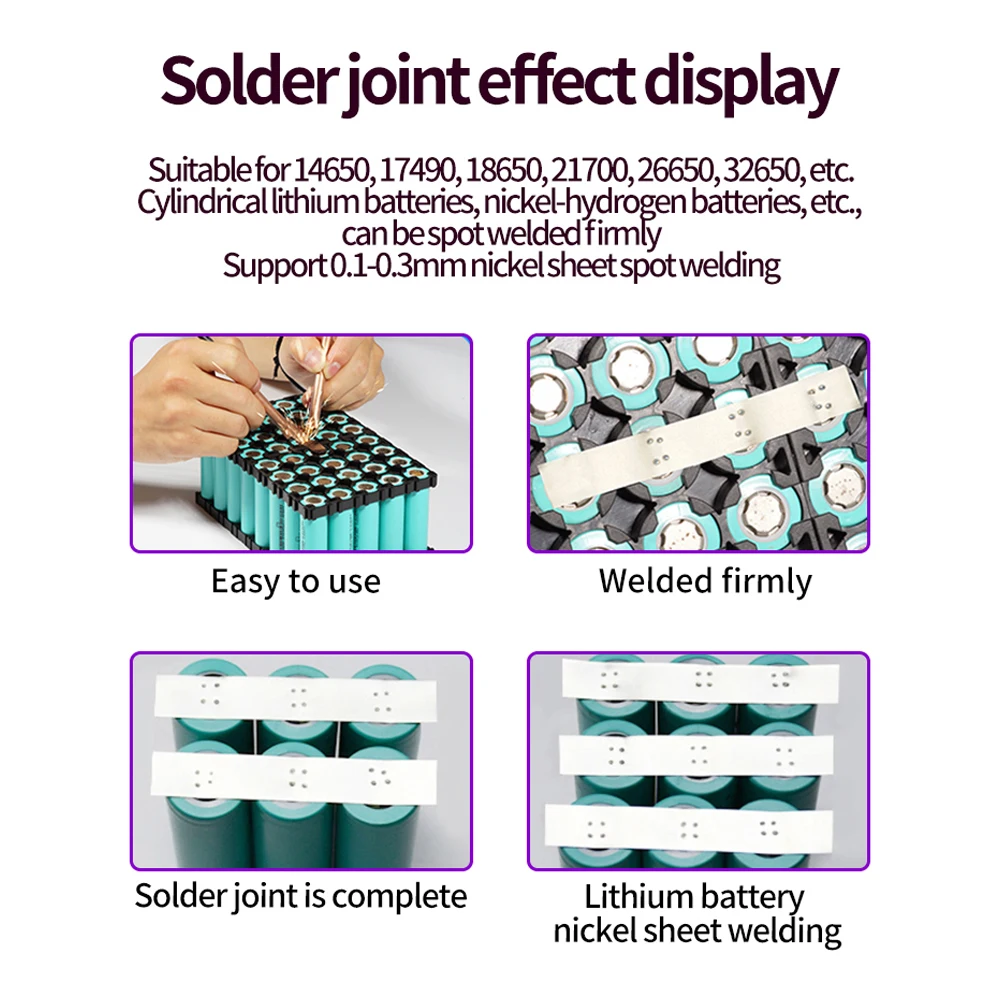

5. It supports 0.1-0.3mm nickel welding sheets with solid and beautiful welding spots.
6. This product can be widely used on spots welding cylindrical lithium batteries and nickel metal hydride batteries such as 14650/17490/18650/21700/26650/32650 usw.

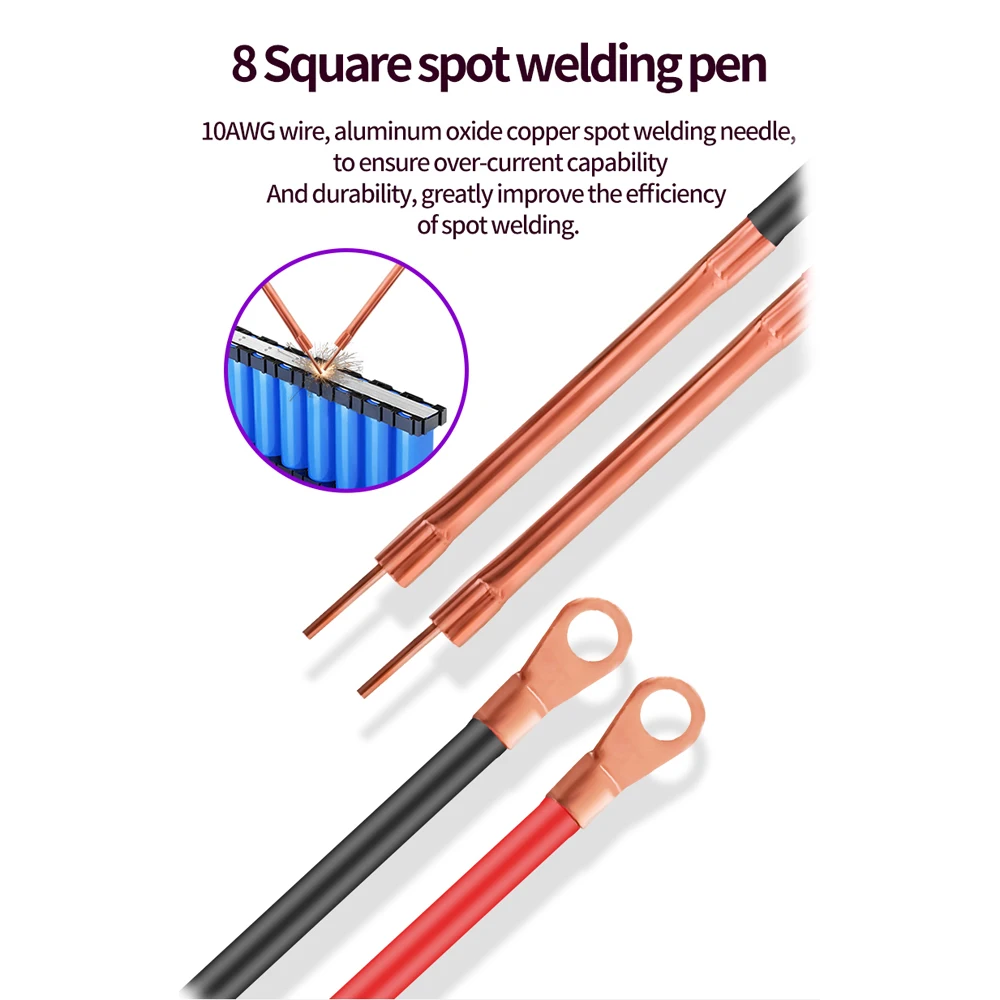

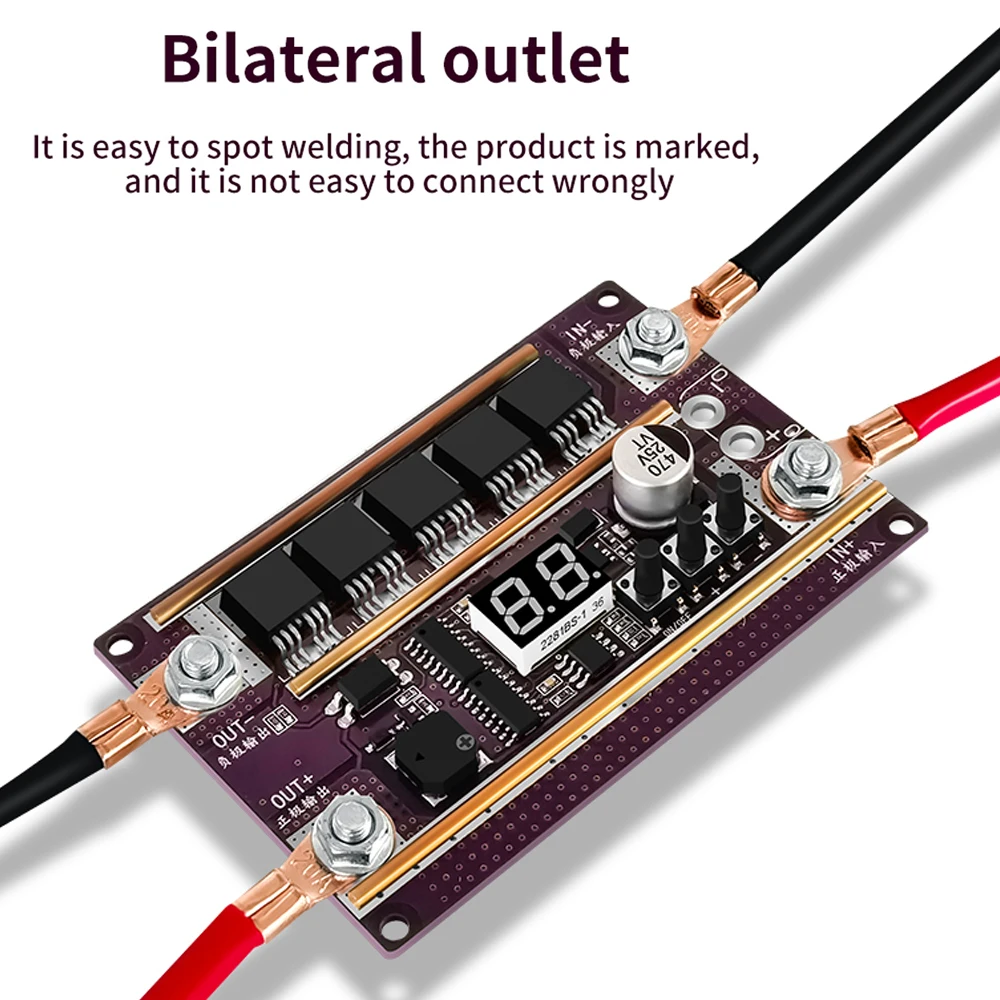

7. 8 square welding pen, 10AWG wire consists of multiple strands of high-temperature wire with high torsional resistance and more sensitive operation.
8. Thickened pure copper welding pen design, with alumina copper spots welding needles to ensure high current passing capacity and durability.
9. The cold pressing process can make large contact areas with pure copper joints to reduce internal resistance.
Notiz:

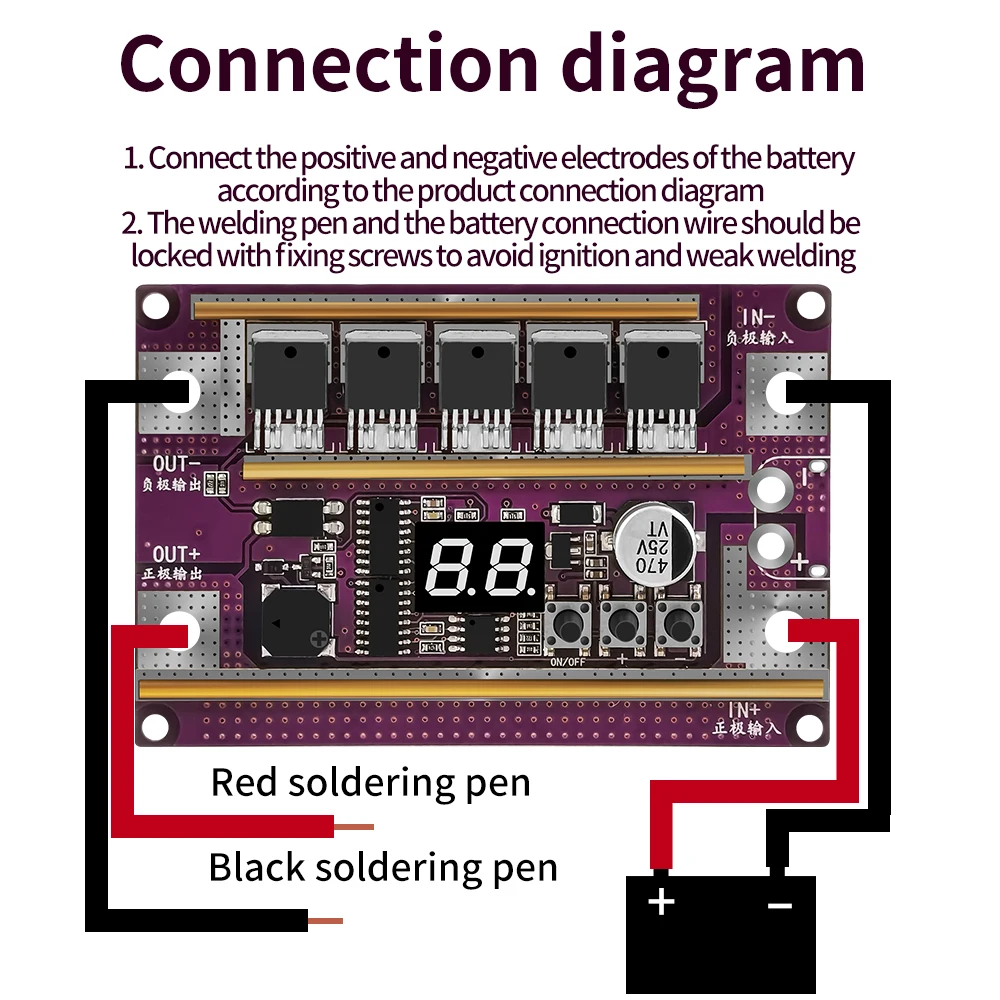

– The switching power supplies, trans formers, chargers, water batteries, and rechargeable batteries are not allowed to be used as power supplies!

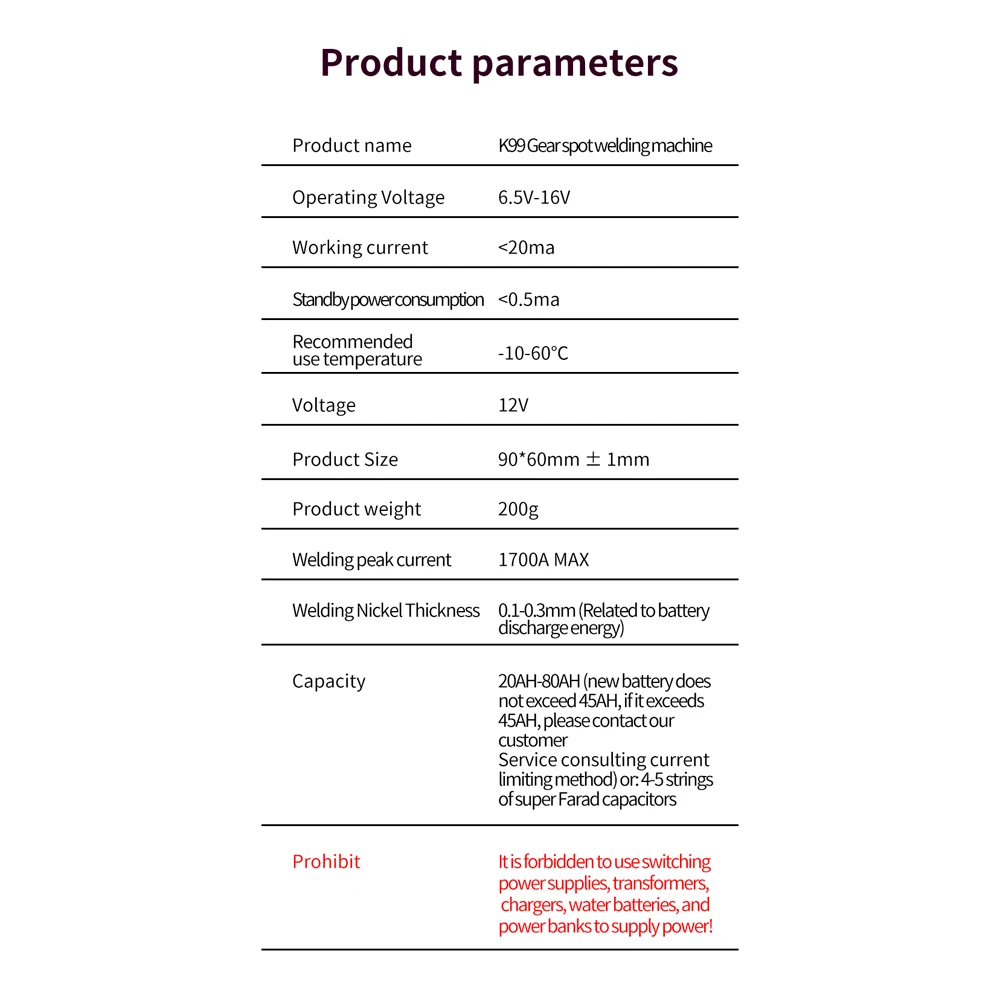

Spezifikationen:
Name: Spots Welding Machine Set
Material: printed circuit board
Arbeitsspannung: 6.5-16V
Strom arbeiten: <20ma
Standby -Stromverbrauch: <0.5ma
Recommended working temperature: -10℃ to 60℃
Stromspannung: 12.0V
Welding current: 1700Ein Max
Welding thickness: 0.1-0.3mm
Kapazität: 20AH-80AH (new battery not more than 45AH, more than 45AH please consulting our customer service for current limiting method) oder: 4-5 strings of super-Farah capacitors
Artikelgröße: 90 * 60mm / 3.54 * 2.36In
Paketgröße: 120 * 120 * 20mm / 4.72 * 4.72 * 0.79In
Paketgewicht: 180G / 6.35Unze

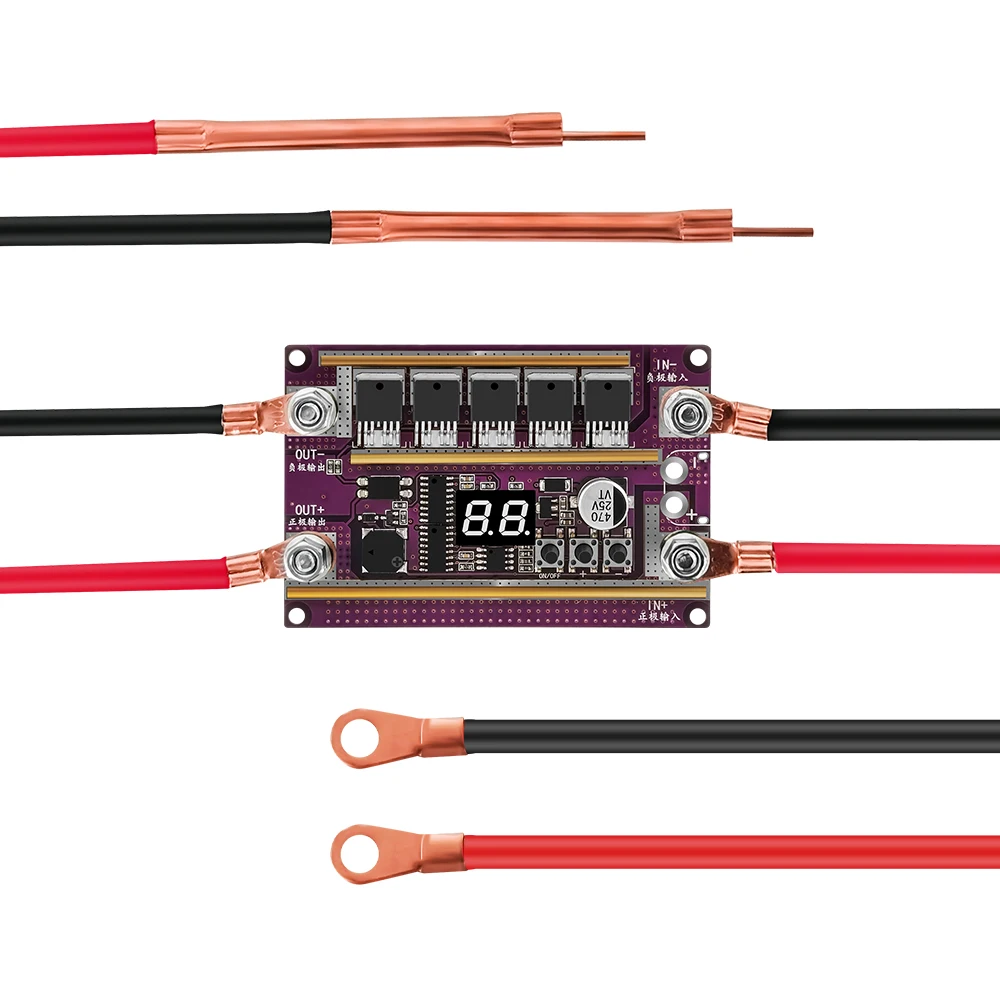

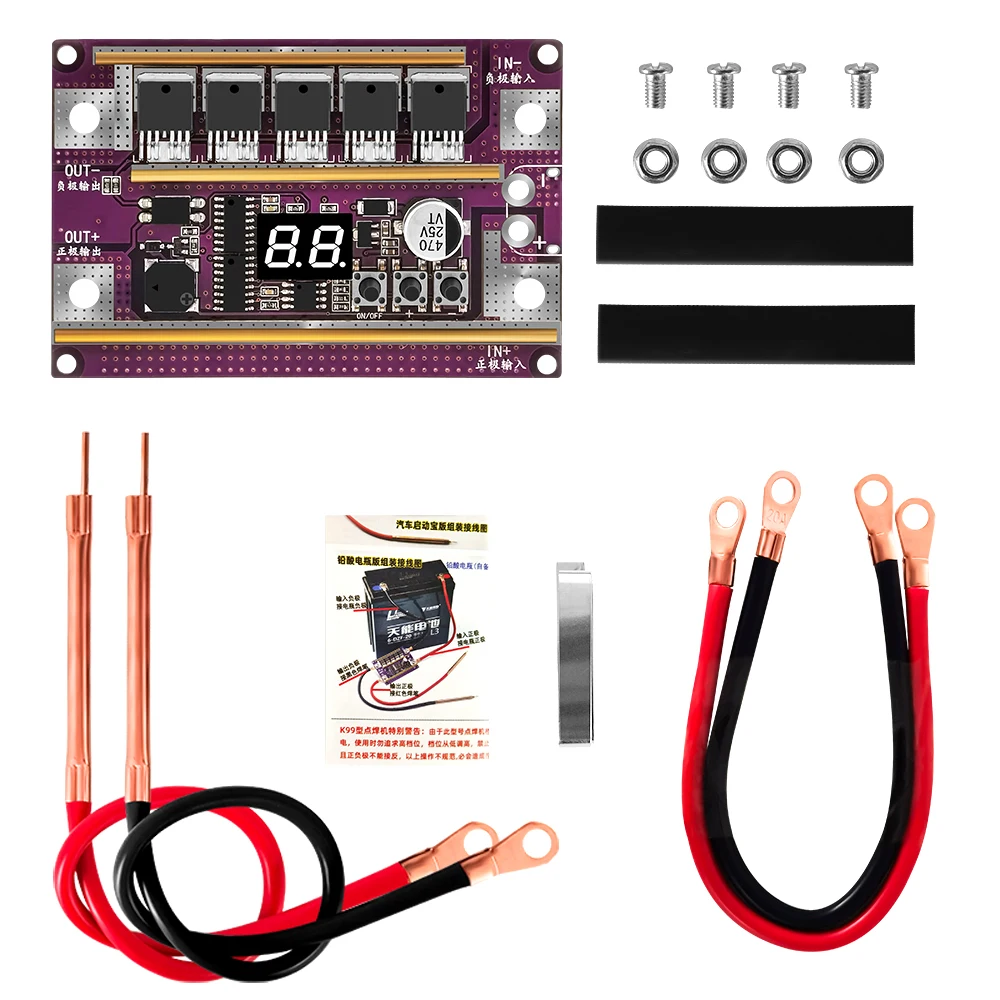

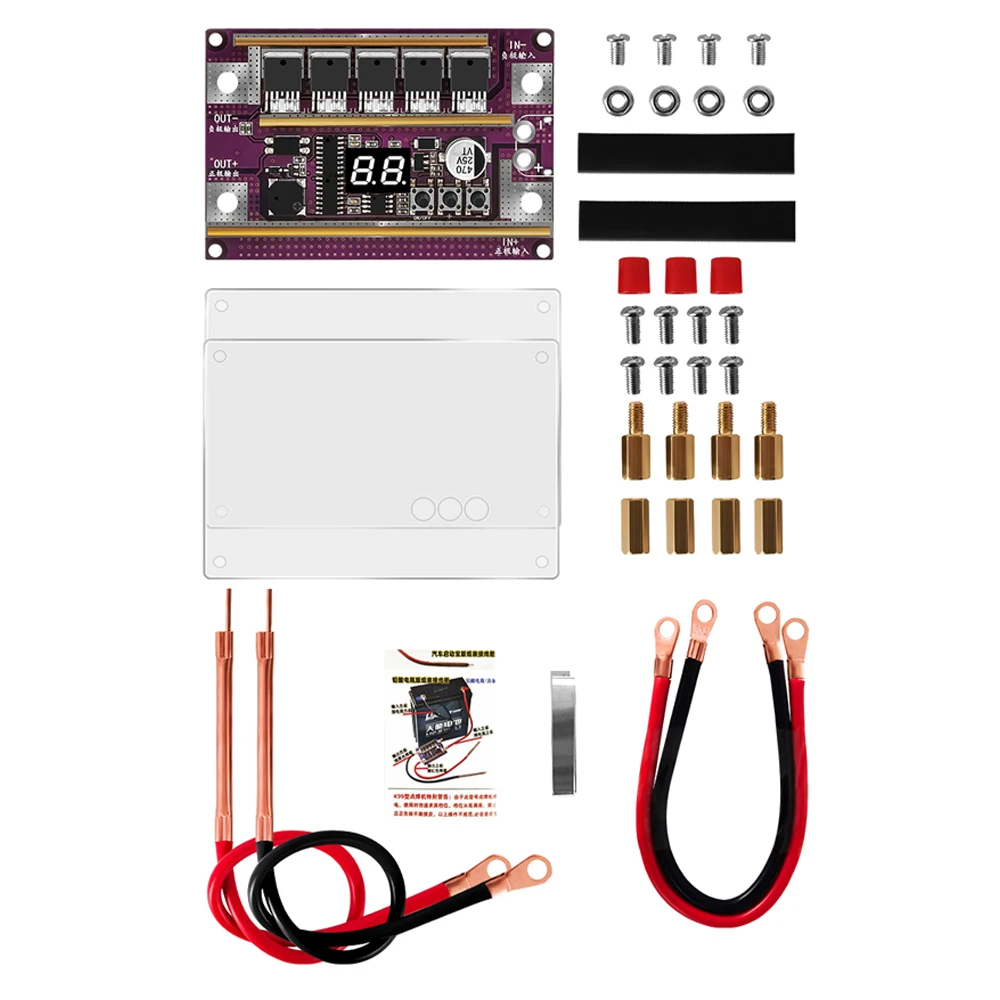

Packliste:
1 * Control Board
2 * Input Cable
1 * Pair of Welding Pen
2 * Heat Shrink Tubing
6 * Schrauben
1 * Nickel Sheet
1 * Guideline
