Produkteinführung
|
Produktname
|
tyre changer
|
Produktmodell
|
F-586
|
|
Outer Clamp
|
10-20
|
Inter Clamp
|
12-24
|
|
Max.Wheel Width
|
450mm
|
Max.Wheel Diameter
|
1040mm
|
|
Motor voltage
|
220v/380v
|
Motorleistung
|
1.1kw/0.75kw
|
|
Arbeitsgeräusch
|
<70db
|
Operating air pressure
|
8-10Bar
|
|
Nettogewicht
|
210kg
|
Bruttogewicht
|
240kg
|
|
Equipment size
|
1010mm×900mm×1940mm
|
Packungsabmessungen
|
1110mm×990mm×920mm
|
Hauptmerkmale
The working head of the tire changer machine is mechanically locked and the failure rate is lower. The contact between swing arm and top wire is thicker. High-strength working head.Galvanized high strength spring, no distortion and anti-aging.
Hauptmerkmale
The 24-inch working disc is 630 mm in diameter and 14.5 mm in thickness.tire changer rotective sheets are installed under the fixed claws and the metal joints of the whole machine are installed.
Hauptmerkmale
The back end of the woking shovel support is lengthened, so that the force angle of the shovel is better and the storage box is super large.Thicken the rubber pad of the shovel, increase the service life, rotate the shovel from multiple angles, and fit the tire better.
Hauptmerkmale
A.Cylinder
B.Box reinforcement support
C.Engine
D.Turbine box
E.Quick Exhaust Valve
F:Special switch for tire changer
Random Accessories
Packing box style
|

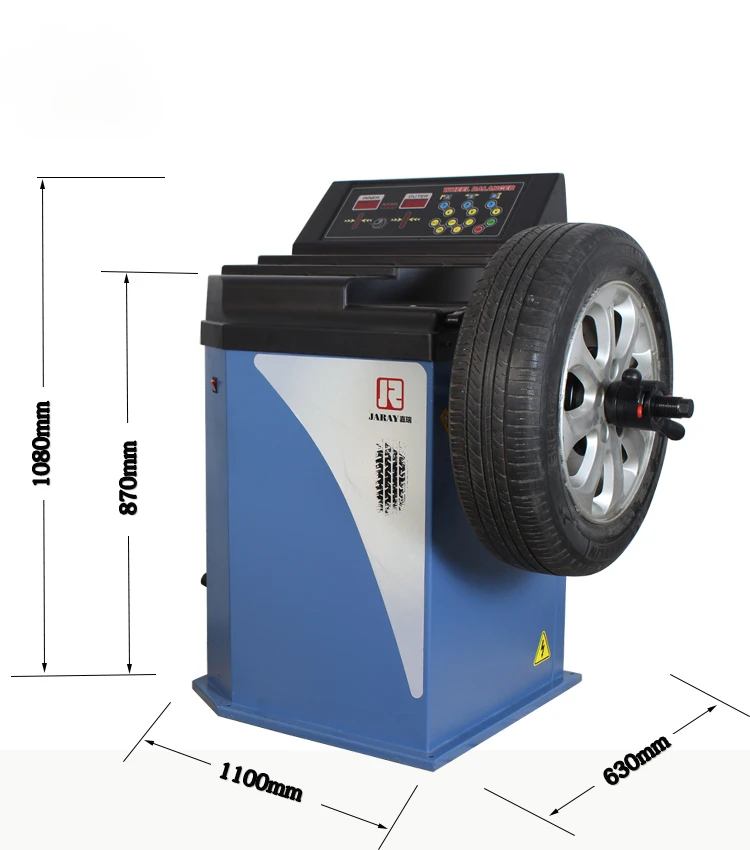

Produktname
|
Economicl wheel balancer
|
Produktmodell
|
F-630
|
|
Motor voltage
|
220v
|
Motorleistung
|
0.25KW
|
|
Max.wheel diameter
|
1000mm
|
Maxi.wheel weight
|
65kg
|
|
Messzeit
|
6-8S
|
Balancing accuracy
|
±1g
|
|
Rim width
|
1.5-16
|
Rim diameter
|
13-24
|
|
Spindelgeschwindigkeit
|
≤200r/min
|
Bruttogewicht
|
100kg
|
|
Equipment size
|
1100mm×630mm×1080mm
|
Packungsabmessungen
|
960mm×790mm×1140mm
|

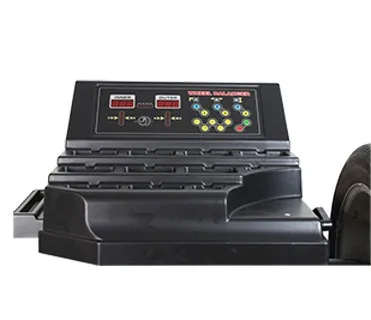

The top cover of injection moulding process ensures beauty and strength, and the multi-station toolbox facilitates the classification of balance blocks.
Precision spindle cooperates with low resistance bearing to ensure data accuracy. Phosphating treatment of spindle, anti-corrosion and anti-rust

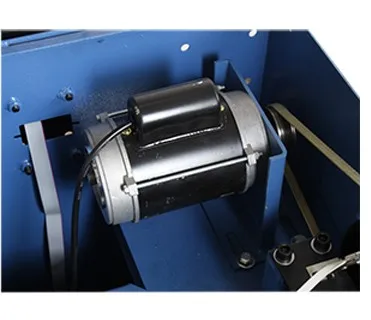

The motor is certified by ce, the noise of pure copper core is low, and the heat dissipation performance of aluminium alloy end cover is stronger, which can avoid the motor temperature caused by frequent starting or braking.
Compound welded box, internal structure with „U“ groove reinforcement welding, to ensure the stability of the chassis, and can withstand a larger weight of tires.

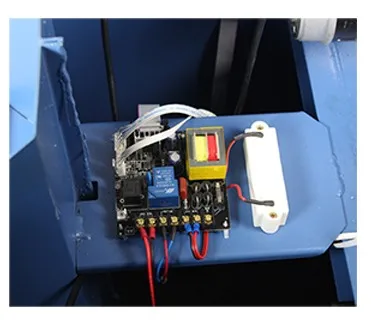

High sensitive photovoltaic panel is more accurate in numerical value
Random Accessories
Packing box style
