Introducing our premium quality wood saw machines – the ultimate solution for cutting log timber with precision and efficiency. Our portable sawmill is designed to make the process of cutting and shaping logs a breeze. Whether you are a professional sawmill operator or a DIY enthusiast, our wood saw machines are perfect for all your cutting needs.

Crafted with the highest quality materials, our saw machines are built to last and deliver top-notch performance every time. With easy-to-use features and a portable design, you can conveniently take our sawmill anywhere you need to work on cutting and shaping logs.

Say goodbye to the hassle of traditional sawing methods and upgrade to our wood saw machines for a seamless cutting experience. Invest in our portable sawmill today and take your woodworking projects to the next level. Experience the difference with our top-of-the-line wood saw machines – the perfect tool for all your cutting needs.

Product Description

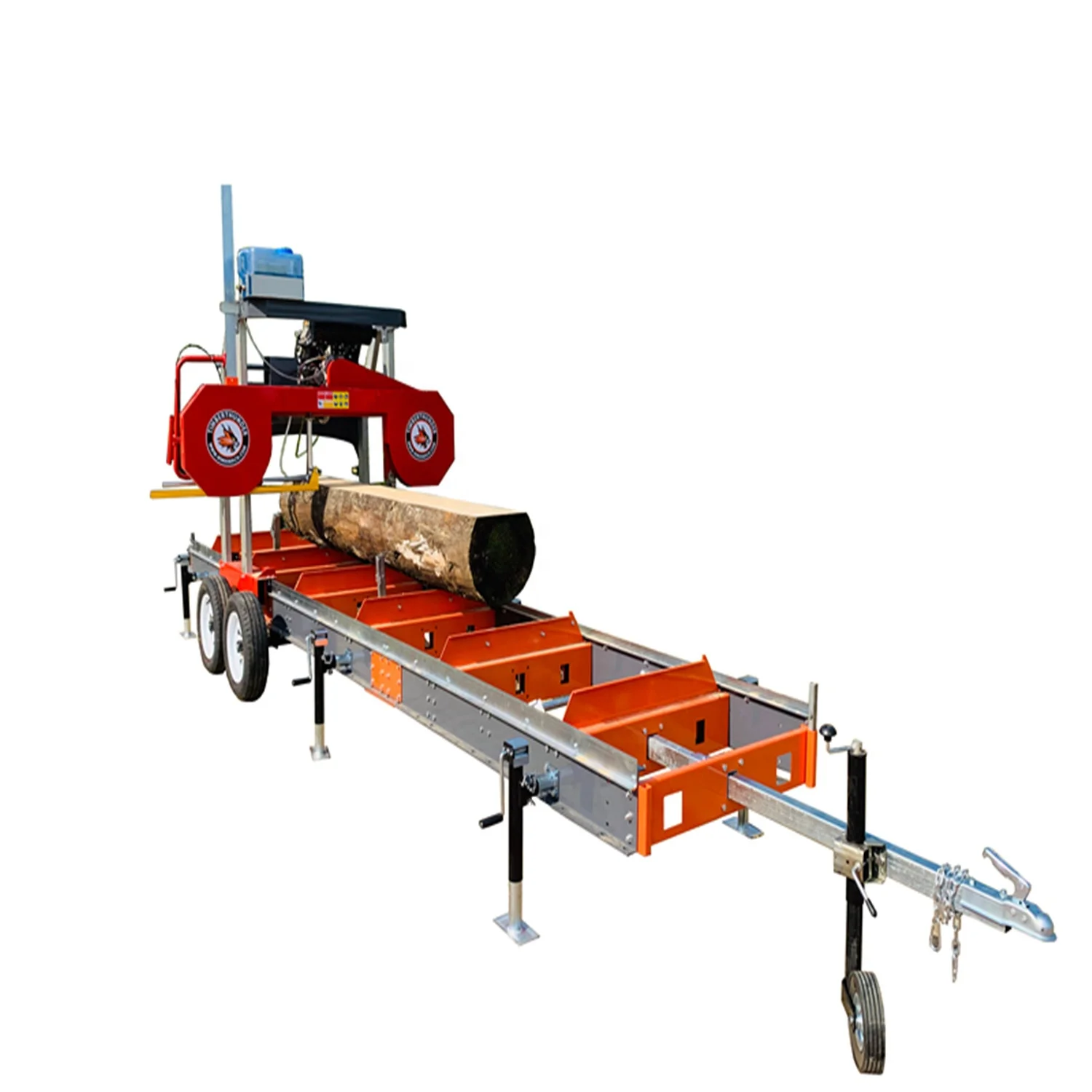

Rima portable sawmill
RS26 & RS31 portable sawmill is designed for home made, carpenter, DIY or craftman…
It could cut the logs into block, plank, live edge etc for the furniture, table top, house etc.
It is small, afforable and durable with unique structure and unbeatable price.
No matter you are dealer or end-user, it will be your invest with high return rate and low risk.

Advantage:

1. The machine has the features of high cutting speed, high cutting rate, high quality of the final product, greatly
reduce the loss of sawdust.

2. It is simple to install, easy to operate,labour saving, and high productivity.

3. Simple, safe and pro-environment.

4. Automatic control the timber thickness, high-precision.

5. High cutting efficiency, smooth; the high flatness of the cutting plate.

6. The thickness of processing wood can be adjusted according to your need.
7. There’s no need the professional lawyers, the ordinary workers can operate the machine expertly.

Specification

Sawmill

Model	RS26G	RS31G	RS26E	RS31E
Power	Gasoline 9HP (LIFAN, Manual start)	Gasoline 15HP (LIFAN, Manual start)	Electric Motor 5.5KW	Electric Motor 7.5KW
Displacement	301cc	420cc	400V 50HZ 3phase
Cutting capacity	660*178*2794mm (26”*7”*110”)	790*178*2794mm (31”*7”*110”)	660*178*2794mm (26”*7”*110”)	790*178*2794mm (31”*7”*110”)
Frame	4pcs	4pcs	4pcs	4pcs
Blade size	3690*34*0.9mm (145”*1-1/4”*0.035”)	3960*34*0.9mm (156”*1-1/4”*0.035”)	3690*34*0.9 mm (145”*1.25”*0.035”)	3960*34*0.9mm (156”*1-1/4”*0.035”)
Standard track size	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)
Packing	2080x570x830mm	2150 x570x830mm	2080x610x810mm	2150 x610x810mm
Safe cutting Speed	13-15s/m			13-15s/m
Blade speed	17m/min			17m/min
Distance teeth	22mm (0.86”)			22mm (0.86”)
Blade Wheel Dia.	480 mm (18.8”)			480 mm (18.8”)
Dimension	4064*1778*1800mm (160”*70”*71”)			4064*1778*1800mm (160”*70”*71”)
Weight	315/355kg			352/380kg
40”HC	63pcs			63pcs

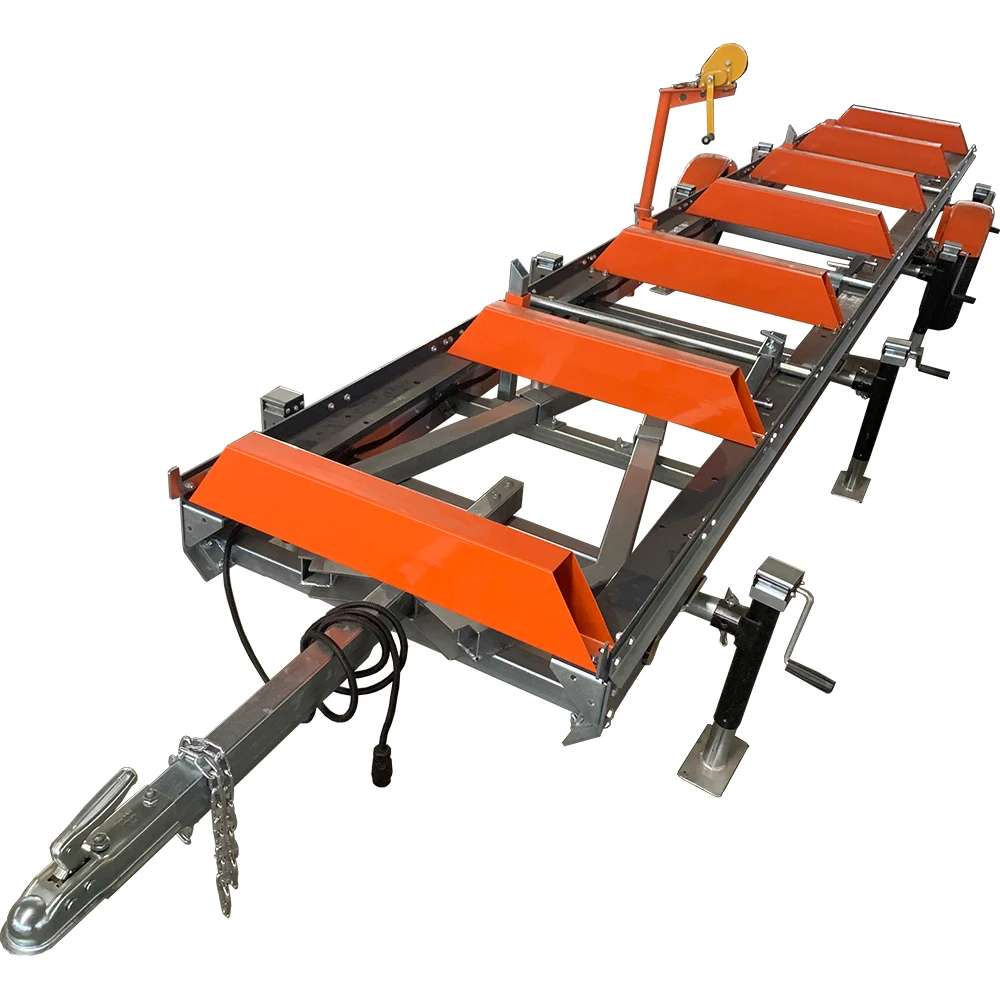

Sawmill Trailer

Model	RST4-26	RST6-26	RST4-31	RST6-31
Trailer Axle	50x50mm	50x50mm	50x50mm	50x50mm
Trailer Size(L*W*H)	3970(+1000mm drawbar)x900x700mm	6000(+1000mm drawbar)x900x700mm	3970(+1000mm drawbar)x1030x700mm	6000(+1000mm drawbar)x1030x700mm
Trailer wheels with Fenders	165/70R13	165/70R13	165/70R13	165/70R13
Trailer loading capacity	1500kg	1500kg	1500kg	1500kg
Trailer Lights	LED light kit	LED light kit	LED light kit	LED light kit
Trailer leveling jacks	6pcs	8pcs	6pcs	8pcs
Trailer Ball Coupler	2″ (50mm)	2″ (50mm)	2″ (50mm)	2″ (50mm)
Finish	Galvanized	Galvanized	Galvanized	Galvanized
Log Loading Ramp	Max. 1350kg	Max. 1350kg	Max. 1350kg	Max. 1350kg
Log Loading Winch	1200 lbs	1200 lbs	1200 lbs	1200 lbs
Weight	350/385kg	380/415kg	350/385kg	380/415kg

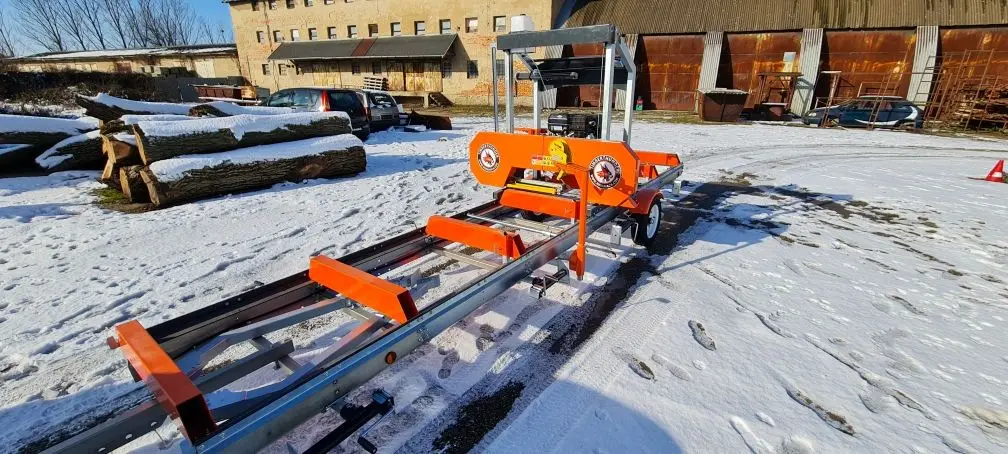

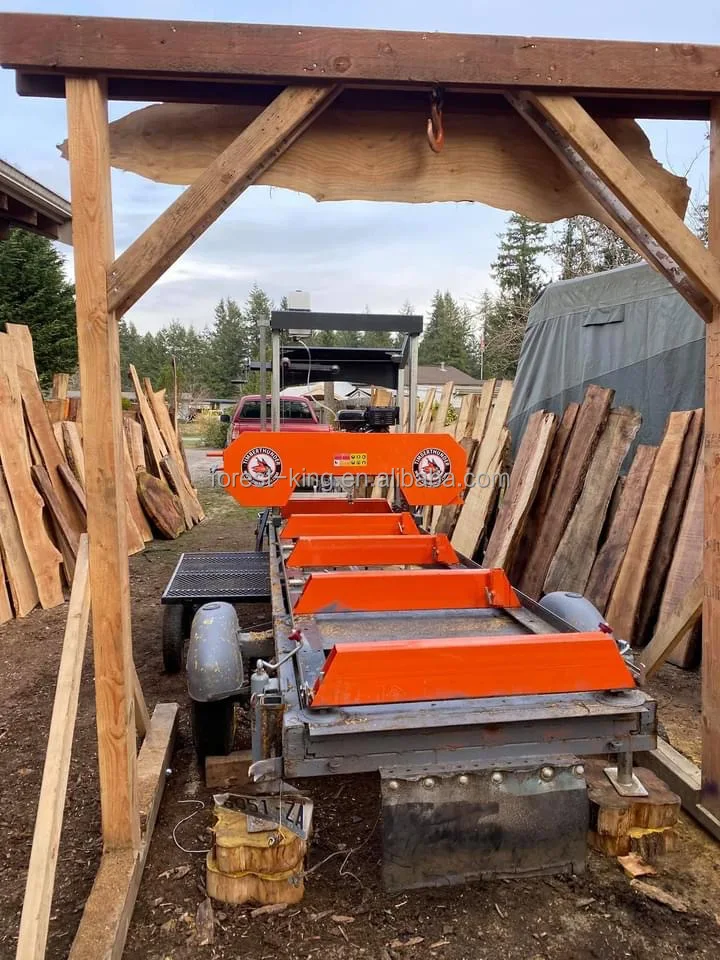

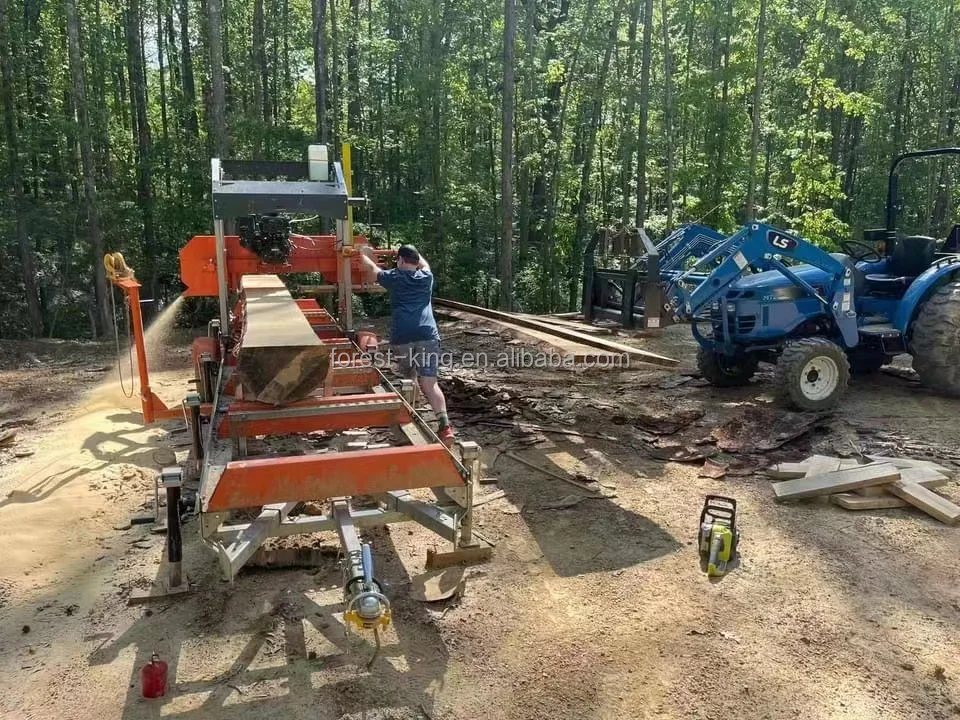

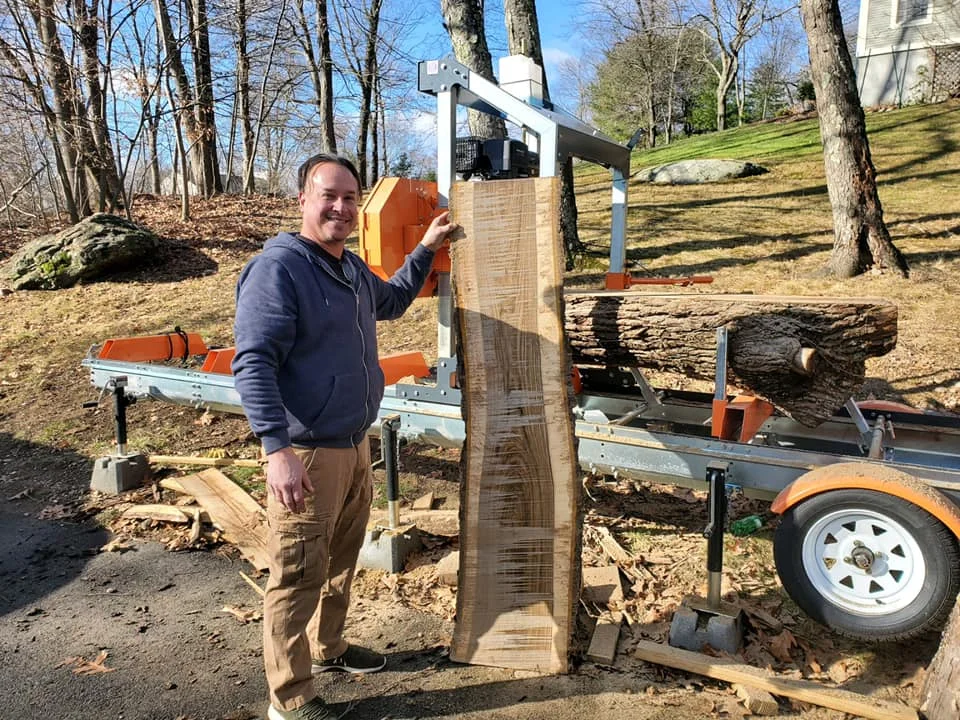

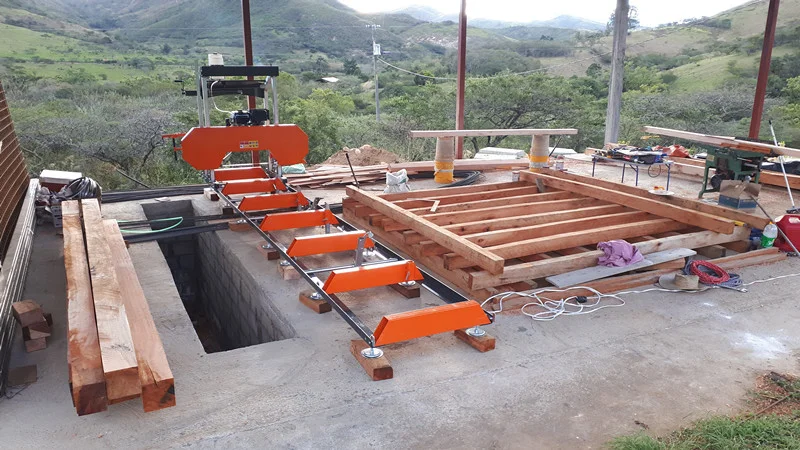

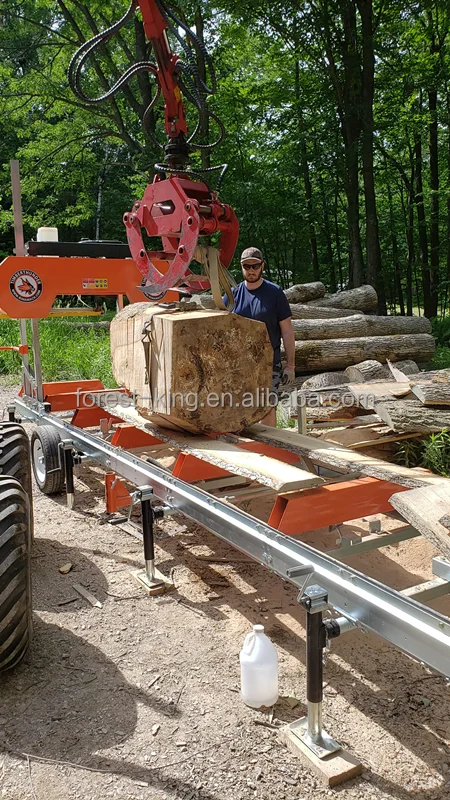

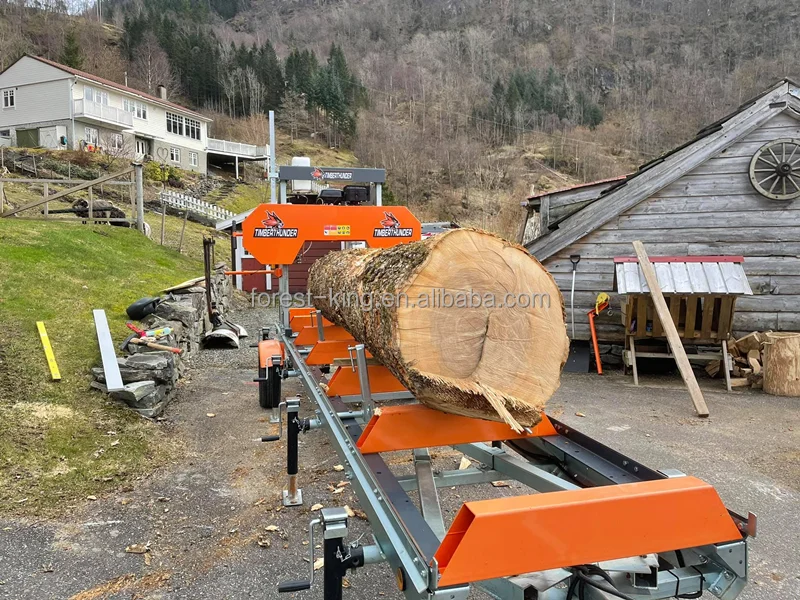

Customer Photos

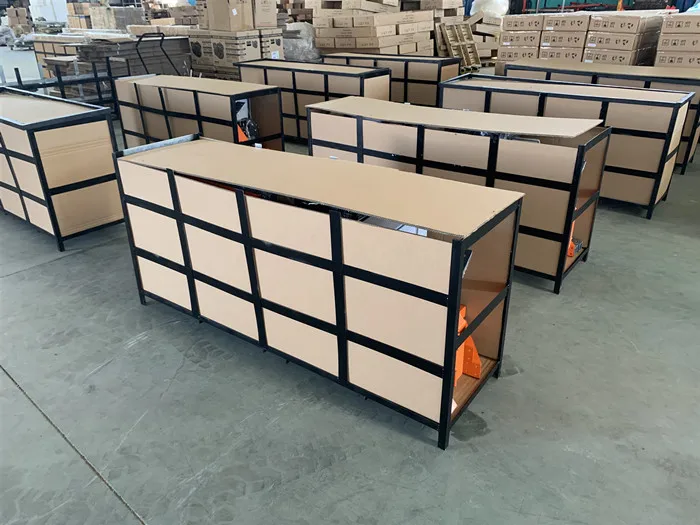

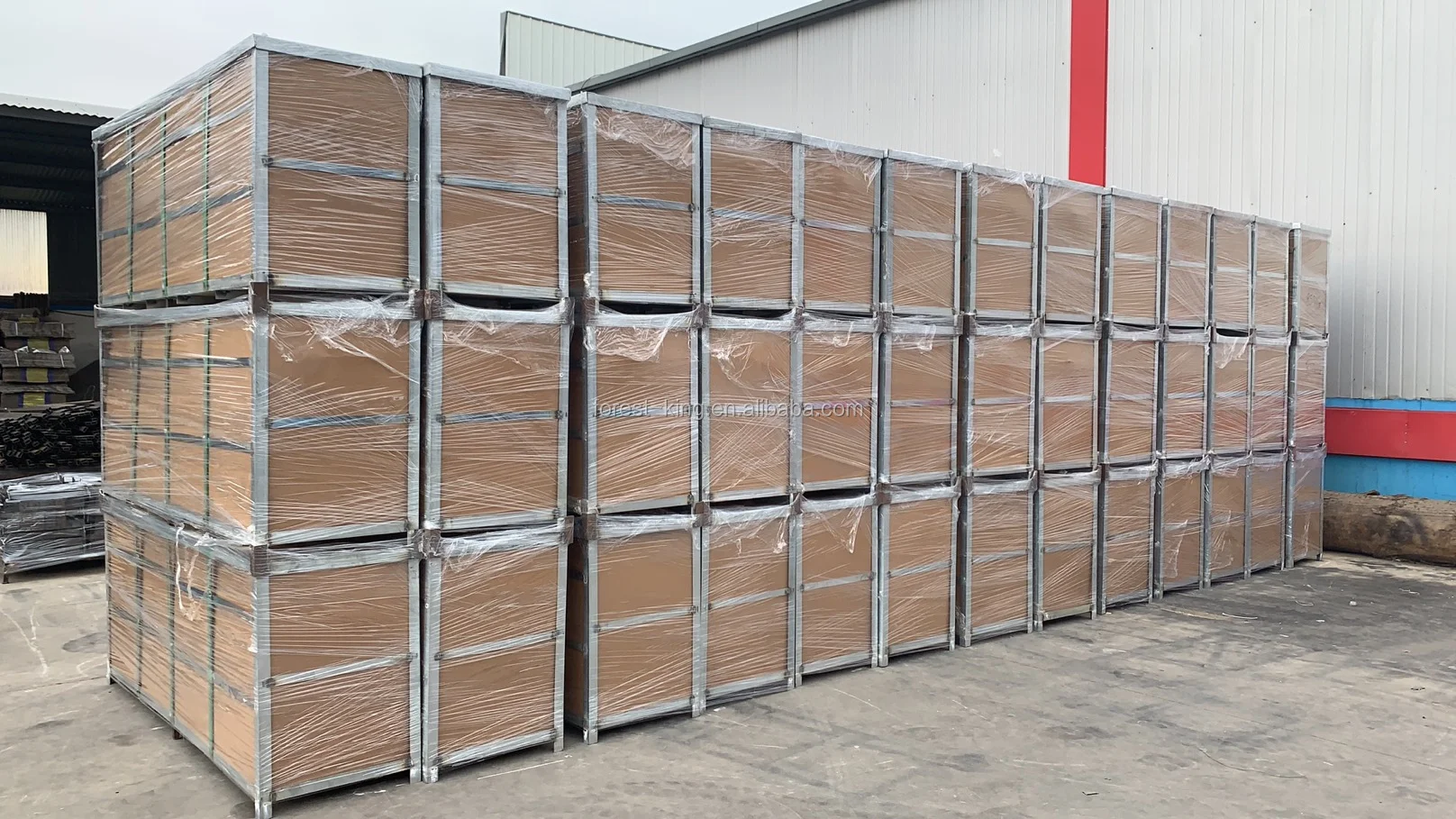

Packing & Delivery

Company Profile



RIMA is engaged in producing all kinds of farm & forest equipment : portable sawmill , chipper shredder, log splitter , firewood processor , grapple , rotator , crane & hydraulic attachments for tractor , excavator , loaders etc

We will be your one- stop supplier for forest equipments .



FAQ

1. Who are you?

We are your one-stop supplier for forest equipment and hydraulic attachments .

2. What is your delivery ?

After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.

3.What is your warranty ?

The warranty time of the machine is 1 year. During this period, we will send you the replacement for the broken part(not man made).

4. What can you buy from us?

Portable sawmill , chipper shredder, log splitter ,firewood processor , grapple , rotator , crane & hydraulic attachments for tractor , excavator , loaders etcportable sawmill , chipper shredder, log splitter , firewood processor , grapple , rotator , crane & hydraulic attachments for tractor , excavator , loaders etc

5. What’s your company mainly exporting market?

We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service, we have establish good and long business relations with many clients. Welcome clients from all over the world to visit our factory.

6. How do you control your quality?

To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system, and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment.

7.What is the sawmill length ?

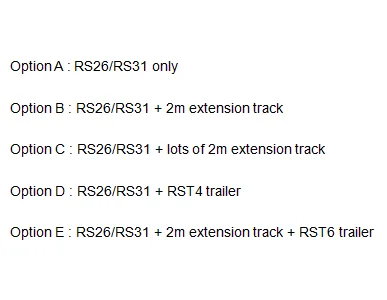

Sawmill length : 4064mm , Saw head is 1m , so the sawmill track could put 3m log , if you need to cut longer logs, 2m extension track is optional for you .

8.What is your sawmill max cutting capacity ? Could it cut hardwood ?

Our sawmill could cut max 31 ” (790mm ) until now , it could cut hard wood , and we prepared carbide blades for cutting hardwood , especially in Africa and Australia .

9.If I need different measurements or weight, could you offer OEM service?

Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
