WHB04B-4 WHB04B-6 CNC Mac.3, 4 Axis Wireless Mach3 MPG Pendant Handwheel for Lathe – Wholesale Price 40 Meters

New 6 Axis Wireless CNC Handwheel Mach3 MPG Pendant Manual Pulse Generator MPG hand wheel for 3 axis 4 axis 5 Axis CNC Machine

Description:

-Radio frequency: 433 MHz, ISM, the Tx power is 10DB and the RX sensitivity is 98DB. USB receiver 6 axes (X, Y, Z, A, B, C axis) with LCD display realtime display.

-Support 128*64 dot matrix input. Support 100PPR electronic hand wheel function.

-Support the 13 shortcut keys, the user is free to define the function.

-Wireless transmission distance of 40 meters. 64 channel frequency hopping -transmission, strong antiinterference, stable and reliable; the channel gap is 1 MHz.
Low power design, 2 AA battery for 1 months. Industrial grade design, dust proof design, stable and reliable.

-Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry.

Features:

The series of remote control, providing DLL library files for customers to carry out the 2 development, suitable for the customer's own a variety of numerical control system. The series of remote control, based on the WINDOWS system.

Product features:

-Radio frequency: 433 MHz, ISM, the Tx power is 10DB and the RX sensitivity is 98DB

-USB receiver 6 axes (X, Y, Z, A, B, C axis) with LCD display real-time display

-Support 128*64 dot matrix input

-Support 100PPR electronic hand wheel function.

-Support the 13 shortcut keys, the user is free to define the function

-Wireless transmission distance of 40 meters

-64 channel frequency hopping transmission, strong anti-interference, stable and reliable; the channel gap is 1 MHz

-Low power design, 2 AA battery for 1 months

-Industrial grade design, dust proof design, stable and reliable

-Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry.

Band switch function:
To control the various function of the hand wheel through the band switch.

Application:
For Windows: All Mach3 CNC

Explanation:

1.Key success indication: when you press the button, the receives the key value, the indicator flasher about, indicating successful key operation.

2.Speed Indicator: when the band switch to select 1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG.

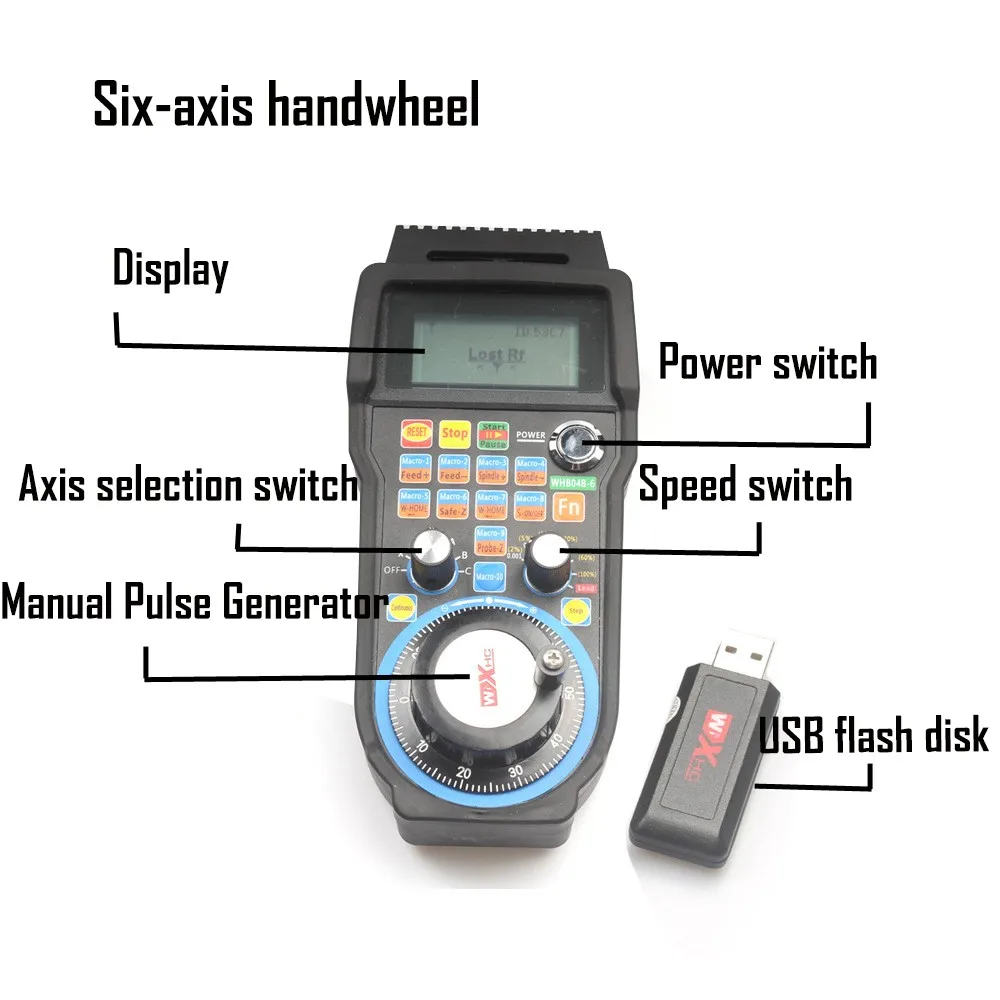

3.Axis selected location: Axis selection switch position, LCD display axis selected. X:X workpiece coordinate axis,1X:X axis mechanical coordinate.

Package Includes:

• 1pcs xWireless USB Receive

• CNC Wireless Remote Handl

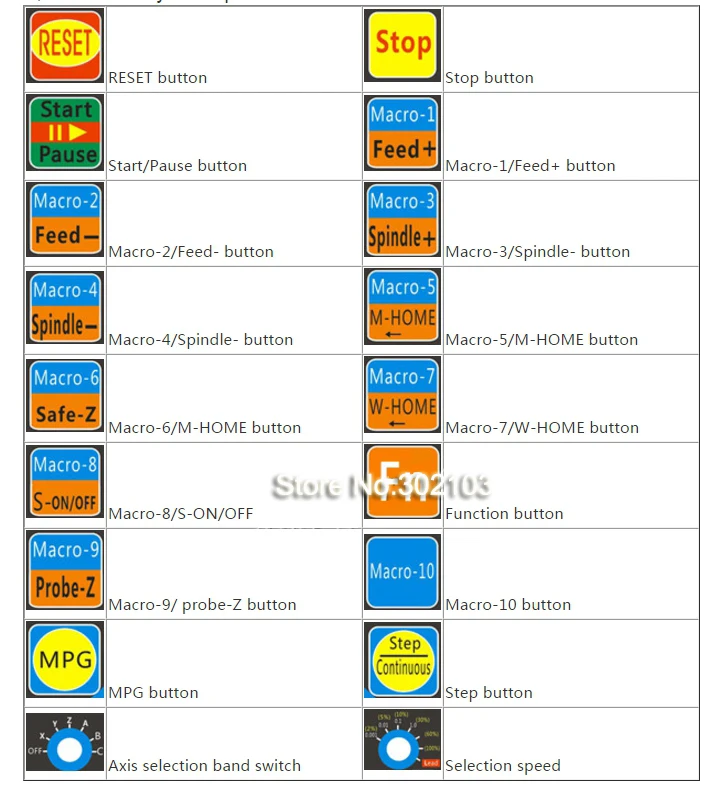

• Funciton key descripiton:

•

•

•

• Application circut



  LCD Display overview

•

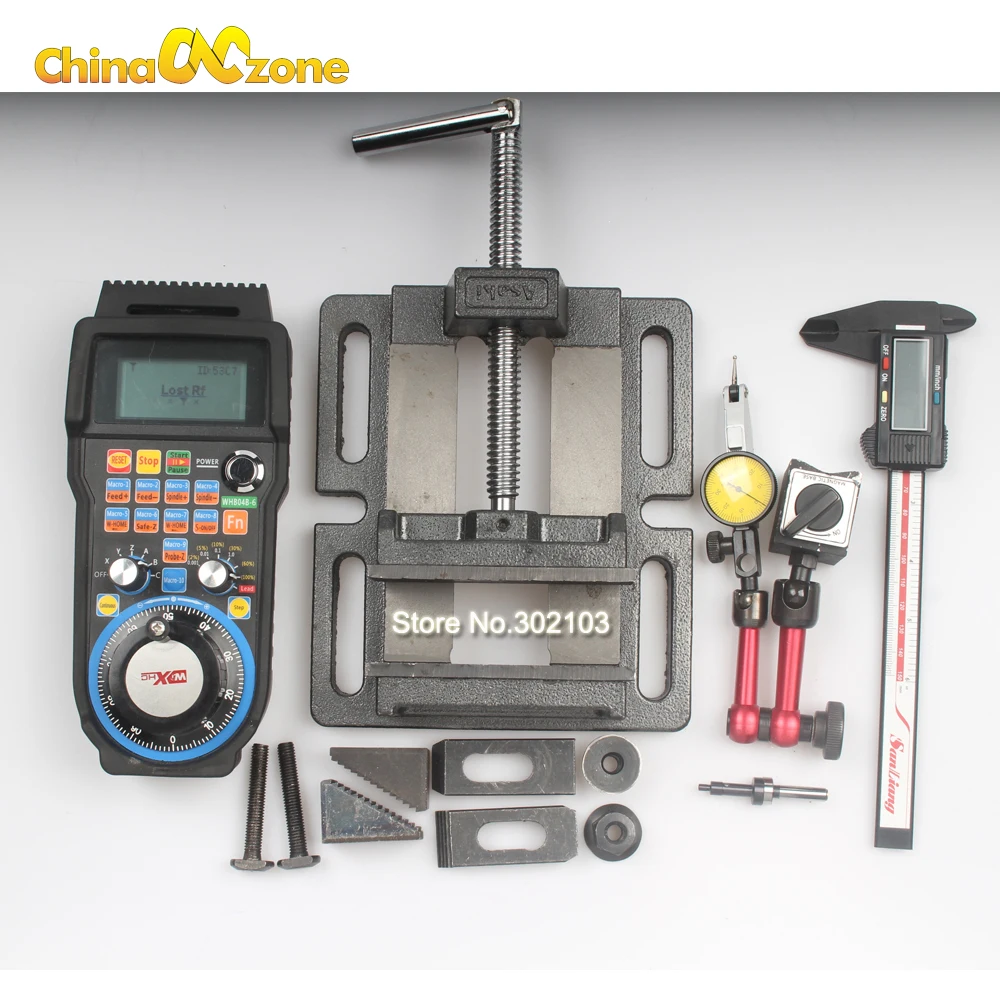

• If you need other machine accessories, please contact us:

•

•

  After-sales service process :

  1/ After-sales service contains:
  a.    Machine installation and adjustment
  b.    Software Settings and using (not include G code programming)
  c.    Machine quality problem
  d.    the machine using problem

  2/ When the machine have problem:
  a.    Machine problem pictures or video is asked.
  b.    General problem solve way will be supplied in 1~2 days,
  Complex problem solve way will be supplied in 2~3 days.

  3/ General problem solve way: (Machine warranty is 1 year, Cutters don’t have warranty, they are consumables)
  a.    Machine operation and installation problem, we will supply video or pictures to show you.
  b.    Machine quality problem, machine parts will be resent free.

  We have our engineer team can support after-sales service, please be assured to purchase from us:
