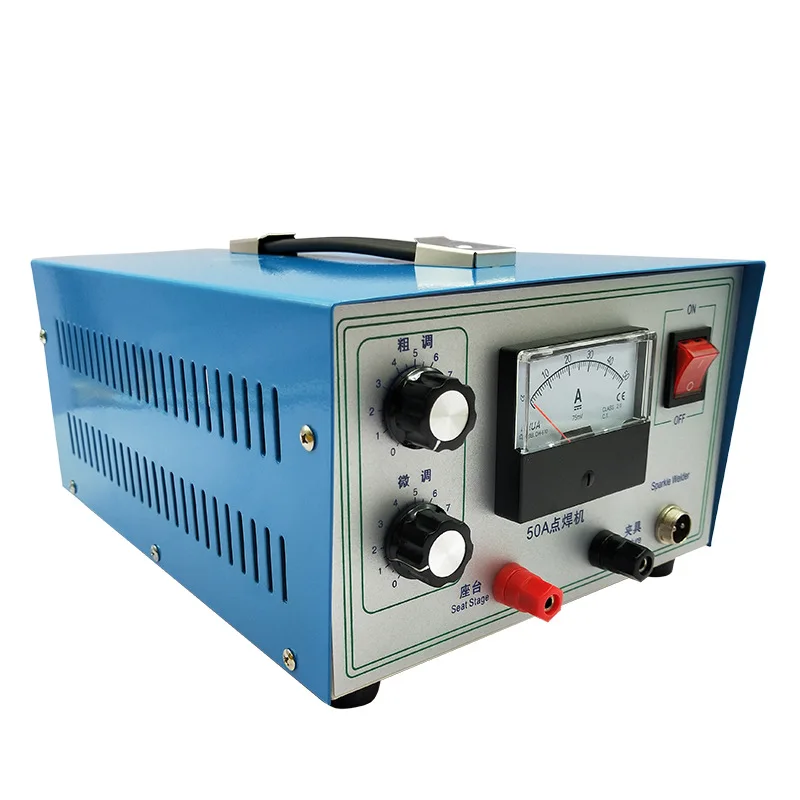

50A Pulse Laser Spot Welding Machine Handheld High-power Butt Welder Tool Gold Silver and Copper Jewelry Welder Equipment

This shop specializes in the production of wholesale gold tools and jewelry equipment, welcome to buy! ! We serve you wholeheartedly!

Product introduction

The spot welding machine can be used for rapid welding of platinum, gold, K gold, silver, ring mouth, melon buckle, precision welding of thin wires, and direct welding without solder powder.

Using the principle of plasma high-frequency discharge, a molten pool is instantly formed at the metal weld

Adjust the output power according to different sizes of wires

The welded workpiece is smooth, firm, fast, and efficient

Technical Parameters

Model: 50A

Input voltage: AC220/110 (V)

Power: 150W

Maximum welding thickness: 1.5 (mm)

Product use: Spot welding of gold, silver and copper jewelry coils

Control method: manual

Cooling method: shutdown

Frequency band: laser

Frequency: 50HZ/60Hz

Drive form: pedal

Style: handheld

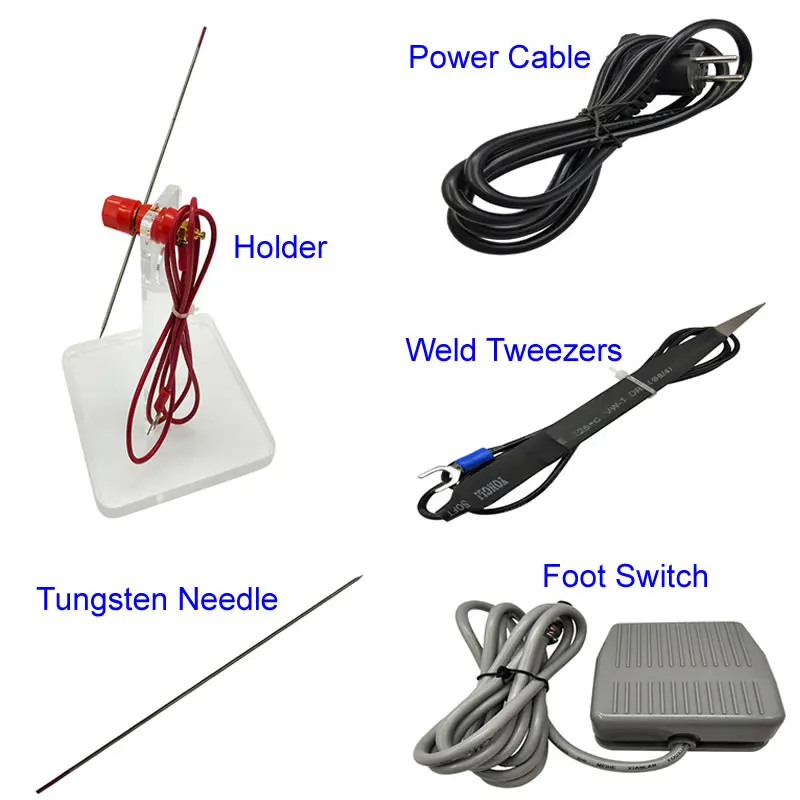

Packing list

50A welding machine* 1

Clamp* 1

Holder* 1

Foot switch* 1

Fixed stand* 1
