Welcome to the world of electric bikes with the CSC Fat E-bike Conversion Kit! Transform your regular bike into an electric powerhouse with this kit, featuring a powerful hub motor available in 36V 250W, 350W, 500W or 48V 1000W options.
This kit is perfect for those looking to add an extra boost to their biking experience, whether it’s for commuting, leisurely rides, or off-road adventures. The CSC Fat E-bike Conversion Kit is easy to install and comes with everything you need to get started.
Enjoy the convenience and thrill of electric biking with the CSC Fat E-bike Conversion Kit. Upgrade your ride today and experience the freedom of cruising effortlessly with the power of an electric motor.
if you need battery, please click Battery photo, and then buy it.

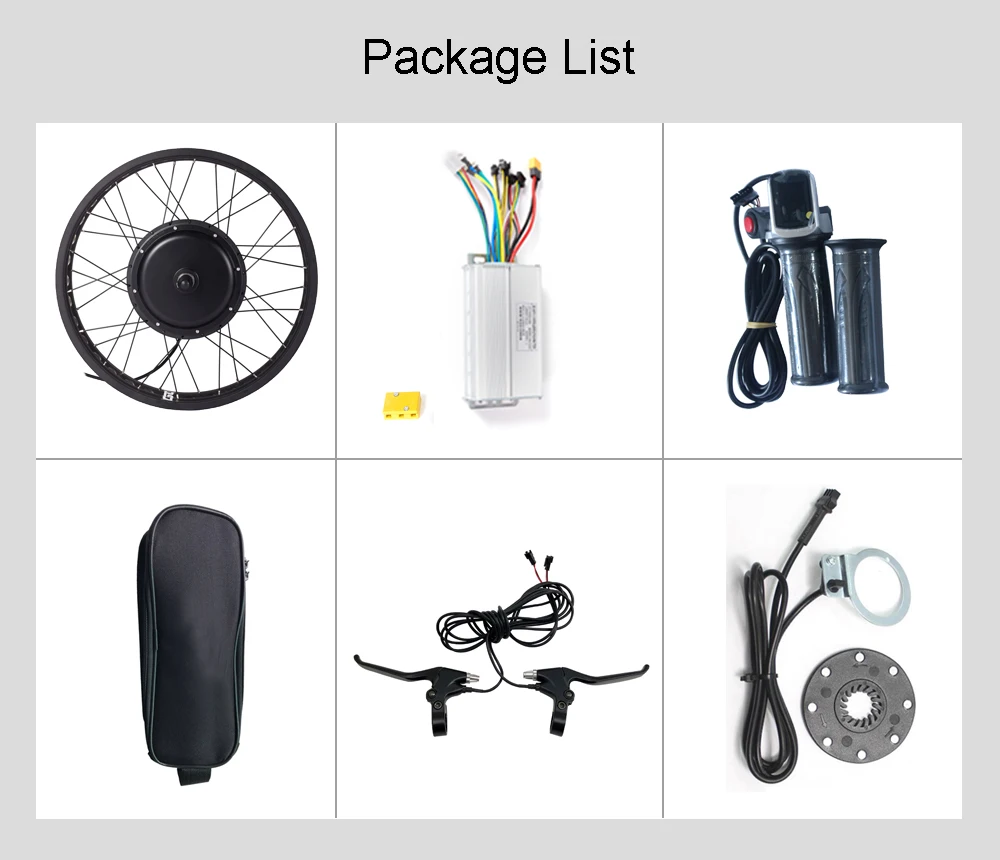

Packing List ( If you choose "LED on Throttle"）
Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
1 * Front or Rear Motor wheel（20/24/26inch ）
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 set * Twist Throttle with LED Display
1 * 8 Magnet Pedal Assistant Sensor
Packing List ( If you choose "SW900"）
Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
1 * Front or Rear Motor wheel（20/24/26inch ）
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display SW900
1 set * Twist Throttle
1 * 8 Magnet Pedal Assistant Sensor

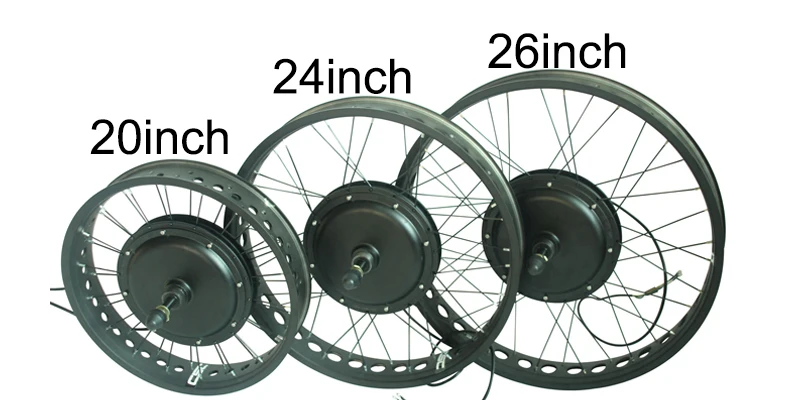

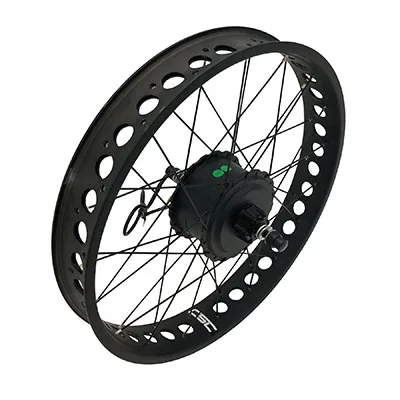

Motor Wheel
1. Full Speed: 36V 250W 350W 500W about 30-35km/h
48V 750W about 40-50km/h,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor: Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V
3. Rim: Double-wall Aluminium Alloy Rim

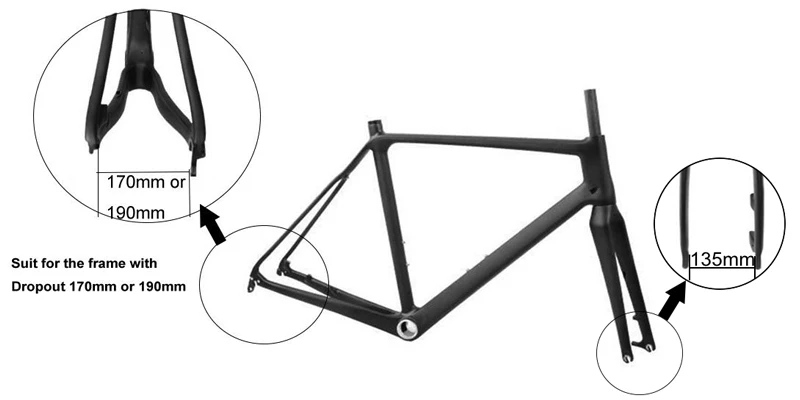

4. wheel Bottom bracket: Rear 170mm or 190mm, Front 135mm
36V
48V
Display

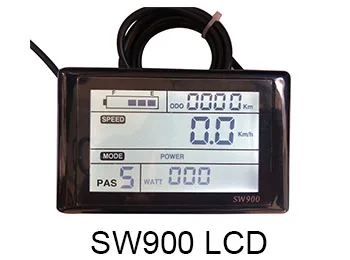

SW900 display which comes with cruise Function
Twist Throttle with LED Display

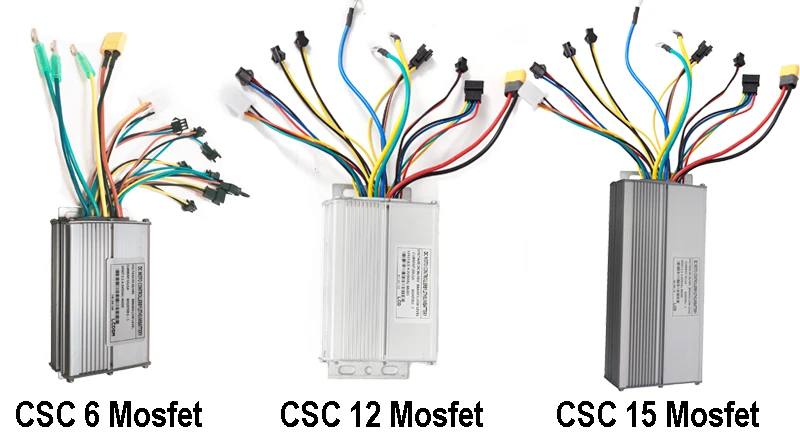

Controller
CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 100*64*32mm
CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm
CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm

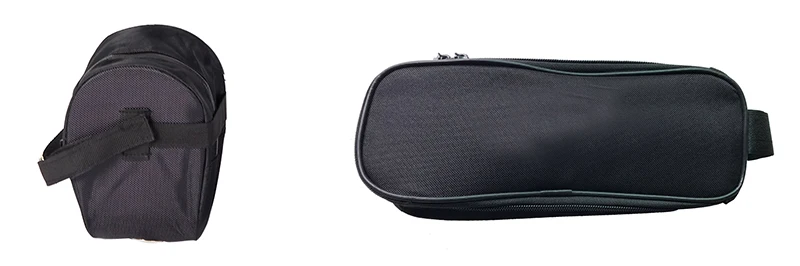

Controller Bag

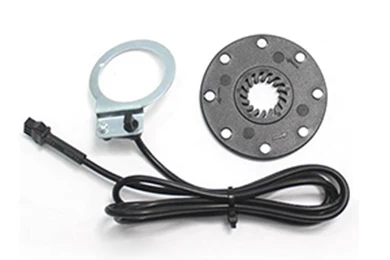

PAS
KT BZ-4(8) Magnet
Throttle
SW900 display uses Twist Throttle

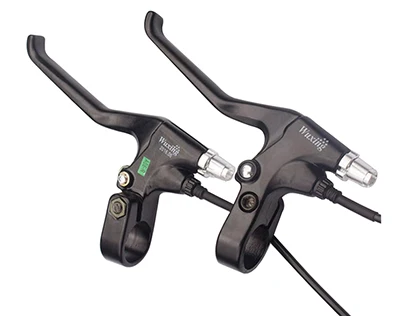

Power cut-off brake leaver
Shipping & Warranty
Tracking number is also available for Seller's shipping method.
1.）We ship by EMS ，Russian Post, hongkong post air parcel or China post air parcel. If you need it ship by DHL, FEDEX or UPS,please contact us to pay extra cost.
2. ) Import duties, taxes and charges are not included in the item price.These charges are the buyer’s responsibility. If you need DPD/ XDB shipping to European countries, please Buy the link below with Conversion Kit together. click >>>DPD/XDB<<<. If you have any questions about tax, please contact us.
please contact us to check whether you can use this service.
3. ) If you have any question after you receive the items, please contact us first. Your satisfaction is our top priority and we are confident that you will be pleased with our services.

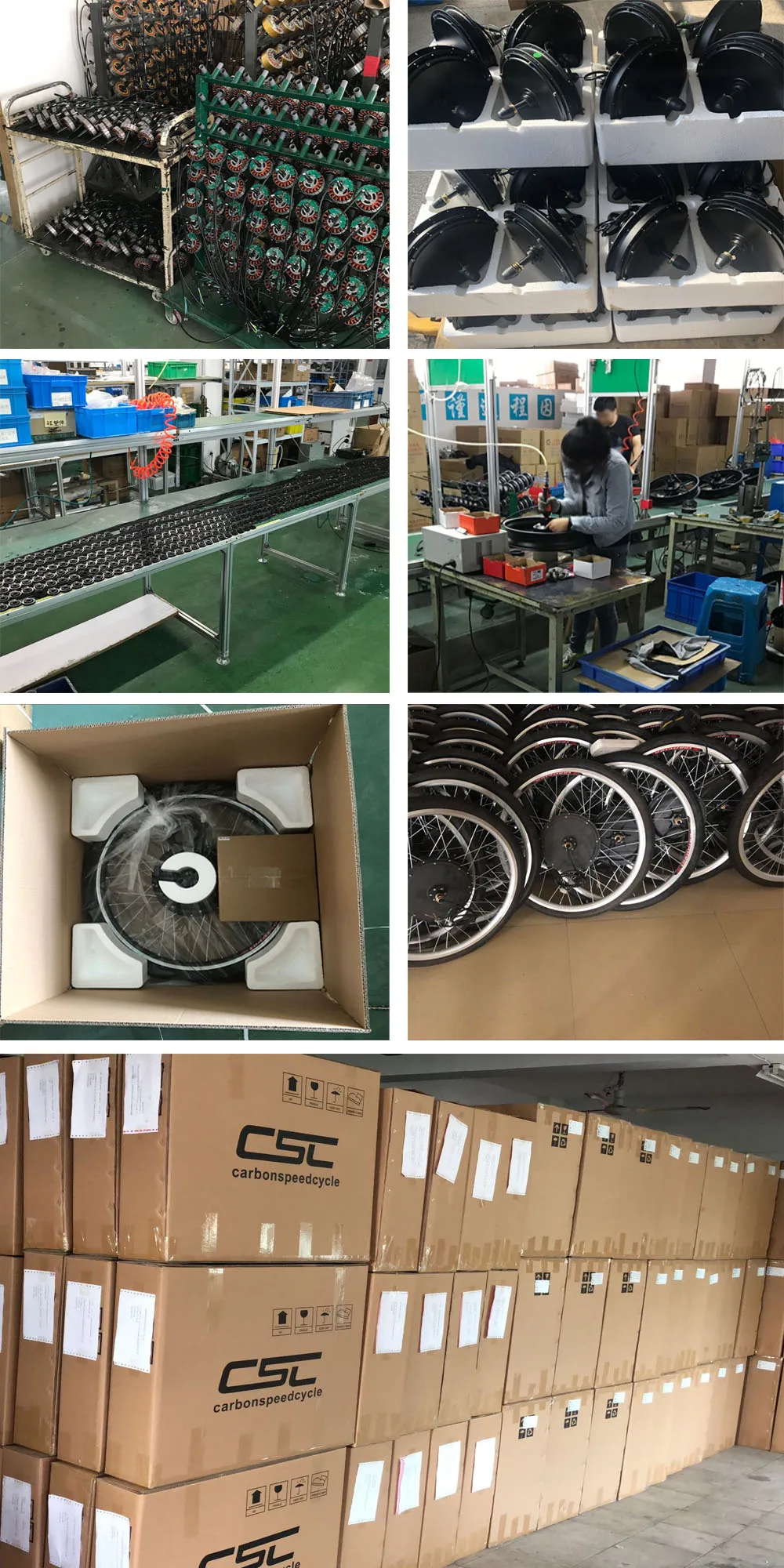

Packaging Our Factory and Warehouse
