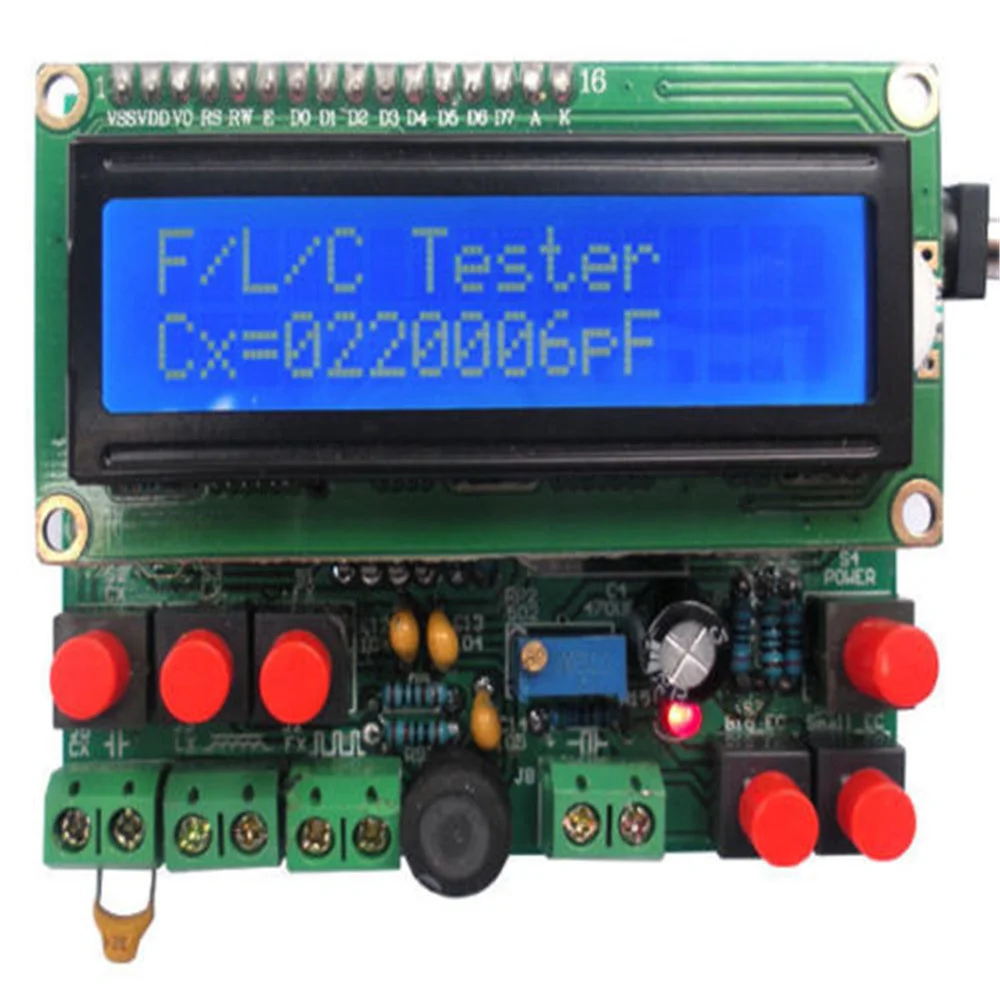

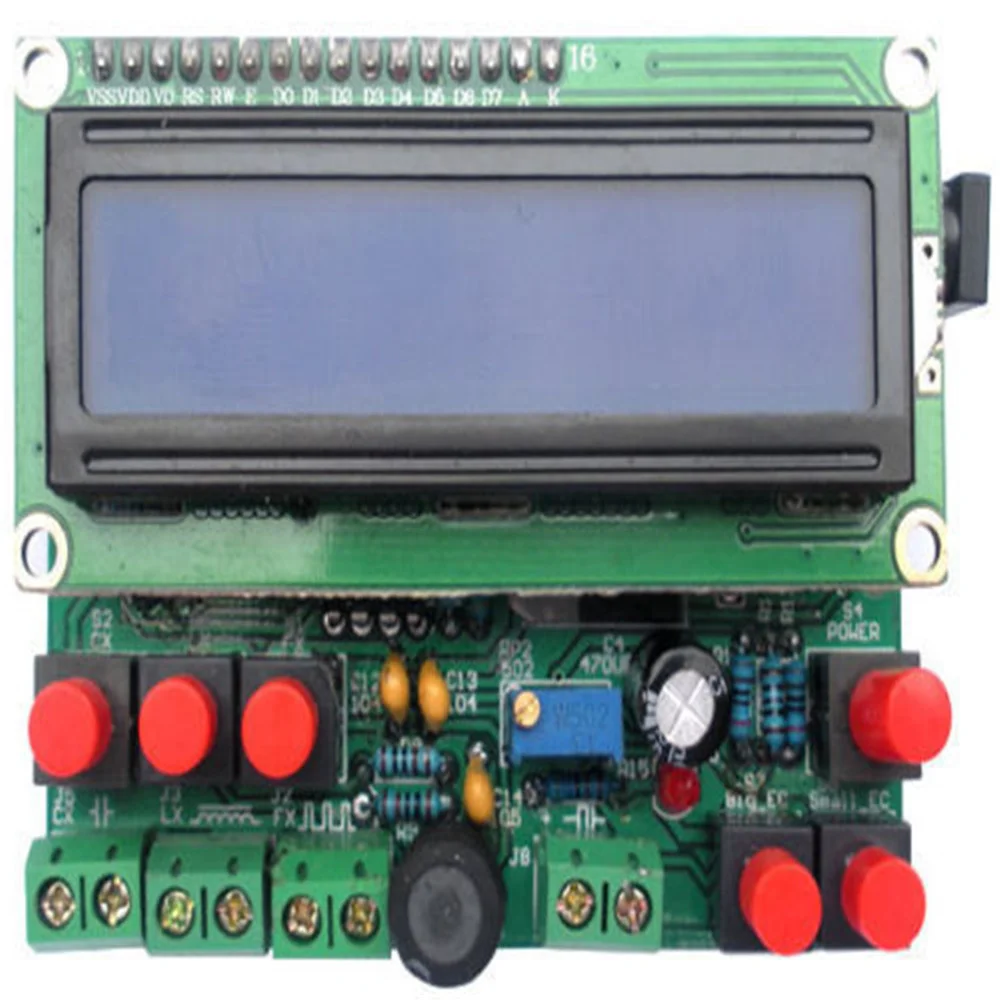

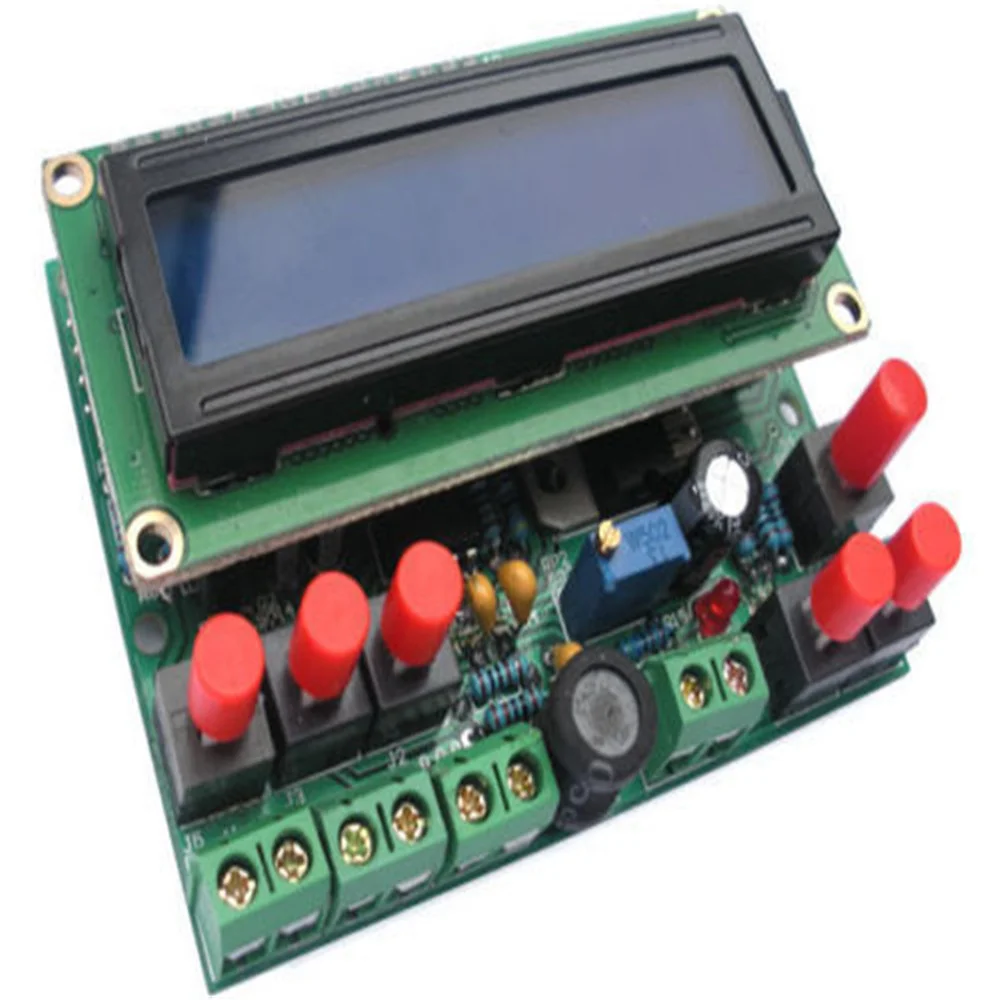

The Capacitor Tester DIY Kit Set with Digital LCD Display can test inductance, frequency, and components ranging from 0.1μH to 1H. This handy tool is perfect for testing capacitors and other components quickly and accurately. The LCD display makes it easy to read results, while the compact design makes it portable and convenient for DIY enthusiasts. Whether you need to test a specific component or simply want to ensure the quality of your electronics, this Capacitor Tester DIY Kit Set is a versatile and reliable option for any project.
Capacitor Tester DIY Kit Set Digital LCD Display Inductance Meter Frequency Component Tester 0.1μH-1H Component Tester Capacitor
Features:
Board size: 6.8 * 8.5CM;
Supply voltage:
DC5V or DC8-14V or AC7 to 10V are available (power range is quite wide)
NOTE:
This is a DIY parts, it requires you to do it yourself installation is complete

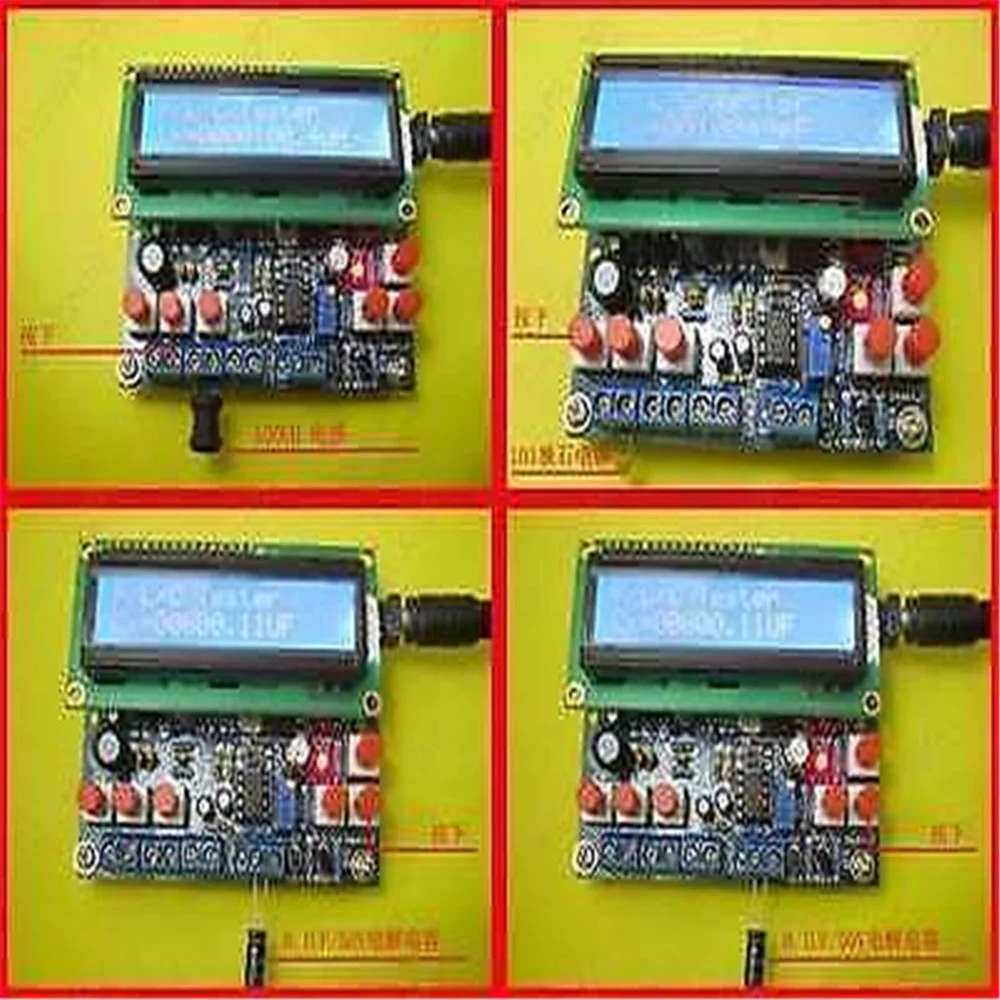

Various stalls Range Description:
Inductance measuring range: 0.1μH——– 1H
Small capacitance measuring range: 1pF ——- 2.2μF (non-polarized capacitors)
Frequency Range: 20Hz —— 400KHz (small signal can be measured)

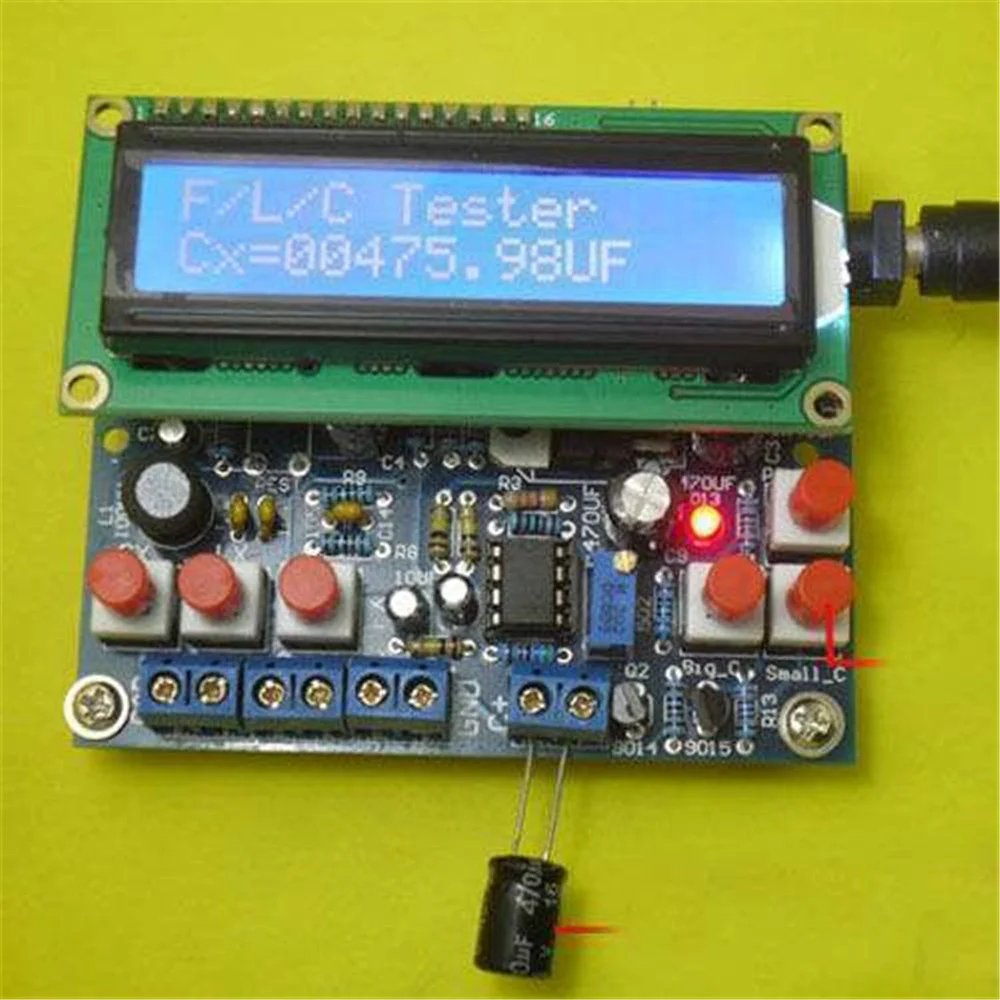

Electrolytic capacitor measuring range: 0.5μF–12000μF (electrolytic capacitors)

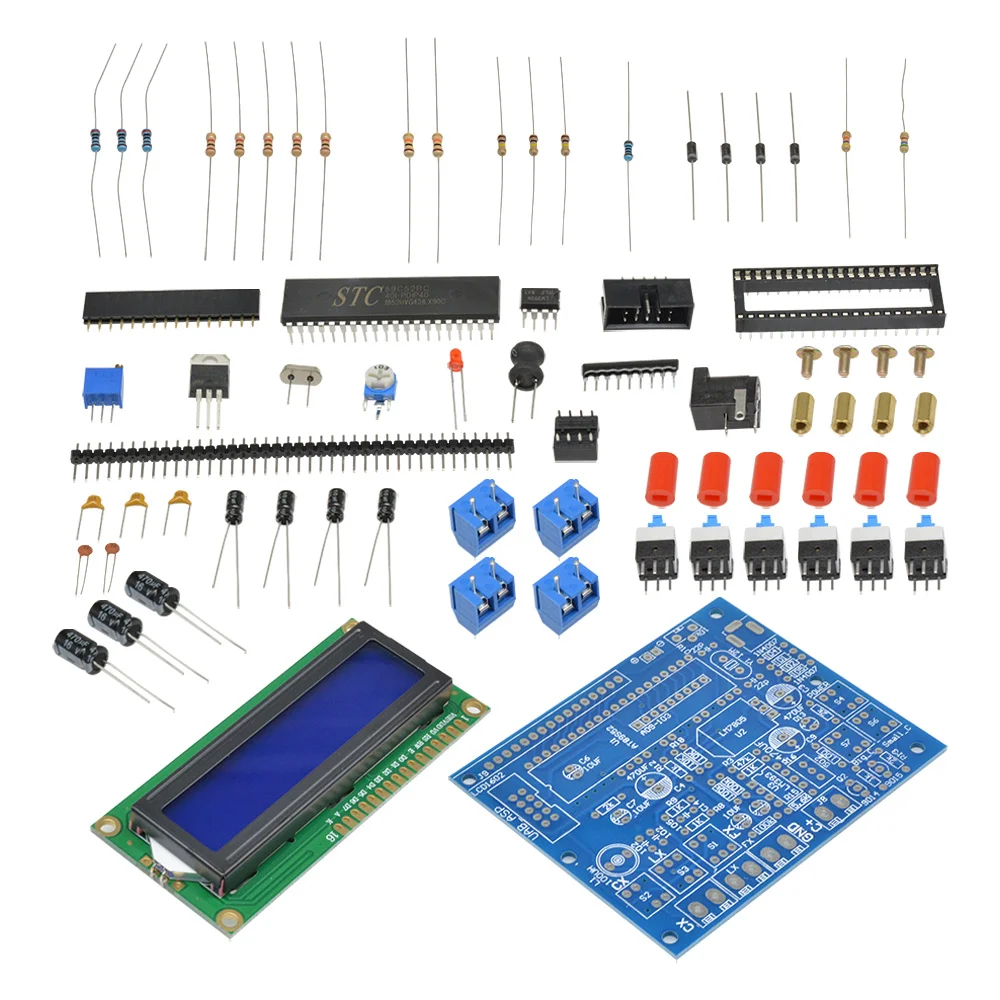

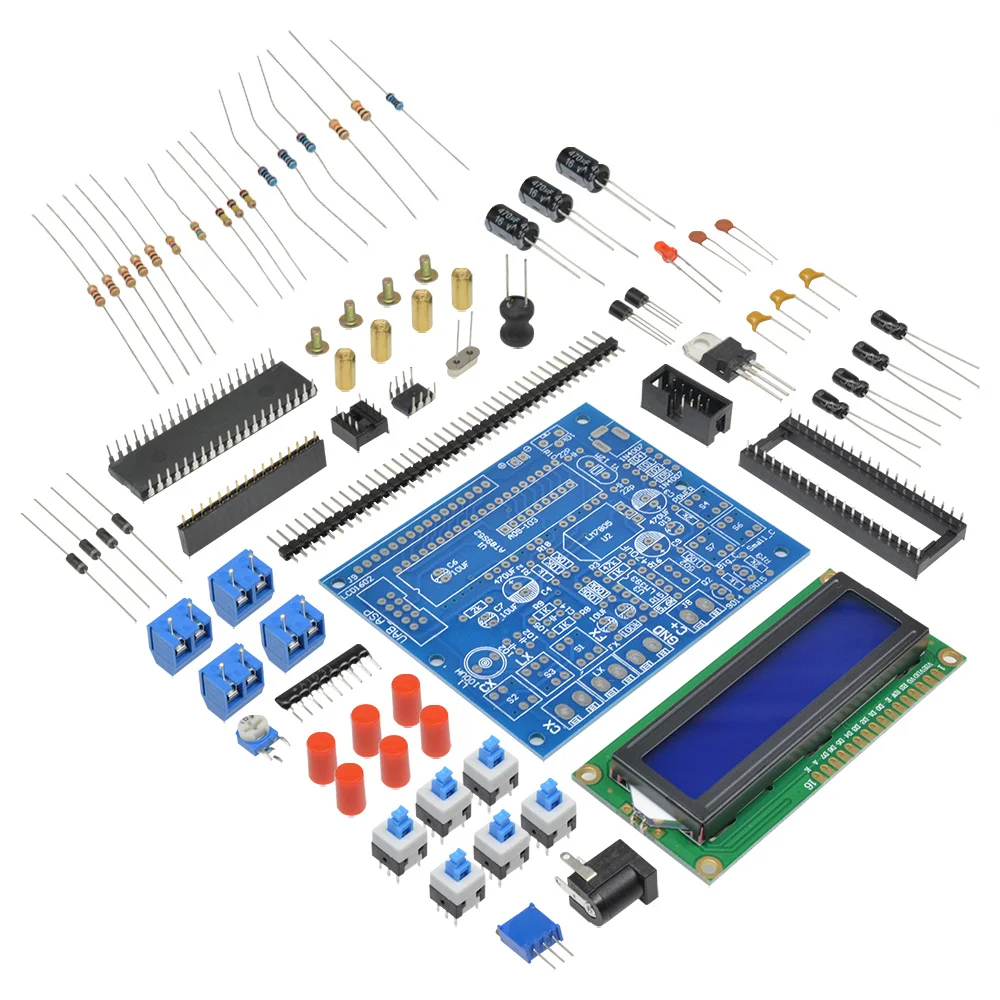

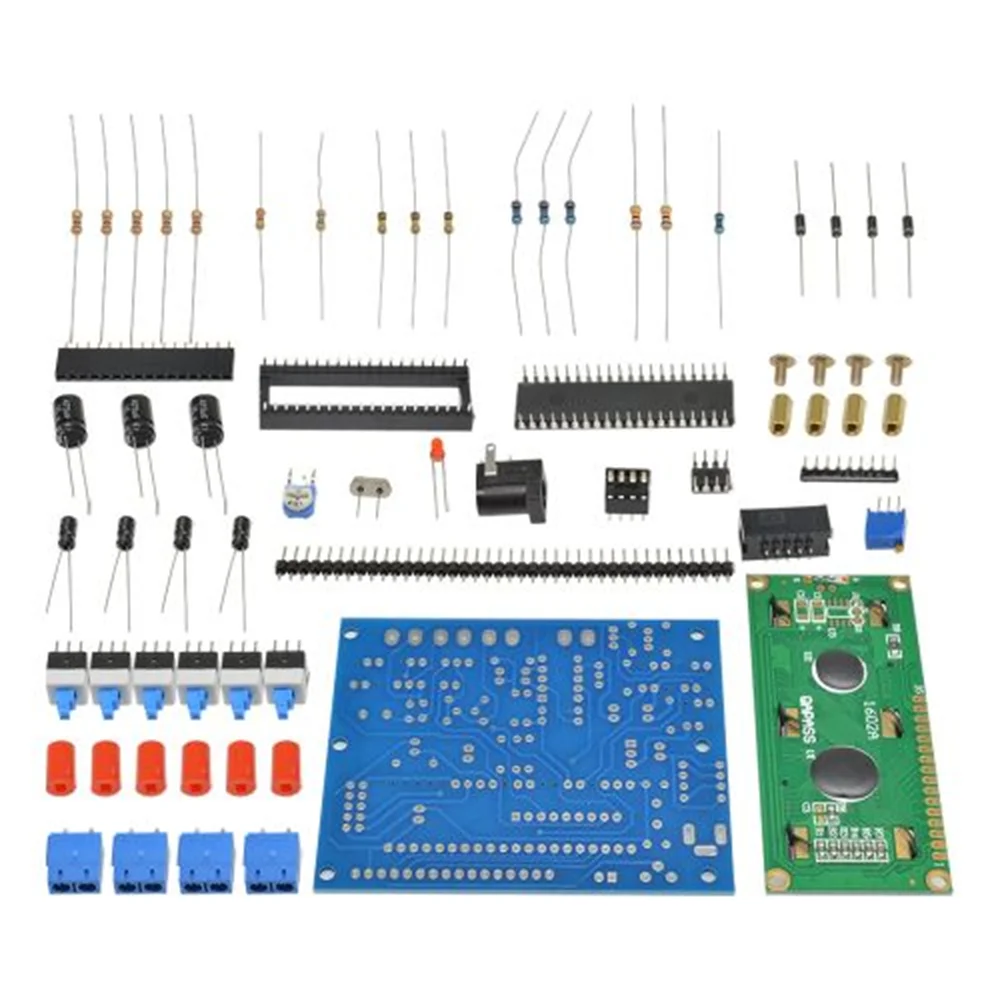

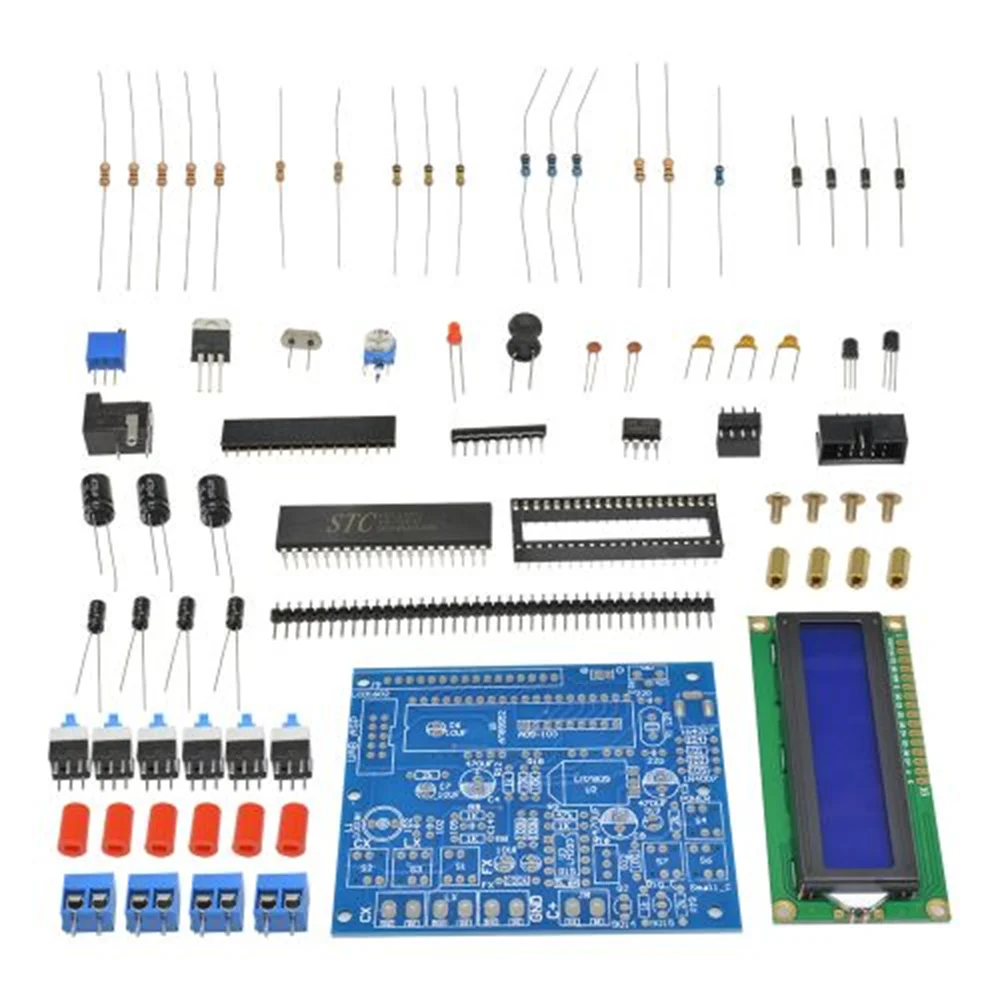

Listing:
PCB board*1
1CM studs +screw *4
16P FEMALE*1
40P pin straight *1
Bent pin 2-pin *1
LCD1602 *1
103 blue potentiometer *1
DC3-10 horns seat *1
40P IC Block *1
AT89S52 *1
8P IC Block *1
LM393 *1
8 * 8 self-locking switch *6
KF301-2P Terminal Blocks *4
DC005 seat *1
LM7805 *1
A09-103 exclusion *1
3296-502 potentiometer *1
22P ceramic capacitors *2
1N4007*4
12M crystal*1
470UF/16V capacitance *3
10UF/25V capacitance *4
3MM LED *1
100UH inductor *1
102 monolithic capacitors *2
105 monolithic capacitors *1
9014 triode *1
9015 triode *1
10K resistor *2
1K resistor *5
100K resistor *3
2K resistance error of 1% *3
47K resistor *1
5.6K resistor *1
100 ohm 1% error *1
Package Included:
1 X DIY Kit Secohmmeter Capacitance Meter Frequency Meter Inductance/Capacitance
