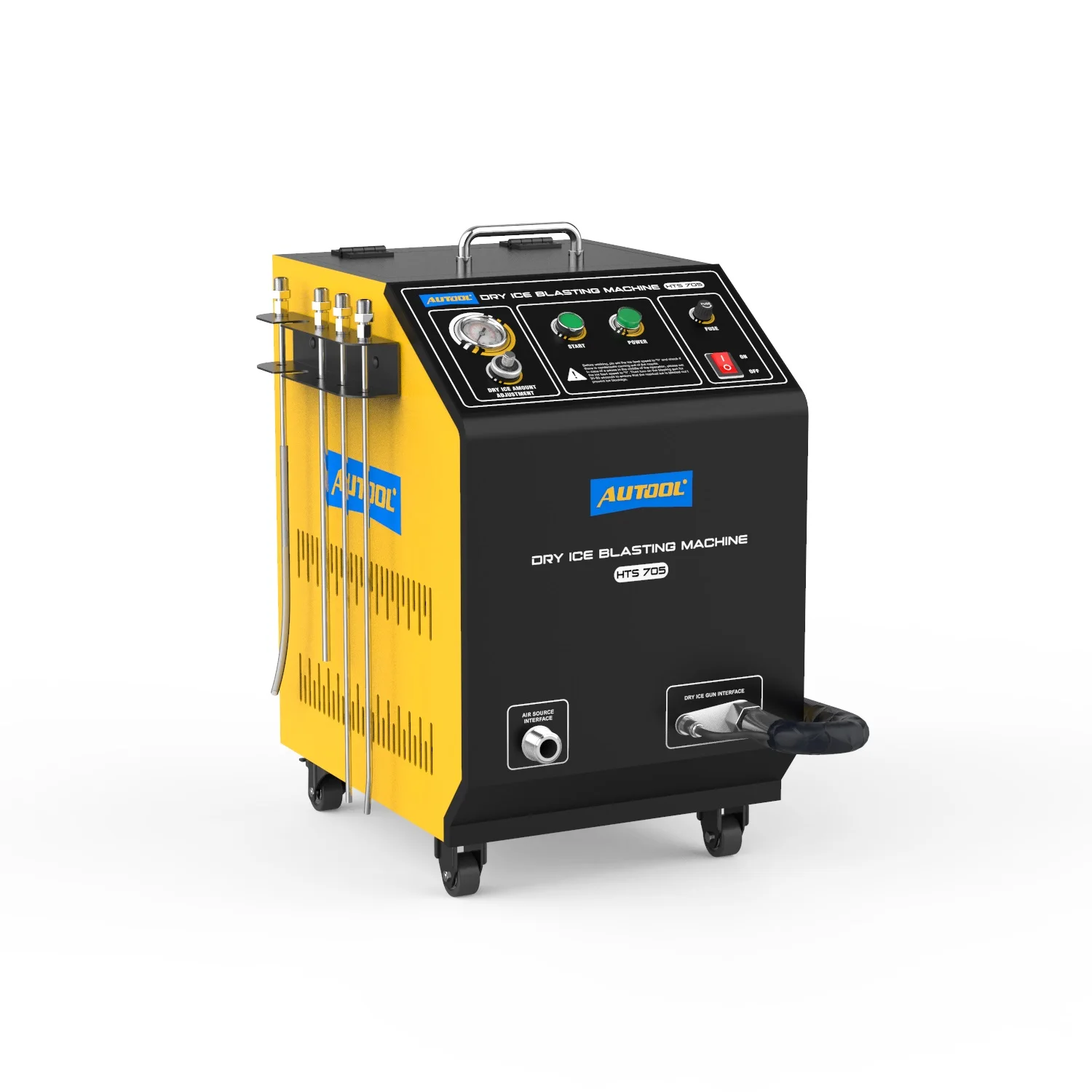

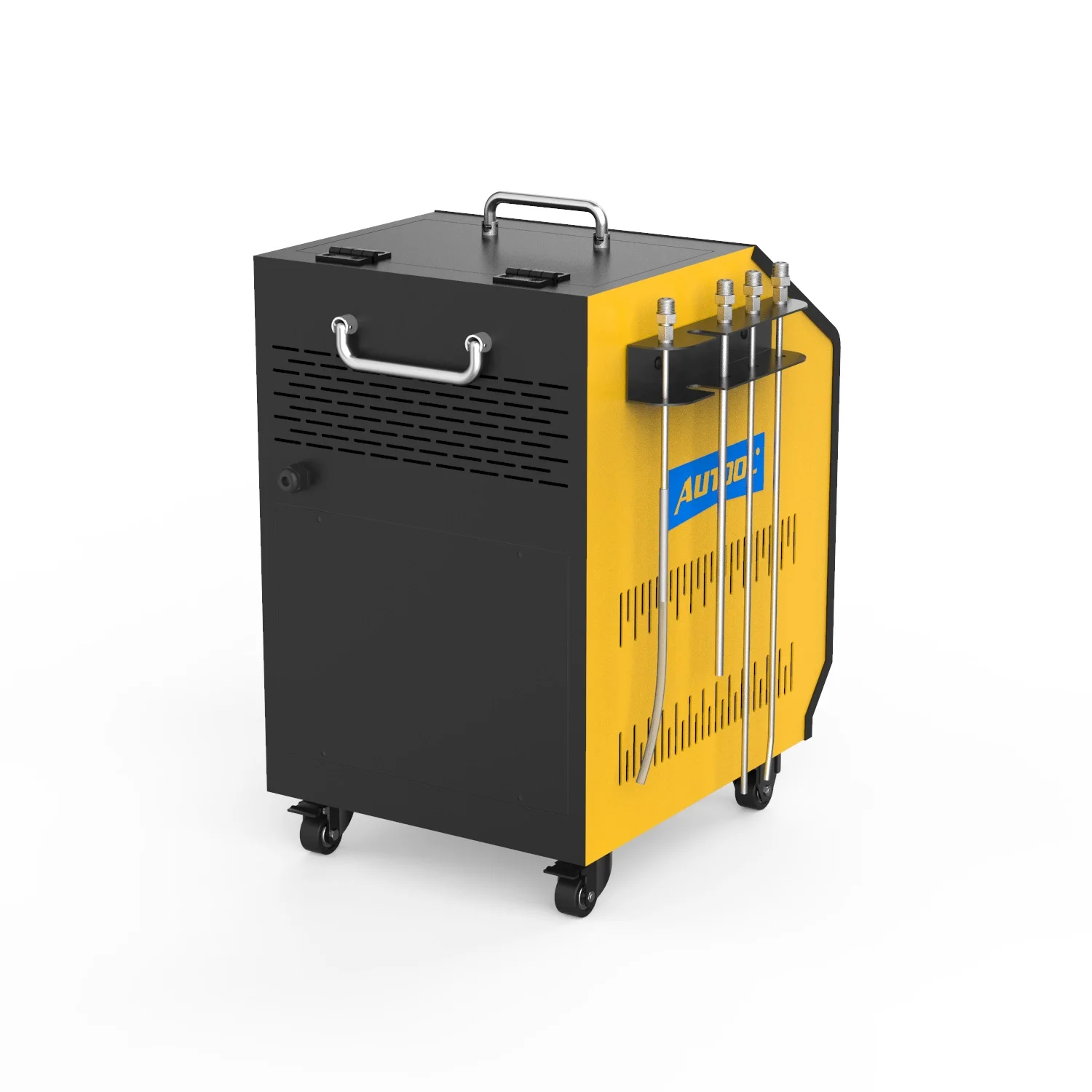

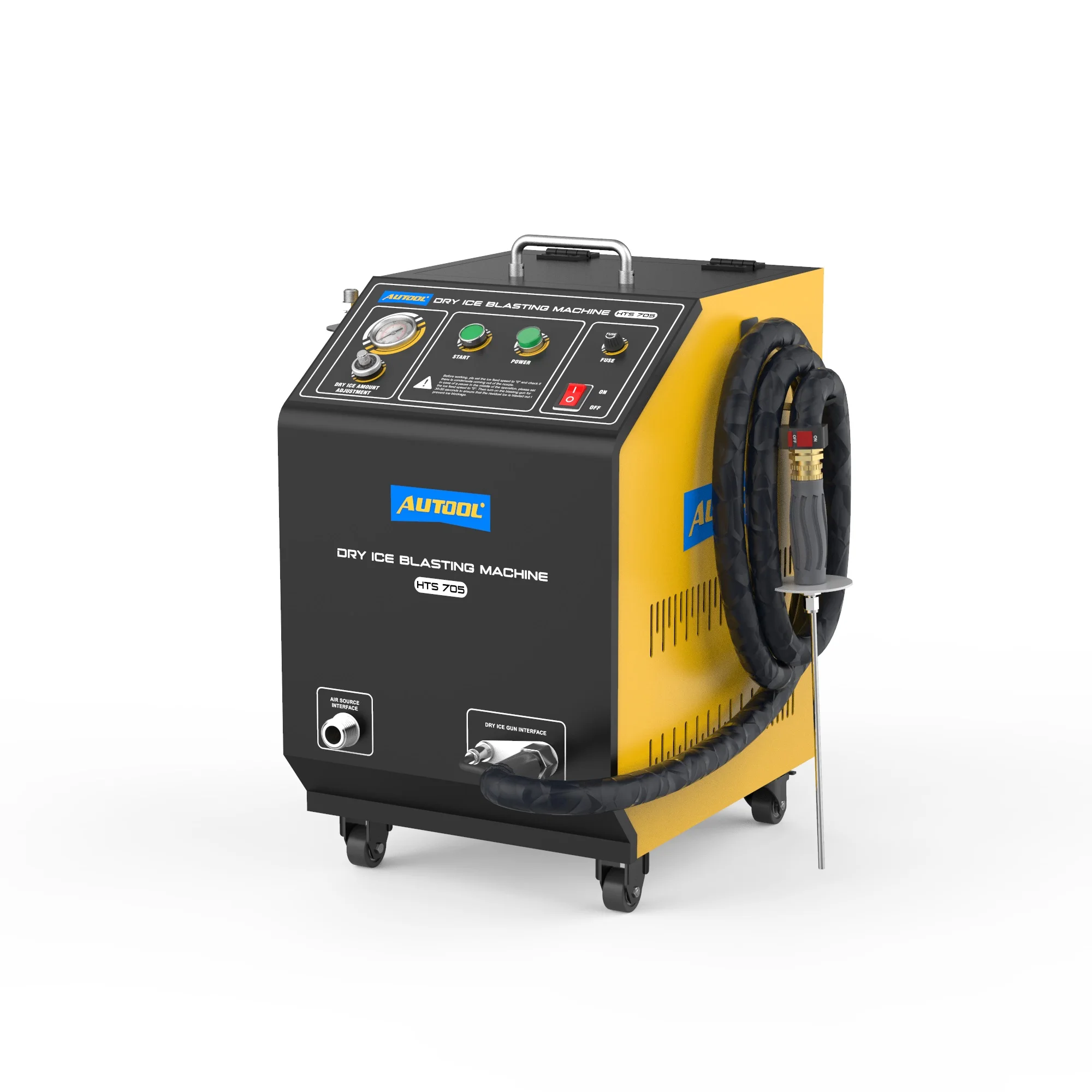

AUTOOL HTS705 Dry Ice Blast Cleaning Machine Engine Throttle Carbon Cleaner Crusher Pressure Washer machine 110V/220V

AUTOOL HTS705 dry ice cleaning machine is capable of cleaning various equipment. With this cleaning technique, on the one hand, it can avoid production interruptions due to downtime, and on the other hand, disassembly and damage to the equipment can be reduced, which essentially protects the equipment and increases productivity.

Note：

HTS705 machine doesn't contain an air compressor inside the equipment, so users need to purchase an extra air compressor by yourself.

The external air compressor model is 7.5kw, 300L gas storage tank.if your external air compressor is not,please don't order AUTOOL HTS705 Dry Ice Blast Cleaning Machine.If the power of the external air compressor is not enough, it cannot input enough air pressure into dry ice cleaning machine,which will cause dry ice cleaning machine to be unable to work normally.

Features :

1.[Good helper for automotive technician]It can fully clean the carbon deposits in all parts(such as throttle valve,intake valve,engine component,cylinder combustion chamber,wheel hub and ect.) of the car without disassembling the cleaning parts. This effectively reduces the cleaning time and greatly improves efficiency.

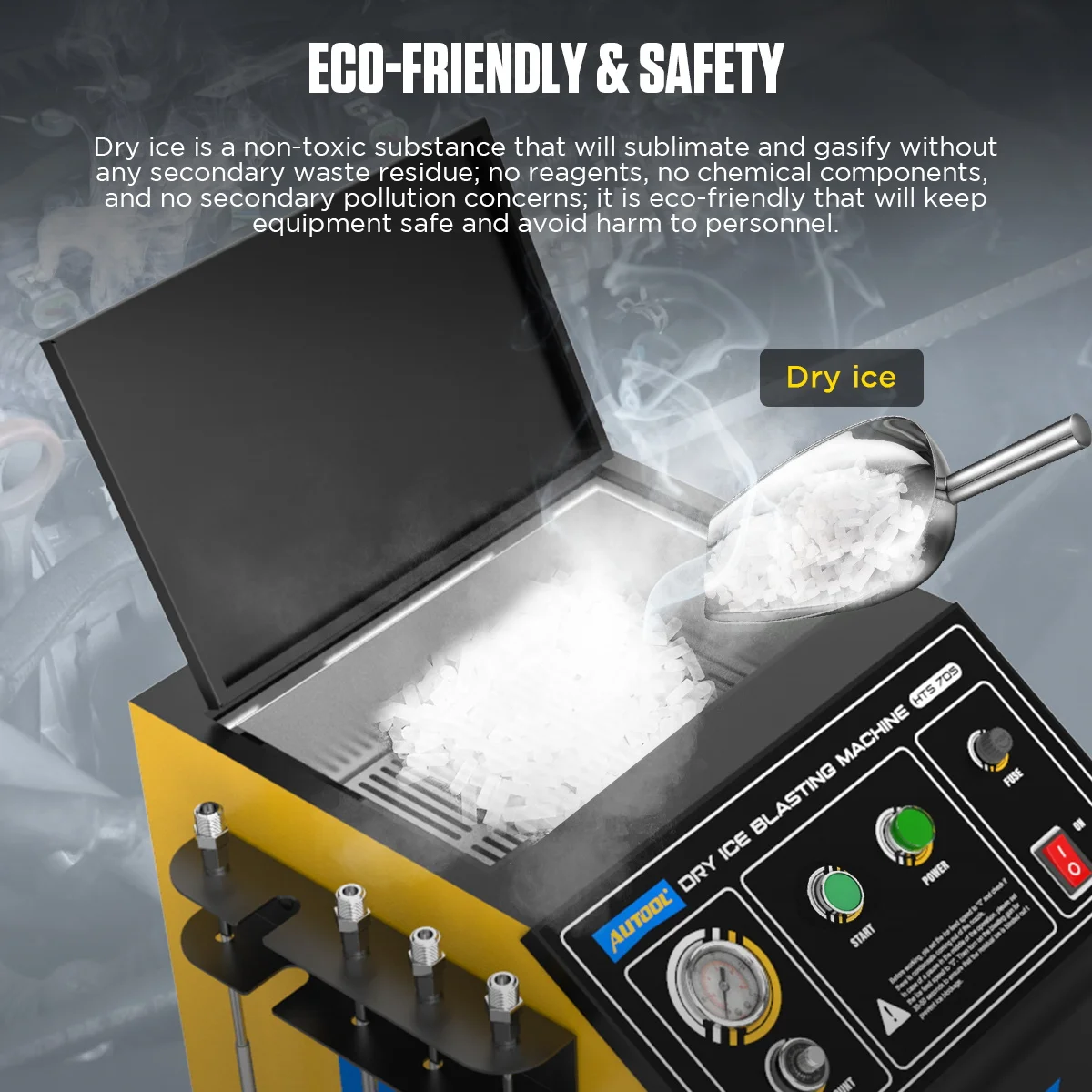

2.[Avoid injury to personnel from hazardous materials]By cleaning with dry ice instead of toxic chemicals, we can prevent harmful substances from adhering to the equipment for a long time, which can affect the overall operation and cause harm to people.

3.[Quickly removes a variety of stubborn dirty deposits]With the dry ice blast cleaning machine, the adhered dirty deposit can be thoroughly removed, and also has good protection for the equipment, so as to avoid affecting the operation and use of the equipment while being cleaned.

4.[Wide Application Range]AUTOOL HTS705 Dry ice blast cleaners are widely used in fields such as rubber, casting, automobiles, ships, electric power, chemicals, printing, plastics, food, pharmaceuticals, and aviation.

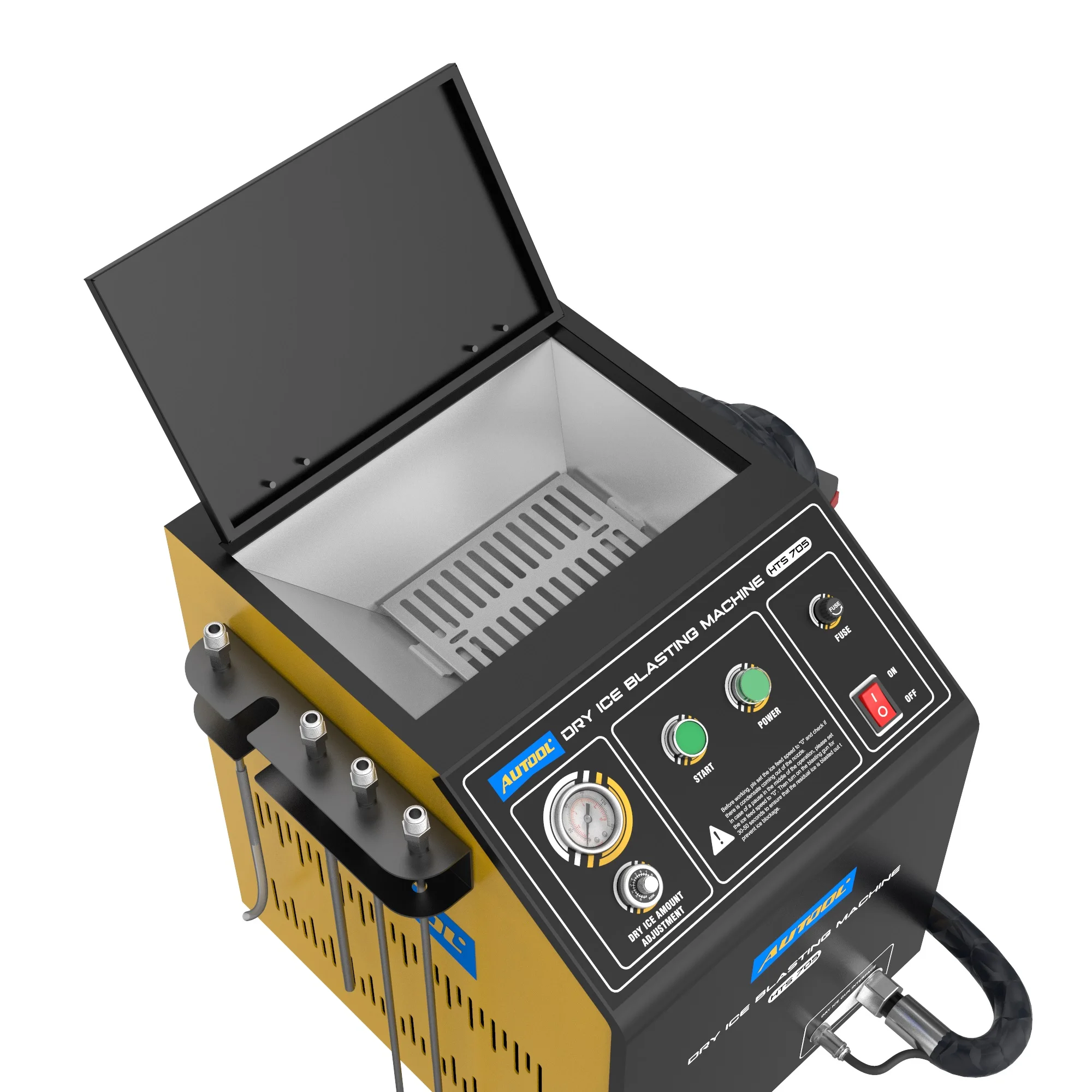

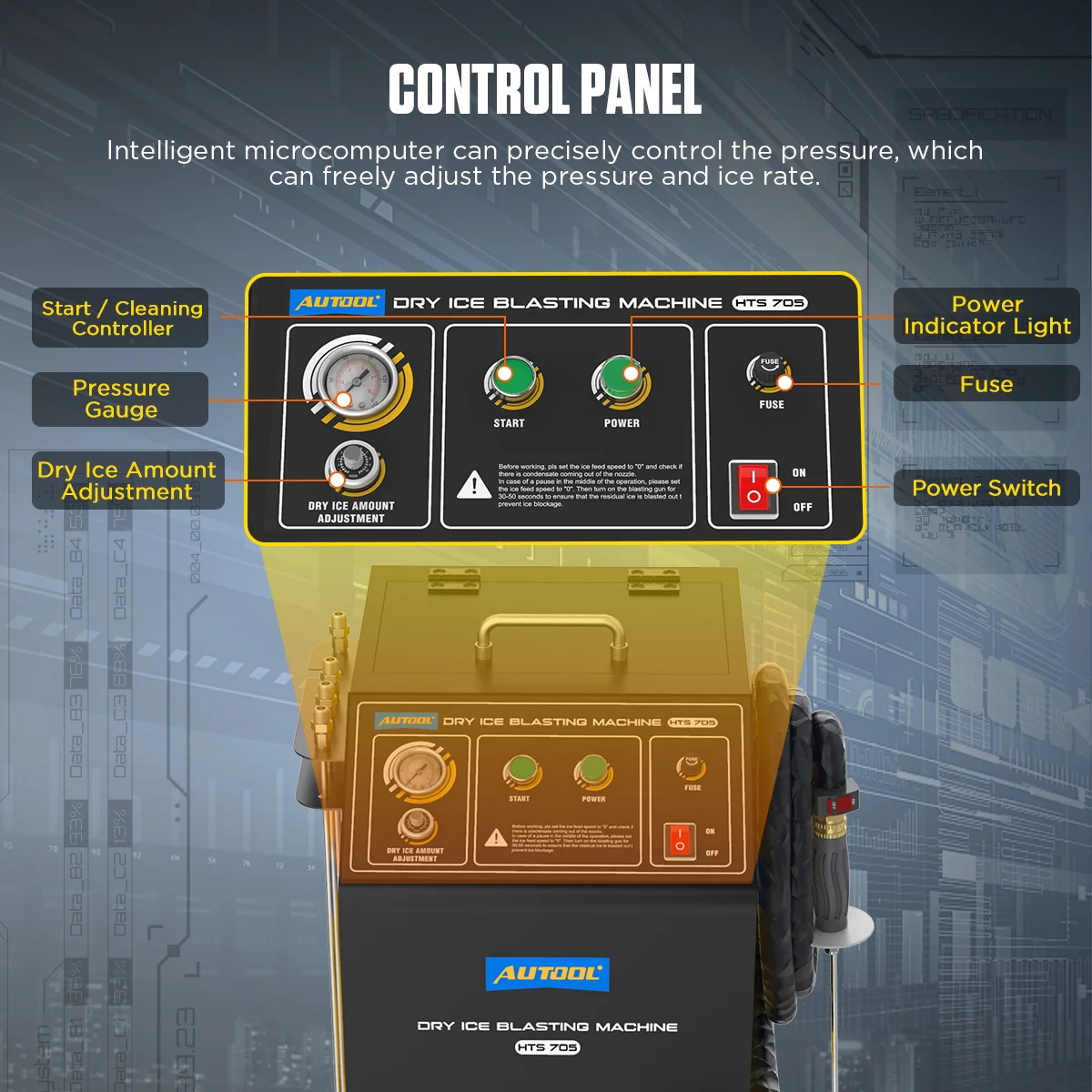

5.[Control Panel]AUTOOL HTS705 Dry ice blast cleaner buit with Intelligent microcomputer can precisely control the pressure, which can freely adjust the pressure and speed.

Operating Instructions

[Equipment debugging]:

Connect the host to the external air source and external power supply. Check whether the data of the air pressure indicator is normal and whether the power connection is normal (make sure the power supply is grounded normally).

Make preparations for testing machine, including connecting the machine and accessories properly, checking whether the parts are loose, and cleaning the unnecessary items placed on the machine body or the work area.

Turn on the power switch, then turn it to start mode first. And then press the start switch on the handle to run, adjust the dry ice volume from 0 to its maximum, check whether there is any abnormality, and then put dry ice materials into the machine for trial operation.

[Adjusting the volume of dry ice blasting]:

Add an appropriate volume of dry ice and cover the lid. According to the required cleaning degree, turn the dry ice volume adjusting controller to achieve the best effect as needed (it is recommended to set it to “5” first and adjust it according to the cleaning effect).

If the barrel with smaller inner diameter is adopted, it is recommended to set it to “3” and then increase it as appropriate.

After confirmation, align the spray gun with the parts to be cleaned, and press the start switch on the handle to enter the cleaning procedure.

[Final work]:

Turn the dry ice volume adjusting controller to “0” and start the spray gun to spray for 30-50s until no water is sprayed. The dry ice residue can be removed by extending the product’s spraying time, and manual cleaning is required if necessary. Turn off the power switch, disconnect the air source, and store the spray gun and accessories.

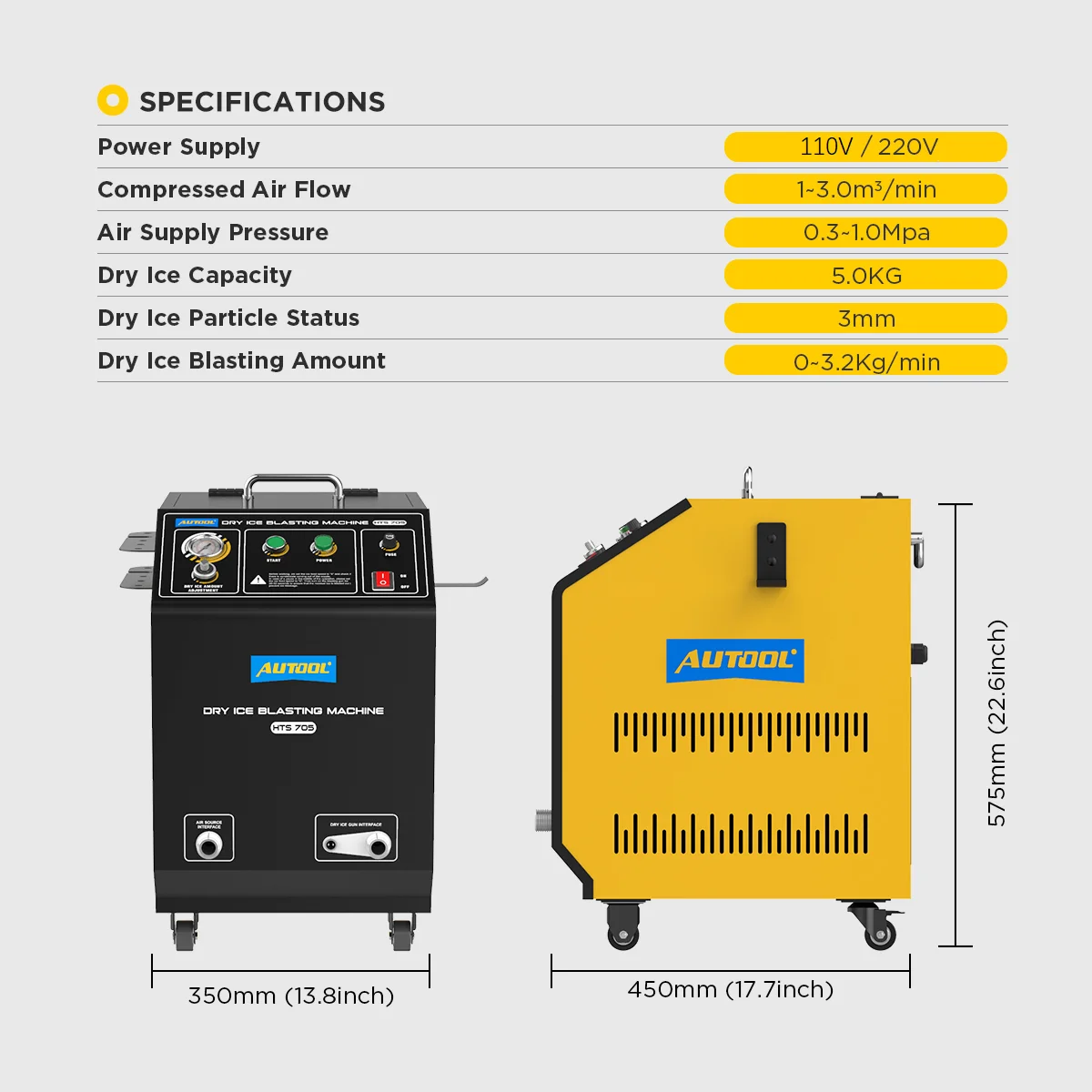

Technical Parameter :

Power supply:AC110/220V±10% 50Hz

Dry ice capacity: 5KG

Compressed air flow: >1~3m³/min

State of dry ice particles: 3mm

Air supply pressure: 0.3~1.0Mpa

Dry ice blasting amount (adjustable): 0~3.2Kg/min

Size: 450mm*470mm*720mm

Net weight: 47KG

Gross weight: 50KG

External air compressor model: 7.5kw, 600L gas storage tank
