Introducing the ARCCAPTAIN MIG Welder 6 in 1 – the ultimate welding solution for all your metal fabrication needs. This versatile welding machine combines six different welding methods in one compact and powerful package, making it the perfect choice for both professional welders and DIY enthusiasts.
With a powerful 200Amp output, the ARCCAPTAIN MIG Welder can handle a wide range of welding tasks, from gas and gasless MIG welding to flux core and stick welding. Whether you’re working with steel, stainless steel, or aluminum, this welder delivers clean and precise welds with ease.
The included Li-ion battery ensures that you can take this welding machine anywhere, and the lightweight and portable design makes it easy to transport from job to job. Plus, the intuitive controls and digital display make it easy to set up and adjust the welding parameters for optimal results.
Don’t settle for anything less than the best when it comes to welding – choose the ARCCAPTAIN MIG Welder 6 in 1 for all your welding needs. Order yours today and experience the power and precision of this top-of-the-line welding machine.
ARCCAPTAIN MIG Welder 6 in 1 200Amp Gas Gasless Flux Core MIG Stick Lift TIG Spot Welding Spool Gun 110V/220V Welding Machine

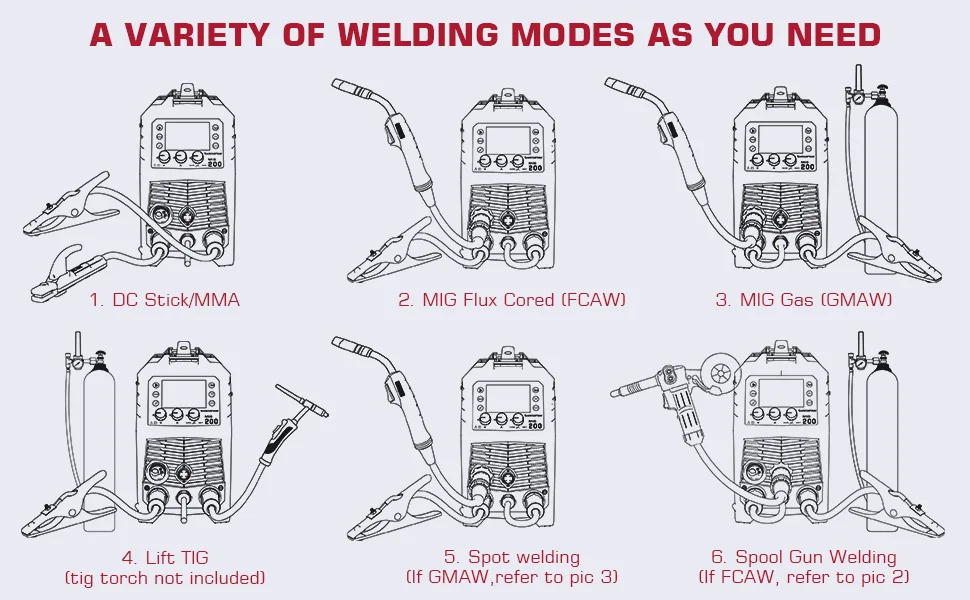

Powerful 6-in-1 MIG Welder : The multi process welding machine that included Gas/Solid Wire MIG(GMAW), Gasless Flux Core MIG(FCAW),Stick/MMA, Spot welding, Lift TIG, spool gun connector optional (tig gun and spool gun not included). Suitable for all kinds of welding requirements .023”/.030”/.035” solid wire, .023”/.030”/.035” flux core wire, .035”/.045” aluminum wire.
Synergic MIG: Digital control and automatically match the recommend current and wire feeding speed when selected diameter of welding wire and gas material, also you can adjust welding current according to your welding habit. Easy to work with beginners or professional welders.
110v/220v/230V Multi-function Machine: The MIG welder features some special functions that included adaptive crater, burn-back adjustment, pre-flow/post flow, which improve your welding efficiency. 2T/4T 2 welding way meet your more needs. Parameter group storage function: can set 10 groups parameter data each welding mode, it’s more convenience tostart next welding job.
Arc force, Hot Start, LED Display: The stick welder mode was built-in arc force, hot Arc and anti-stick, easily start arc, more reliable and
less spatter. Digital LED Screen : Display dynamic data instantly, help you read easier and more clear.
2-Year Warranty & Safety — 30 Day Money Back Guarantee and 2-Year Warranty. Every single of our welder machine was passed various
authoritative Laboratory tests in simulating extremely harsh environments before leaves our ARCCAPTAIN factory that conform to the
high standards. We take care of our customer’s safety that based on VRD,over current/over voltage/over current/over load/overheating protection function.
Why you choose our ARCCAPTAIN 110V/220V 200Amp MIG Welder Machine?
POWERFUL, EFFICIENT AND DURABLE
-
Versatile 6 in 1 Welder :Gasless Flux Core Wire MIG Weld and Gas MIG Weld, Stick weld, Lift TIG weld, Spot weld and Spool Gun weld (TIG torch and Spool Gun need purchasing separately).
-
MIG Synergistic Setting & MIG Manual Setting :Choose diameter of wire and material or gas, automatically match current and wire feeding speed, easy to use for new workers. Manual wirefeed speed controls allows you to create perfect weld, very suitable for professinal welders.
-
Large LED Display— Unique human-computer Interaction LED screen design, provides you accurate data display and make you read easier and more clear without taking off helmet.
-
MMA functions: Built-in hot start, arc-force,anti-stick.
-
On/Off VRD: Turn on VRD Prevents Electric Shock. You can turn off if needed.
-
Welded Various Materials:Can weld in Mild Steel, Aluminum(MIG) and Stainless Steel (lift tig can't weld aluminum).
-
Fan-on-demand: keep your machine running cool when needed, reduce noise, energy saving and extend lifespan of machine.
-
Parameter group storage: Free to set 10 groups parameter data each welding mode, very convenience to operate next welding job.
-
Burn-back adjustment, adaptive crater, pre-flow/post flow functions will help you improve welding efficiency.
-
Dual Voltage 110V/220V: Comes with dual voltage 110V/220V input power and adapter,take it to work any where.
Specification :
-
Supply Voltage: 110V/220V 50/60 Hz
-
Output Current Under 110V(MIG): 30-160A
-
Output Current Under 220V(MIG): 30-200A
-
Output Current Under 110V(MMA):20-135A
-
Output Current Under 220V(MMA):20-180A
-
Output Current Under 110V(TIG): 20-135A
-
Output Current Under 220V(TIG): 20-200A
-
Rated Duty Cycle: 60%
-
Effciency(%):85 ; Insulation Grade:H
-
Protection Degree:IP21S
-
Machine Weight:12.8KG/28.2LB
-
Machine Size: 20.9"x8.5"x16.1"
-
Standard:ANSI/NEMA/IEC 60974-1-2019
-
Applicable Wire:0.024"/0.030"/0.035"/0.039"
-
Applicable Electrode:Ø1.6-4.0 mm
Digital Control with MCU Technology :Adanced MCU technology digital control achieves intelligent synergic welding with accurate current preset, and keep the welding process stable and working in perfect harmony for premium welding results.
Preset Parameters and Data Storage: Accurate preset current/voltage:Parameters can be preset and the data can be stored, which is convenient for next welding. You can set 40 groups parameters as your requirement (MIG/lift TIG/MMA/Spool Gun, each mode can be set 10 groups).It also can be automatic saving of last welding parameters.
Spool Gun Optional
-
SPOOL GUN WELDING ALUMINUM : Spool gun weld aluminum ensures the great wire feeding performance and arc consistency.
-
Easy to Use-Quick-change, single-turn contact tip provides excellent performance and is easy to replace.
-
Flexibility to be used in the field or working at heights-Gas shielded welding gun that can really solve long-distance welding.
Note: The spool gun not included.

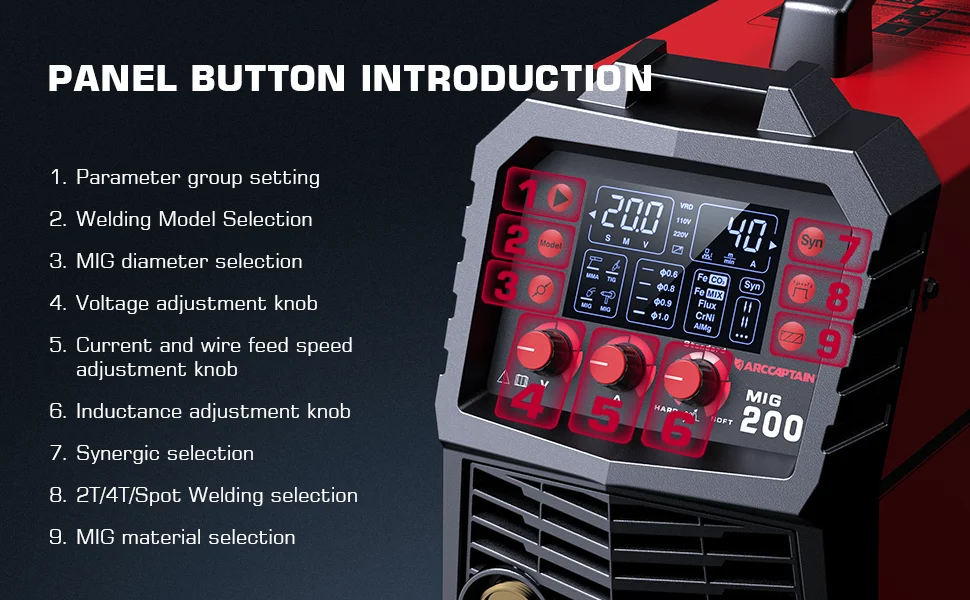

Front panel instruction
-
1. Parameter group setting: Press the parameter switch button "1", choose parameter group "M" LED, switch parameter groups by encoder "V" .
-
2. Welding Model Selection: You can choose MMA, TIG, MIG and MIG(Spool Gun)
-

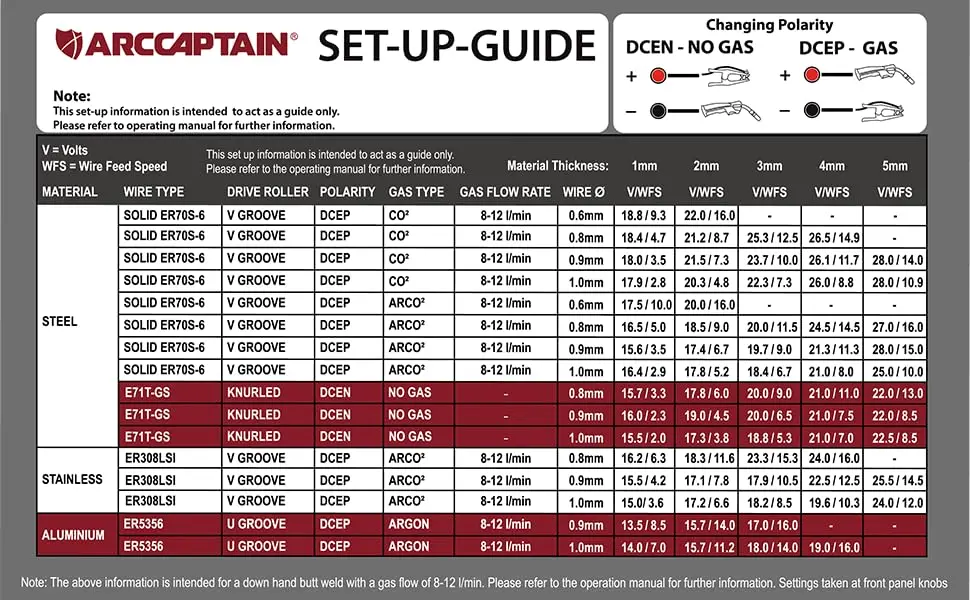

3.MIG diameter selection: Switching in different welding conditions 0.6(.023"), 0.8(.030"), 0.9"(.035") and 1.0(.039") on CO2/MIX and MAG conditions. The Gasless welding only available for 0.6(.023") 0.8(.030"), 0.9"(.035") and 1.0(.039") ET71-GS flux wire.
-
4. Voltage adjustment knob
-
5. Manual wire feed button: Manually adjust the current to match your welding needs(Wire feed speed range: 2-15m/min)
-
6. Inductance adjustment: Adjust soft or hard arc characteristics in MIG mode.
-
7.Synergic selection: Turn on the "SYN" button, easy to use for beginners. Turn off, you can adjust current by your need for
professional. -
8. 2T/4T/Spot Welding: Easy welding and continuous long-term welding, spot welding is suitable for welding automobile body, carriages.
-
9. On the Synergic mode, you can choose the gas and material as you needs.

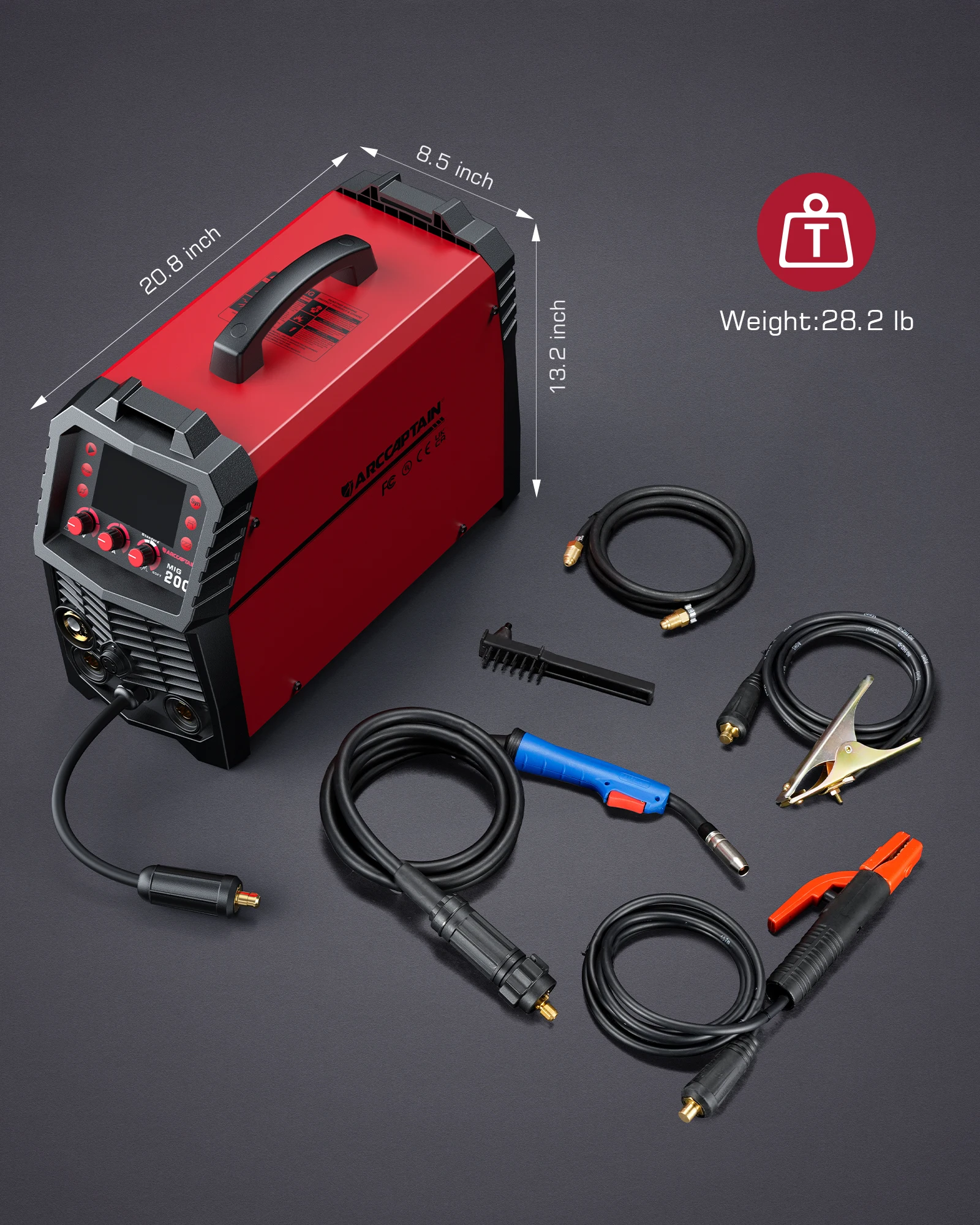

What's in the box:
-
1* ARCCAPTAIN MIG200 Multiprocess Welder
-
1* 10ft MIG Welding Torch
-
1* 10ft Welding Ground Clamp
-
1*10ftWelding Electrode Holder
-
1* 8ft Welding Gas Hose
-
1* Conversion Adapter
-
4* Rollers
-
1* User Manual
