Product Description
SC01.25GL04N30inHg
At SCTSNSR, we specialize in delivering cutting-edge pressure instrument solutions tailored for critical Process and Industrial/OEM applications worldwide. With a relentless commitment to quality and innovation, we prioritize the end-user experience, ensuring unparalleled satisfaction for our customers.

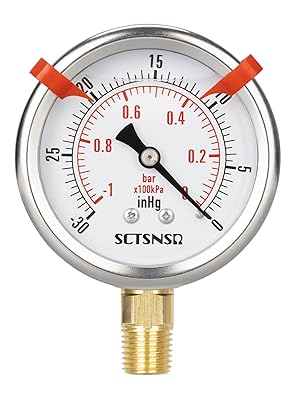

The SCTSNSR SC01 series features a fully stainless steel casing pressure gauge, renowned for its outstanding quality and reliability. The sealed housing protects against environmental influences, enhancing product performance and safety. Filled with glycerin, it ensures durability and shock resistance, safeguarding internal components and extending operational lifespan.
Pressure Range: -30 inHg to 0; Dial Size: 2-1/2 in
Process Connection: 1/4 in NPT Male Lower Mount
Case Material: Stainless Steel; Wetted Parts Material: Copper alloy
Equipped with Red Range Mark: Facilitate users to mark the required pressure range
For pressure measuring of gas, liquid which is not corrosive to brass.
Specifications
Dial Size: Ø2.5 inches(63mm)
Case Material: Stainless Steel
Scale Ranges: -30 inHg-0/-1 bar-0
Mounting: Lower Mount
Connection Size: 1/4″ NPT Male
Filling Liquid: Glycerin
Wetted Parts Materials: Brass and Stainless Steel
Accuracy: ± 3/2/3%
Medium Temperature: 140 ℉/60 ℃ maximum
Ambient Temperature: -4 to 140 ℉/-20 to 60 ℃
Weather Protection: IP67 Waterproof
Other: Red Range Mark
Package Dimensions: 3.58 x 2.99 x 1.46 inches; 7.83 ounces
Item model number: SC01.25GL04N30inHg
Date First Available: December 30, 2023
Manufacturer: SCTSNSR
ASIN: B0CR7V6LYK
Country of Origin: China
This pressure gauge is built with brass and stainless steel parts to measure pressure in liquids and gases that aren’t corrosive, like water, oil, and air pressure tests. It’s perfect for use with things like air conditioning line repair, tanks, HVAC tools, air pumps, pipes, tube vacuum tests, and more.

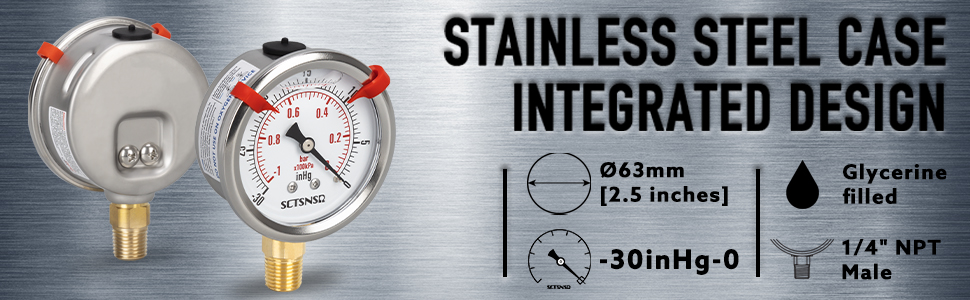

The round dial is safely tucked into a 304 stainless steel case to resist corrosion. Internal filling of glycerin in the pressure gauge ensures stable pointer readings and safeguards internal mechanisms against vibration damage.

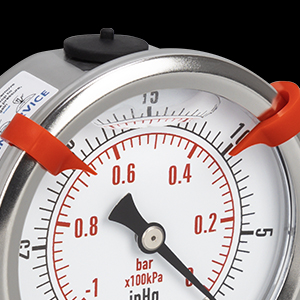

Red Range Mark: Easy sliding on the dial allows for effortless adjustment. The arrow-shaped design indicates the upper and lower limits, providing a quick and clear visual reference to remind you to stay within the safe pressure range.
The dial adopts a dual scale for pressure measurement (-30 inHg-0/-1 bar-0). Its display accuracy conforms to ± 3/2/3% of the span (ASME B40.100 Grade B).
The IP67 waterproof rating prevents condensation, eliminating window fogging and ensuring consistently clear readings.
The connection is a lower mount male type with a 1/4″ NPT thread, making it easy to set up in various systems.
