Introducing our premium quality wood saw machines – the ultimate solution for cutting log timber with precision and efficiency. Our portable sawmill is designed to make the process of cutting and shaping logs a breeze. Whether you are a professional sawmill operator or a DIY enthusiast, our wood saw machines are perfect for all your cutting needs.
Crafted with the highest quality materials, our saw machines are built to last and deliver top-notch performance every time. With easy-to-use features and a portable design, you can conveniently take our sawmill anywhere you need to work on cutting and shaping logs.
Say goodbye to the hassle of traditional sawing methods and upgrade to our wood saw machines for a seamless cutting experience. Invest in our portable sawmill today and take your woodworking projects to the next level. Experience the difference with our top-of-the-line wood saw machines – the perfect tool for all your cutting needs.

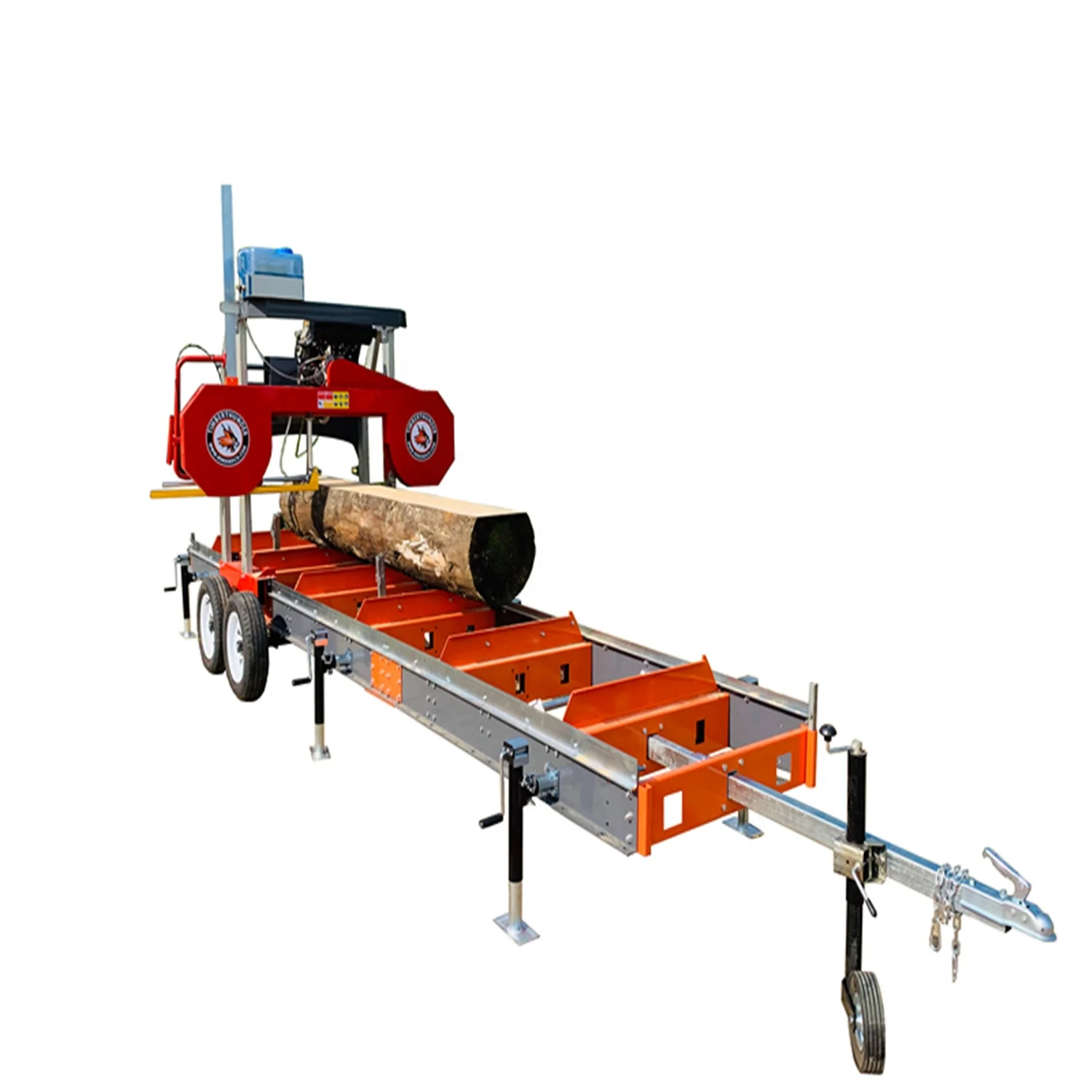

RS26 & RS31 portable sawmill is designed for home made, carpenter, DIY or craftman…
It could cut the logs into block, plank, live edge etc for the furniture, table top, house etc.
It is small, afforable and durable with unique structure and unbeatable price.
No matter you are dealer or end-user, it will be your invest with high return rate and low risk.
Advantage:
reduce the loss of sawdust.
7. There’s no need the professional lawyers, the ordinary workers can operate the machine expertly.
Modello
|
RS26G
|
RS31G
|
RS26E
|
RS31E
|
||
Energia
|
Gasoline 9HP
(LIFAN, Manual start) |
Gasoline 15HP
(LIFAN, Manual start) |
Electric Motor
5.5chilowatt |
Electric Motor
7.5chilowatt |
||
Displacement
|
301cc
|
420cc
|
400V 50HZ 3phase
|
|
||
Cutting capacity
|
660*178*2794mm
(26”*7”*110”) |
790*178*2794mm
(31”*7”*110”) |
660*178*2794mm
(26”*7”*110”) |
790*178*2794mm
(31”*7”*110”) |
||
Frame
|
4pz
|
4pz
|
4pz
|
4pz
|
||
Blade size
|
3690*34*0.9mm
(145”*1-1/4”*0.035”) |
3960*34*0.9mm
(156”*1-1/4”*0.035”) |
3690*34*0.9 mm (145”*1.25”*0.035”)
|
3960*34*0.9mm
(156”*1-1/4”*0.035”) |
||
Standard track size
|
4000x900mm
(157”x35.4”) |
4000x1030mm
(157”x40.5”) |
4000x900mm
(157”x35.4”) |
4000x1030mm
(157”x40.5”) |
||
Imballaggio
|
2080x570x830mm
|
2150 x570x830mm
|
2080x610x810mm
|
2150 x610x810mm
|
||
Safe cutting Speed
|
13-15s/m
|
|
13-15s/m
|
|
||
Blade speed
|
17m/min
|
|
17m/min
|
|
||
Distance teeth
|
22mm (0.86")
|
|
22mm (0.86")
|
|
||
Blade Wheel Dia.
|
480 mm (18.8")
|
|
480 mm (18.8")
|
|
||
Dimensione
|
4064*1778*1800mm (160”*70”*71”)
|
|
4064*1778*1800mm (160”*70”*71”)
|
|
||
Peso
|
315/355kg
|
|
352/380kg
|
|
||
40”HC
|
63pz
|
|
63pz
|
|

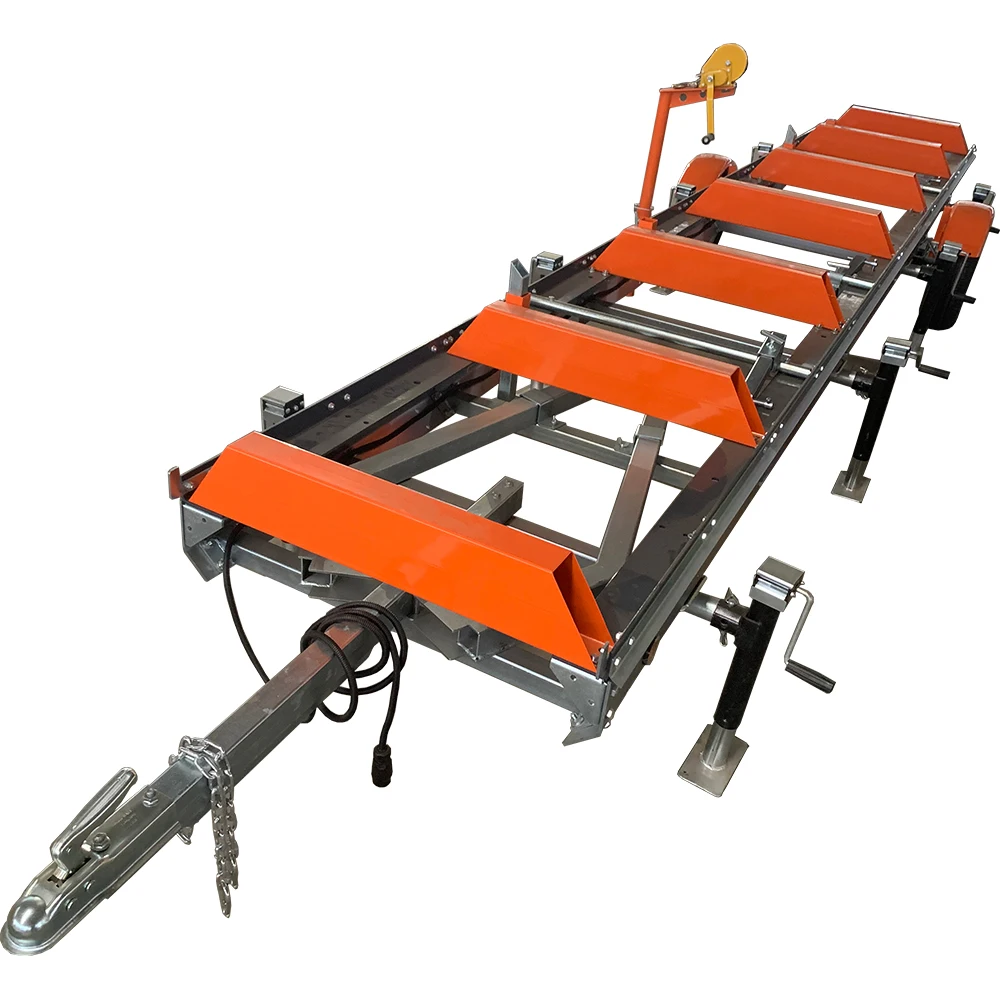

Modello
|
RST4-26
|
RST6-26
|
RST4-31
|
RST6-31
|
Trailer Axle
|
50x50mm
|
50x50mm
|
50x50mm
|
50x50mm
|
Trailer Size(L*L*A)
|
3970(+1000mm drawbar)x900x700mm
|
6000(+1000mm drawbar)x900x700mm
|
3970(+1000mm drawbar)x1030x700mm
|
6000(+1000mm drawbar)x1030x700mm
|
Trailer wheels with Fenders
|
165/70R13
|
165/70R13
|
165/70R13
|
165/70R13
|
Trailer loading capacity
|
1500kg
|
1500kg
|
1500kg
|
1500kg
|
Trailer Lights
|
LED light kit
|
LED light kit
|
LED light kit
|
LED light kit
|
Trailer leveling jacks
|
6pz
|
8pz
|
6pz
|
8pz
|
Trailer Ball Coupler
|
2″ (50mm)
|
2″ (50mm)
|
2″ (50mm)
|
2″ (50mm)
|
Finish
|
Galvanized
|
Galvanized
|
Galvanized
|
Galvanized
|
Log Loading Ramp
|
Massimo. 1350kg
|
Massimo. 1350kg
|
Massimo. 1350kg
|
Massimo. 1350kg
|
Log Loading Winch
|
1200 libbre
|
1200 libbre
|
1200 libbre
|
1200 libbre
|
Peso
|
350/385kg
|
380/415kg
|
350/385kg
|
380/415kg
|
