Descrizione del prodotto
Veterinary ECG Monitor
Caratteristiche

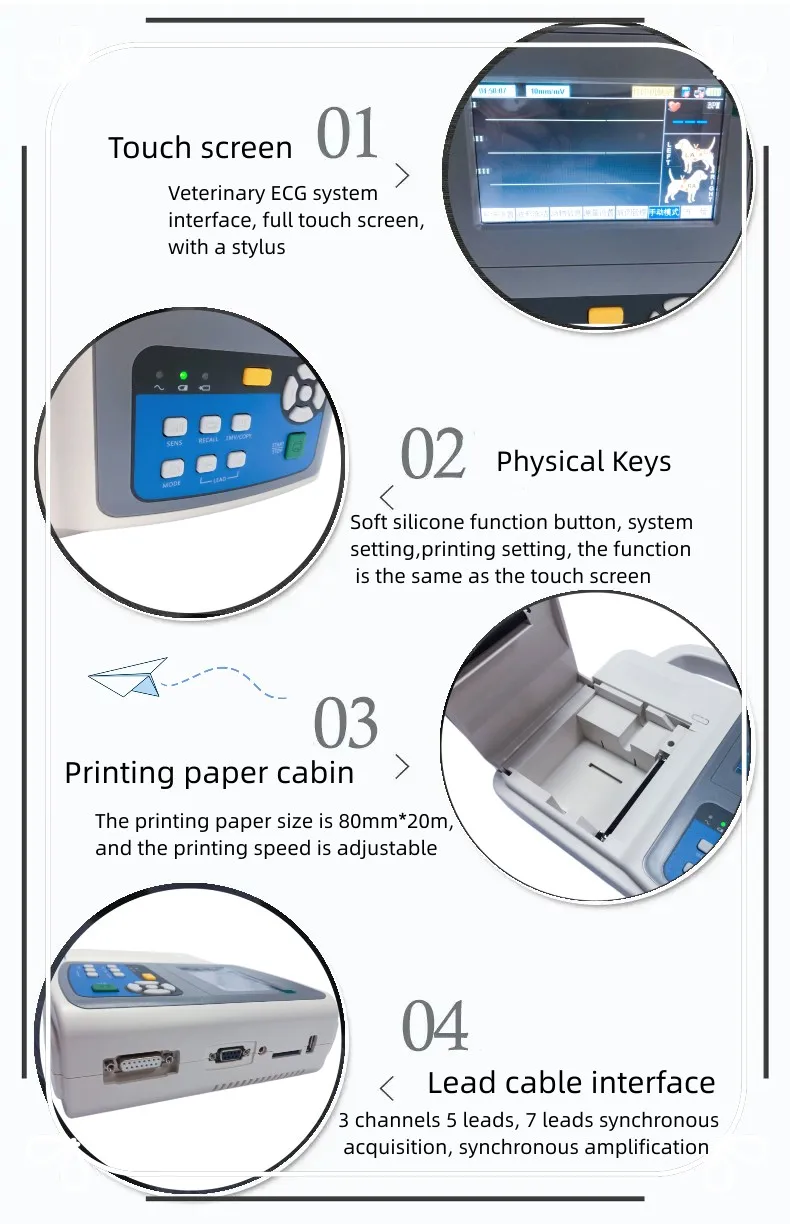

. Compact in size and ergonomic design, molto facile da usare, portatile. . 80mm, three channel format recording with interpretation; Recording format: . 1ch+V, 3ch, 3ch+V. Three working modes: Auto, Manual and Arrythmia Analysis . High accuracy digital filter: Automatic baseline adiustment. . 7 leads simultaneously collection and display. . 480×272 graphic 3.5 inch color LCD displays detailed ECG information . 100 cases of ECG can be stored and displayed. . Adapt to110-230V50/60Hz power supply. . Rechargeable Ni-MH battery supports continuous work over 3 ore. . With Rs232 and USB communication interface. optional for connection to laser . PC ECG Management software is optional.
Specifica
|
Guida
|
Standard 7 leads
|
|
Lead acquisition
|
24bit/1000Hz(synchronously 7leads)
|
|
Work mode
|
Auto,Auto 2,Man,Analysis
|
|
Filtro
|
.ACFilter:50Hz/60Hz
|
|
.EMG Filter:35Hz/45Hz
|
|
|
.Anti-Drift Filter:0.15Hz(Adaptive)
|
|
|
CMMR
|
>/=100dB(with AC Filter)
|
|
Input circuit
|
Floating;Protection circuit against Defibrillator effect
|
|
Input impedance
|
>/= 50M Ω
|
|
Input circuit current
|
</= 0.05μA
|
|
Patient currentleakage
|
<10μA
|
|
Calibrating voltage
|
1mV±2%
|
|
Voltage tolerance
|
</= ± 500mV
|
|
Time constant
|
</=3.2s
|
|
Risposta di frequenza
|
0.05~150Hz(-3db)
|
|
Livello di rumore
|
<15μVp-p
|
|
Inter-channel interference
|
</=0.5mm
|
|
Sensibilità
|
Auto,2.5,5.10.20 mm/mV
|
|
Recording mode
|
1ch+V,3ch,3ch+V
|
|
Paper speed
|
5,10.12.5.25，50mm/s(±3%)
|
|
Carta
|
80mmx20m roll paper
|
|
Comunicazione
|
Rs232/USB port
|
|
Alimentazione elettrica
|
.AC-110-230V50/60Hz
|
|
.DC: Rechargeable Ni-MH battery
|
|
|
Dimension and Weight
|
310mmx260mmx85mm，1.4kg
|

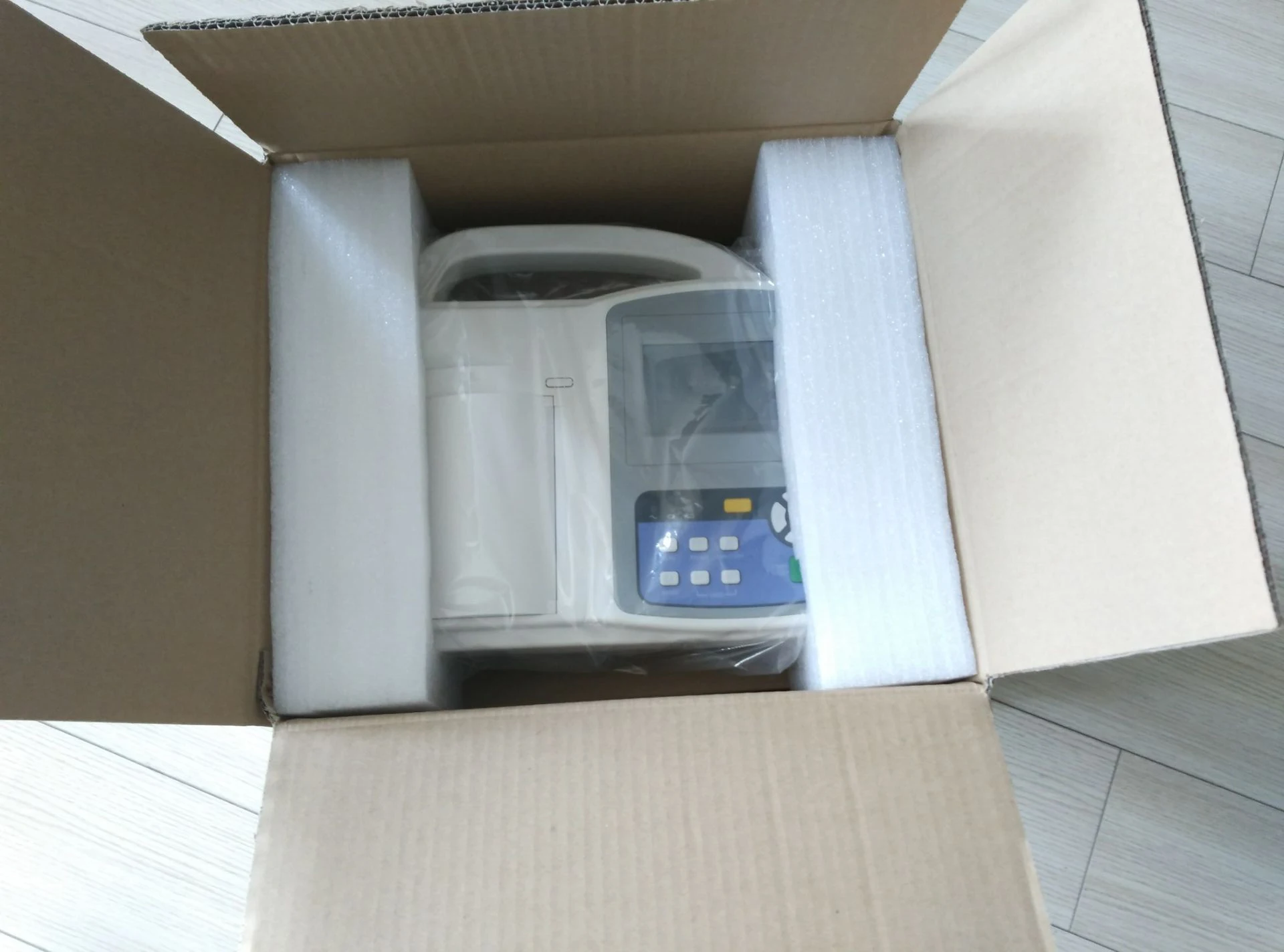

Confezionamento del prodotto

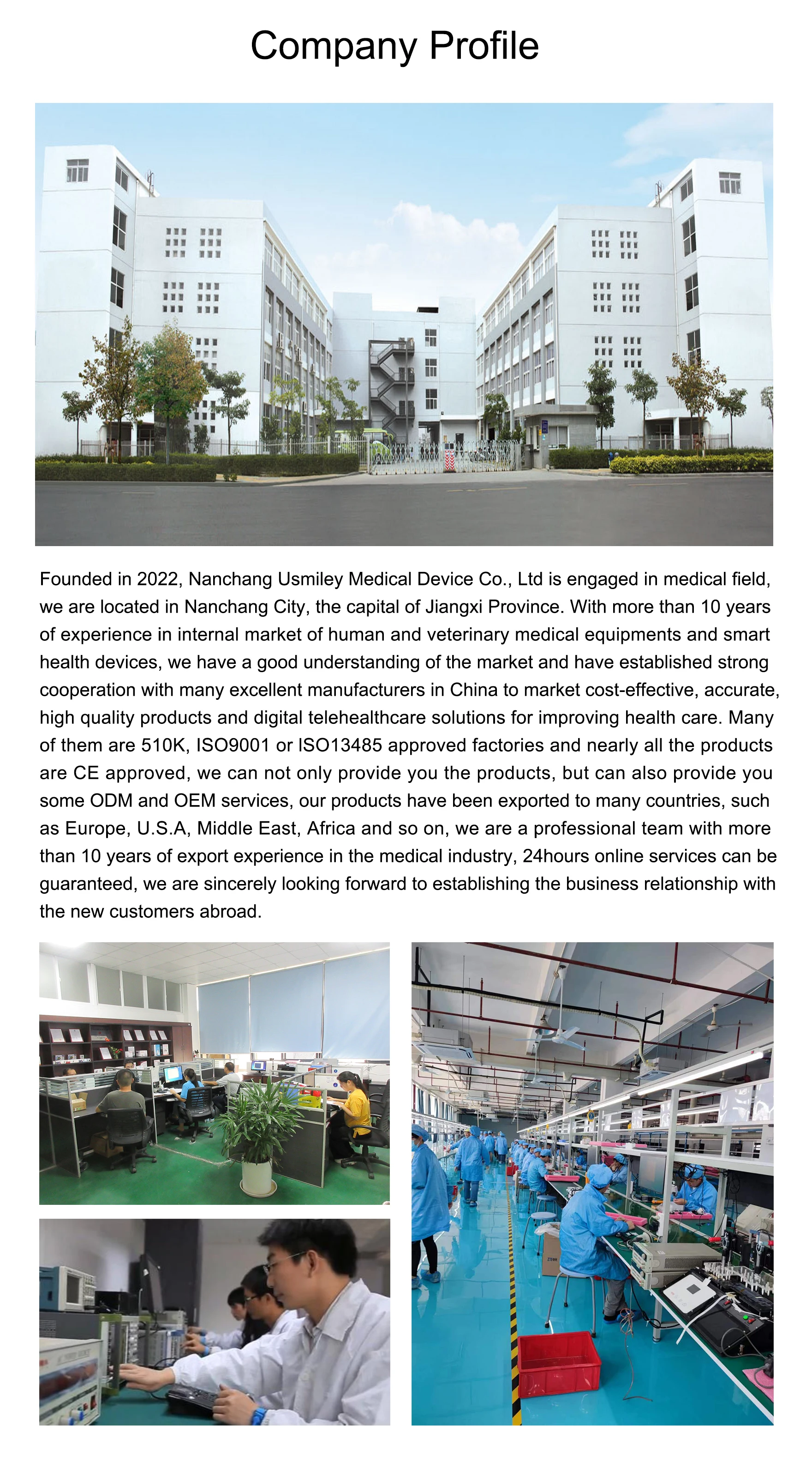

Profilo Aziendale
FAQ
Q01: Qual è il tuo MOQ?
A01: Our MOQ for the sample is 1 pezzo. We suggest customers to buy a sample to test our quality firstly, and the MOQ for bulk order is 100pcs.
Q02: How can we guarantee quality?
A02: Sempre un campione di pre-produzione prima della produzione di massa; Ispezione sempre finale prima della spedizione;
Q03: What is production time?
A03: Ordine di esempio: Within one week; Bulk order: Di 35 giorni.
A01: Our MOQ for the sample is 1 pezzo. We suggest customers to buy a sample to test our quality firstly, and the MOQ for bulk order is 100pcs.
Q02: How can we guarantee quality?
A02: Sempre un campione di pre-produzione prima della produzione di massa; Ispezione sempre finale prima della spedizione;
Q03: What is production time?
A03: Ordine di esempio: Within one week; Bulk order: Di 35 giorni.
Q04: How to ship?
A04: We can ship by air such as DHL, UPS, FedEx o TNT(5~7 days), via mare o via aerea(25~ 30 giorni).
Q05: What payment methods do you accept?
A05: We can accept T/T, L/c, Paypal, MoneyGram, Unione occidentale, Carta di credito, Alibaba Trade Assurance.
Q06: Offrite garanzia per i prodotti?
A06: SÌ, Offriamo 1 year warranty for our product.
Q07: Do we offer ODM/OEM service?
A07: SÌ, we have a professional R&D team with many experienced designers and engineers, and we have around 120 skilled workers at our manufacturing base. That’s why we can offer our customer better ODM/OEM services.
Q08: Will you have any other questions?
A08: In tal caso, please feel free to contact us by email [email protected] or Wechat/Whatsapp 86-18170955539, we will be online at anytime.
