The Pneumatic Trim Finish Pin Gun Nailer is an air-powered upholstery and decorative nail gun designed for use on leather sofas, mobilia, and woodworking projects. It can accommodate nails ranging from 6.3mm to 20.3mm in length, making it versatile for various tasks. This tool is ideal for professionals or DIY enthusiasts looking for a convenient and efficient way to fasten trim finishes and decorative nails. Its pneumatic power source ensures consistent and reliable performance, making it a valuable addition to any workshop or upholstery project.



Parametro:
Nome del prodotto: Pneumatic Nail Gun
Marca: DBM
Modello: 630/750/860/960/1080/1170/1230/1400/1620/1820/2030
Sleeve diameter: 6.3/7.5/7.6/9.6/10.8/11.7/12.3/14/16.2/18.2/20.3MM Optional
Nail slot capacity: 1Pz
Pressione di esercizio: 0.4-0.7mpa
Air inlet size: 1/4 Pollice
Peso: 1KG
Dimensioni dell'imballaggio: 260x185x67MM
Caratteristica:
1. The gun body is made of aluminum alloy casting, che è durevole.
2. The main parts are made of high-quality spring steel and processed by the machining center. The products are of high precision and reliable quality.
3. Low air consumption, basso rumore, fast nailing and strong power.

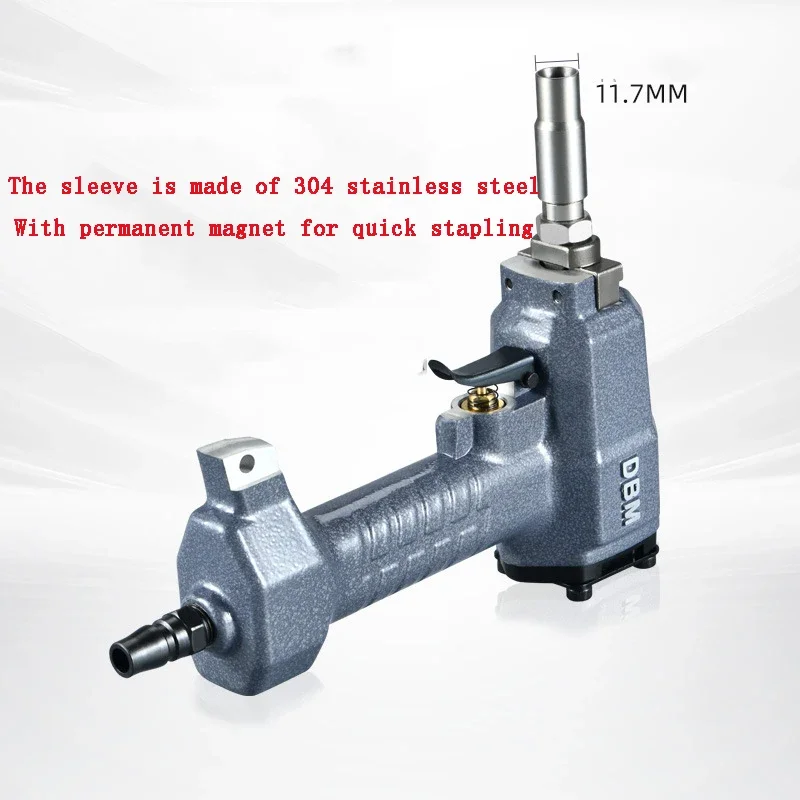

4. The gun nozzle is made of 304 acciaio inossidabile, with permanent magnets, which can be nailed quickly.










Principio di lavoro:

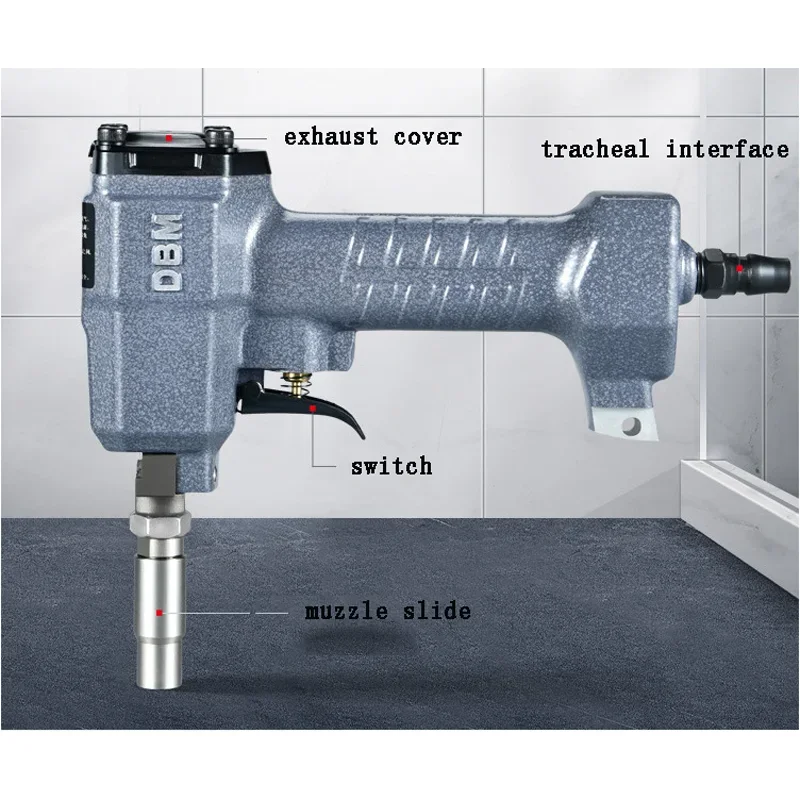

The gun body is composed of gun body, cylinder, balance valve, switch assembly, firing pin assembly, cuscino, gun nozzle, gun groove, ecc., using the difference between compressed air and atmospheric pressure, and triggering the trigger switch to make the firing pin reciprocate in the cylinder; The clip part is composed of gun head, gun cover, fixed clip, movable clip and other accessories. The nail is sent into the groove of the gun cover through a compression spring or a tension spring, and the nail is driven out when the firing pin comes out of the gun mouth.
Lista imballaggio:
1 x Pneumatic nail gun
2 x Hex wrench
