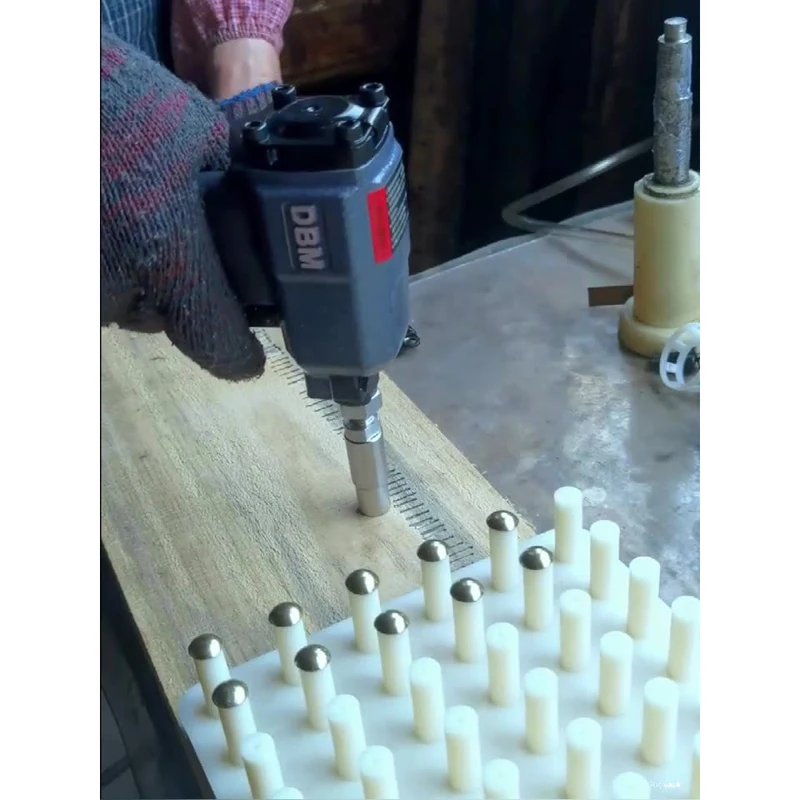

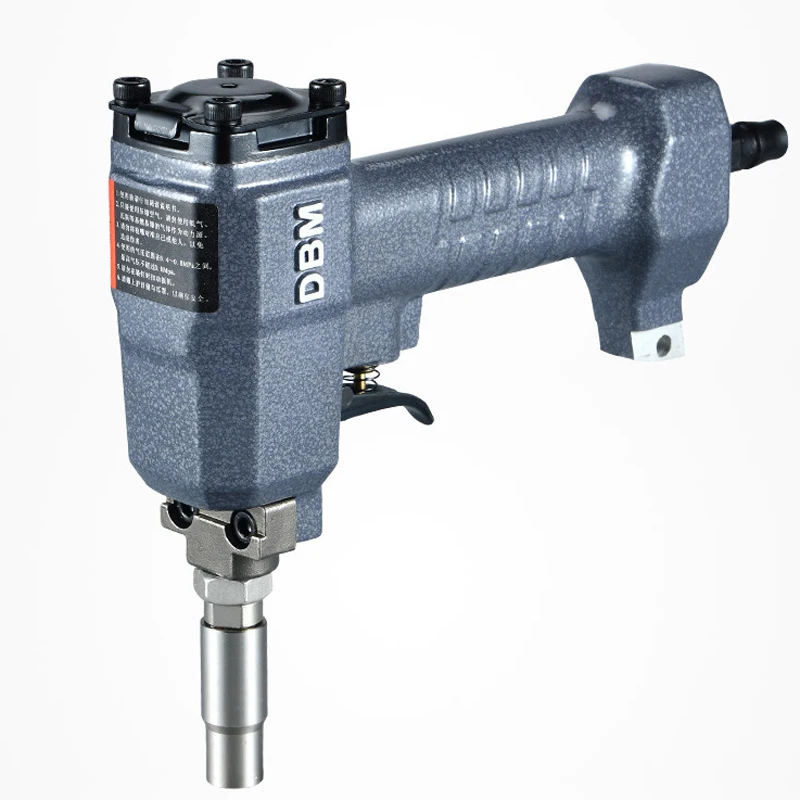

The Pneumatic Trim Finish Pin Gun Nailer is an air-powered upholstery nail gun used for decorative purposes on leather sofas, furniture, and woodworking projects. It can accommodate nail sizes ranging from 6.3mm to 20.3mm, making it versatile for various tasks. This nail gun is ideal for adding finishing touches and trim work to your projects, providing a professional and polished look. It is a convenient tool for craftsmen and DIY enthusiasts looking to enhance the aesthetics of their upholstery and woodworking creations.

Parameter:

Nome del prodotto: Pneumatic Nail Gun

Brand: DBM

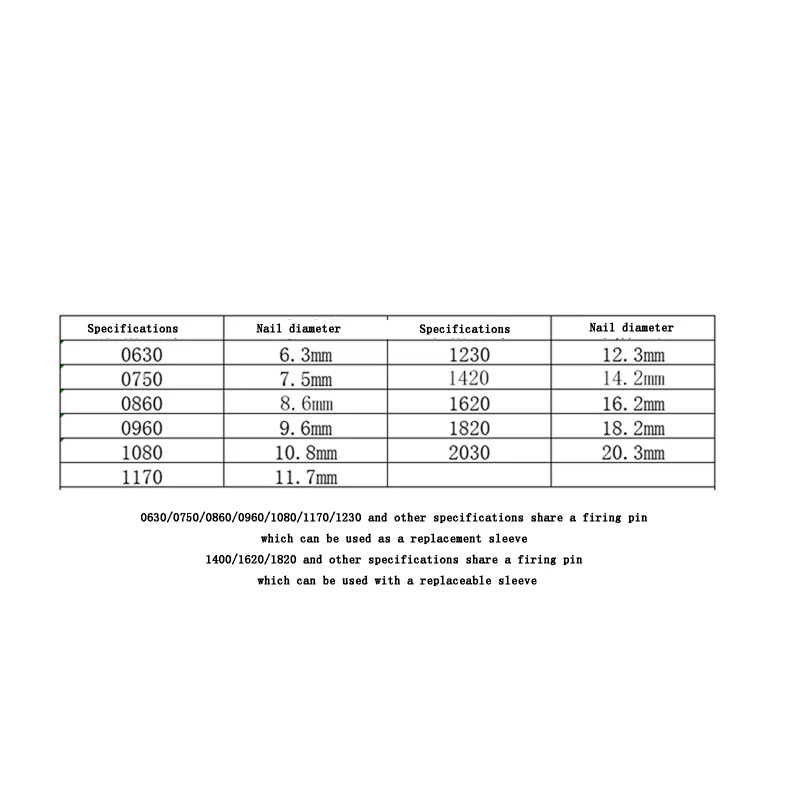

Modello: 630/750/860/960/1080/1170/1230/1400/1620/1820/2030

Sleeve diameter: 6.3/7.5/7.6/9.6/10.8/11.7/12.3/14/16.2/18.2/20.3MM Optional

Nail slot capacity: 1Pz

Working pressure: 0.4-0.7mpa

Air inlet size: 1/4 Pollice

Peso: 1KG

Dimensioni dell'imballaggio: 260x185x67MM

Caratteristica:

1. The gun body is made of aluminum alloy casting, which is durable.

2. The main parts are made of high-quality spring steel and processed by the machining center. The products are of high precision and reliable quality.

3. Low air consumption, low noise, fast nailing and strong power.

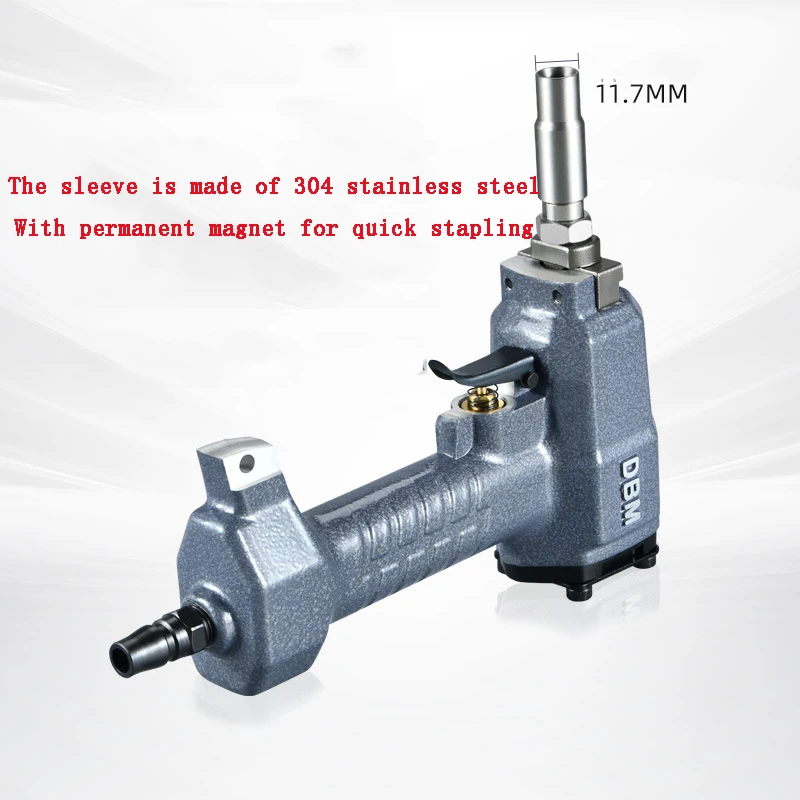

4. The gun nozzle is made of 304 acciaio inossidabile, with permanent magnets, which can be nailed quickly.

Working Principle:

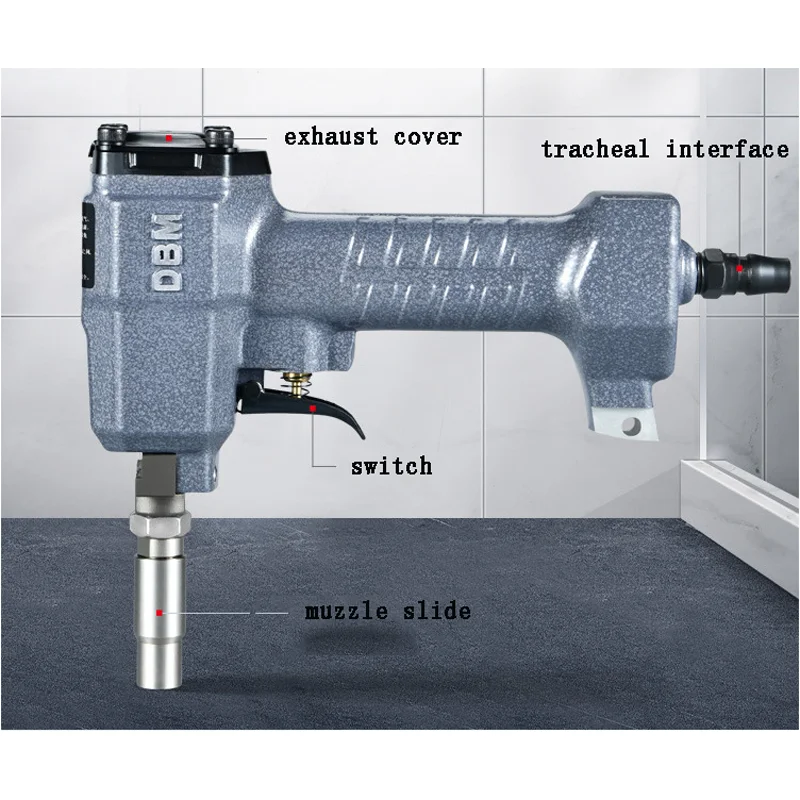

The gun body is composed of gun body, cylinder, balance valve, switch assembly, firing pin assembly, cushion, gun nozzle, gun groove, etc., using the difference between compressed air and atmospheric pressure, and triggering the trigger switch to make the firing pin reciprocate in the cylinder; The clip part is composed of gun head, gun cover, fixed clip, movable clip and other accessories. The nail is sent into the groove of the gun cover through a compression spring or a tension spring, and the nail is driven out when the firing pin comes out of the gun mouth.

Packing List:

1 x Pneumatic nail gun

2 x Hex wrench
