Descrizione del prodotto

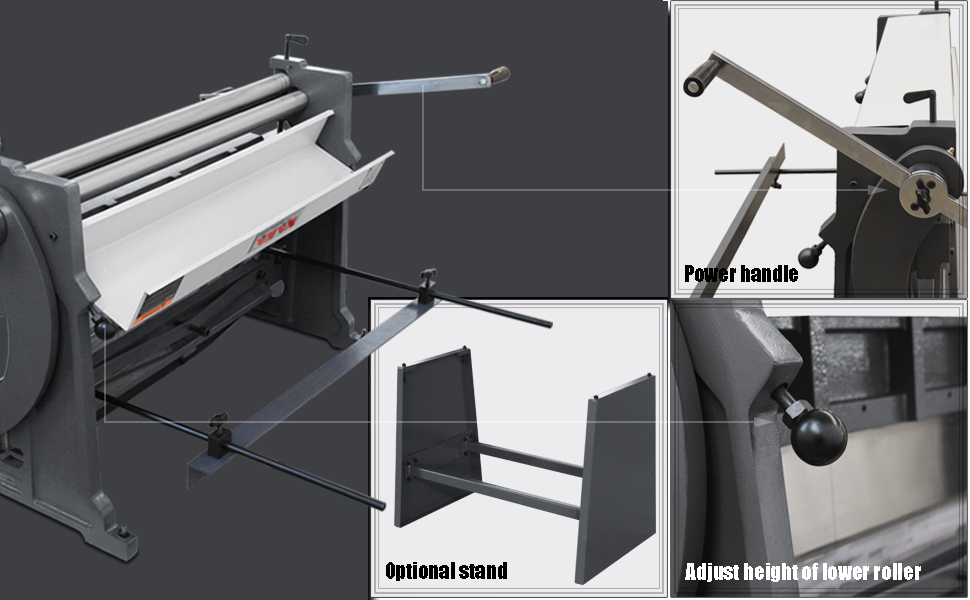

Kaka Industrial 3-IN-1/30 Sheet Metal Brake Overview
Kaka Industrial 30-inch 3-IN-1 sheet metal machine combines three different functions. In terms of the shear, it can be used for cutting multiple different materials, such as mild steel, aluminum, brass, copper, lead, plastic and zinc. Regarding the brake, this sheet metal brake is equipped with easily removable fingers, which enables more flexibility during your operation. The part of rolling machine is designed to have more precision; the maximum rolling thickness is 0.04″ and the minimum-rolling diameter is 1-1/2″.
Are You Ready to Possess a High Capacity, High Flexibility and Precision All-in-One Brakes, Shears and Slip Roll Machine?
Kaka 30″ All-for-One machine has a capacity of up to 20 gauge mild steel and 18 gauge aluminum in widths up to 30-inches wide. This combination sheet metal machine has a maximum bend angle of 90 degrees with adjustable fingers on the top beam to easily assist with making any size boxes.
Ideal combination machine for sheet metal machining to the length of 30″ and thickness of 1/25″ cutting stopRoll bending starting with diameter of 1 1/2″Folding with max. Angle of 90°Adjustable Back GaugeHeavy Cast Iron FrameSpring Loaded Sheet Hold Down Specification
Bed width (In)30″Massimo. shearing thickness (In)0.04″Massimo. bending thickness (In)0.04″Massimo. Bending angle90°Max. Rolling thickness (In)0.04″Min. Rolling dia. 1-1/2″Dimensioni dell'imballaggio (In)39(l) x16(W)x26(H)N.W. / G.W. (libbre)300/337Standard Accessories:1. Back gauge2. HandleOptional Accessories: In piedi
Aggiungi al carrello
Aggiungi al carrello
Aggiungi al carrello
Aggiungi al carrello
Aggiungi al carrello
recensioni dei clienti
4.1 fuori da 5 stelle
81
4.1 fuori da 5 stelle
81
4.1 fuori da 5 stelle
70
4.1 fuori da 5 stelle
81
4.1 fuori da 5 stelle
81
Prezzo
$211.97$211.97 $299.99$299.99 $586.99$586.99 $1,099.99$1,099.99 $2,467.74$2,467.74
Stock No.
171000 171001 171003 171004 171008
Modello
3-IN-1/8 3-IN-1/12 3-IN-1/30 3-IN-1/40 3-IN-1/5216
Bed width
8 pollice 12 pollice 30 pollice 40 inch 52”
Massimo. shearing thickness
20 Ga. 20 Ga. 20 Ga. 20 Ga. 16Ga.
Massimo. shearing thickness
20 Ga. 20 Ga. 20 Ga. 20 Ga. 16Ga.
Massimo. shearing thickness
20 Ga. 20 Ga. 20 Ga. 20 Ga. 16Ga.
Min. rolling dia.
1.14” inch 1.53“ inch 1.53“ inch 1.57“ inch 2.36“ inch
Dimensioni dell'imballaggio
14x10x12 inch 20x16x13 inch 39x18x29 inch 53x18x29 inch 71x23x37 inch
N.W./G.W.
37/42 libbre 95/99 libbre 300/315 libbre 429/458 libbre 1036/1168 libbre
Massimo. capacità 20 gauge mild steel at 30″ width
Massimo. bending angle 90 degree
Min. rolling diameter 1.53″
Equipped with segment fingers in sizes ranging from 1″, 2″, 3″, 6“, 8" &10″, you have the flexibility to accomplish a wide range of bending tasks.
Included in your purchase are one set of silver handles and a backgauge for added convenience and accuracy.
Utilize the grooves machined on the roller to effortlessly bend round stock materials, expanding your creative possibilities.
Rest easy knowing that your investment is protected by a generous 12-month warranty, with parts supply available throughout the service life of the machine. Trust in our reliable and durable equipment for all your metalworking needs.
1. Domanda: What is the maximum thickness of sheet metal that can be cut with this machine?
Risposta: The KAKA INDUSTRIAL 3-IN-1/30 Sheet Metal Shear can cut sheet metal up to 20 gauge thickness.
2. Domanda: Can this machine be used to cut different types of metal, such as stainless steel or aluminum?
Risposta: SÌ, this 3-IN-1 sheet metal shear is designed to cut a variety of metals, including stainless steel, aluminum, and mild steel.
3. Domanda: Does the machine come with any safety features to prevent accidents while cutting metal?
Risposta: SÌ, this sheet metal shear is equipped with a safety lock feature to prevent accidental operation and ensure safe usage.
4. Domanda: Is assembly required for this machine, and if so, how difficult is it to set up?
Risposta: Some assembly is required for the KAKA INDUSTRIAL 3-IN-1/30 Sheet Metal Shear, but it is relatively easy to put together with the included instructions and tools.
5. Domanda: Can this machine be used for more than just cutting metal sheets?
Risposta: SÌ, this 3-IN-1 sheet metal shear also includes a bending and rolling function, making it a versatile tool for various metalworking projects.
