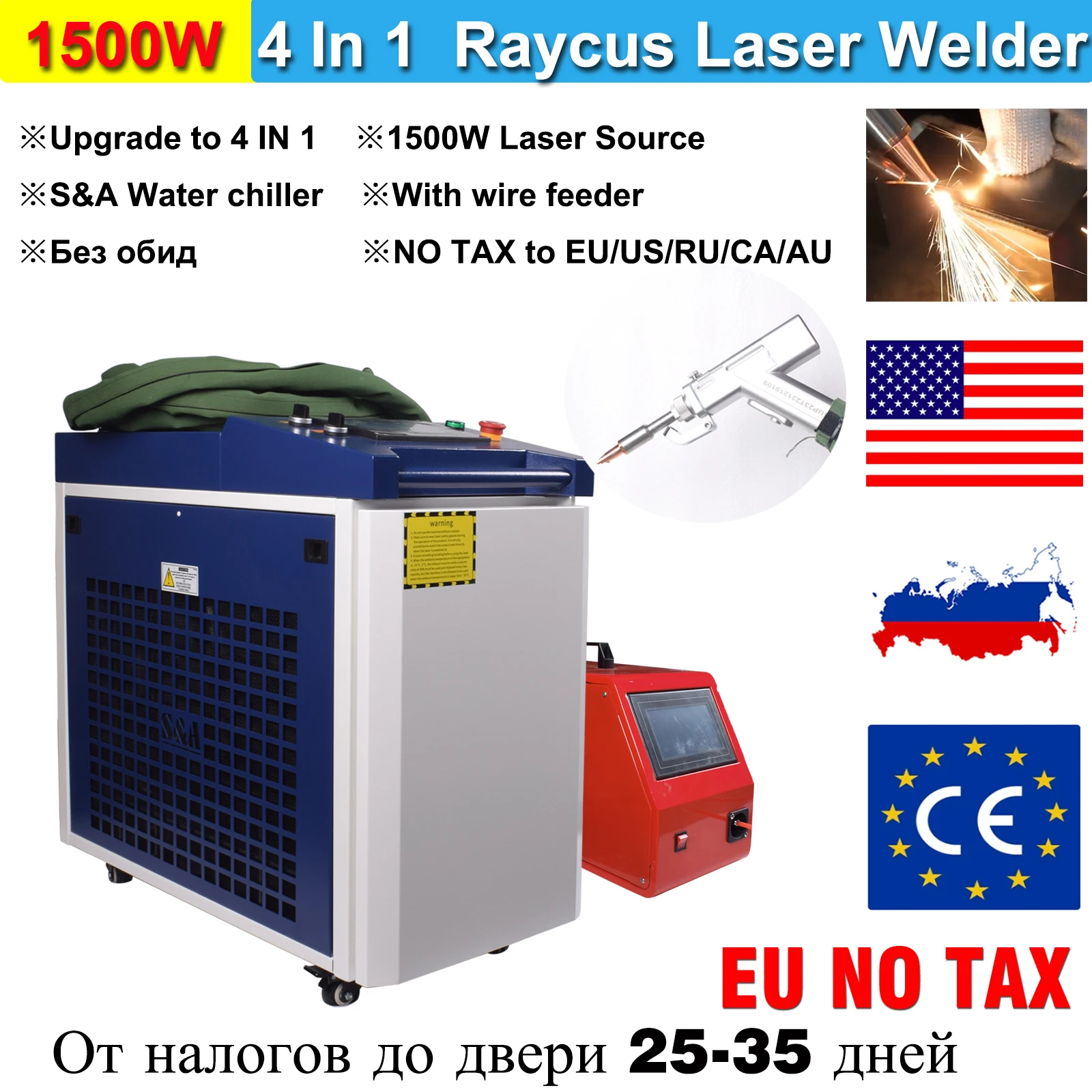

Saldatrice laser a fibra portatile Raycus 1500W porta a porta per la pulizia e il taglio dei metalli

Modello	Fiber laser welding machine
Lunghezza d'onda del laser	1070nm
Laser power	1500W
Modalità operativa	Continuous/pulse
Interface of fiber-optical	QBH
Module life	100000ore
Alimentazione elettrica	220V / 380V
Metodo di raffreddamento	Raffreddamento ad acqua
Laser Energy Stability	<2%
Air humidity	10-90%
Recommended welding thickness	1500W Stainless steel, carbon steel 0-2mm
Red light positioning	Supporto

Laser welding

1) the weld is smooth and beautiful, the weld workpiece has no deformation, the weld is firm, and no

Subsequent grinding process is required, saving time and cost.

Fast welding speed, 2~10 times faster than traditional welding.

2) Easy operating do not require any training

Welding seam beautiful smooth and beautiful, assistente't need polish, risparmia tempo

No deformation or welding scar, welding the workpiece firmly.

3) easy maintenance

Laser welding has less consumption and long service life. Più sicuro, più ecologico.

4) Wildly used in kitchen and bathroom cabinet, stair lift, mensola, oven, stainless steel door and window

Guardrail, distribution box, stainless steel home.

Laser cleaning

1) Laser Rust Removal: Laser light can easily remove rust, after removal, the surface is restored to a bright metallic color or restore the original base color.

2) Laser Oil Removal: Metal surface oil cleaning (can remove oxide layer at the same time)

3) Laser Color Removal: removes various colors including Auto Duco on various surfaces and cars

4) stripping plating (galvanized layer, aluminized layer, protective plating, ecc.)

5) Removal of aluminum alloy, titanium alloy, copper alloy oxide layer

6) Pre-Weld Pretreatments: After laser cleaning pretreats the aluminum alloy, the welding porosity defects are effectively suppressed

7) Post-weld cleaning: Non-Contact NDT removal of post-weld oxide layer and slag residue

8) Aluminum alloy pulsed laser remove dirt and oxide film before welding

3 In 1 Welder Laser Soldering Machine Combo Laser Metal Cleaning Main Features

1. Three working modes, saldatura + taglio + pulizia. Simple switching, only need to replace the copper nozzle,

switch the system

2. About fiber cable length

Standard length is 10m, if you have other needs, we support shortening or lengthening.

3. Auxiliary gas: nitrogen or argon

If the welding surface effect is required to be white and bright, nitrogen or argon is required

If there is no requirement for the welding surface, add compressed air freeze Dryer, air is OK.

4. About wire feeder

Esso's the machine standard configuration, we will send to you together with the whole machine.

5. Garanzia della macchina: 3 years for whole machine, 2 years for laser generator.
