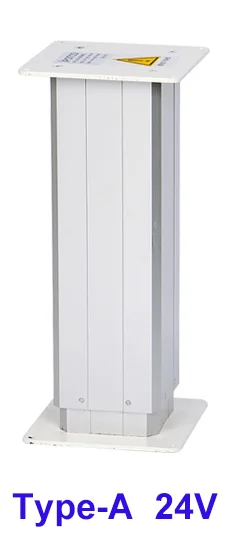

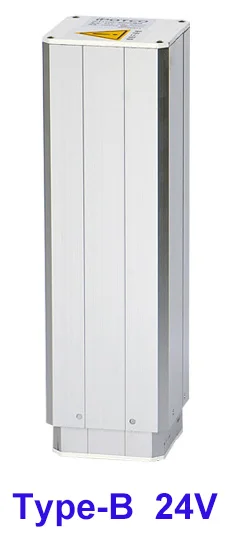

The Electric Lifting Column is a linear actuator with a 2500N DC24v motor that is commonly used in adjustable height desks, RV tables, underfloor tatami, and car tables. It provides a convenient and efficient way to adjust the height of these furniture pieces with ease. The column is designed to be durable and reliable, capable of lifting heavy loads and providing smooth height adjustments. Its compact design makes it suitable for various applications, offering a practical solution for height-adjustable furniture needs.
Technical Parameter
Stroke Length: 100MM-1000MM
Potenza nominale:60W
Voltaggio: 12V / 24V / 36V / 48V
Lmit Switches: BUILT-IN
Operating Frequency: 10％ work for 2 minutes
Standard protection grade: IP44
Operating Temperature: 0°C~+40°C
Motor: Permanent magnet DC Motor drive;
Materiale: Aluminum alloy, Plastica
Applicazione: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ….
|
Voltaggio |
24v |
||||||
|
No-load Speed(mm/s) |
4 |
9 |
14 |
20 |
25 |
32 |
40 |
|
Capacità di carico(N) |
2500 |
1200 |
800 |
600 |
400 |
200 |
150 |
|
Voltaggio |
12v |
||||||
|
No-load Speed(mm/s) |
9 |
18 |
25 |
32 |
Hall sensor cannot be added |
||
|
Capacità di carico(N) |
800 |
300 |
200 |
150 |
|||
|
Initial Height(mm) |
L =S+120(S≤400) |
||||||
|
Operating Temperature |
0℃~+50℃ |
||||||
|
IP Grade: |
IP44 |
||||||
|
Limit Switches |
Built-in |
||||||
|
Operating Frequency |
10% max 2min.continuous use |
||||||
|
Colore |
Silver White |
||||||
|
Panels |
Powder Coating |
||||||
|
Stroke Length(mm) |
50mm-1000mm |
||||||
|
Optional Features |
Rebound or Pause When Encountering Obstacles |
||||||
|
Hall Sensor |
|||||||
|
Switch Signal Feedback |
|||||||
|
Upper Computer Control |
|||||||
Different Type Purchase List
|
|
|
|
|
The following accessory products need to be purchased separately
Controller
if control 1pc of column,choose C1
if control 1pc of column and need know the extra height, choose C4
if control 2pcs of columns at the same time not in sync or separately, choose C3
if control 2pcs of columns in sync, the error is within ±3MM, choose C24
if control 3pcs of columns in sync, the error is within ±3MM, choose C25
if control 4pcs of columns in sync, the error is within ±3MM, choose C26
if control 1pc of column together with APP control,choose C61
