Introducing the best price 12V 10A waterproof MPPT solar charge controller for lithium batteries! This innovative solar charge controller is designed to maximize the efficiency of your solar panel system and ensure a reliable power supply for your lithium batteries.
With advanced MPPT (Maximum Power Point Tracking) technology, this controller can efficiently convert solar energy into electrical power, providing an optimal charging solution for your lithium batteries. Its waterproof design makes it suitable for outdoor use, ensuring durability and longevity in harsh weather conditions.
Say goodbye to inefficient charging systems and invest in the best price 12V 10A waterproof MPPT solar charge controller for lithium batteries today. Experience the benefits of reliable and efficient solar charging with this high-quality controller. Order now and take your solar panel system to the next level!
|

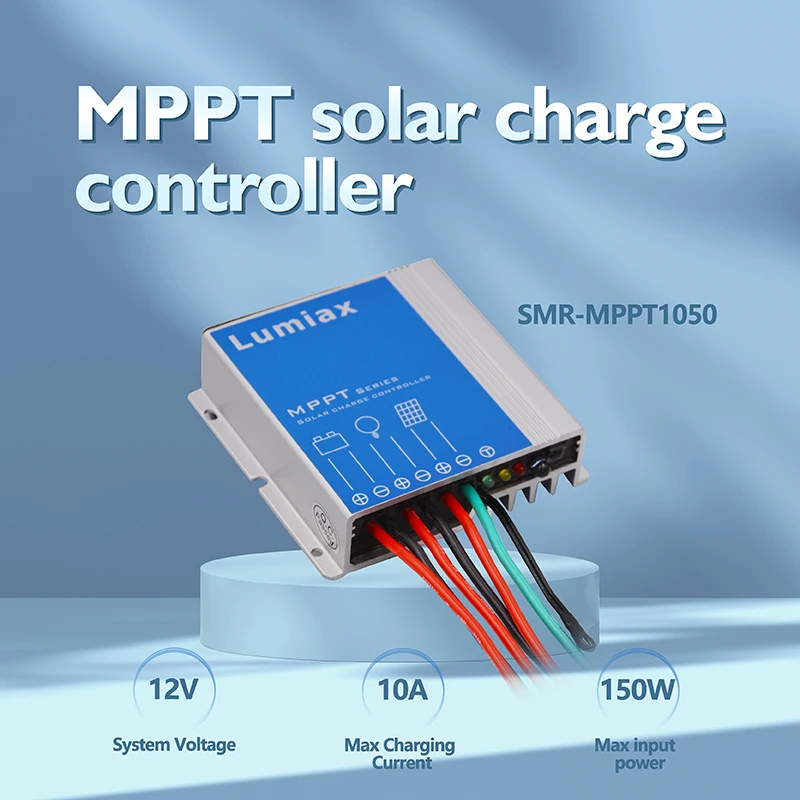

SMR-MPPT1050-BT with Bluetooth
SMR-MPPT1050-RS485 with RS485
|
|
ltem
|
SMR-MPPT1050
|
SMR-MPPT1575
|
SMR-MPPT2075
|
||
|
Max Charging Current
|
10UN
|
15UN
|
20UN
|
||
|
System Voltage
|
12V
|
12V/24V automatical recognization
|
|
||
|
MPPT Charging Voltage
|
<14.5V@25℃
|
<14.5/29V@25℃
|
|
||
|
Boost Voltage
|
14.0~14.8V/28.0~29.6V(Default 14.5/29.0V@25℃,Programmable)
|
|
|
||
|
Equalization Voltage
|
14.0~15.0V/28.0~30.0V(Default 14.8/29.6v@25℃,Liquid/AGM,Programmable)
|
|
|
||
|
Float Voltage
|
13.0~14.5V/26.0~29.0V(Default 13.7/27.4V@25℃,Programmable)
|
|
|
||
|
Low Volt. Disconnect
|
10.8~11.8V/21.6~23.6V; SOC1~5(Default: 11.2/22.4V,Programmable)
|
|
|
||
|
Reconnect Voltage
|
11.4~12.8V/228~25.6V(Default 12.0/24.0V,Programmable)
|
|
|
||
|
Overcharge Protect
|
15.5V
|
15.5/31.0V
|
|
||
|
Temp.Compensation
|
-4.17mV/K per cell (Boost,Equalization),-3.33mV/K per cell (Float)
|
|
|
||
|
Charging voltage target
|
10.0~17.0V
|
10.0~32.0V(Lithium,Programmable)
|
|
||
|
Charging voltage recovery
|
9.2~16.8V
|
92~31.8V(Lithium,Programmable)
|
|
||
|
Low voltage disconnect
|
9.0~15.0V
|
9.0~30.0V(Lithium,Programmable)
|
|
||
|
Low voltage reconnect
|
9.6~16.0V
|
9.6~31.0V(Lithium,Programmable)
|
|
||
|
Battery Type
|
Lithium,Liquid,Gel,AGM (Programmable, default Gel)
|
|
|
||
|
0℃ Charge Protection
|
SÌ,NO,Slow(Lithium, default:SÌ)
|
|
|
||
|
Max input power
|
130W
|
200W/400W
|
260W/520W
|
||
|
Max volt on Bat.Terminal
|
25V
|
35V
|
|
||
|
Max volt on PV terminal
|
45V
|
55V
|
|
||
|
Dusk/Dawn detect volt.
|
3.0~8.0V
|
3.0~20.0V(Programmable)
|
|
||
|
Day/Night delay time
|
0~30Min(Programmable)
|
|
|
||
|
MPPT tracking range
|
(Battery Voltage + 1.0v) ~Voc*0.9
|
|
|
||
|
Max tracking efficiency
|
>99.9%
|
|
|
||
|
Output Current
|
10UN
|
15UN
|
20UN
|
||
|
Max charge conversion
|
96.50%
|
97.50%
|
|
||
|
Self consumption
|
6mA
|
|
|
||
|
Dimensioni
|
85.8*81*23.1mm
|
85.8*145* 30mm
|
85.8*145* 42.5mm
|
||
|
Peso
|
260G
|
600G
|
720G
|
||
|
Ambient temperature
|
-35~+60℃
|
|
|
||
|
Ambient humidity
|
0~100%RH
|
|
|
||
|
Protection degree
|
IP67
|
|
|
||
|
Max Altitude
|
4000m
|
|
|
||
