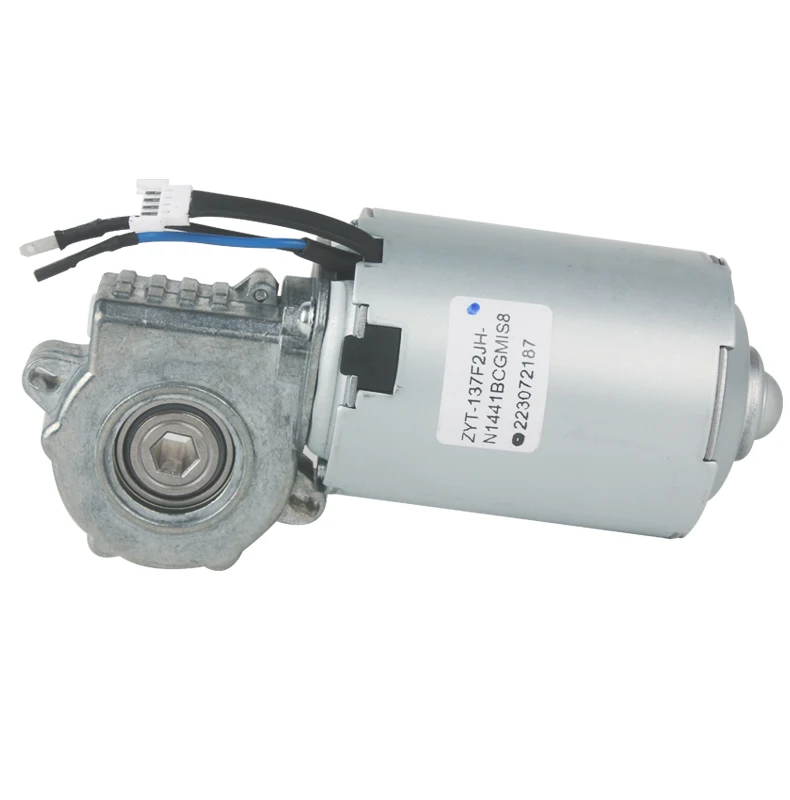

The 137F Lifting Table Motor Speed is a motor specifically designed for lifting tables with a speed of 6.68N.m. It includes a built-in Hall sensor for accurate positioning and low noise operation. The push rod motor is ideal for use in electric lifting tables for furniture. It provides reliable and efficient performance, making it a suitable option for various applications requiring motorized lifting mechanisms.
978 Hall Board Signal Output Description
1. Use a 5 ± 0.5V power supply and connect the positive and negative poles of the power line to 5V and GND, and connect the positive pole of the multimeter to SA
2. Rotate the magnetic ring and the multimeter will alternately display two values of 0.6V or 4.8V.
3. Using the same method, connect the positive pole of the multimeter to SB and rotate the magnetic ring. The multimeter will alternately display two values of 0.6V or 4.8V.
4. The angle between A Hall element and B Hall element is 90 °

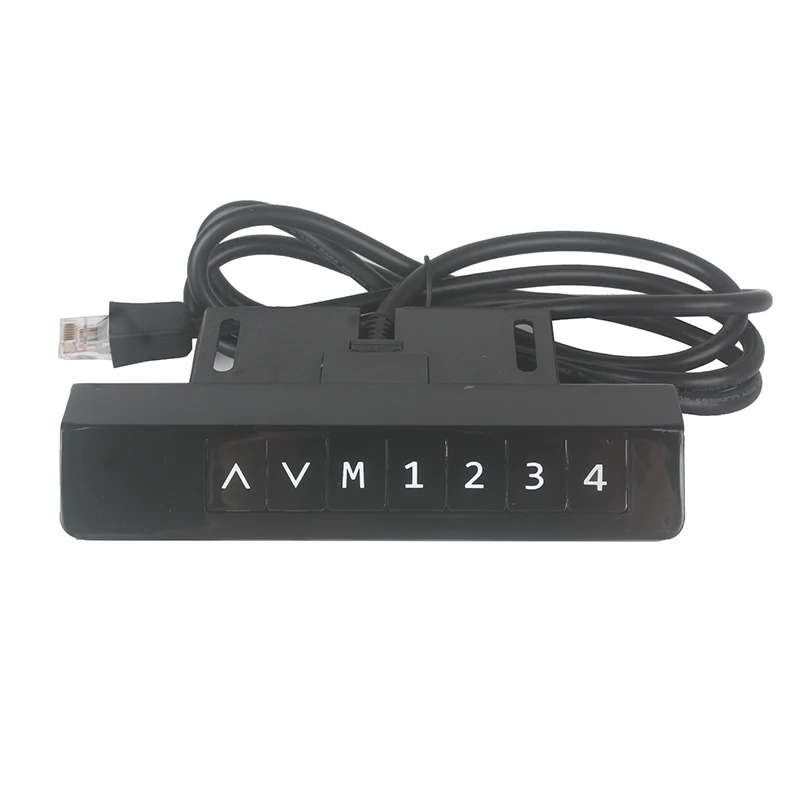

Controller specific manual control
LCD display screen, fashionable design, easy installation, and exquisite buttons
The manual lifting and 4th gear memory are integrated.
Dedicated connection line for motors, dedicated for special machines
Both the power connector and Hall connector have passed the long-term plug and unplug life test
