Descripción del Producto
Información
Reamers are with one or more cutter teeth. Holes can be with exact size and shape after the reamers’ processing. Finished product can be smooth, intact and more beautiful.
Reamers can be used to process holes in small cuts based on guiding function, como: holes with diameter tolerance in ≤IT8; holes with requirements in surface roughness (≤Rz12 generally); holes with requirements in roundness tolerance; holes with requirements in cylindricity; stepped holes (different diameter holes on the same axis); series holes (diameter holes on the same axis) with requirements in high coaxality.

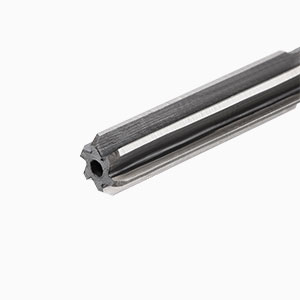

Chucking Reamers
High-speed Steel Tool
High-speed steel tools are with combination of hardness and toughness for wear resistance. Suitable for most general purpose applications.
Straight Flute
Straight flute tools allow chips to collect in the flutes and can make shallow cuts in most applications. For reaming cylindrical shape holes.
No Coatings
Designed with the base substrate without any additional coatings, good for wide ranges of applications.
Features Used for light cut, trabajo de reparación, eliminar stock o simplemente para ampliar agujeros. Chucking reamers (machine reamers) are used on lathes, drill presses and screw machines. Round shank can be used with a wide variety of tool holding systems.
Amplias aplicaciones
Cut and remove the thin layer metal on hole surface that has been processed, mainly to improve the precision of holes and reduce the surface roughness.Used for semi-finish machining and finish machining of holes.
Designed for accurate reaming in aluminum, hierro fundido, cobre, acero aleado, acero, el plastico, madera, etc.. Use on all types of equipment including screw machines, turret lathes, drill presses and machining centers
añadir a la cesta
añadir a la cesta
añadir a la cesta
añadir a la cesta
añadir a la cesta
añadir a la cesta
Opiniones de los usuarios
4.1 fuera de 5 estrellas
43
4.4 fuera de 5 estrellas
64
4.1 fuera de 5 estrellas
58
4.3 fuera de 5 estrellas
67
4.0 fuera de 5 estrellas
1
4.5 fuera de 5 estrellas
5
Precio
$7.49$7.49 $9.59$9.59 $23.49$23.49 $13.99$13.99 $20.29$20.29 $14.29$14.29
Tamaño
1/4″ 3/8″ 3mm-12mm 1/8″, 3/16″ ,1/4″, 5/16″ 6.3mm 6mm
Material
High Speed Steel High Speed Steel Alloy Tool Steel High Speed Steel Tungsten Carbide Tungsten Carbide
Dimensiones del paquete : 5.28 X 3.86 X 0.35 pulgadas; 0.01 onzas
Número de modelo del artículo : a20103000ux0036
Fecha primera disponible : Agosto 10, 2021
Fabricante : uxcell
ASIN : B09C8M58TC
Especificaciones: Cutting diameter: 1/8″, 3/16″, 1/4″, 5/16″; accuracy class: H7. The hand reamers ream the cylindrical shape. Good for general purpose applications. Straight round shank provides a stable holding and can be used with a variety of tool holding systems.
Material and Coating: Made of high-speed steel, the reamers have combination of hardness and toughness for wear resistance. The cutter body is sturdy and damage-resistant, with strong heat resistance that stable processing. Features just the base substrate without any coatings, suitable for wide ranges of applications.
Amplias aplicaciones: Sharp blade for easy cutting and high efficiency. Used for processing, and bore machining. Suitable for accurate reaming in aluminum, hierro fundido, cobre, el plastico, madera, aleación, and other soft materials.
Fácil de usar: Can be used on screw machines, turret lathes, drilling and milling machines. Great for light cut, trabajo de reparación, or simply for enlarging holes. Always keep reamers clean, and used with machine oil for long service use.
Straight Flute: Straight flute tools allow chips to collect in the flutes when cutting. Well suited for most applications in shallow cuts.
1. Is the uxcell Chucking Reamer made of high-quality materials?
Sí, the uxcell Chucking Reamer is made of high-speed steel, Asegurar la durabilidad y el rendimiento duradero.
2. What is the accuracy level of the Chucking Reamer?
The uxcell Chucking Reamer has an H7 accuracy level, providing precise cutting and smooth edges in your workpieces.
3. What sizes are available for the Chucking Reamer?
The uxcell Chucking Reamer is available in 1/8″, 3/16″, 1/4″, y 5/16″ tallas, offering versatility for a variety of drilling tasks.
4. Can the Chucking Reamer be used with different types of materials?
Sí, the uxcell Chucking Reamer is suitable for use with a wide range of materials, incluyendo metal, el plastico, y madera.
5. How can I maintain and care for the Chucking Reamer for optimal performance?
To maintain the Chucking Reamer’s performance, it is recommended to clean off any debris after each use and store it in a dry and safe place to prevent rusting. Regular sharpening and lubrication can also help prolong the tool’s lifespan.
