Descripción del Producto

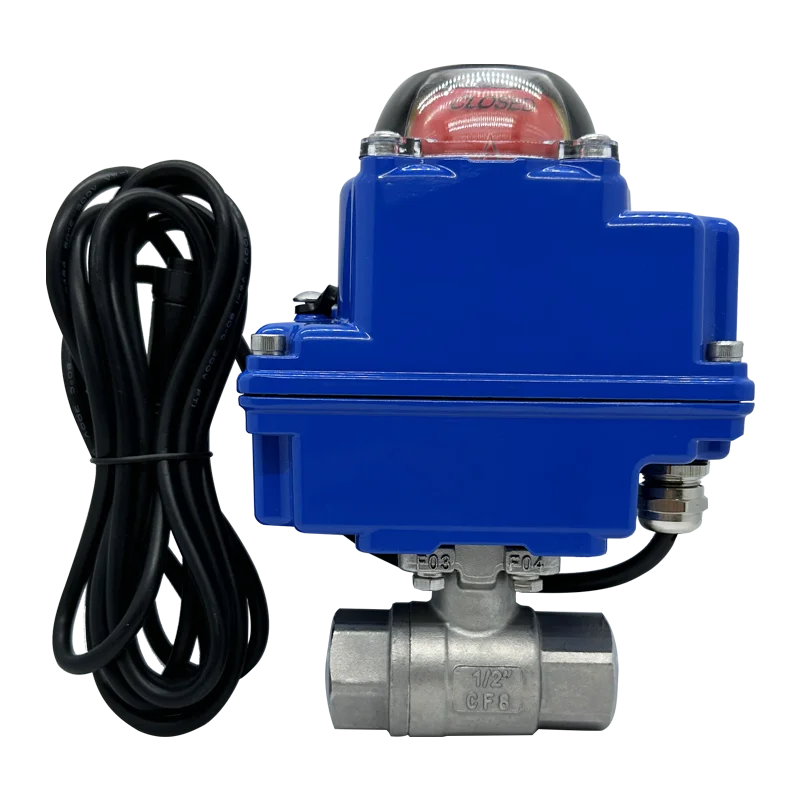

Solar Power High pressure Automatic Misting valve system for pesticide spraying
QOTO high pressure pesticides spraying system is composed by solar power motorized valve, high pressure tubes and nozzles.
The high pressure valve can be remote controlled via mobile App, web and touch-screen HMI with multiple functions
The best features between our high pressure valve system and other pesticides spraying are wireless installation, high efficiency of making even mist drop
Model QT-03G-G Power supply DC12V 2A(Solar panel+ li-ion battery case) Communication protocol 4G Protection level IP67 Environment
temperature -10~70℃ Water temperature 0~70℃ Torque 45Nm Applicable valve size DN15-DN32
1,Mobile App and web remote control 2,Polling irrigation, irrigating in sequence or work at the same time 3,Safe operation with fault warning 4,Real-time feedback for valve status on mobile app and web, no need to check with person on the scene when valves working 5,Group control 6,Device notifification 7,History record and user log 8,Communication protocol:4G 9,Personnel management, sub-accounts and assigning devices 10, Intelligent interaction 11,Signal strength indicate 12,For high pressure pesticide spraying, work together with converter and pump 13,Working with high pressure valve, the highest bearing pressure is 15Mpa. 14,External power supply or solar panel+ li-ion battery. 15,Standard installation hole size, applicable for regular valves in the market.
Especificación
|
artículo
|
valor
|
|
Uso
|
Agricultura
|
|
Tipo
|
IRRIGATION SYSTEM
|
|
Industrias aplicables
|
Granjas
|
|
Ubicación de la sala de exposición
|
Ninguno
|
|
Video de inspección saliente
|
Proporcionó
|
|
Informe de prueba de maquinaria
|
Proporcionó
|
|
Tipo de marketing
|
New Product 2020
|
|
Garantía de componentes centrales
|
1 Año
|
|
Componentes centrales
|
Motor
|
|
Condición
|
Nuevo
|
|
Lugar de origen
|
Porcelana
|
|
Marca
|
QOTO
|
|
Material
|
Metal
|
|
Característica
|
Solar Power
|
|
Diámetro
|
20cm
|
|
Servicio postventa proporcionado
|
Soporte técnico por vídeo, Soporte en línea
|
|
Garantía
|
1 Año
|
|
Puntos de venta clave
|
Solar Power
|
|
Peso
|
5KG
|
|
Nombre del producto
|
High pressure misting system
|
|
Solar Power
|
DC12V 2A Solar panel+ li-ion battery case
|
|
Uso
|
Pesticide spraying
|
|
valve
|
High pressure ball valve
|
|
Presión
|
20.7 MPA
|
|
Boquilla
|
High pressure misting nozzle
|
|
Communication protocol
|
4G/LoRa
|
|
frequency for EU
|
LTE-FDD:B1/B3/B5/B7/B8/B20GSM:900/1800 megahercio
|
|
frequency for South America
|
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66GSM:850/900/1800/1900megahercio
|
|
Presión de trabajo
|
2.5-10MPA
|

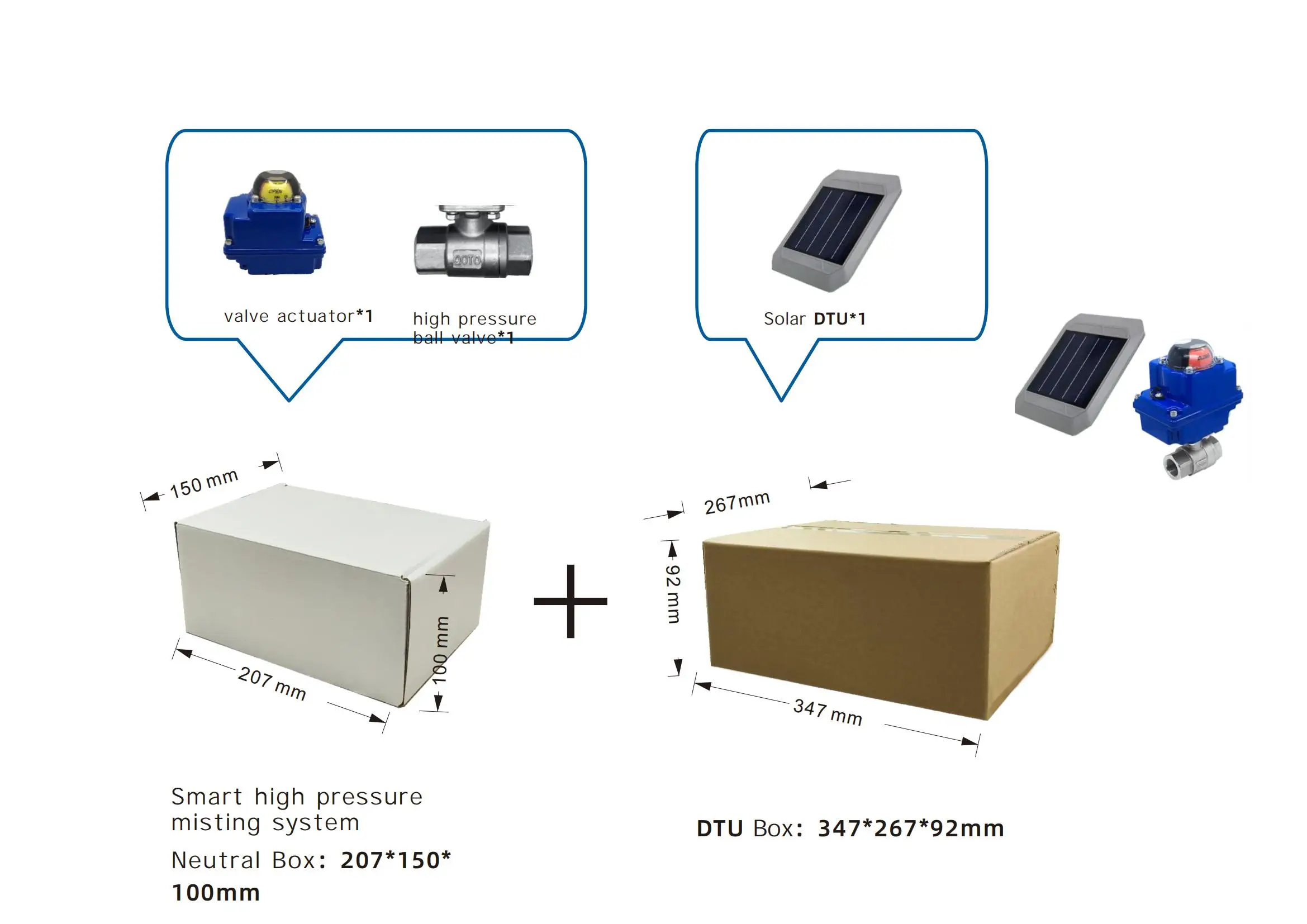

Embalaje & Entrega
42.5*35*18.3cm
Perfil de la empresa
Shenzhen Power-Tomorrow Actuator Valve Co.,Ltd, started on 21st,Nov,2017, a high-tech company of IoT flow automation with the nucleus of Internet of thing+smart hardware, has created QOTO smart irrigation system and obtained multiple patents. The smart valves and valve controllers developed by our own for small and medium sized pipelines have been applied in municipal landscaping and agricultural irrigation, meeting different requirements from users and scenarios.After years of accumulations on experience and technology, QOTO has been the leader of remote control smart motorized valve, pushing forward the developing of IoT flow control.
Preguntas frecuentes
1. What is the special feature of our solar irrigation system? Most of the solar irrigation system in the market, it is solar based pumping system. Ours is solar based valve system. The valve automation in the watering scheduled is all powered by solar panel+rechargeable batteries. no need any electric cable 2. What is the longevity of the rechargeable batteries and solar panel? Batería: 2 years Solar panel: 5 años 3. How long can the valve work once batteried are fully charged. As we use rechargeable batteries, in the sunny condition, the battery can work continously. Let take QT-02-G as an example, the solar panel is polysilicon, 6.5V, 5.5W.. The QT-02-G use 4 baterías. If in a cloudy weather situation,once full charge, the battery can stand by 15days. 4. What is a motorized valve? A motorized valve use motor to drive the valve open and close while a solenoid valve use solenoid valve to open and close. A motorized valve can connect different types of valves. Let take QT-02-G as example, QT-02-G can connect ball valve and butterfly valve, PVC material or metal materials. 5. What is the difference between solenoid valve based automatic irrigation and motorized valve based irrigatin system? A. Motorized valve has bigger open port than solenoid valve. B. The valve can be open without any water pressure C. Solar powered Installation without any AC/DC electric power cable. 6. Can App support English language? Sí, it has Chinese and English version. 7. What is the communication protocol for the devices? We have 4G and LoRa protocol. 8. What internet protocol does the system support? The system supports HTTP MQTT TCP/IP. 9. What is LoRa frequency? For chinese market: 470Mhz-510Mhz For oversea market: 860Mhz-930Mhz 10. What is the valve size. There are DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN500
