Información del producto:

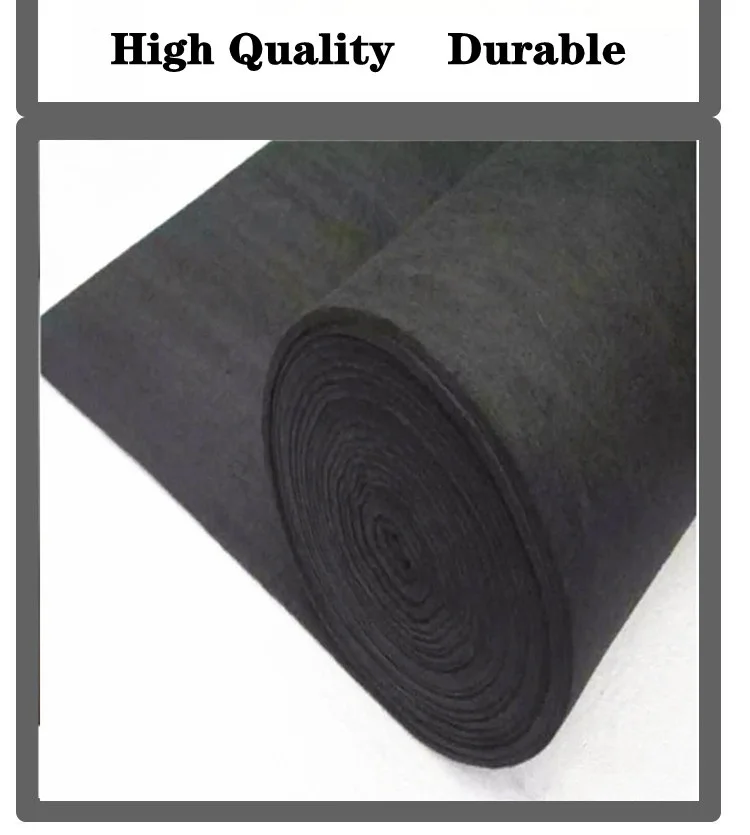

Carbon fiber soft felt
Thickness 2/3/5/8/10/14mm long cut as required
Use environment: inert gas 2650°C, air 350°C, vacuum 1800°C
Surface area: 400~1350g/m2
Bulk density: 0.08-0.17
Carbon content: más que 95%
Resistencia a la tracción: 0.1-0.3MPA
Radial: 8-14
Weft: 10-16
Ceniza: 1.5%
Brecha: 90%
Specific heat capacity: 1.52-1.73kj/kgc
Thermal conductivity: (w/m.k) 0.09-0.13 (25° C)/0.2-0.27 (1000° C)
Resistivity: (Ohm.cm) 0.18-0.22
Moisture absorption rate: 2%
Specific resistance: (Ω.mm2/m)
Horizontal: 8.2-11.1*10 cubic
Vertical: 11.8-16.8*10 cubic
Nombre del producto: Graphite felt 2mm
Product Series: Energy Storage Graphite Felt Thin Flow Battery Electrode
Alcance de la aplicación: used for energy storage battery electrodes
Thin flow battery, all-vanadium flow energy storage battery, sodium polysulfide/bromine redox flow battery,
Batería de litio, sodium-sulfur single cell, microbial fuel cell MFC, etc..
Technical indicators:
Thickness=1.6-2.1 mm
Resistencia a la tracción (long direction)=0.08N/mm⊃2;
Resistencia a la tracción (lateral)=0.05N/mm⊃2;
Elongation at break (long direction) = 7%
Elongation at break (horizontal) = 19%
Ash content≤400ppm
Sulfur content＜0.001%
Purity-Fe content≤20ppm
Resistivity=0.0269-0.03Ω.m
Liquid absorption rate≤17g/g
Slag removal rate≤0.2%
Use temperature≤3000℃.
Advantages description: The product has uniform thickness, stable electrochemical performance, and the charge and discharge current density can improve
Más que 2 times higher, good flatness, low resistance, voltage and energy efficiency can be increased by more than 30%,
And the energy efficiency is not attenuated during long-term charging and discharging.
