Product introduction:
Nombre del producto: High concentration oxygen machine
Cooling way: Air cooling
Fuerza: 350w
Output oxygen flow rate: 0-5L/min (adjustable)
Outlet pressure: 50kpa
Oxygen concentration: 93%-96%
After 3000 horas: >90%
Tamaño: 34*22*32.5cm
Peso: 10.75kg
.
Cooling Fan: 15050 Customized high speed cooling fan
Flowmeter: Free 1pc
Intake requirements: Dry, oil-free
Intake pressure: 170kpa-250kpa (With air compressor)
Molecular sieve: New type oxygen sieve – lithium low silicon (imported 0.5mm)
Ambient temperature: <40 degrees Celsius
Humidity: <85% RH
Mechanical impurity of compressed air in: <20mg/m3
Product application: Oxygenation, medical treatment
Characteristic: Smaller, higher oxygen concentration, no consumables, high efficiency
Service life / Warranty: More than 15000 horas / 2 años
Customized: Can be customized
.
Lista de embalaje:
1pc 5L oxygen machine, 1pc 1.8m pure copper power cord, 1pc flowmeter, 2m 4*6mm PU tube and 1pc air stone.
1pc 5L oxygen machine, 1pc 1.8m pure copper power cord, 1pc flowmeter, 2m 4*6mm PU tube and 1pc air stone.
.
.
Equipment Inspection Standard:
Design and Manufacturing Conditions of Oxygen Making Machine: JB/T6427-92 Pressure Vessel
Design specifications: GB150-89
Manufacturing standard: GB150-89
Flaw detection standard: JB-4730-94
Equipment Painting, Packaging and Transportation: JB2536, GB/T13384
Noise measurement of silencer: JB/T6427-92
Pipeline Design and Installation: JB5902
Identification Standard of Oxygen Meter: JJ365-1998
Flowmeter Design and Manufacturing Standards: JB/T6844-1993
.
If you need more oxygen, you can connect them in parallel, and we can send you free connectors:
20L oxygen machine = 2pcs 10L oxygen machine.
30L oxygen machine = 3pcs 10L oxygen machine.
.

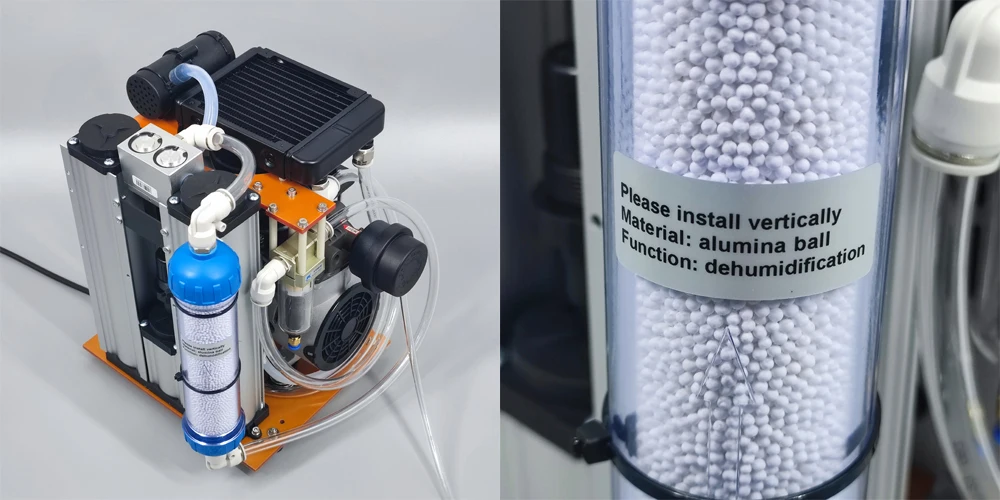

Free upgrade adds alumina ball dryer.
We recommend you install it vertically.
The air intake is on the bottom and the air outlet is on the top.
The air inlet is connected to the oil-water separator, and the air outlet is connected to the oxygen generation module.
It can further reduce the humidity of the air source and effectively extend the service life of the oxygen generation module.
We recommend that you take out the alumina ball and dry it or replace it after 3 months of use.
.
.
Product picture:
When you get the oxygen machine, please connect the power cord, then it will be able to produce high concentration of oxygen)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
