Mini Pneumatic Chamfering Machine Portable Handheld 45 Degree Arc Air Beveling Machine 1/4 Inch Air Inlet For Trimming Deburring
Características:

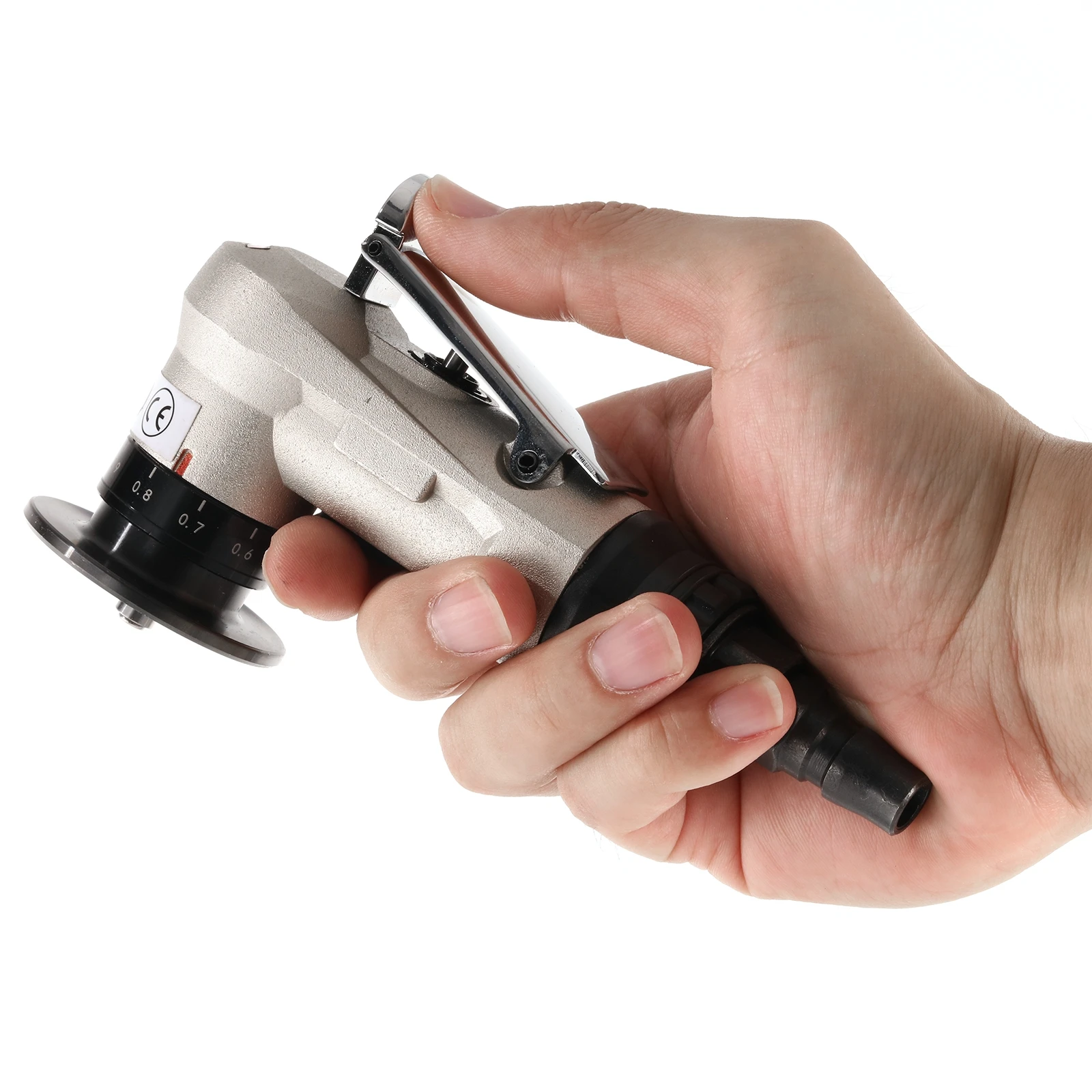

The 1/4” Pneumatic Chamfering Machine has a mini body, is light and convenient, can be chamfered in the narrowest and shallowest space and operated with one hand, fast cutting right and round corners. Equipped with metal safety switch and safety buckle.
Alloy guide plate can effectively block chamfer waste. Using a sharp tungsten steel double cutter head, the cutting force is strong, robusto, y duradero.

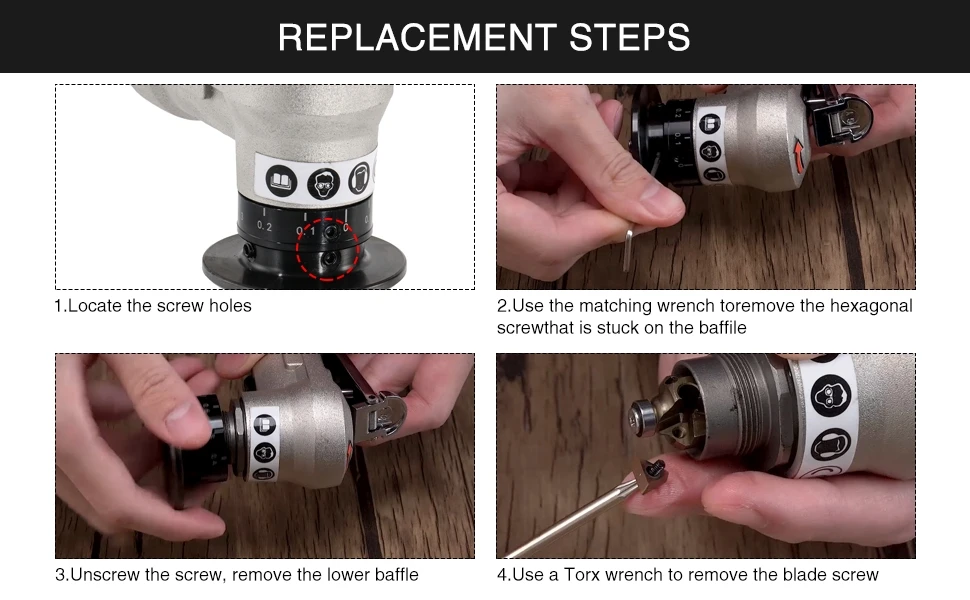

Equipped with an air intake adjustment switch, 5-speed air intake adjustment, and air intake size can be adjusted at will to meet your different work needs. To adjust the chamfer size, unscrew the screw, rotate to select the scale size, and tighten the screw. Equipped with a 360-degree rotating exhaust port, which can quickly exhaust and reduce the temperature of the machine.
Used for deburring and chamfering the R side of metal trimming arc corners. Suitable for various angles, such as straight edge straight chamfering, inner and outer round hole chamfering, Irregular chamfering, multilateral chamfering of the keyway.
Especificaciones:
Chamfering capacity c0.1-c0.9
Chamfer plate thickness >3milímetros
Minimum chamfer diameter 7mm
The shallowest opening depth is 5mm
Chamfering hole diameter ≥ 8mm
Intake pressure: 90Psi
No-load speed: 22000rpm
Weight 1.1pound
El paquete incluye
1 x Chamfering Machine
2 x imported triangle cutter heads
2 x Wrench
1 X 1/4 Inch Air Inlet
1 x Bearing
