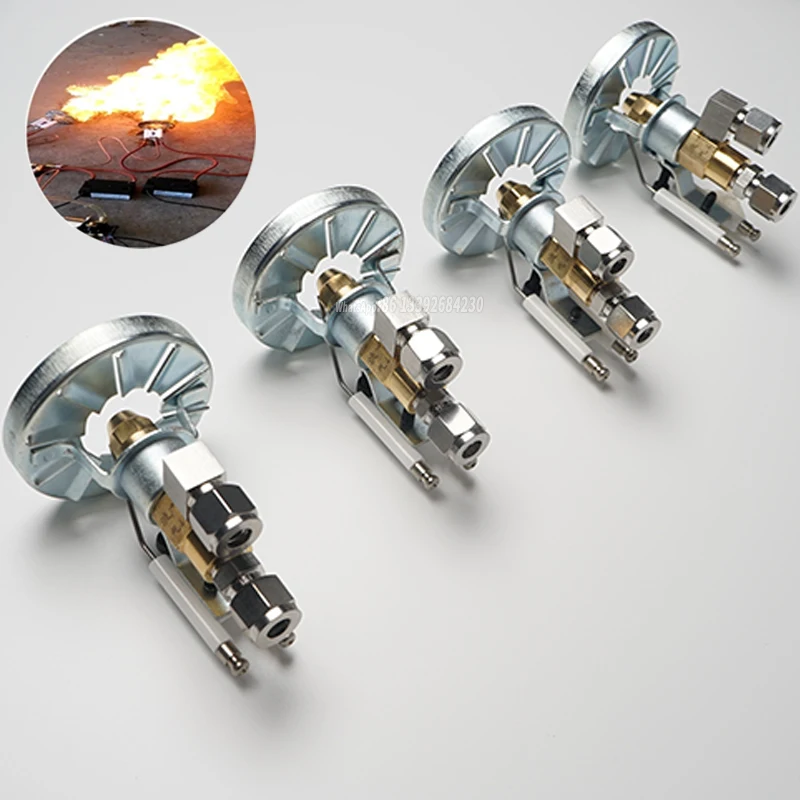

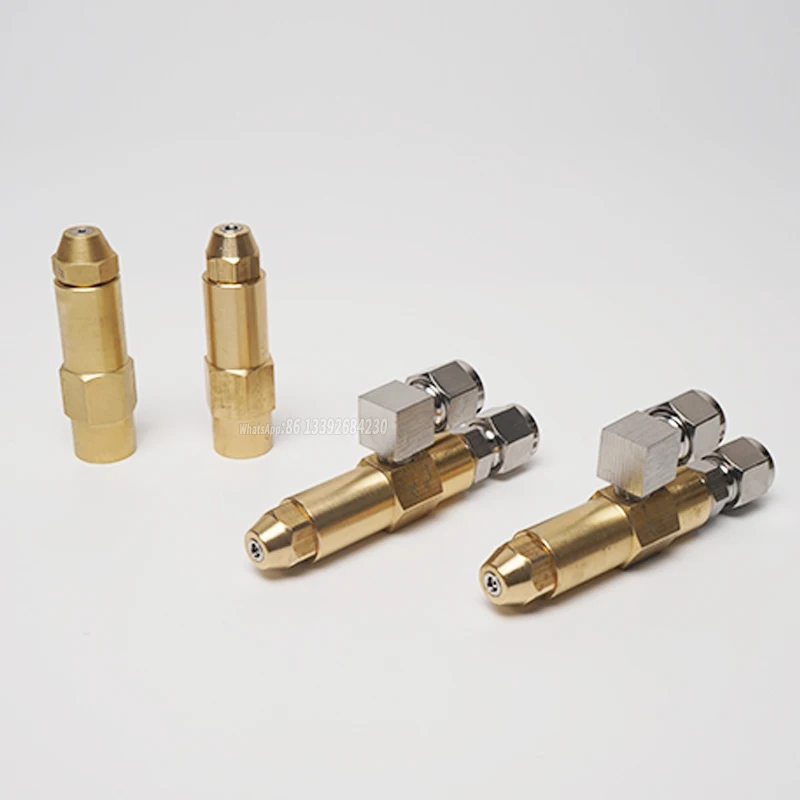

A high pressure boiler system using a waste oil siphon burner with ceramic components and high pressure oil nozzles. The system is designed to efficiently burn waste oil for heating purposes, using a high pressure oil nozzle to control the flow and combustion process. The ceramic components of the burner help to withstand the high temperatures and pressures involved in the operation of the system. En general, this system is a efficient and effective way to utilize waste oil for heating applications, providing a greener alternative to traditional fuel sources.
Especificación

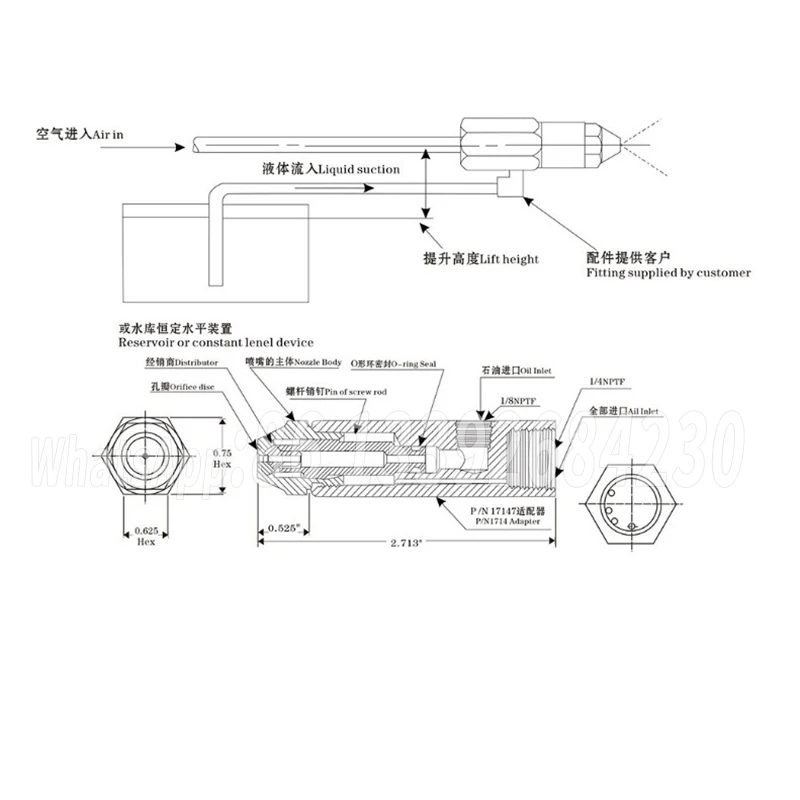

Orifice diameter:
0.3milímetros, 0.4milímetros, 0.5milímetros, 0.6milímetros, 0.7milímetros, 0.8milímetros, 1.0milímetros, 1.1milímetros, 1.2milímetros, 1.3milímetros, 1.5milímetros, 1.8milímetros, 2.0milímetros, 2.2milímetros, 2.3milímetros, 2.5milímetros, 3.0milímetros, 3.5milímetros, 4.0milímetros
Air inlet: 1/4"
Oil inlet: 1/8"

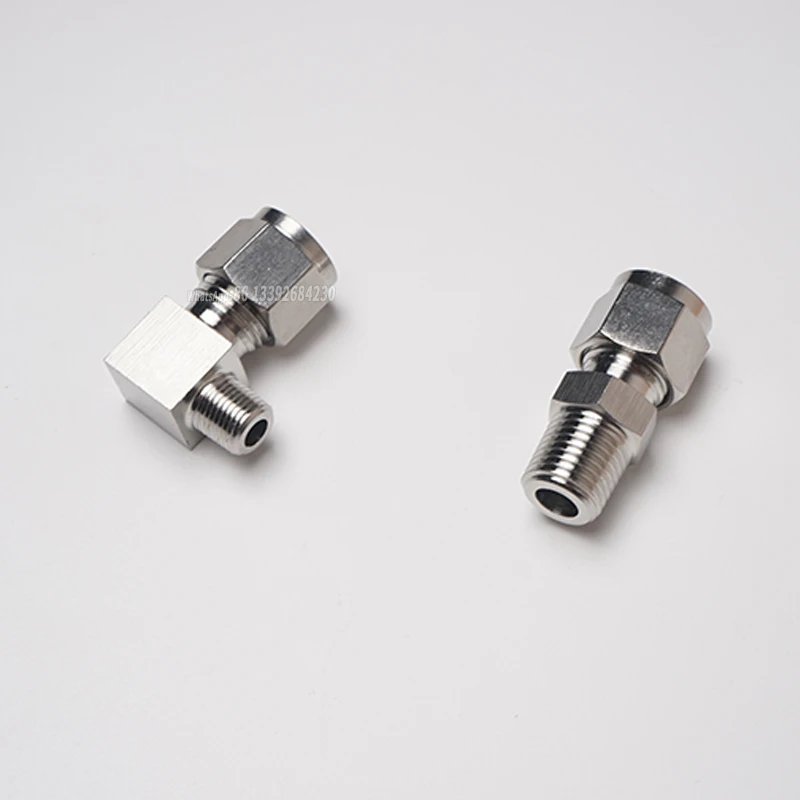

Nozzle size: 9/16" Connectors: 8milímetros (leave a message if you need 6mm)
Solicitud:
Widely used in diesel, heavy oil, waste oil, animal and vegetable oils, and other alcohol-based fuel oil, gas, combustion spray systems.
