Brushless DC Servo Motor Kit BLDC 600W 800W 220V with Speed Adjustable Regulator for Woodworking Lathe and Belt Bead Machinery, 80milímetros

600W 800W 220V 80mm Brushless DC Servo Motor Kit BLDC + Regulator Speed Adjustable for Woodworking Lathe Belt Bead Machinery

NOTE: The input voltage of the motor is 220V AC and the output voltage is 220V DC.

600w/800W optional

High power DC brushless Servo

Smooth running

Reversible/Adjustable speed

Low noise

low temperature rise

Pure copper wire

1. Brushless DC Servo Motor800W.：

Motor Size:80mm X 80mm

Motor length:115milímetros

Motor shaft diameter:length 50mm, diameter 14mm, keyway depth 2mm

Fuerza:800w

Velocidad:200-5000 rpm (can be forward and reverse, CW/CCW)

Torque:less than or equal to 4.5NM

2. Brushless DC Servo Motor600W.

Motor Size:80mm X 80mm

Motor length:105milímetros

Motor shaft diameter:length 50mm, diameter 14mm, keyway depth 2mm

Fuerza:600w

Velocidad:200-5000 rpm (can be forward and reverse, CW/CCW)

Torque:less than or equal to 3.0NM

Controller:

800W Kit:800W Kit*1

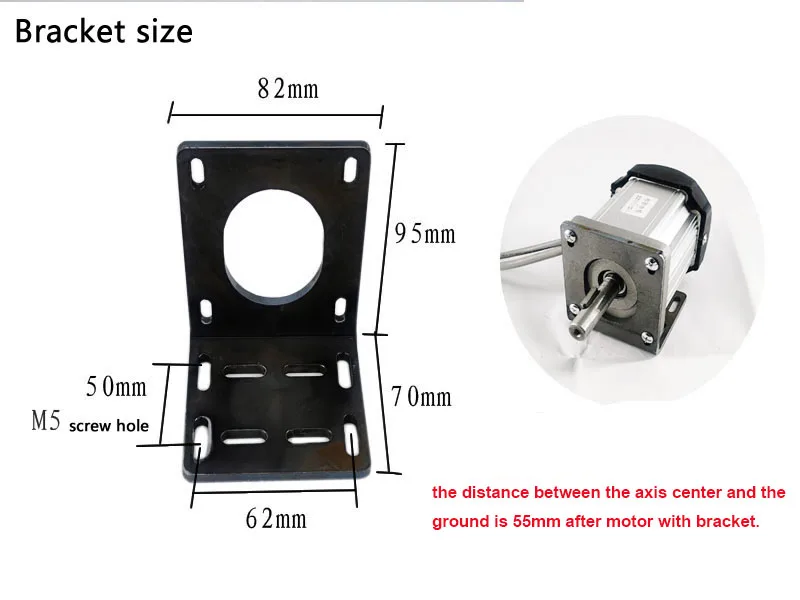

800W Kit and bracket:800W Kit*1 and bracket*1

600W Kit:600W Kit*1

600W Kit and bracket:600W Kit*1 and bracket*1
