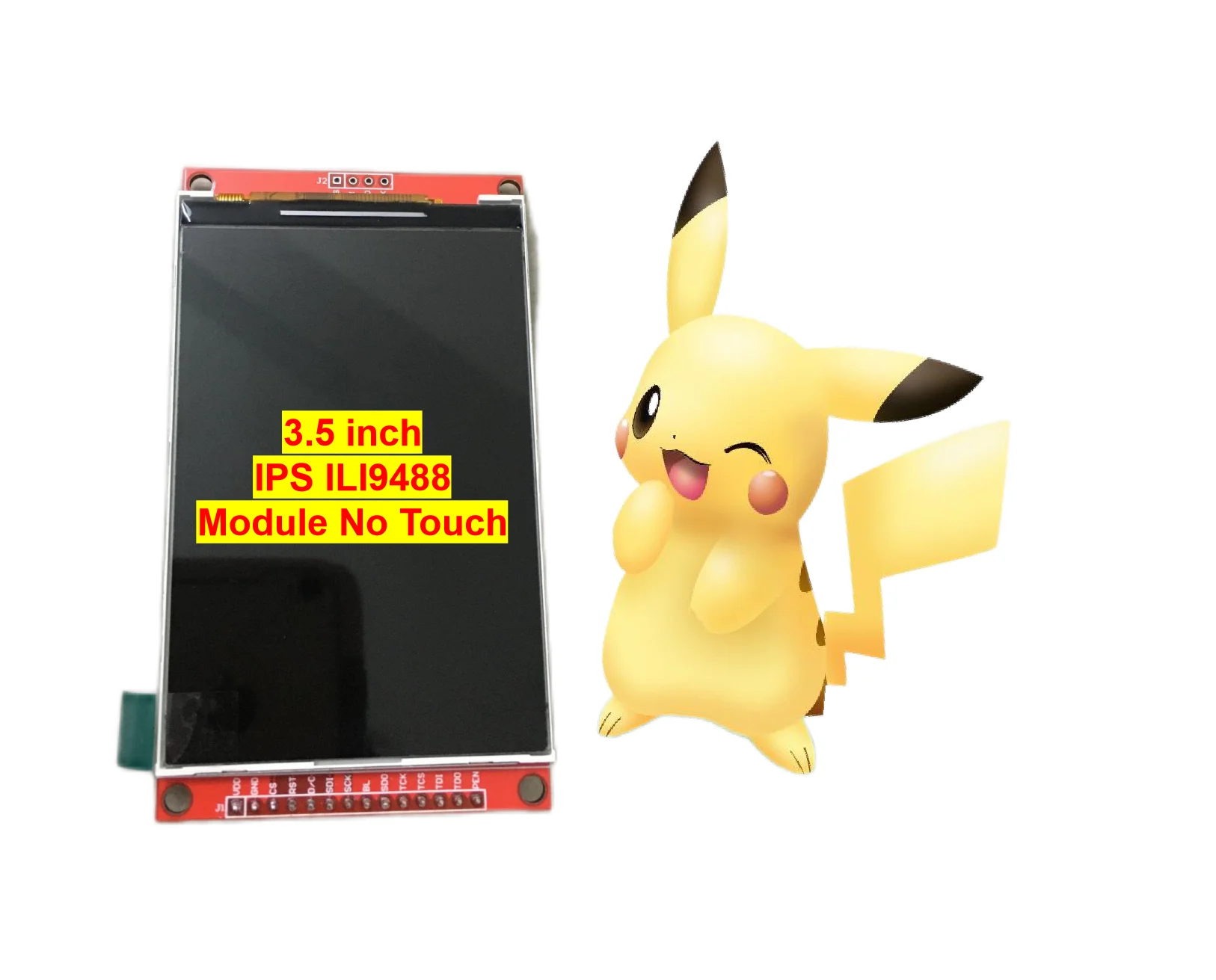

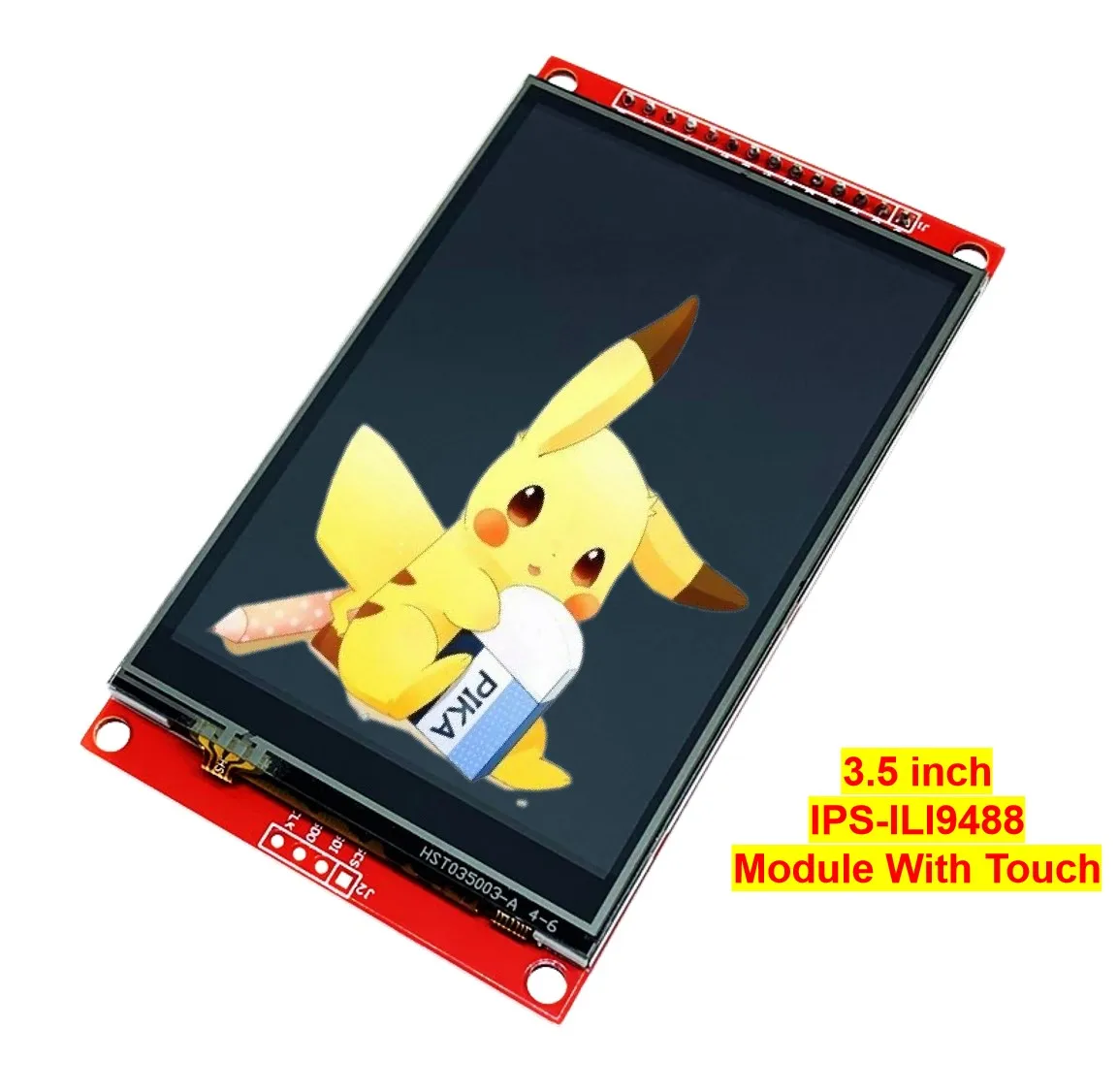

This device is a 3.5 inch HD LCD module with a resolution of 480×320 píxeles. It is compatible with ESP32, STM32, and C51 microcontrollers. The module uses SPI serial communication and utilizes the ILI9486 or ILI9488 driver chip. It is designed for displaying graphics and text in various electronic projects.
Introducción al producto:
3.5-inch color screen, supporting 65K color display, with rich display colors.
480X320 HD resolution, optional touch function
Using SPI serial bus, it only takes a few IO to light up the display.

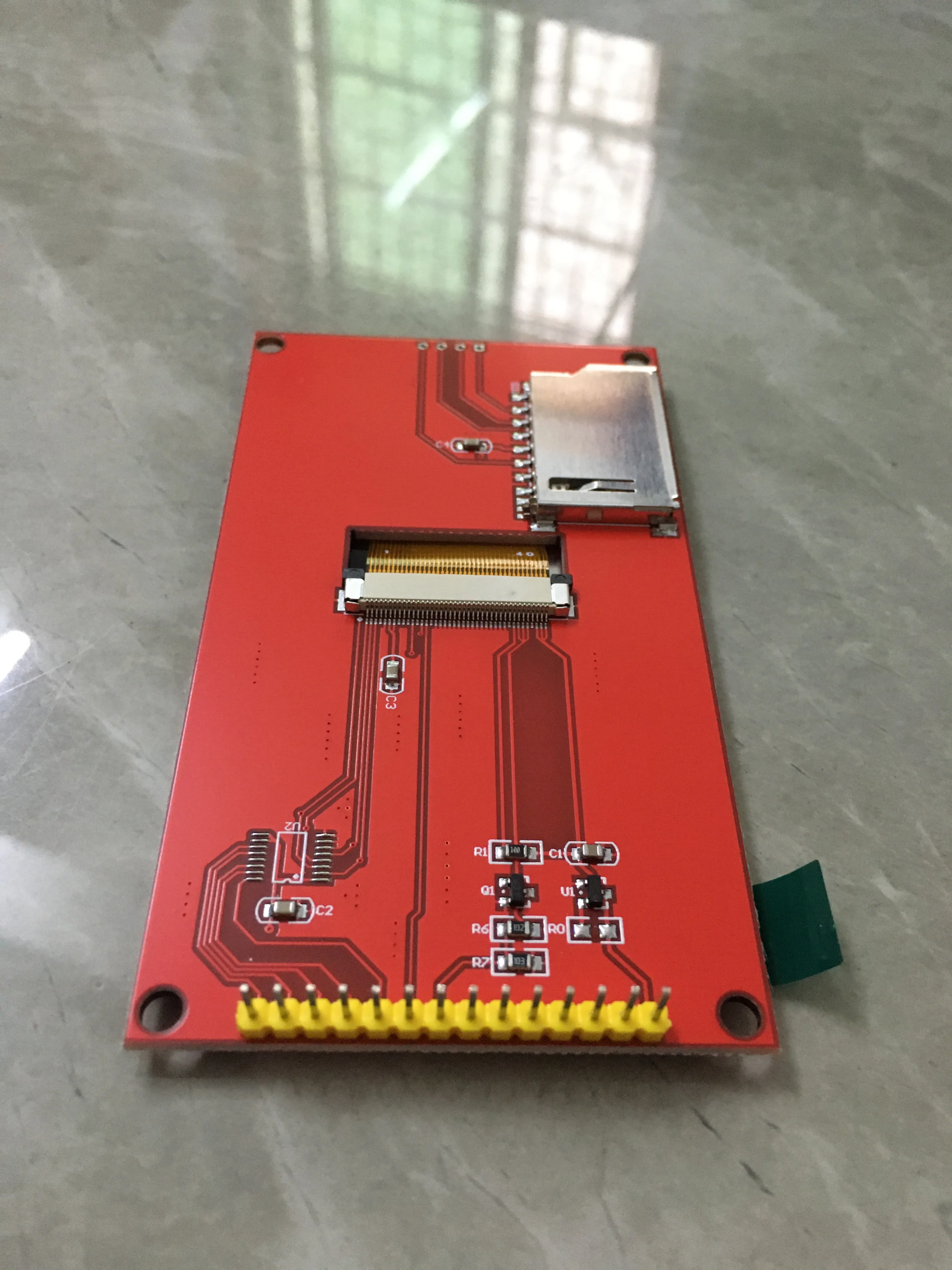

Convenient expansion experiment with SD card slot
Provides a wealth of sample programs
Military-grade process standards, long-term stable work
Provide technical support for underlying drivers.
|
Parámetros del producto: |
|
Tamaño :3.5 pulgada |
|
Tipo :Tft |
|

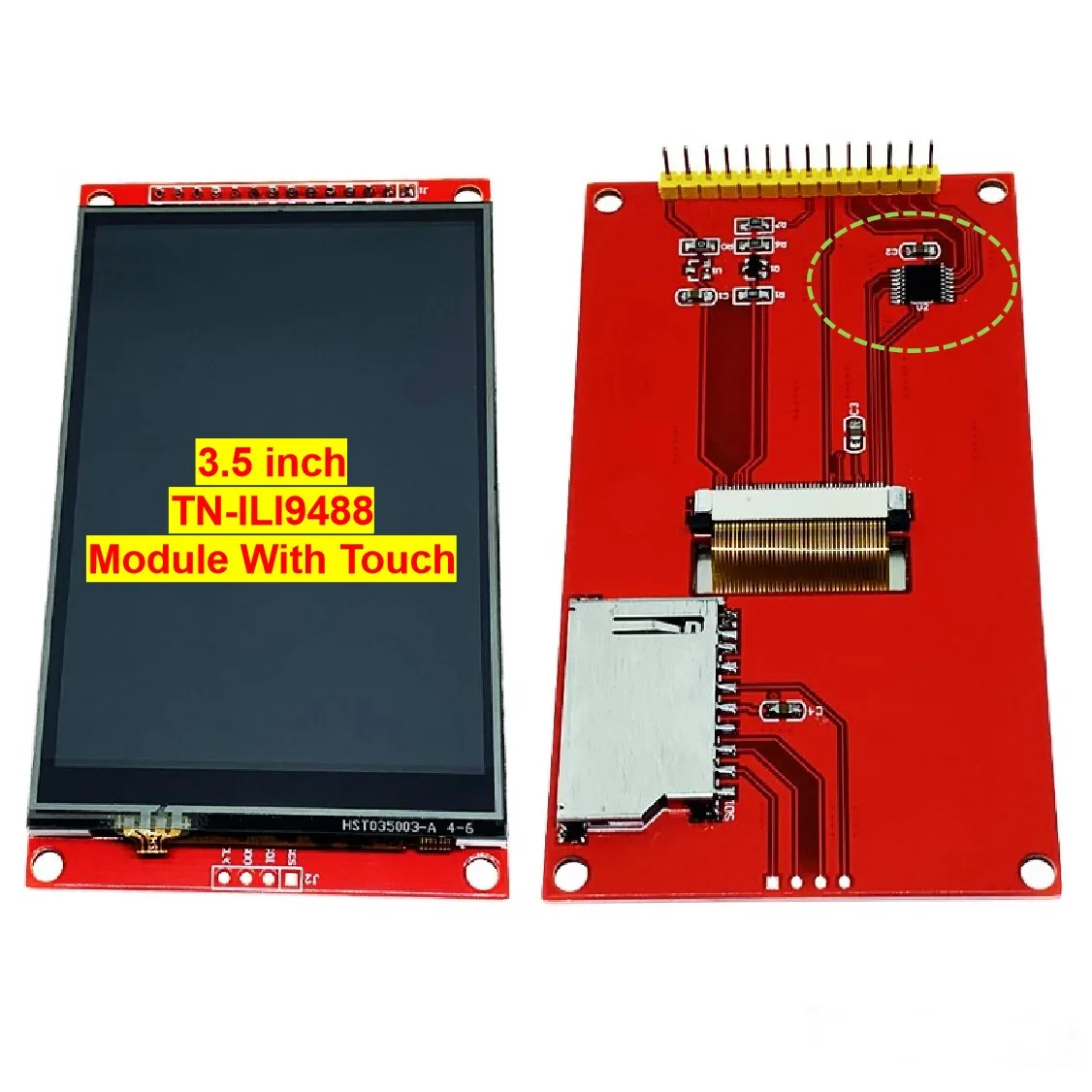

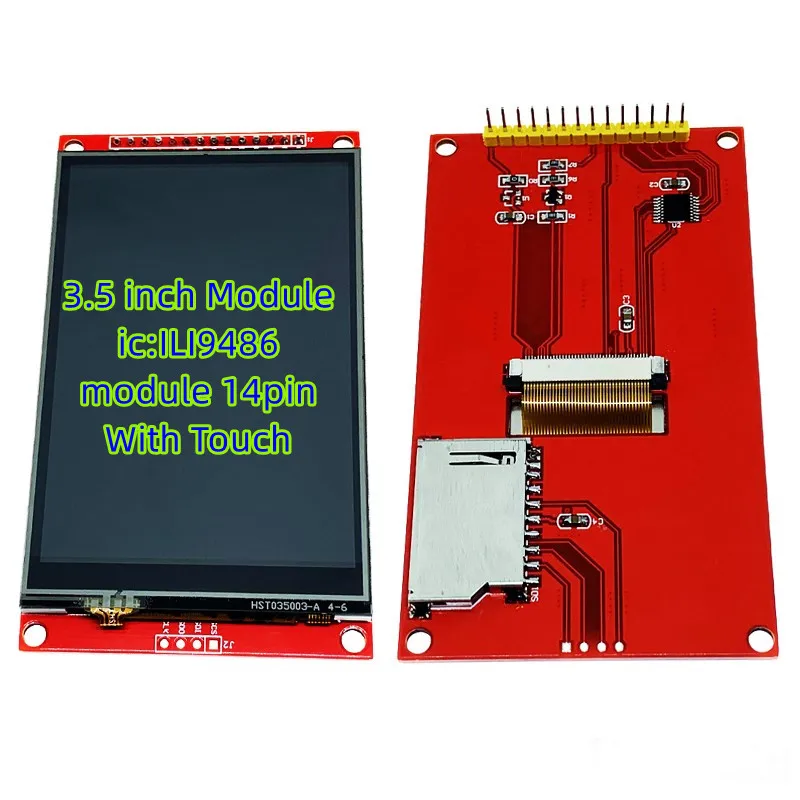

Drive IC: TN-ILI9486 (Vista amplia) TN-ILI9488 (Vista amplia) IPS-ILI9488(IPS Full View) |
|
Resolución:480*320 pixel |
|
Module interface:4-interfaz SPI de alambre |
|
Effective display area (AA area):48.96*73.44 milímetros |
|

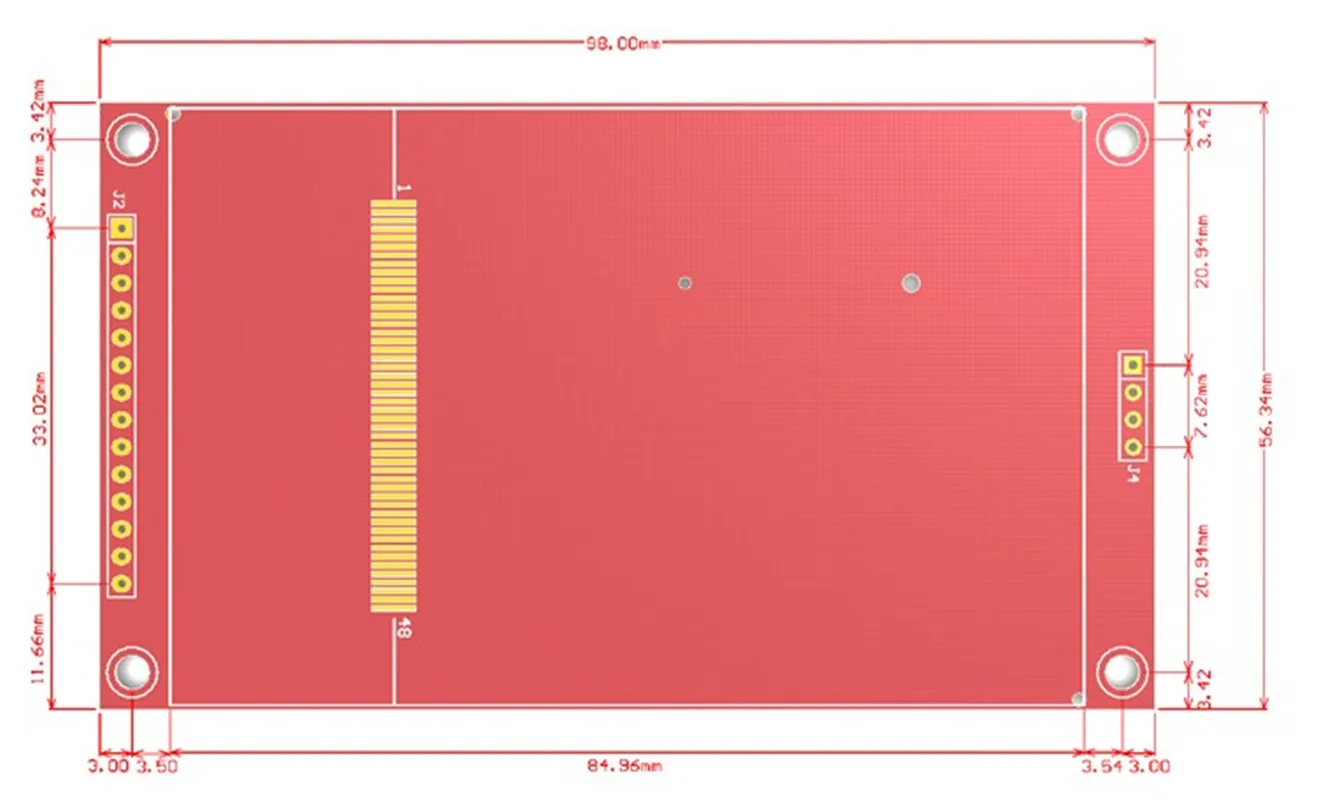

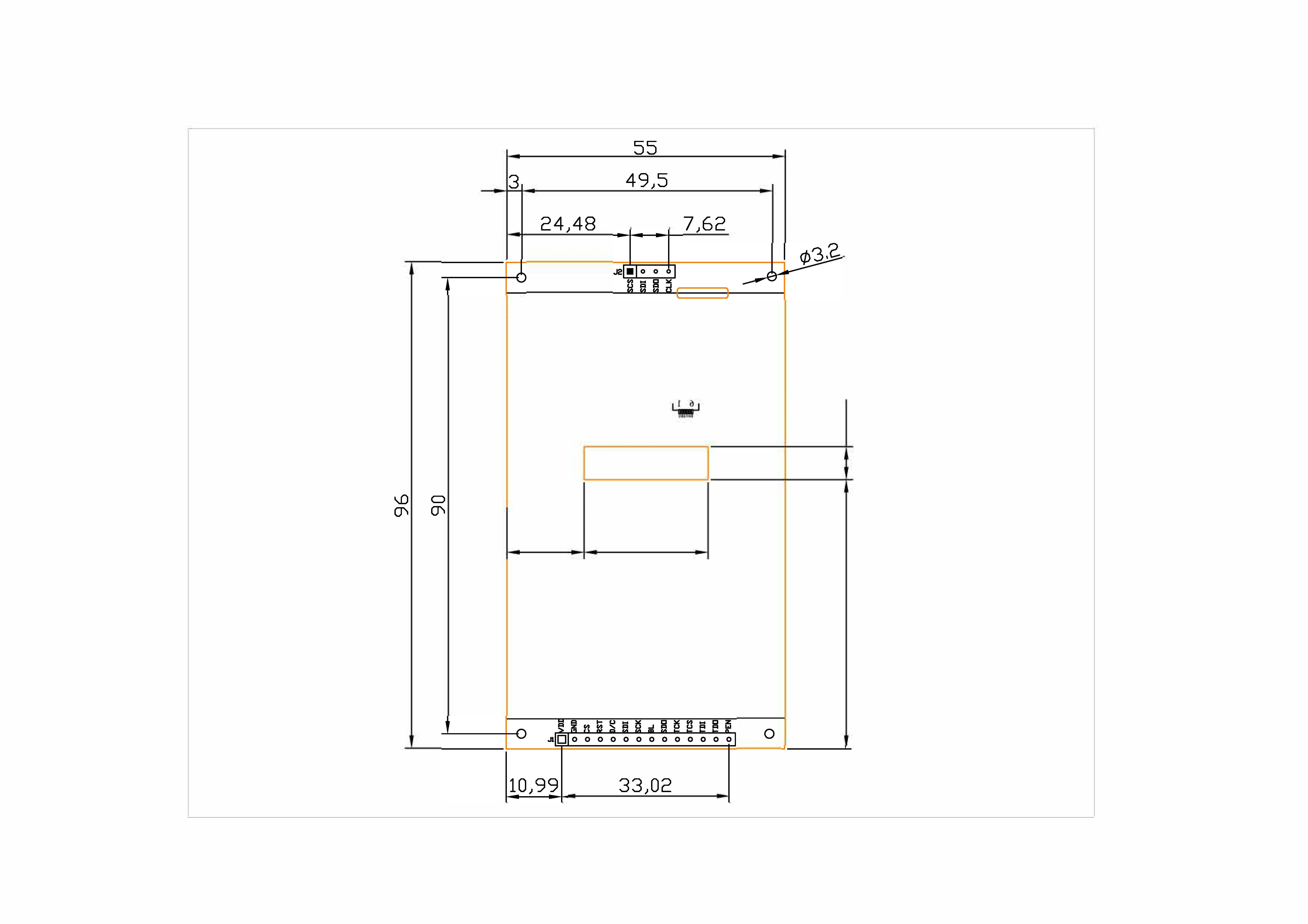

Dimensions of module PCB bottom plate:55.1*96.18 milímetros |
|

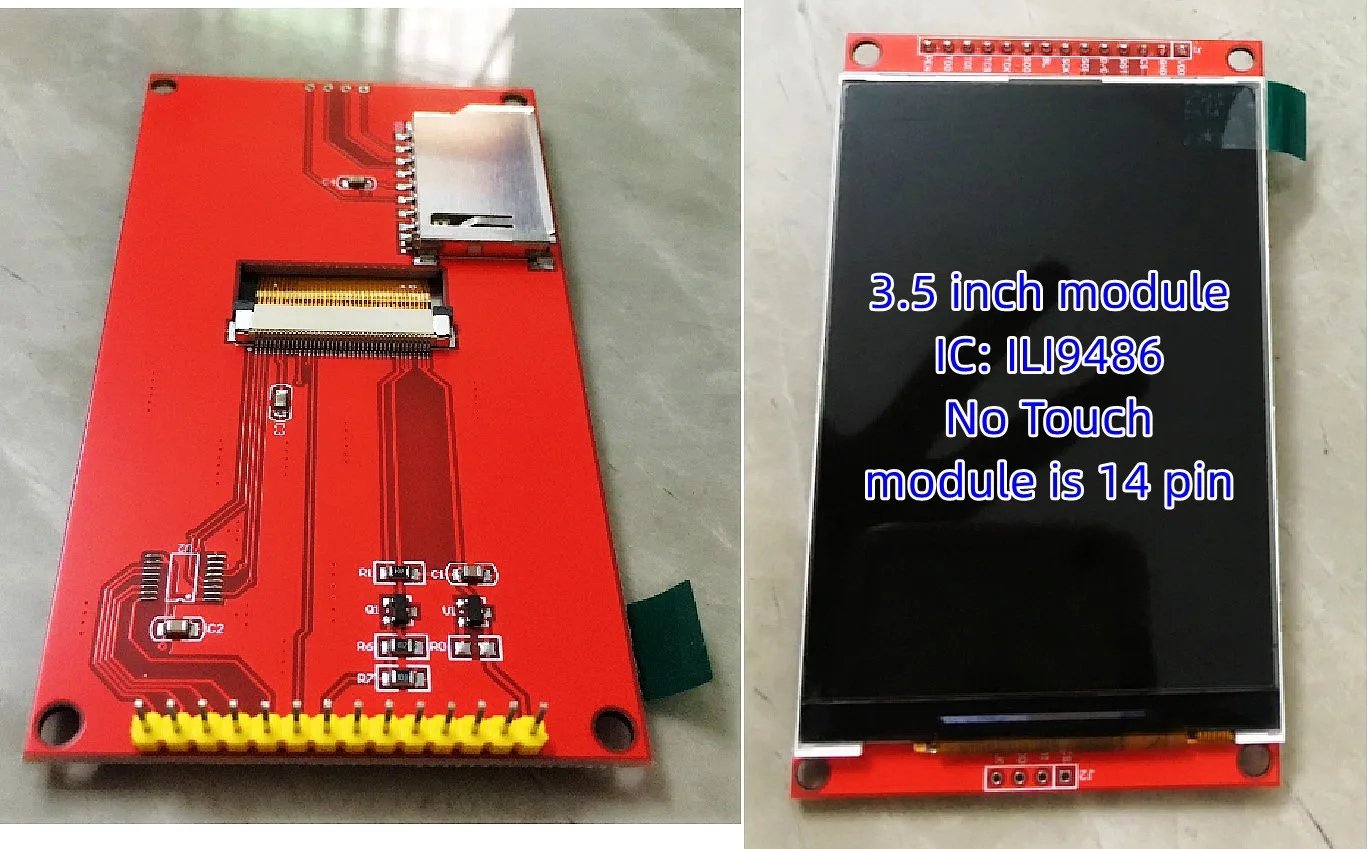

Touch type:Sin contacto / With Touch(choose from options) |
|
VCC supply voltage:3.3 V~5 V |
|
Logic IO port voltage:3.3V(TTL) |
|
power consumption:about 90mA |
|
product weight:25(gramo) |
|

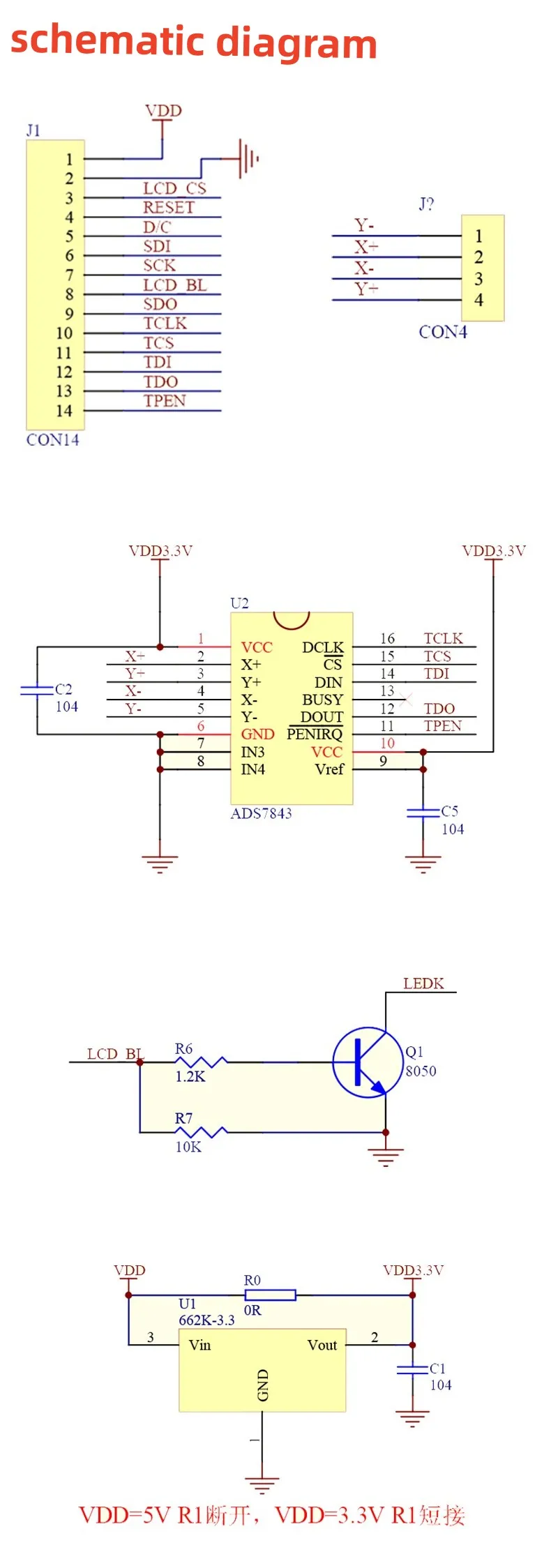

Interface definition |
|
1/VCC/Power input (3.3 V~5V) |
|
2/GND/Power supply ground |
|
3/CS/LCD/chip select (CS) |
|
4/RESET/LCD reset |
|
5/DC/LCD Bus command/data selection |
|
6/SDI(MOSI)LCD SPI Display bus data input |
|
7/SCK/LCD SPI Display bus clock signal |
|
8/LED/LCD Backlight control (high level lighting) |
|
9/SDO(MISO)LCD SPI Displays the total data input/output |
|
10/T_CLK/Touch panel SPI bus clock signal |
|
11/T_CS/Chip selection of SPI bus for touch panel |
|
12/T_DIN/Touch panel SPI bus data input |
|
13/T_DO/Touch panel SPI bus data output |
|
14/T_IRQ/Touch panel interrupts IRQ signal |
