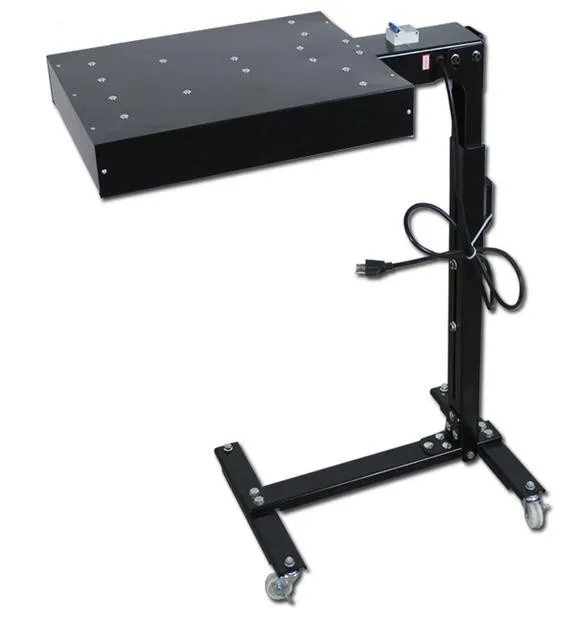

1600W SPE-Flash Secador para equipos de impresión de pantalla

Instruction of 1600W. Flash Dryer



Instalacións

For convenient transportation, parts of the machine have been uninstalled. Please install them in reference to the video before using.



Operations

1. After well installed, connect the power supply.

2. Turn on the switch and then it will work automatically.

3. Put the probe of the thermometer on the drying table, heat for some time (20 minutes in reference), and then check the actual temp. If the temp is too low or too high, just risen or lower the height of the drying box.



Reference Data

Based on our test,in the condition of 75F(24C)room temperature and no air flowing around the dryer,when the flash dryer has been working for about 30 minutos,the maximum temp of 5cm below the drying box can reach about 170℃(356℉)

Consejos

The temp has been relations with the distance from the drying box and continuous working time,in addition to the environmental factors(p.ej. Air flowing,room temp,etc.)



Parámetros

Voltaje de entrada: 110V

Potencia de entrada: 1600W.

Baking area: 16”x16”(40x40 cm)

Temperatura máxima: 356℉ (170℃)
