12V 24V 3KW 5KW 8KW Air Diesel Parking HeaterLCD Monitor SwitchRemote Control Board MotherboardFor Car Truck Van Boat

El paquete incluye:

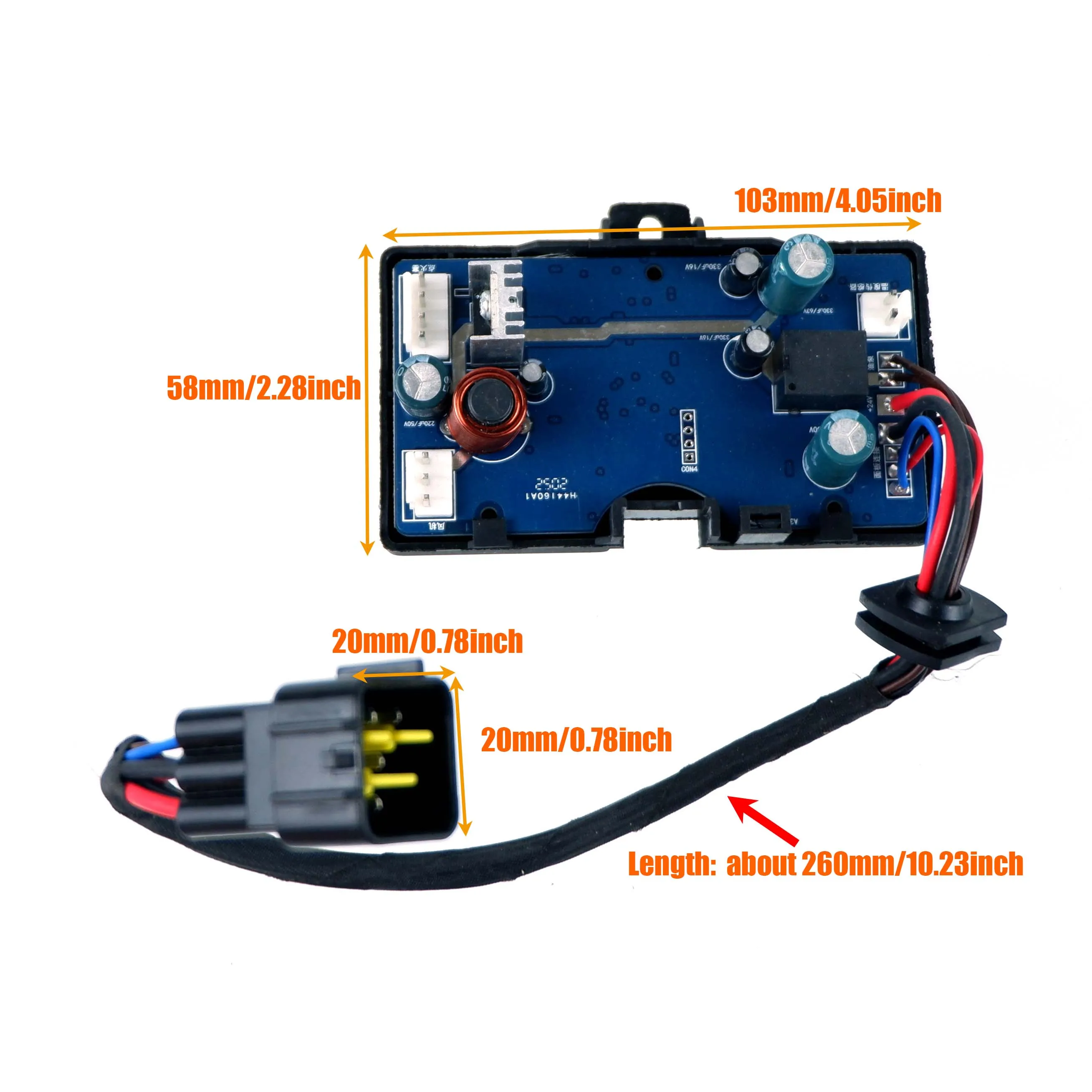

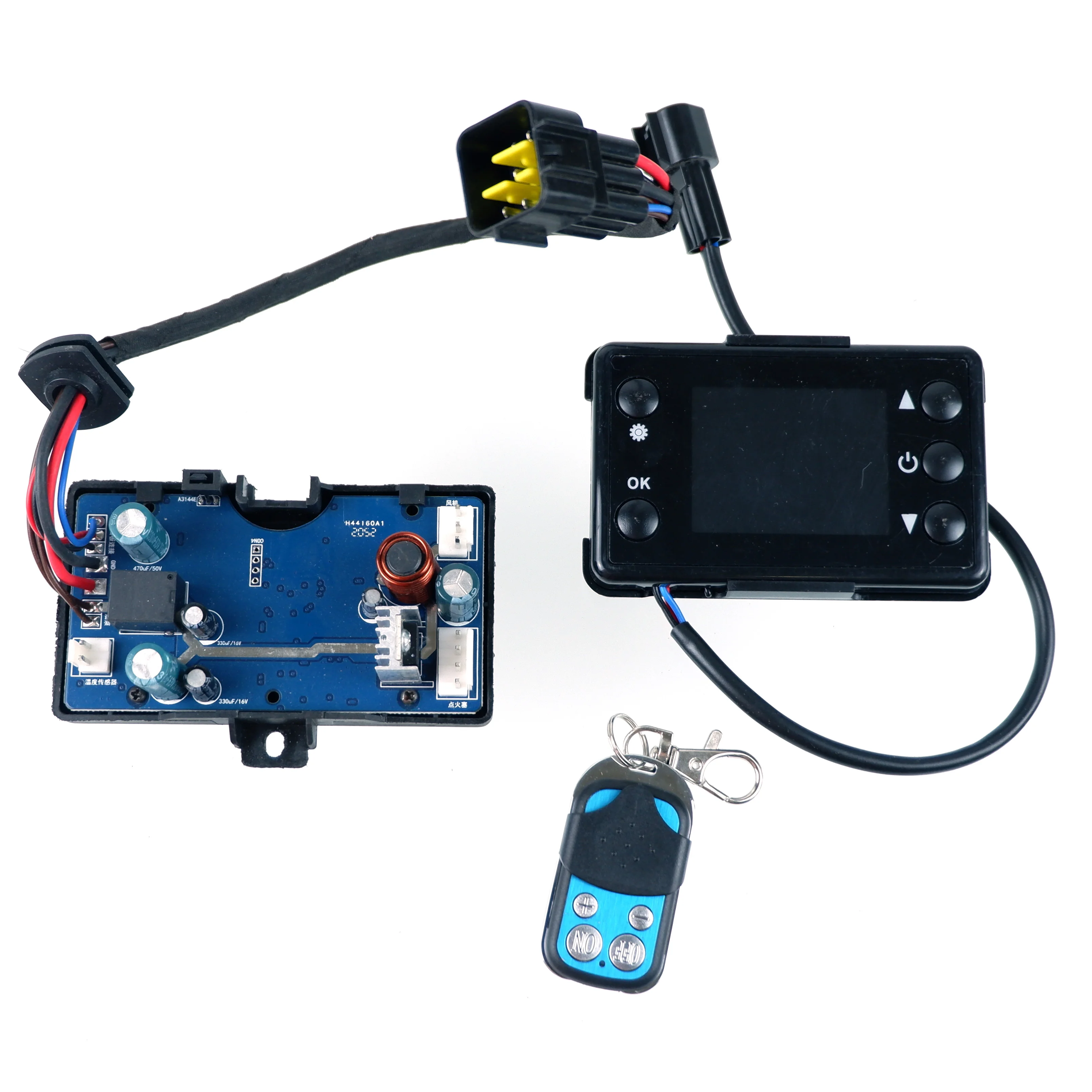

1x LCD Switch & Remote & 1x Mother Board

Or 1x LCD Switch & Remote

Or 1x Mother Board

Especificación:

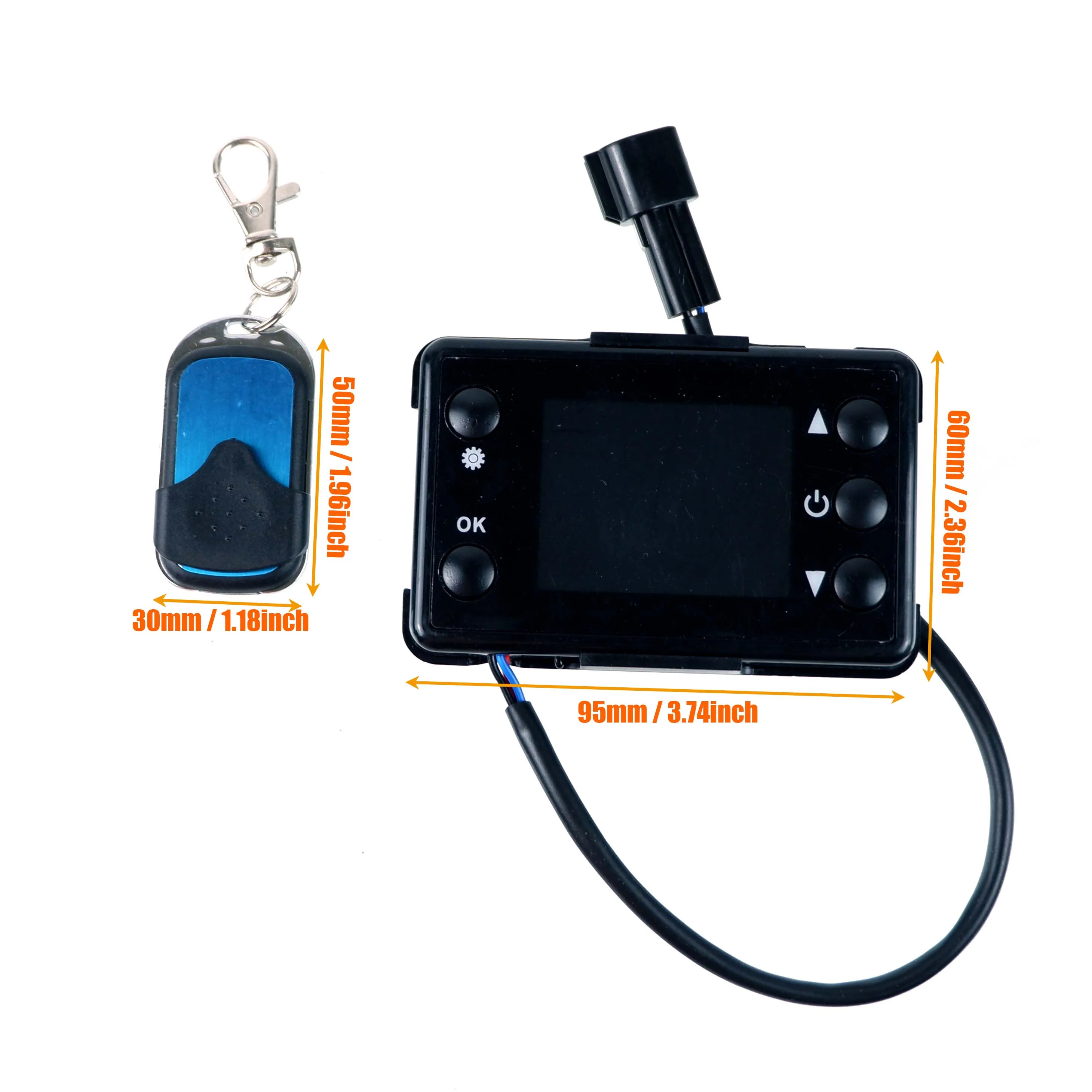

Color: like the pictrue show

Remote distance: Within 10m

Voltaje: 12V /24V

LCD Connector pin: 3 Pins Triangle Plug

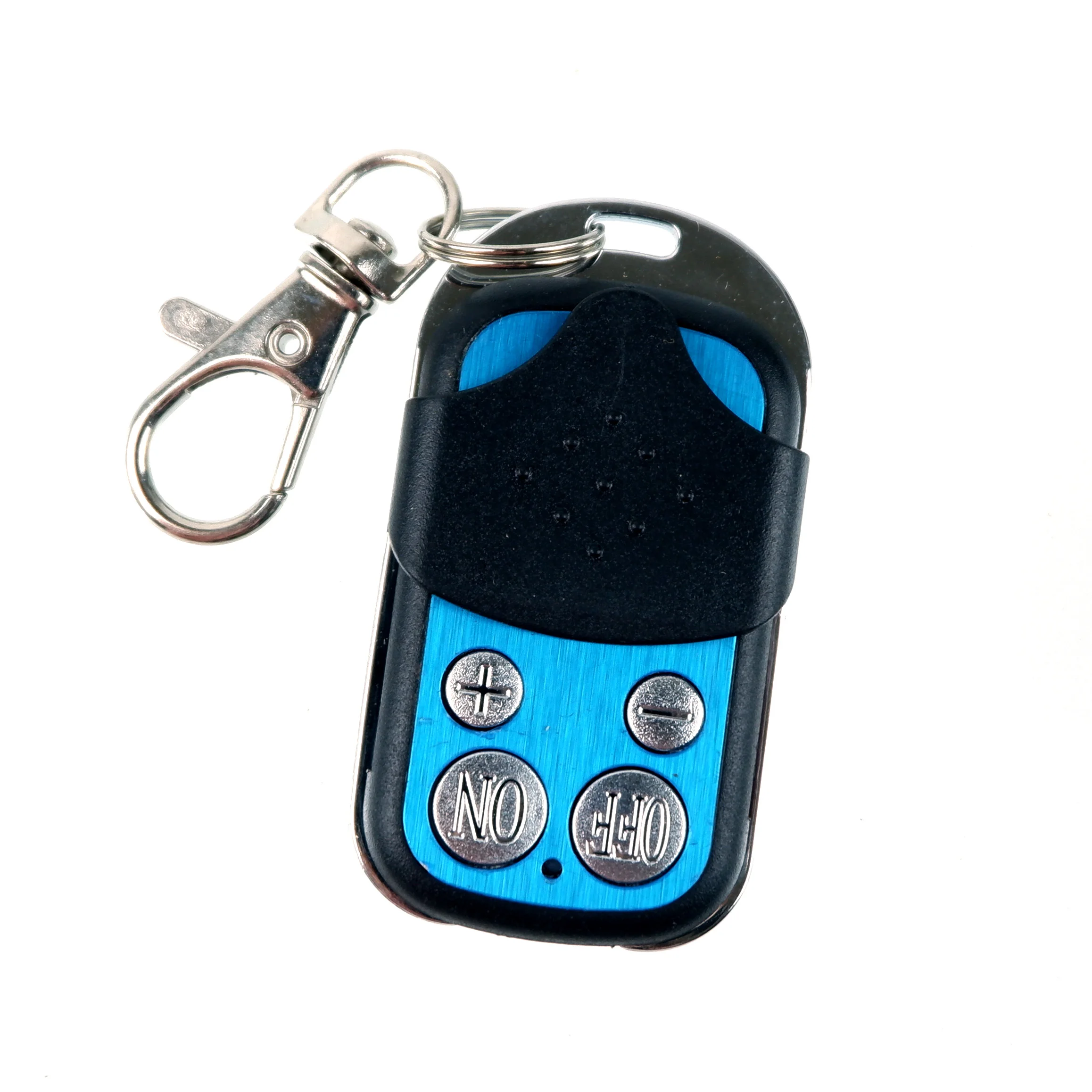

Mando a distancia: 4 Button

Batería: 1PC 27A12V, INCLUDED.

Fitment:

For 3KW 5KW 8KW Air Diesel Parking Heater

Important Note:

1. There is a transparent plastic protective film on the screen that can be removed before using.

2.If your original motherboard and controller look the same as ours,  all black plugs. then you can buy a motherboard or a controller to replace your broken one. If your original motherboard and controller are different from ours, you need to buy motherboard and controller together to replace your broken ones. Or it will not fit for your heater.

If you need to buy a set of controller, remote key and motherboard, please choose 3PC SET. If only LCD Switch & Remote is selected, the motherboard is not included; if only Mother Board is selected, the controller and remote key are not included.

Please don’t make a wrong order! ! ! Please don’t make a wrong order! ! ! Please don’t make a wrong order! ! !

Remote Control To Code instruction:

1. Pressing the up button to hold more than 3 seconds while in the off setting state.

2. Entering the remote control to the code interface until displaying【HFR-】.

3. Pressing the up button of the remote to launch the remote code.

4. El heater is on after the remote code disappear, or it won’t turn on if the code failed.

5. The code will automatically exit when it is over time.

the parameter setting process (press the setting key to enter the setting state)

1 Time setting: Press the up or down key to adjust the parameters, set the hour (24-hour clock), minutes and other parameters in turn, press the enter key to confirm the parameters, and enter the next item.

2 Timing power-on setting: default off, display 1oF press the up key to turn on display 1oN, press the enter key to enter, set the hour and minute in turn. Timing is a countdown mode, arriba a 99 hours and 59 minutos.

3 Timed shutdown setting: default off, display 2oF press the up key to turn on display 2oN, press the enter key to enter, set the hour and minute in turn. Timing is a countdown mode, arriba a 99 hours and 59 minutos.

Management password input: Press the up and down keys to adjust. When the correct value appears, press the confirm key to enter the next digit. After the 4-digit password is entered correctly, press the confirm key to enter the next item. If the input is wrong, it will return to waiting for the first digit to be entered. . There is no need to modify subsequent data, press the SET button until exiting, or wait for 10 seconds to exit automatically.

4 Pump oil volume setting: Press the up or down key to modify the minimum pump oil volume. After reaching the required value, press the confirm key to enter the maximum oil volume setting; press the up or down key to modify the maximum pump oil volume. After reaching the required value , press the enter key to enter the next item.

5 Fan speed setting: press the up or down button to modify the minimum fan speed, after reaching the required value, press the enter button to enter the maximum speed setting; press the up or down button to modify the maximum fan speed, after reaching the required value, press the enter button Go to the next item.

6 Working voltage setting: The working voltage of the motherboard can only be selected in the shutdown state. Press the up or down key to switch and set the working voltage, adjust the 12V system to display U-12,

The 24V system is adjusted to show that U-24 has completed the release. Pay attention to check whether the oil pump, motor and ignition plug of the machine are matched before starting the machine to avoid damage.

7 Speed signal selection: display 5N-1 Press the up or down key to set the speed signal, select 5N-2 if the two magnets of the impeller have the same polarity, and select 5N-1 when the polarity of the magnets is different or there is only one magnet (default value)

If this parameter is selected incorrectly, the speed will be doubled.

8 Ignition plug power selection: display PF-5 Press the up or down button to modify the value (1=35W , 2=40W , 3=45W , 4=80W , 5=85W , 6=90W) The default value is 5. It is recommended to use the default value, or modify it after verification.

9 Management password modification: Initially display the oF state, press the confirm key to skip password modification if no change is required, y save the above modified parameters. When modifying, press the up key, after oN is displayed, press confirm to enter the password modification state, press up to down key to adjust, after the 4-digit password is entered correctly, press the confirm key to enter the next digit, save the new password and the adjusted setting parameters and then exit automatically .

Nota: clock time, time of scheduled power-on and power-off, it will take effect immediately after setting, after setting all the parameters after the management and construction password, you must press OK until you exit after item 9, and then save the set parameters, if you exit midway, the previously adjusted data will be lost Missing is invalid. Please carefully check each newly entered password and save it so that you can enter and change parameters next time.

If you have any question, Siéntete libre de contactarnos.
